E01-ML01S
E01-ML01S
Part Number
3757
Lion Part
Datasheet
EBYTE Manufacture
ماژول رادیویی بیسیم 2.4 تا 2.525 گیگاهرتز nRF24L01P با رابط SPI، تغذیه 1.62 تا 3.6 ولت، برد 100 متر، کاربرد IoT

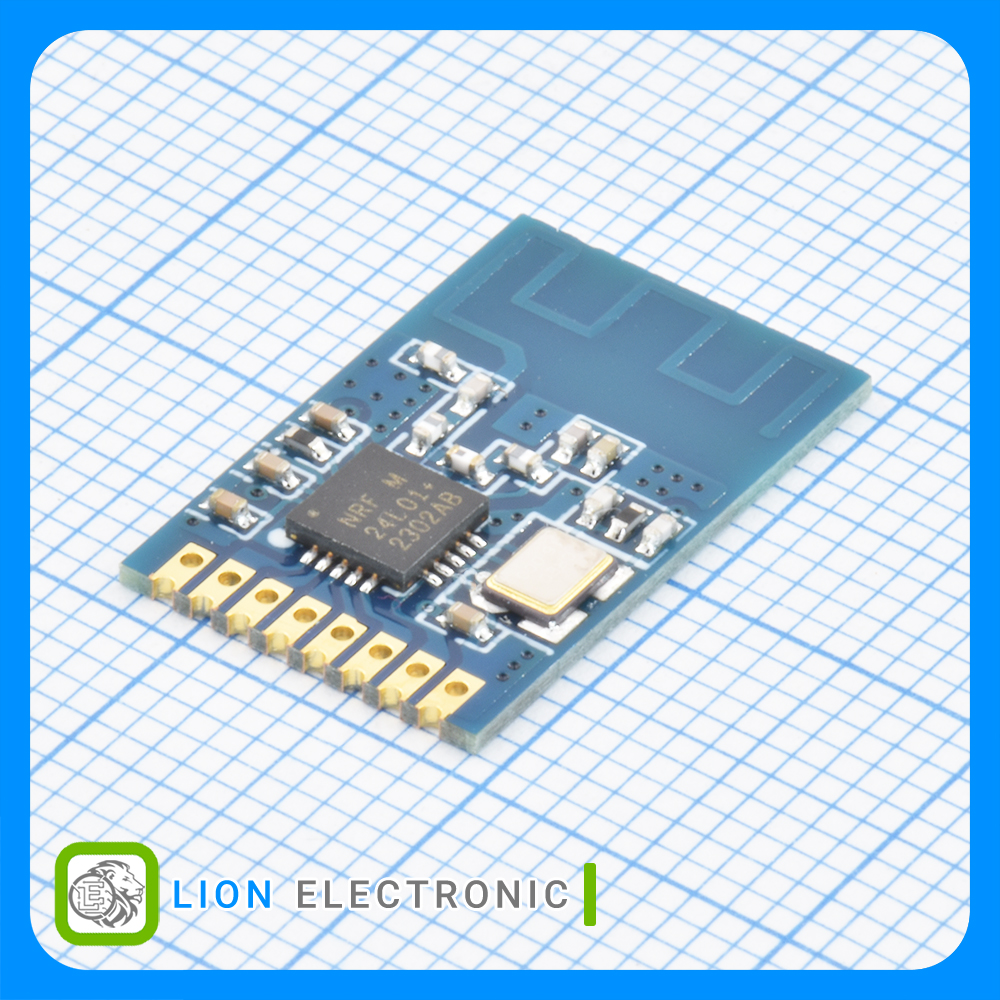

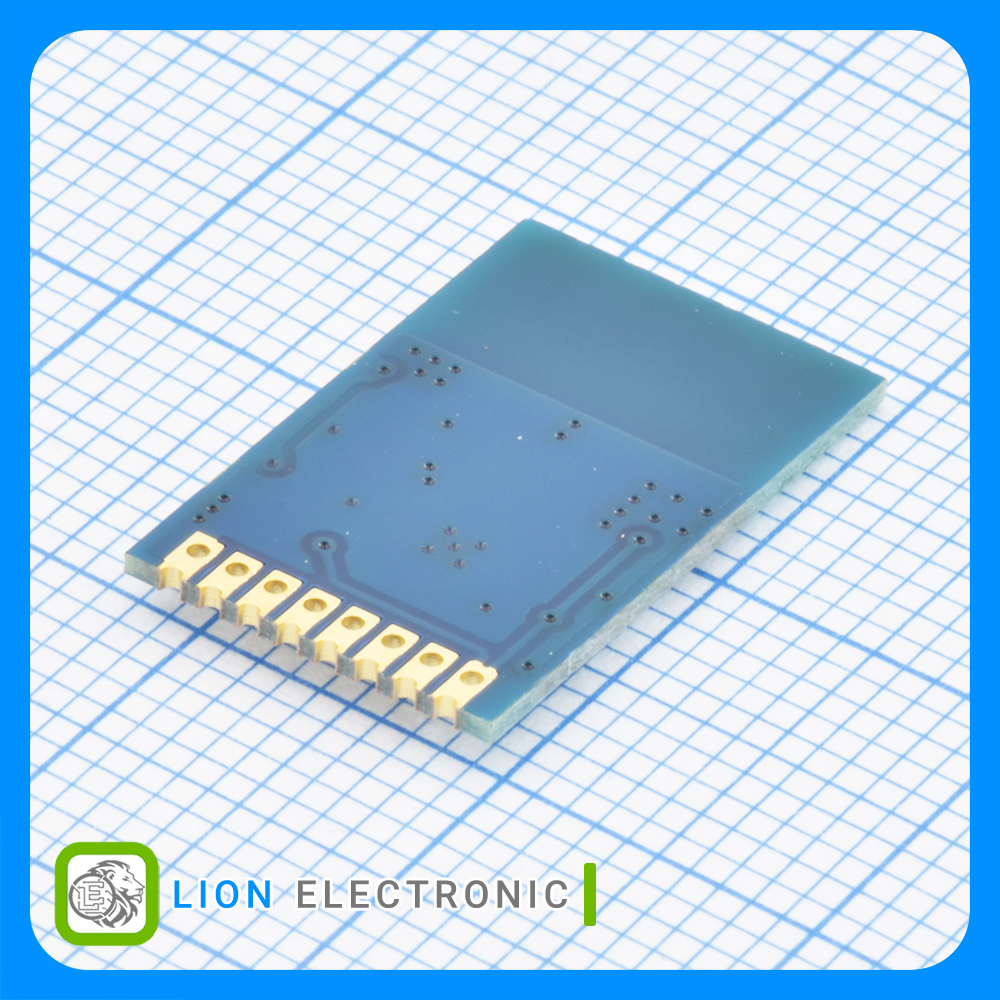

Wireless Radio Module 2.4GHz to 2.525GHz nRF24L01P with SPI Interface and 1.62 - 3.6V Supply Voltage, 100m Range, for IoT
معرفی
ماژول رادیویی بیسیم 2.4 تا 2.525 گیگاهرتز nRF24L01P با رابط SPI، تغذیه 1.62 تا 3.6 ولت، برد 100 متر، کاربرد IoT
Wireless Radio Module 2.4GHz to 2.525GHz nRF24L01P with SPI Interface and 1.62 - 3.6V Supply Voltage, 100m Range, for IoT
Specifications
- Product: Wireless Module
- Interface Type: SPI
- Antenna Connector Type: PCB
- Frequency: 2.4GHz to 2.525GHz
- Output Power: 1mW
- Operating Supply Voltage: 1.62 - 3.6V
- Supply Current Transmitting: 13mA
- Supply Current Receiving: 12mA
- Dimensions: 19mm x 12mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ماژول وایرلس E01-ML01S

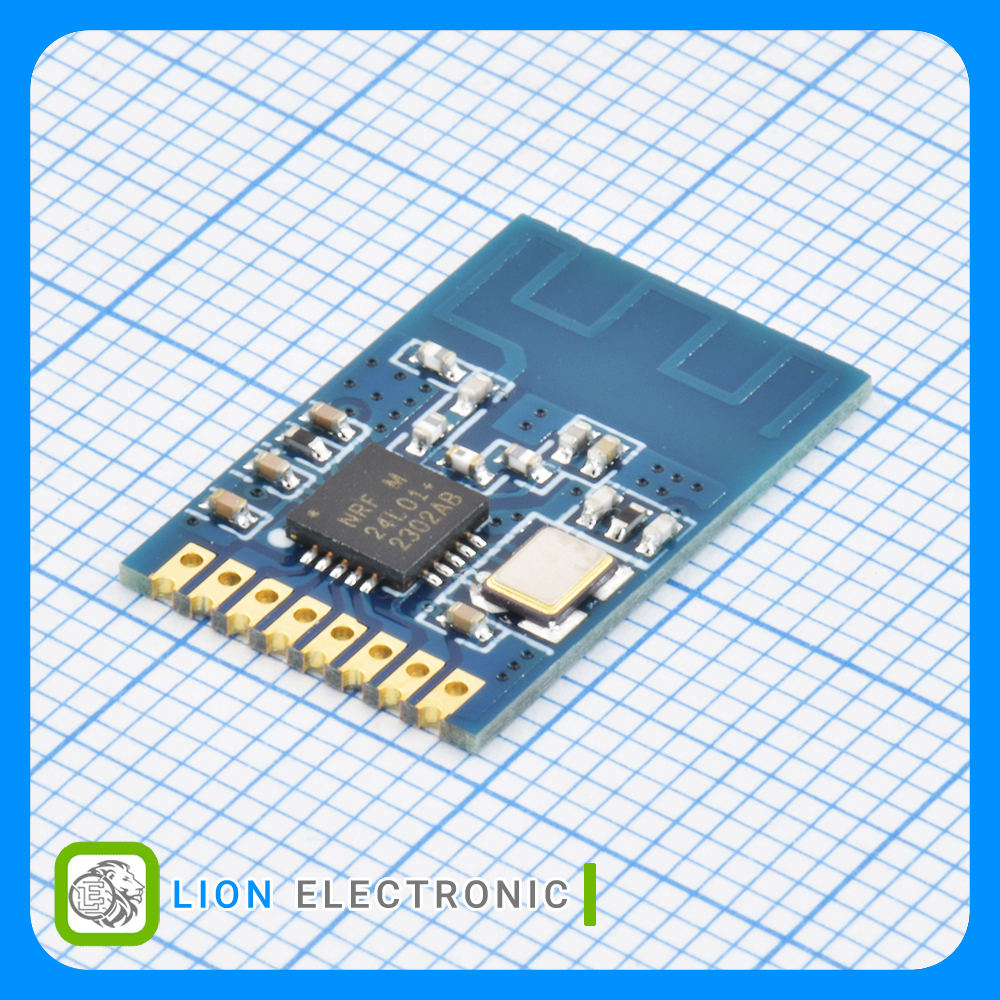

ماژول وایرلس E01-ML01S
Part Number
1mW
Output Power
Reel
Packaging
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
13mA
Supply Current Transmitting
+85C
Maximum Operating Temperature
12mA
Supply Current Receiving
1.62 - 3.6V
Operating Supply Voltage
19mm x 12mm
Dimensions
2.4GHz to 2.525GHz
Frequency
Wireless Module
Product
SPI
Interface Type
