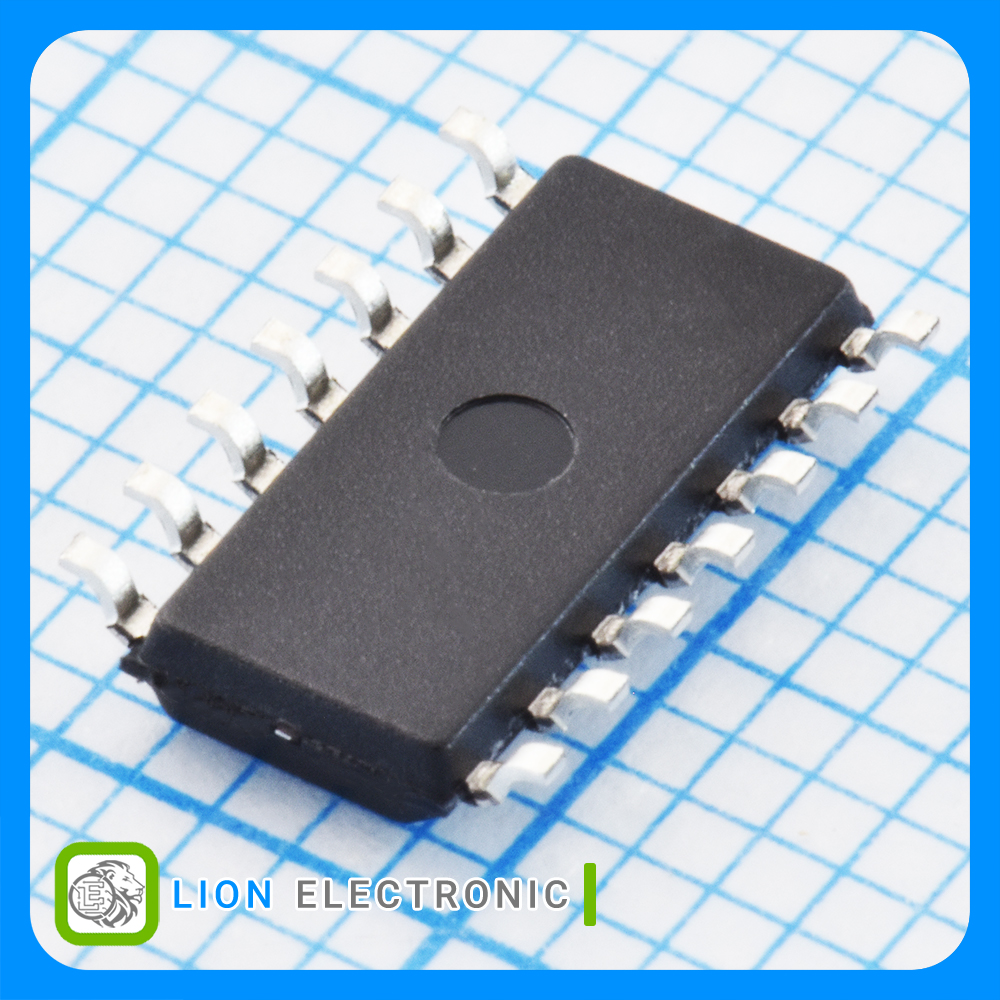

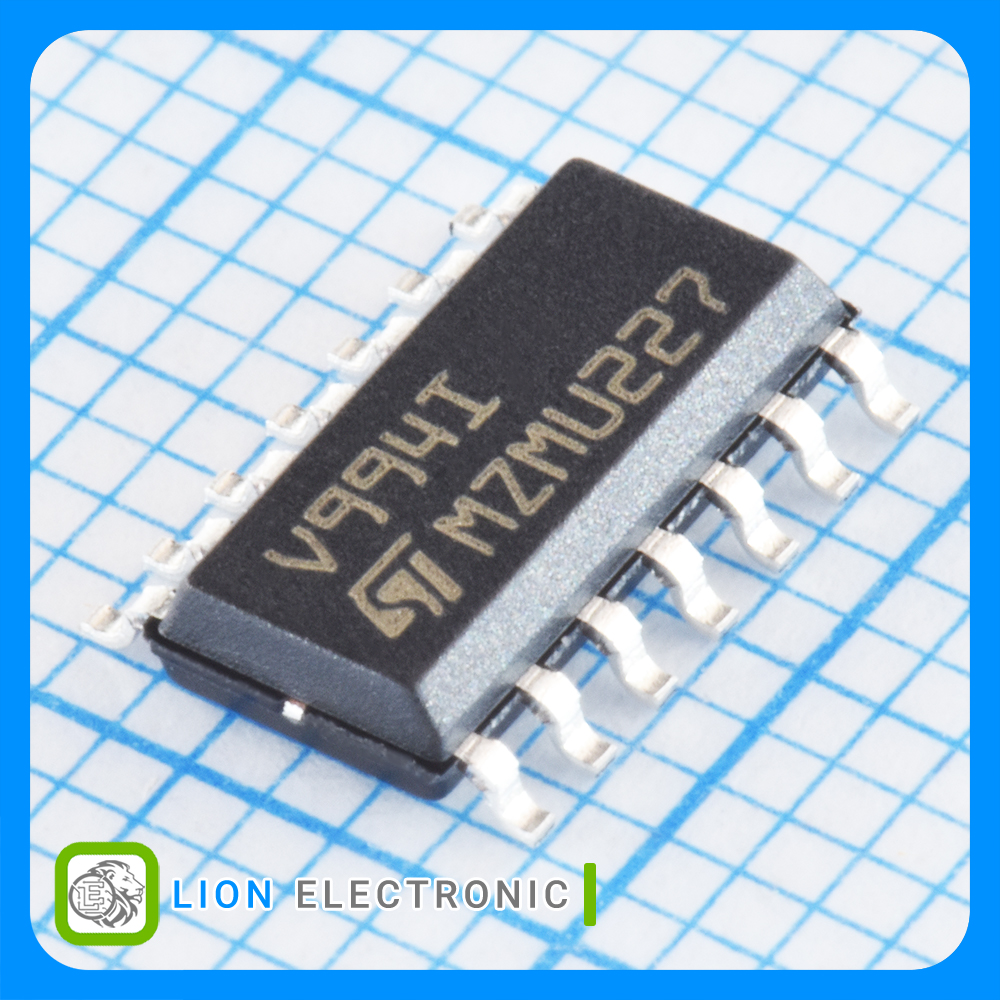

TSV994IDT
TSV994IDT
Part Number
3772
Lion Part
Datasheet
STMicroelectronics Manufacture
آپامپ تقویتکننده عملیاتی 4 کاناله ریل تو ریل ورودی و خروجی با پهنای باند 20 مگاهرتز با پکیج SOIC-14
Operational Amplifier 4-Channel, Rail-to-rail input and output Op Amps, 20MHz GBP with SOIC-14 Package
معرفی
آپامپ تقویتکننده عملیاتی 4 کاناله ریل تو ریل ورودی و خروجی با پهنای باند 20 مگاهرتز با پکیج SOIC-14
Operational Amplifier 4-Channel, Rail-to-rail input and output Op Amps, 20MHz GBP with SOIC-14 Package
Specifications
- Number of Channels: 4
- Output Current per Channel: 35mA
- SR - Slew Rate: 10V/us
- GBP - Gain Bandwidth Product: 20MHz
- CMRR - Common Mode Rejection Ratio: 82dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: 100uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.5V
- Operating Supply Current: 820uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ TSV994IDT
آپ امپ TSV994IDT
Part Number
4
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
100uV
Vos - Input Offset Voltage
5.5V
Supply Voltage - Max
35mA
Output Current per Channel
82dB
CMRR - Common Mode Rejection Ratio
2.5V
Supply Voltage - Min
10V/us
SR - Slew Rate
20MHz
GBP - Gain Bandwidth Product
820uA
Operating Supply Current
SOIC-14
Package-Case
