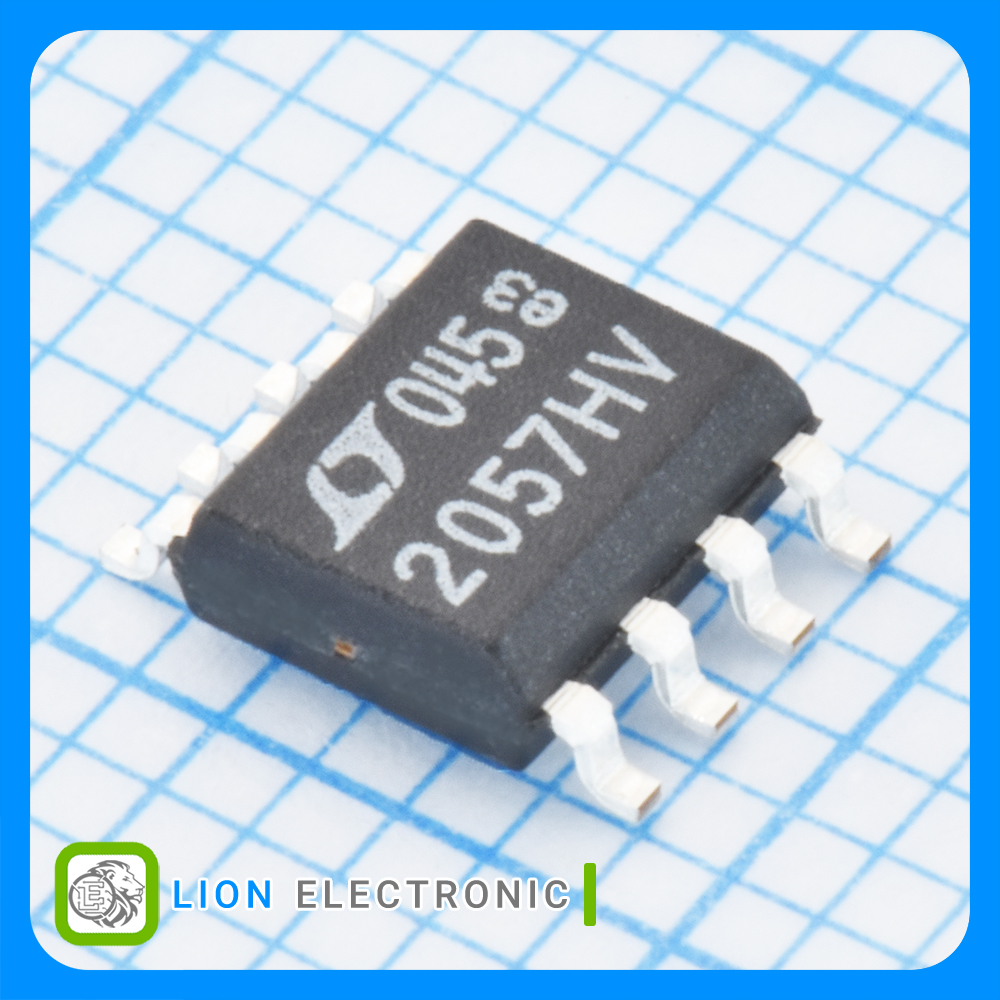

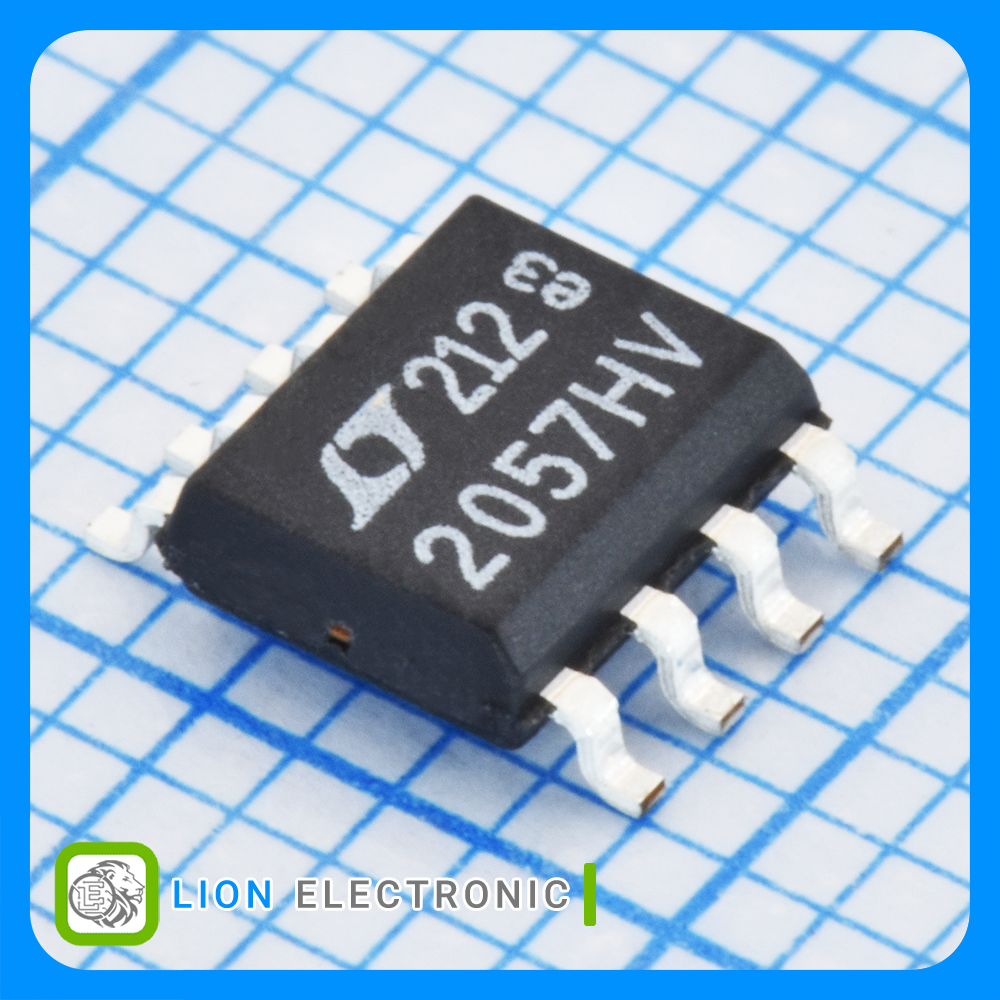

LTC2057HVIS8
LTC2057HVIS8
Part Number
397
Lion Part
Datasheet
Linear Technology Manufacture
آپامپ دقیق 1 کاناله ولتاژ بالا ریلبهریل کمنویز دریفت صفر با پهنای باند 1.5 مگاهرتز و پکیج SO-8
High Voltage, Rail-to-Rail, Low Noise Zero-Drift Precision Operational Amplifier 1-Channel, 1.5MHz with SO-8 Package
معرفی
آپامپ دقیق 1 کاناله ولتاژ بالا ریلبهریل کمنویز دریفت صفر با پهنای باند 1.5 مگاهرتز و پکیج SO-8
High Voltage, Rail-to-Rail, Low Noise Zero-Drift Precision Operational Amplifier 1-Channel, 1.5MHz with SO-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 26mA
- SR - Slew Rate: 1.2V/us
- GBP - Gain Bandwidth Product: 1.5MHz
- CMRR - Common Mode Rejection Ratio: 150dB
- Ib - Input Bias Current: 30pA
- Vos - Input Offset Voltage: 500uV
- Supply Voltage - Max: 60V
- Supply Voltage - Min: 4.75V
- Operating Supply Current: 800uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات آپ امپ LTC2057HVIS8
آپ امپ LTC2057HVIS8
Part Number
1
Number of Channels
-40C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
30pA
Ib - Input Bias Current
26mA
Output Current per Channel
1.2V/us
SR - Slew Rate
1.5MHz
GBP - Gain Bandwidth Product
500uV
Vos - Input Offset Voltage
4.75V
Supply Voltage - Min
150dB
CMRR - Common Mode Rejection Ratio
60V
Supply Voltage - Max
800uA
Operating Supply Current
SOIC-8
Package-Case
