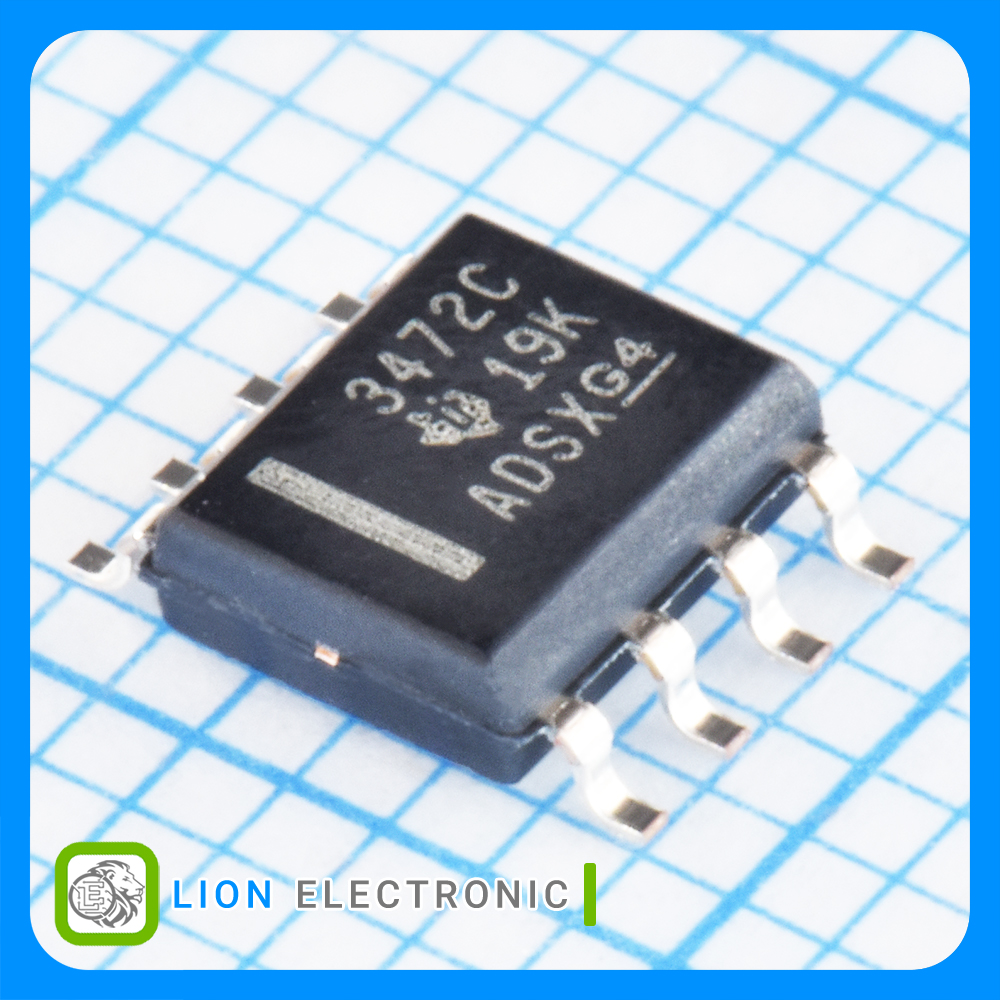

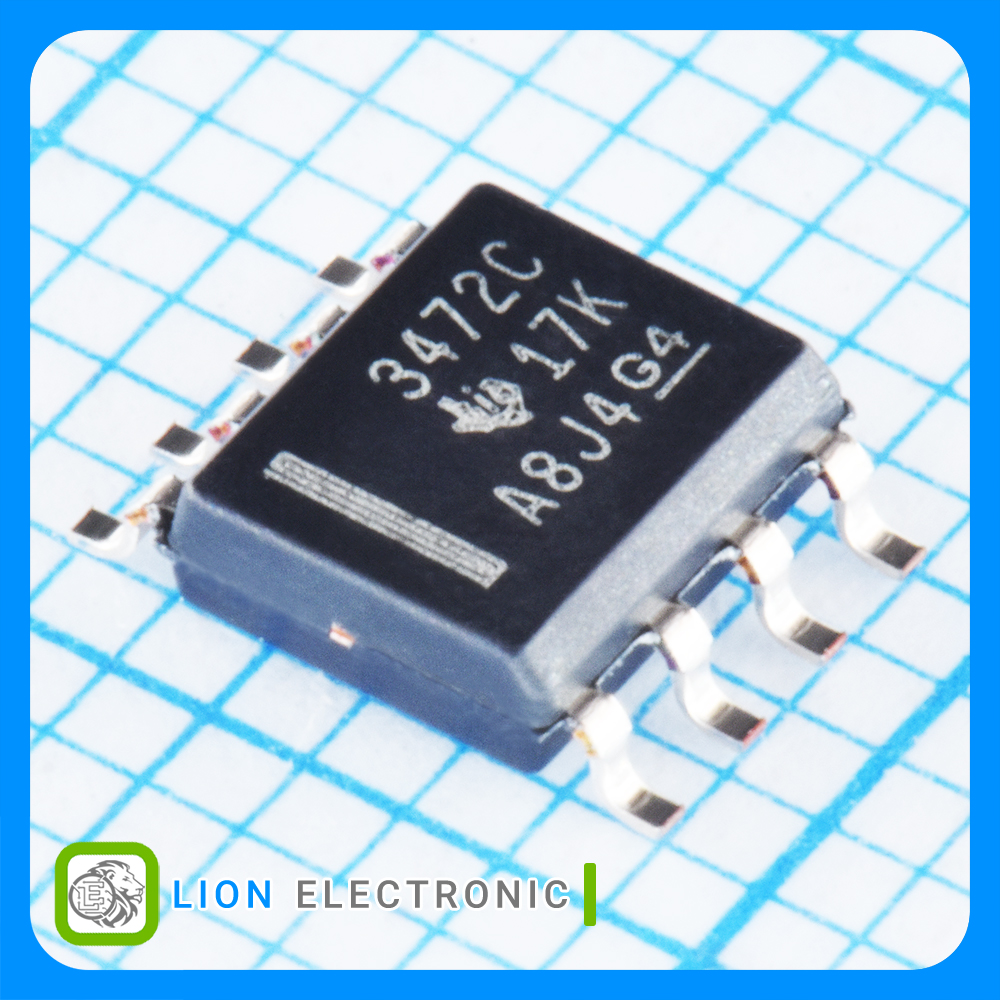

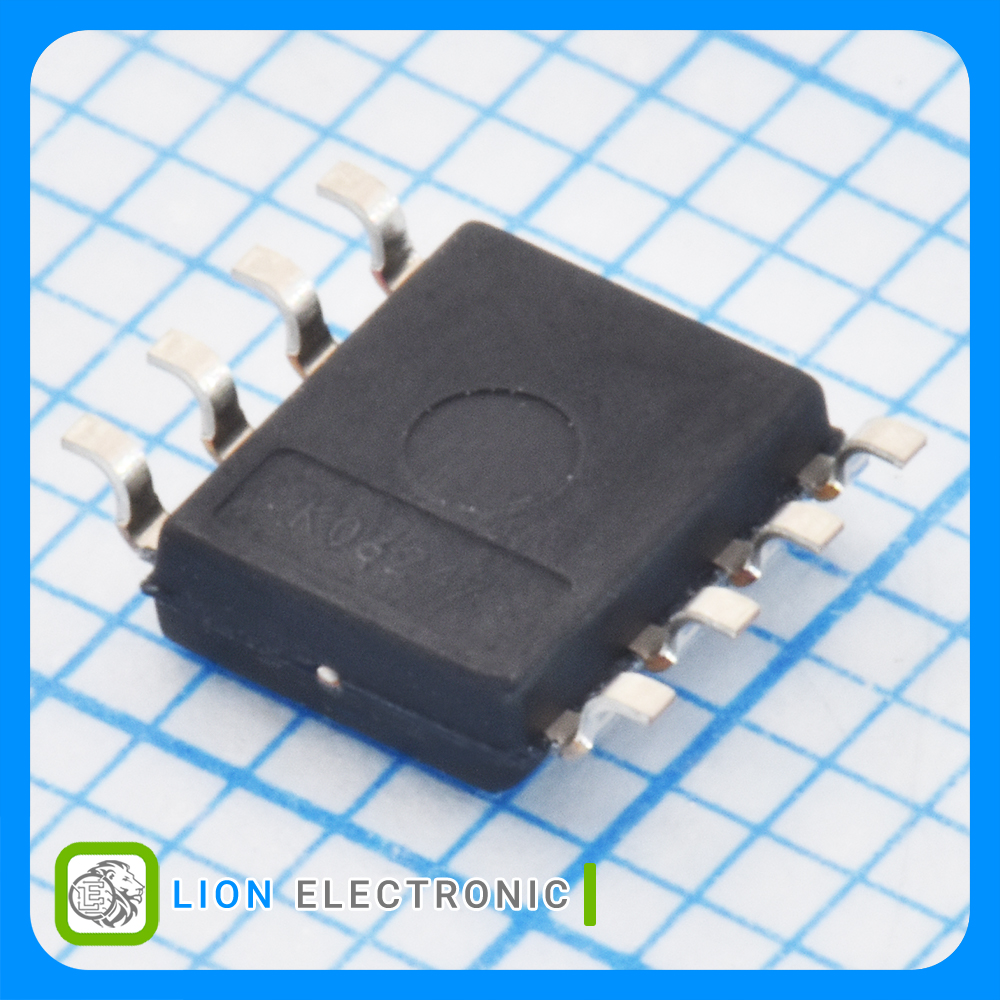

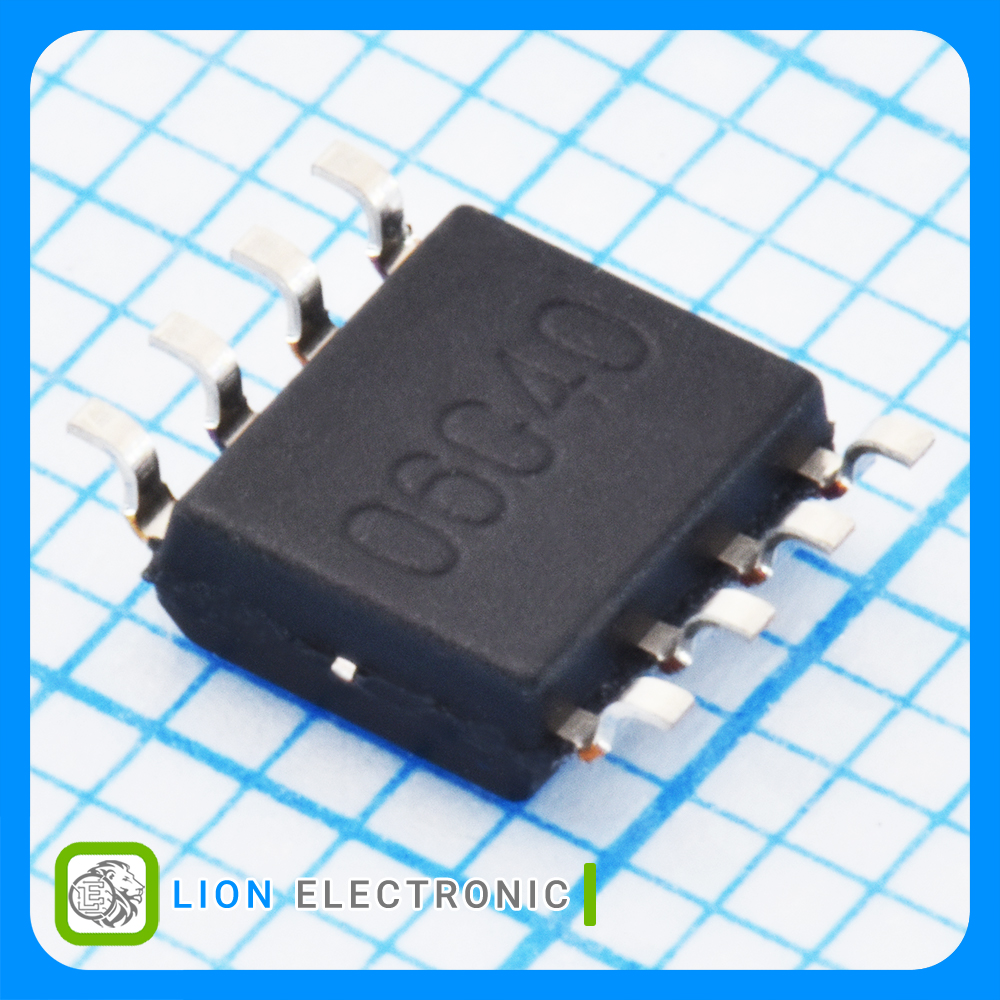

TL3472CDR
TL3472CDR
Part Number
398
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله اسلو ریت بالا تکتغذیه با پهنای باند 4 مگاهرتز و پکیج SOIC-8
High-Slew-Rate, Single-Supply Operational Amplifier 2-Channel, 4MHz with SOIC-8 Package
معرفی
آپامپ 2 کاناله اسلو ریت بالا تکتغذیه با پهنای باند 4 مگاهرتز و پکیج SOIC-8
High-Slew-Rate, Single-Supply Operational Amplifier 2-Channel, 4MHz with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 27mA
- SR - Slew Rate: 10V/us
- GBP - Gain Bandwidth Product: 4MHz
- CMRR - Common Mode Rejection Ratio: 97dB
- Ib - Input Bias Current: 500nA
- Vos - Input Offset Voltage: 1.5mV
- Supply Voltage - Max: 36V
- Supply Voltage - Min: 4V
- Operating Supply Current: 3.5mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات آپ امپ TL3472CDR
آپ امپ TL3472CDR
Part Number
No Shutdown
Shutdown
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+105C
Maximum Operating Temperature
27mA
Output Current per Channel
10V/us
SR - Slew Rate
4MHz
GBP - Gain Bandwidth Product
97dB
CMRR - Common Mode Rejection Ratio
1.5mV
Vos - Input Offset Voltage
4V
Supply Voltage - Min
500nA
Ib - Input Bias Current
36V
Supply Voltage - Max
3.5mA
Operating Supply Current
SOIC-8
Package-Case
