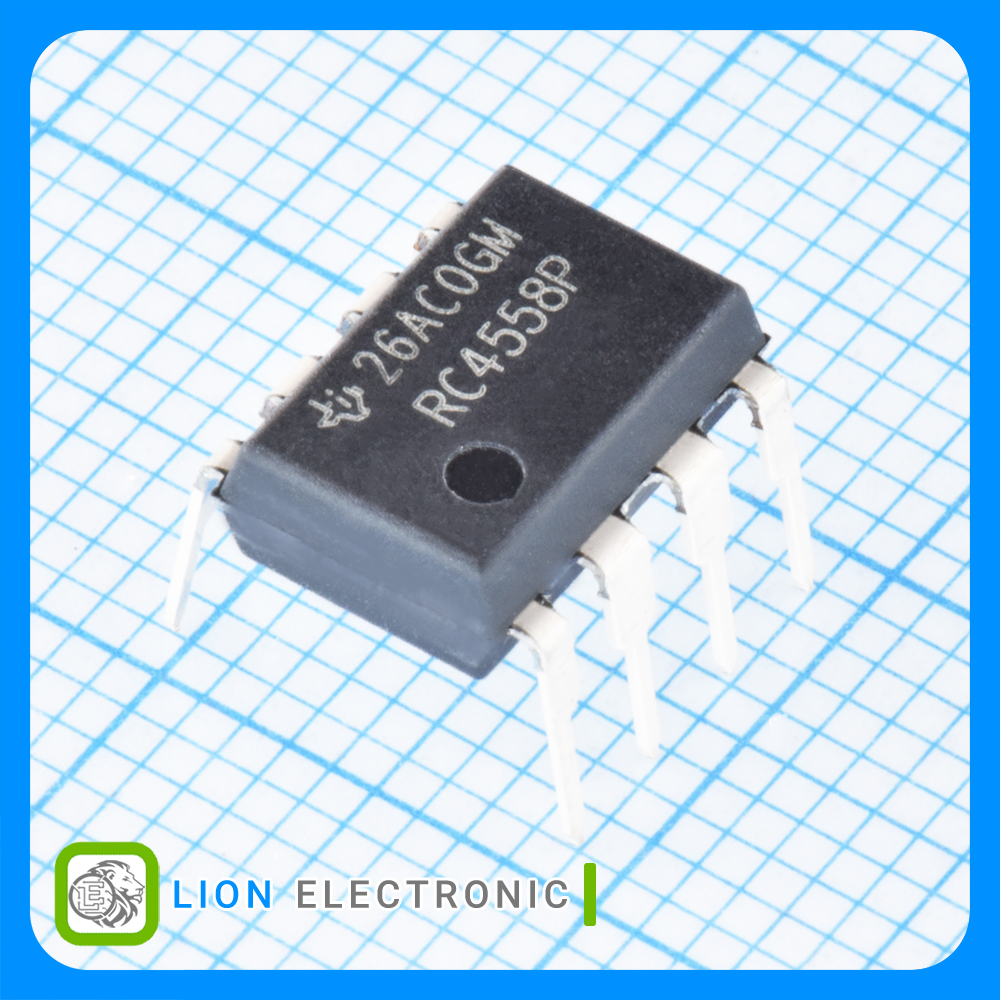

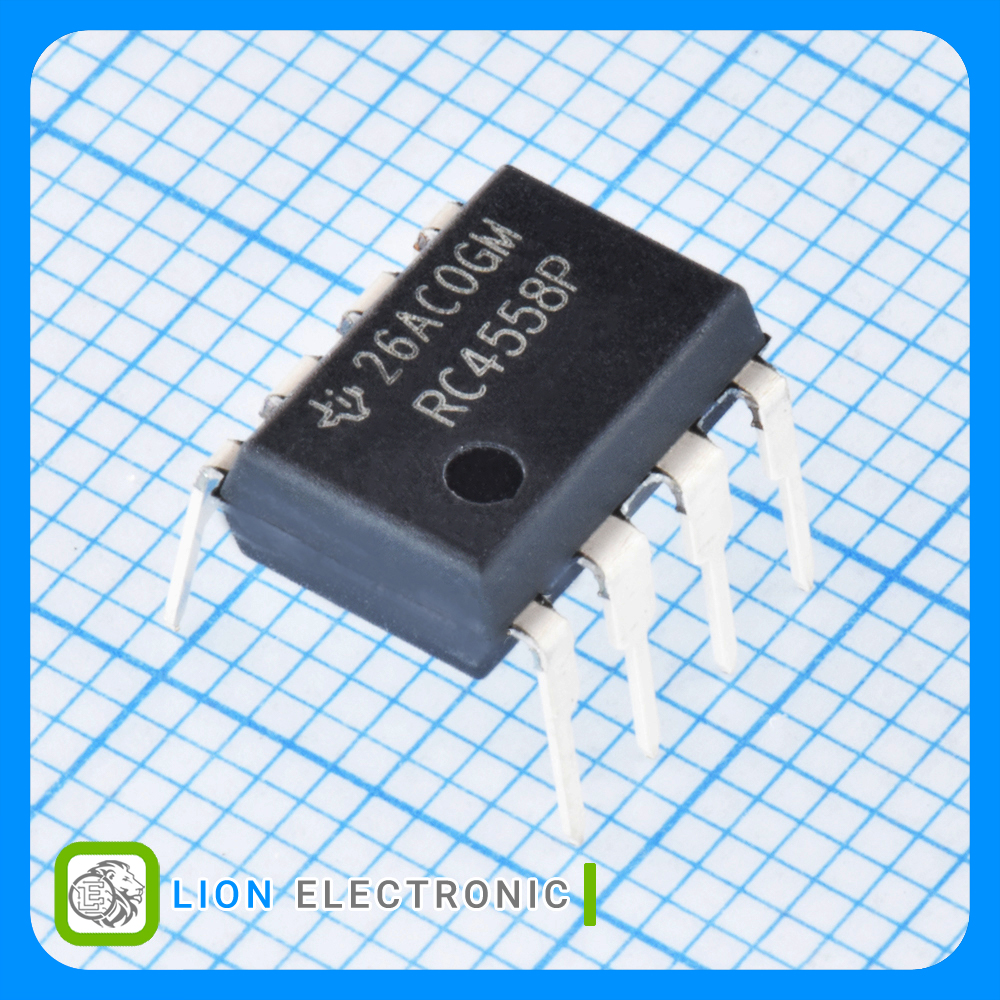

RC4558P
RC4558P
Part Number
401
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله همهمنظوره با پهنای باند 3 مگاهرتز و پکیج PDIP-8
Dual General-Purpose Operational Amplifier 2-Channel, 3MHz with PDIP-8 Package
معرفی
آپامپ 2 کاناله همهمنظوره با پهنای باند 3 مگاهرتز و پکیج PDIP-8
Dual General-Purpose Operational Amplifier 2-Channel, 3MHz with PDIP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 10mA
- SR - Slew Rate: 1.7V/us
- GBP - Gain Bandwidth Product: 3MHz
- CMRR - Common Mode Rejection Ratio: 90dB
- Ib - Input Bias Current: 500nA
- Vos - Input Offset Voltage: 500uV
- Supply Voltage - Max: 30V
- Supply Voltage - Min: 10V
- Operating Supply Current: 2.5mA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات RC4558P
RC4558P
Part Number
No Shutdown
Shutdown
2
Number of Channels
+70C
Maximum Operating Temperature
Tube
Packaging
10mA
Output Current per Channel
Through Hole
Mounting Style
0C
Minimum Operating Temperature
1.7V/us
SR - Slew Rate
90dB
CMRR - Common Mode Rejection Ratio
3MHz
GBP - Gain Bandwidth Product
500uV
Vos - Input Offset Voltage
500nA
Ib - Input Bias Current
30V
Supply Voltage - Max
10V
Supply Voltage - Min
DIP-8
Package-Case
2.5mA
Operating Supply Current
