TL061ACP
TL061ACP
Part Number
402
Lion Part
Datasheet
Texas Instruments Manufacture
Op-Amp 1 کاناله JFET با مصرف توان پایین با پکیج DIP-8

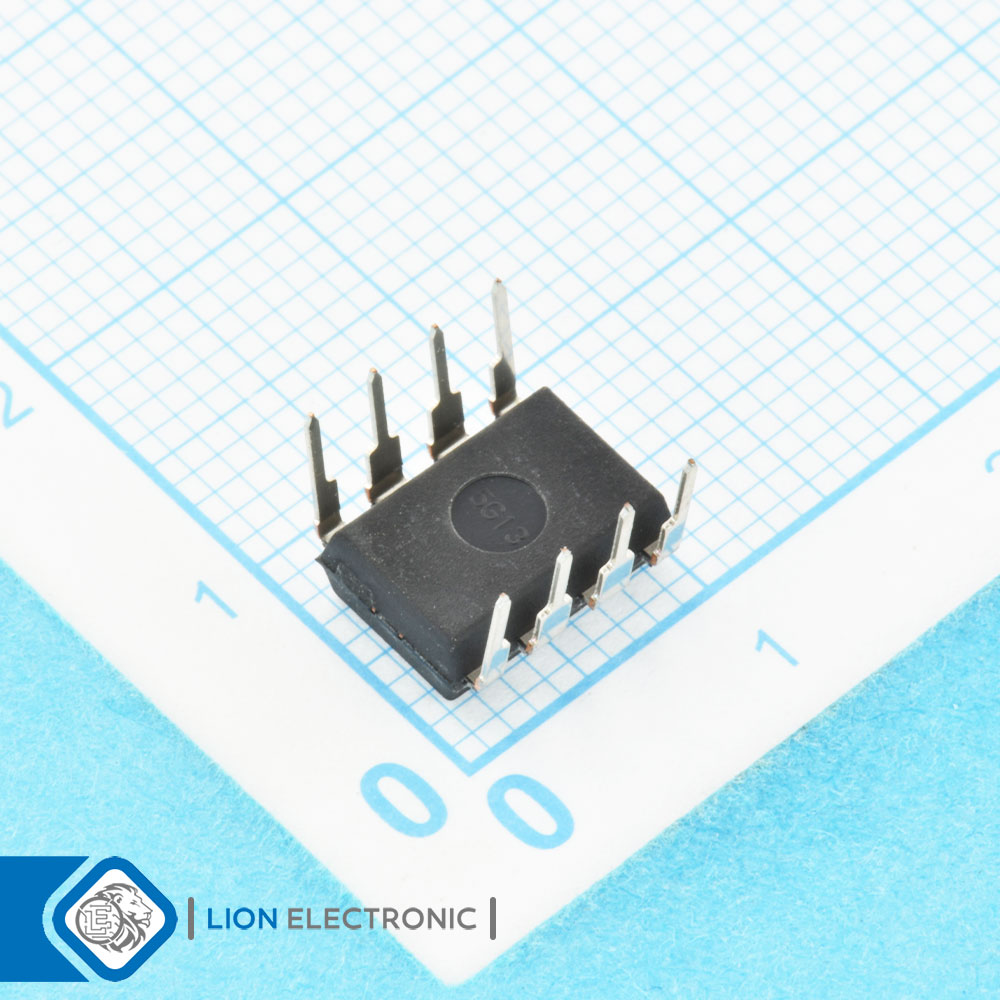

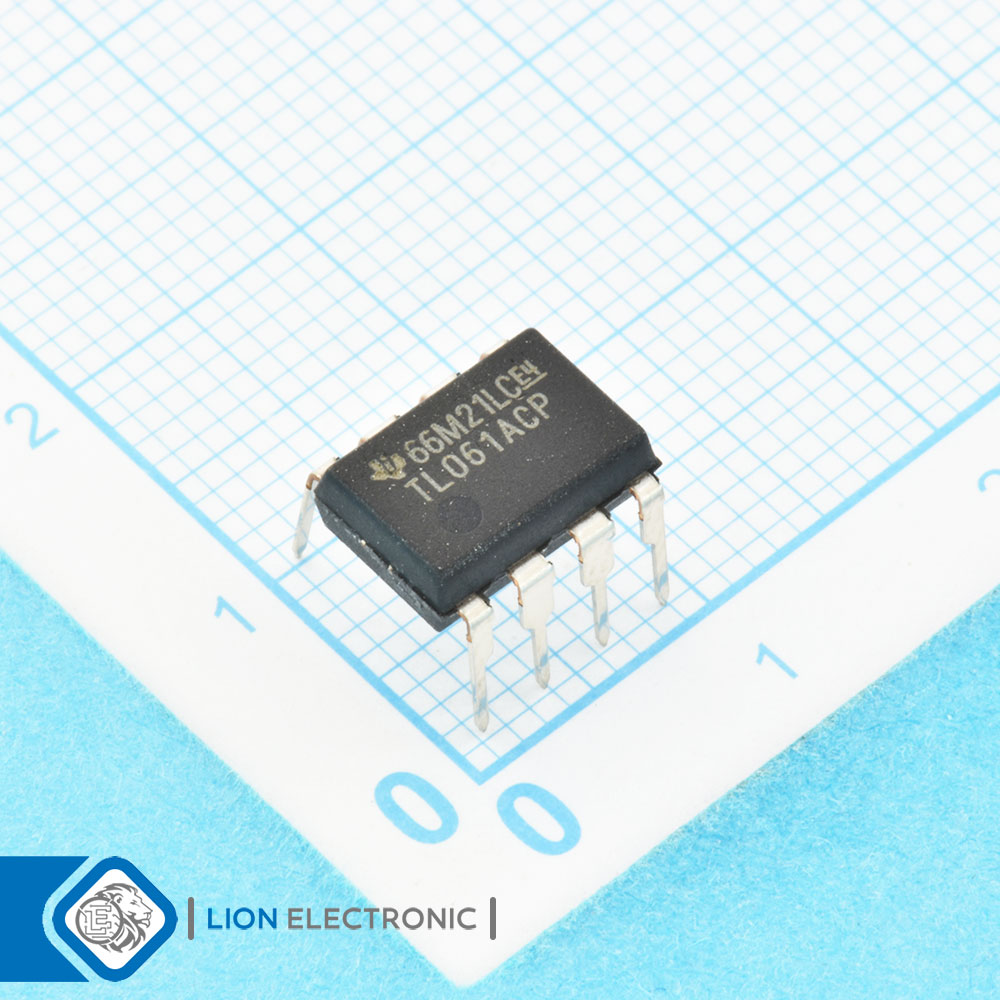

Single Low-Power JFET-Input Operational Amplifier DIP-8
معرفی
Op-Amp 1 کاناله JFET با مصرف توان پایین با پکیج DIP-8
Single Low-Power JFET-Input Operational Amplifier DIP-8
Specifications
- Number of Channels: 1
- Output Current per Channel: 10mA
- SR - Slew Rate: 3.5V/us
- GBP - Gain Bandwidth Product: 1MHz
- CMRR - Common Mode Rejection Ratio: 70dB to 86dB
- Ib - Input Bias Current: 200pA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 36V
- Supply Voltage - Min: 7V
- Operating Supply Current: 200uA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات آپ امپ TL061ACP
آپ امپ TL061ACP
Part Number
No Shutdown
Shutdown
1
Number of Channels
+70C
Maximum Operating Temperature
10mA
Output Current per Channel
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
70dB to 86dB
CMRR - Common Mode Rejection Ratio
1MHz
GBP - Gain Bandwidth Product
200pA
Ib - Input Bias Current
3.5V/us
SR - Slew Rate
3mV
Vos - Input Offset Voltage
200uA
Operating Supply Current
36V
Supply Voltage - Max
7V
Supply Voltage - Min
DIP-8
Package-Case
