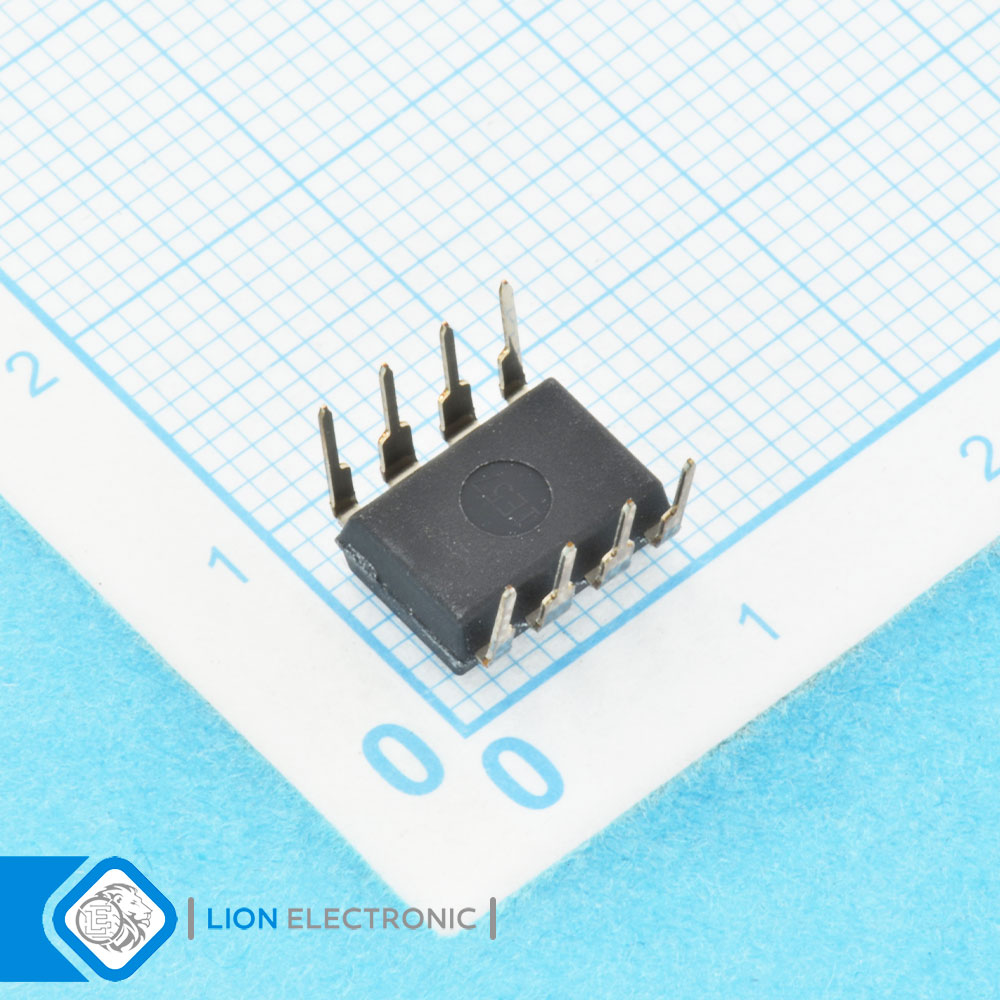

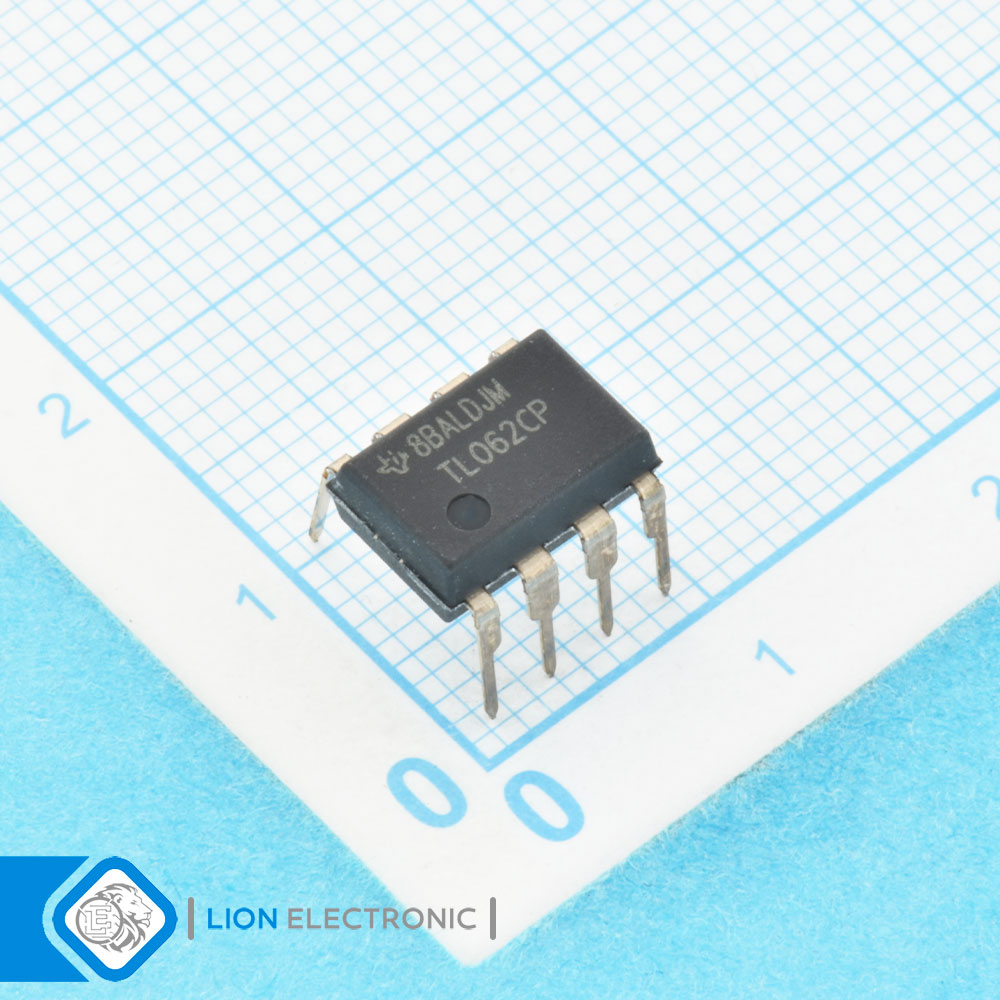

TL062CP
TL062CP
Part Number
403
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله کممصرف با ورودی JFET، پهنای باند 1 مگاهرتز و پکیج PDIP-8
Low-Power JFET-Input Operational Amplifier 2-Channel, 1MHz with PDIP-8 Package
معرفی
آپامپ 2 کاناله کممصرف با ورودی JFET، پهنای باند 1 مگاهرتز و پکیج PDIP-8
Low-Power JFET-Input Operational Amplifier 2-Channel, 1MHz with PDIP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 10mA
- SR - Slew Rate: 3.5V/us
- GBP - Gain Bandwidth Product: 1MHz
- CMRR - Common Mode Rejection Ratio: 70dB to 86dB
- Ib - Input Bias Current: 400pA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 30V
- Supply Voltage - Min: 7V
- Operating Supply Current: 200uA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات آپ امپ TL062CP
آپ امپ TL062CP
Part Number
No Shutdown
Shutdown
2
Number of Channels
-40C
Minimum Operating Temperature
10mA
Output Current per Channel
Tube
Packaging
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
70dB to 86dB
CMRR - Common Mode Rejection Ratio
1MHz
GBP - Gain Bandwidth Product
400pA
Ib - Input Bias Current
3.5V/us
SR - Slew Rate
3mV
Vos - Input Offset Voltage
30V
Supply Voltage - Max
200uA
Operating Supply Current
7V
Supply Voltage - Min
DIP-8
Package-Case
