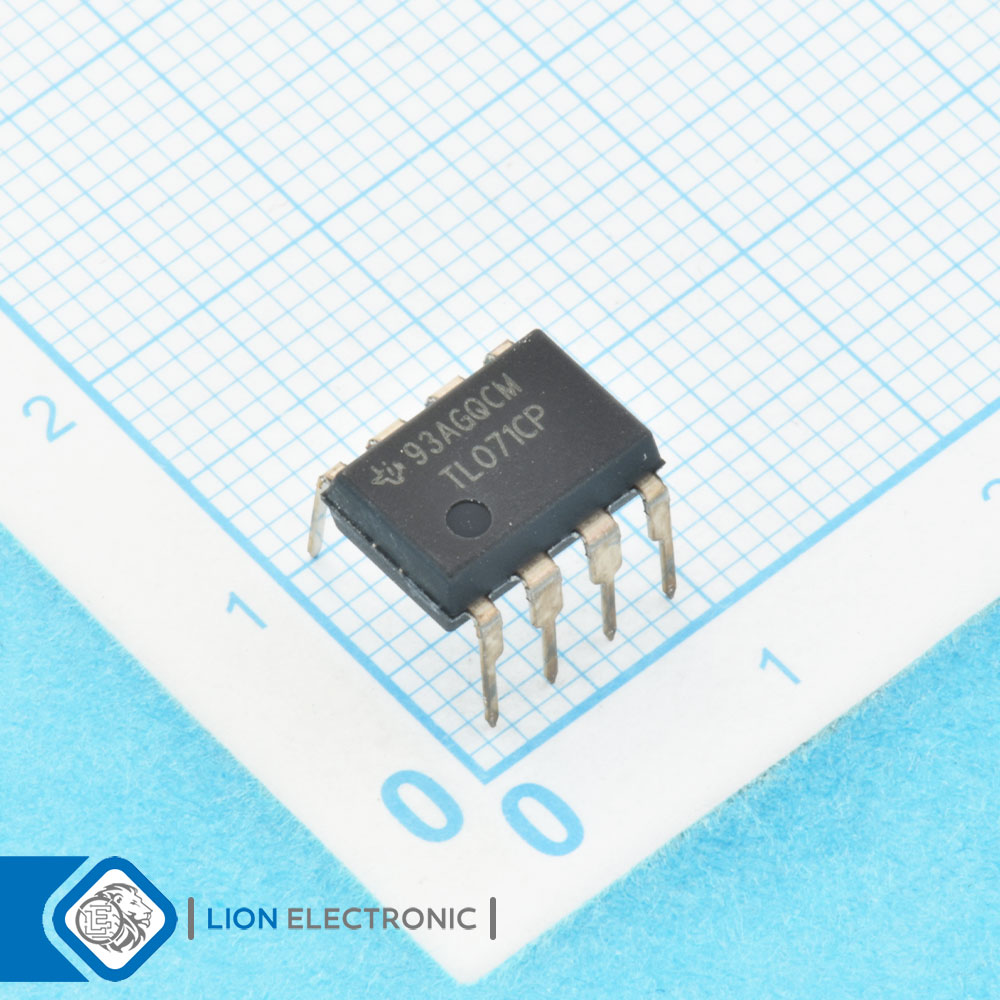

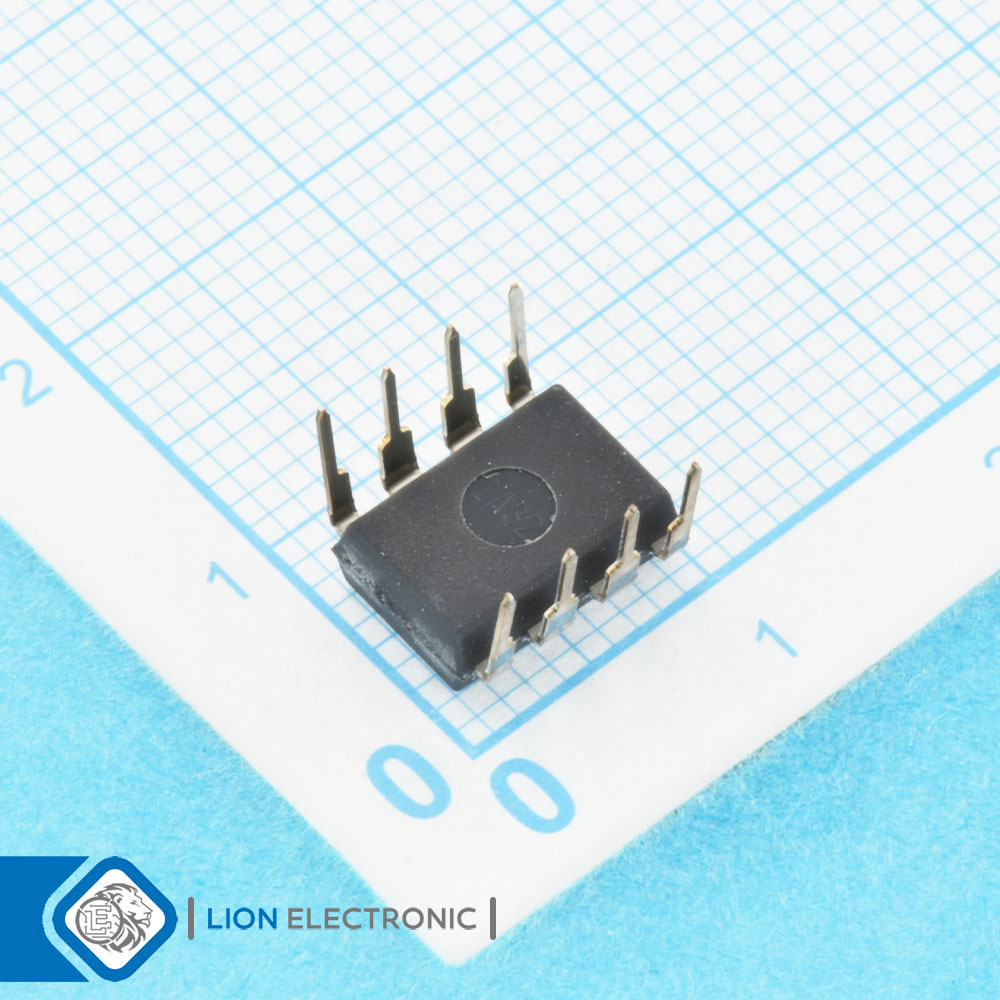

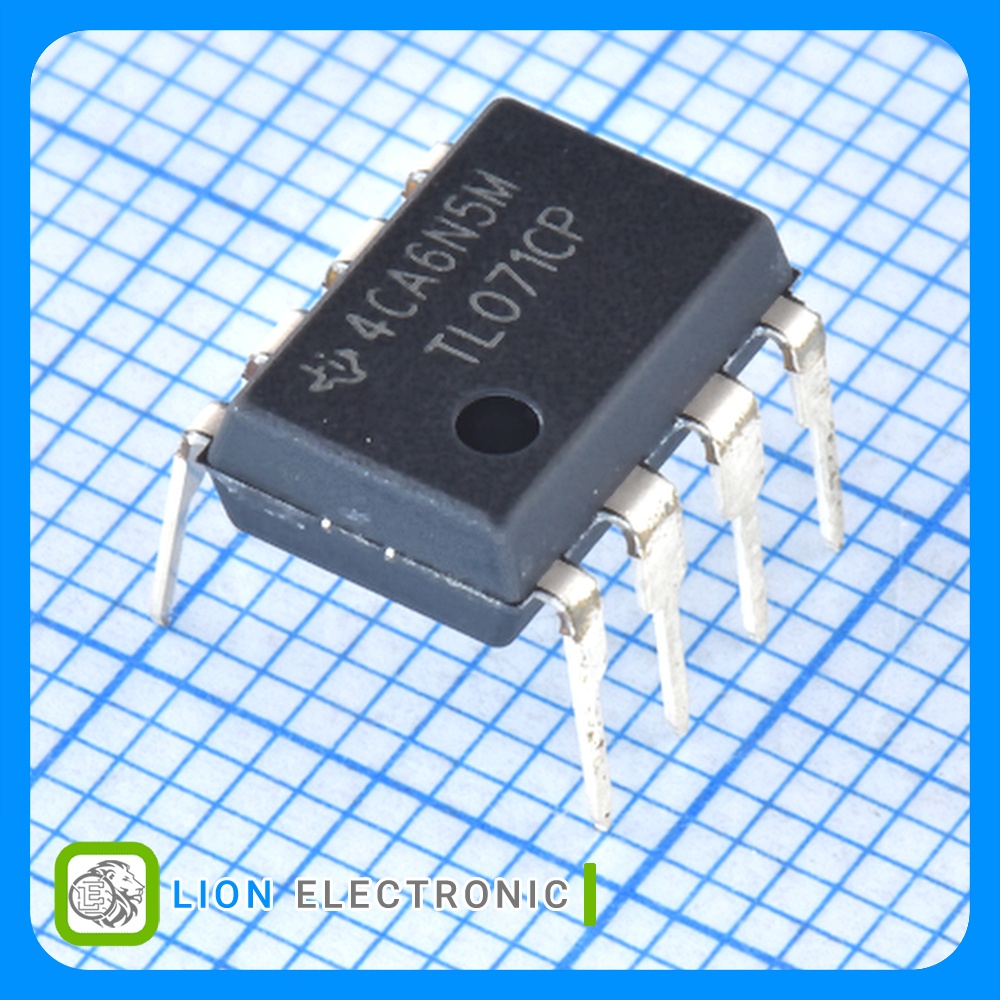

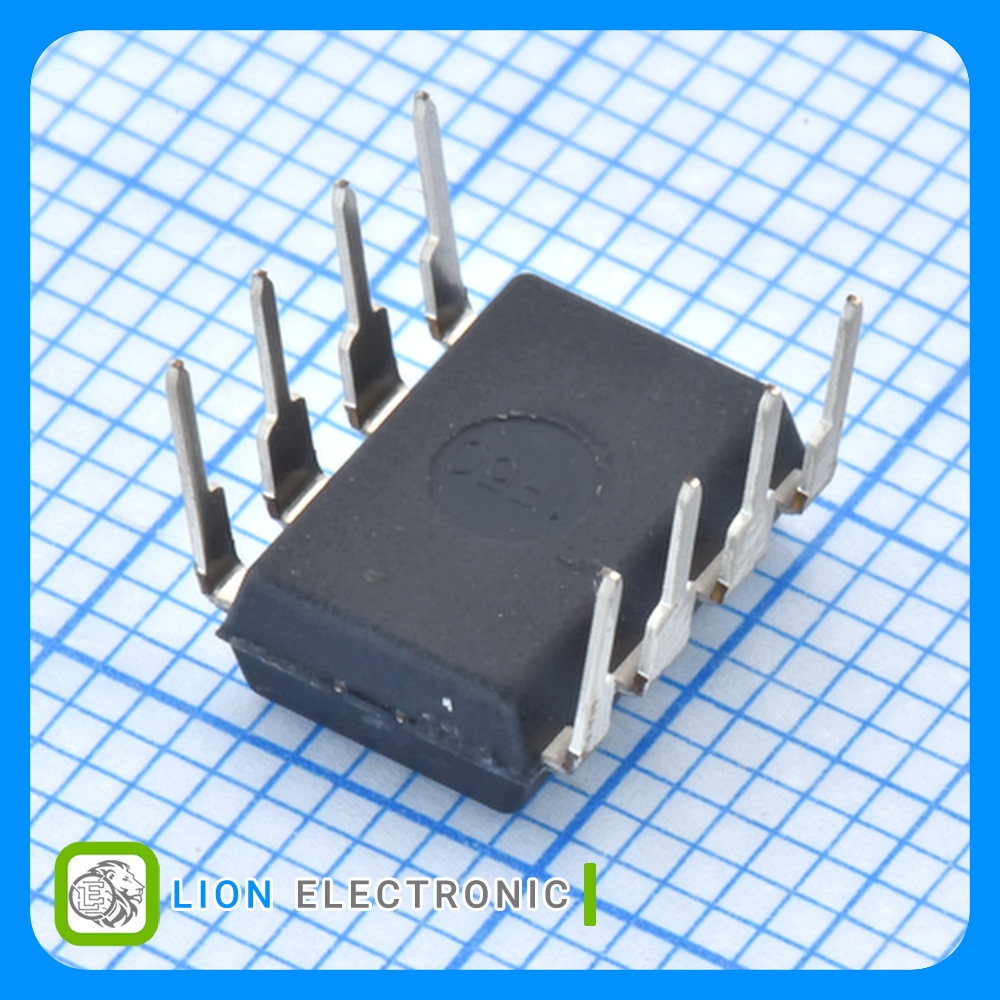

آپ امپ TL071CP
TL071CP
Part Number
405
Lion Part
Datasheet
Texas Instruments Manufacture
تقویت کننده عملیاتی 1 کاناله کم نویز با مصرف توان پایین با پکیج PDIP-8
Single, Low-Noise, JFET-Input, Low Power Consumption Operational Amplifiers PDIP-8
مشخصات آپ امپ TL071CP
آپ امپ TL071CP
Part Number
1
Number of Channels
No Shutdown
Shutdown
-40C
Minimum Operating Temperature
10mA
Output Current per Channel
Tube
Packaging
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
70dB to 100dB
CMRR - Common Mode Rejection Ratio
200pA
Ib - Input Bias Current
3MHz
GBP - Gain Bandwidth Product
13V/us
SR - Slew Rate
3mV
Vos - Input Offset Voltage
36V
Supply Voltage - Max
7V
Supply Voltage - Min
DIP-8
Package-Case
1.4mA
Operating Supply Current
