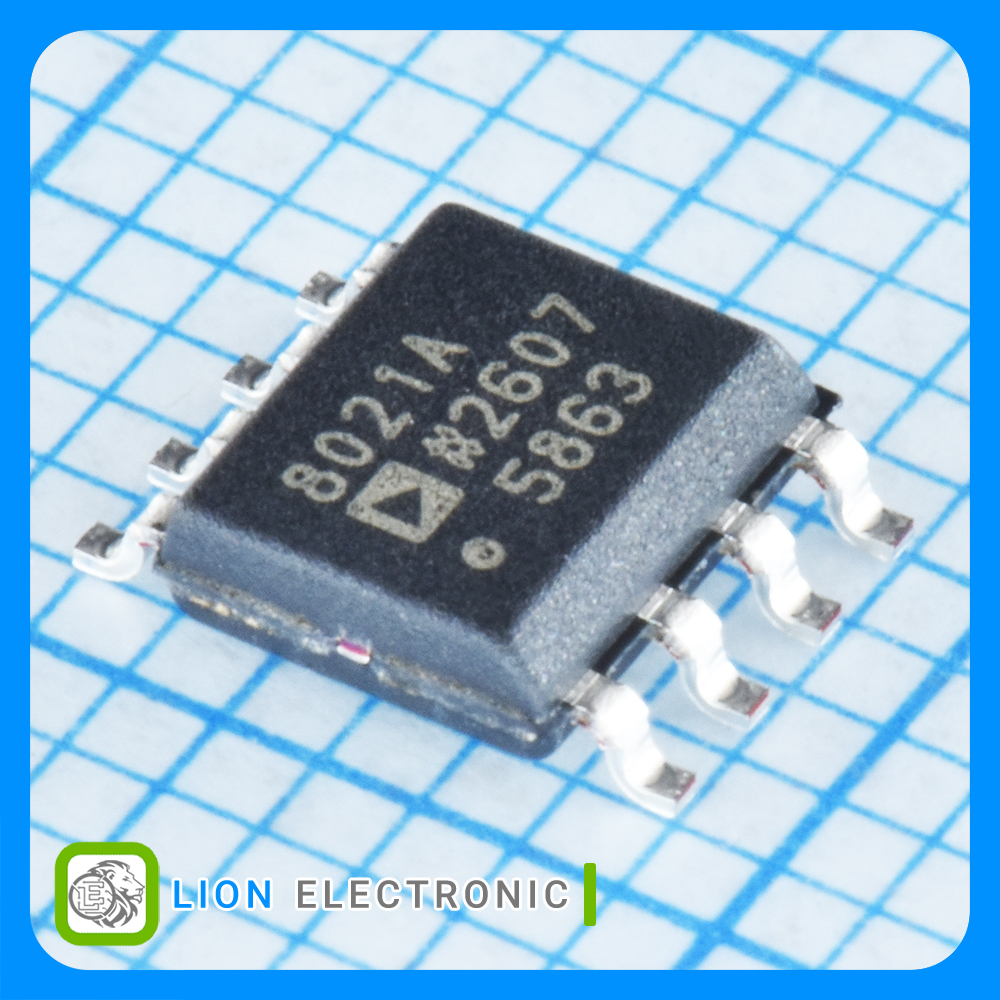

مشخصات AD8021ARZ

  • Part Number
    AD8021ARZ
  • Series
    AD8021
  • Number of Channels
    1
  • Mounting Style
    SMD/SMT
  • Voltage Gain dB
    76dB
  • Minimum Operating Temperature
    -40C
  • Packaging
    Tube
  • Maximum Operating Temperature
    +85C
  • Vos - Input Offset Voltage
    400uV
  • Output Current per Channel
    60mA
  • Supply Voltage - Max
    24V
  • Supply Voltage - Min
    4.5V
  • CMRR - Common Mode Rejection Ratio
    98dB
  • GBP - Gain Bandwidth Product
    1GHz
  • SR - Slew Rate
    390V/us
  • Ib - Input Bias Current
    11.3uA
  • Operating Supply Current
    7.7mA
  • Package-Case
    SOIC-8
