TOSHIBA
معرفی

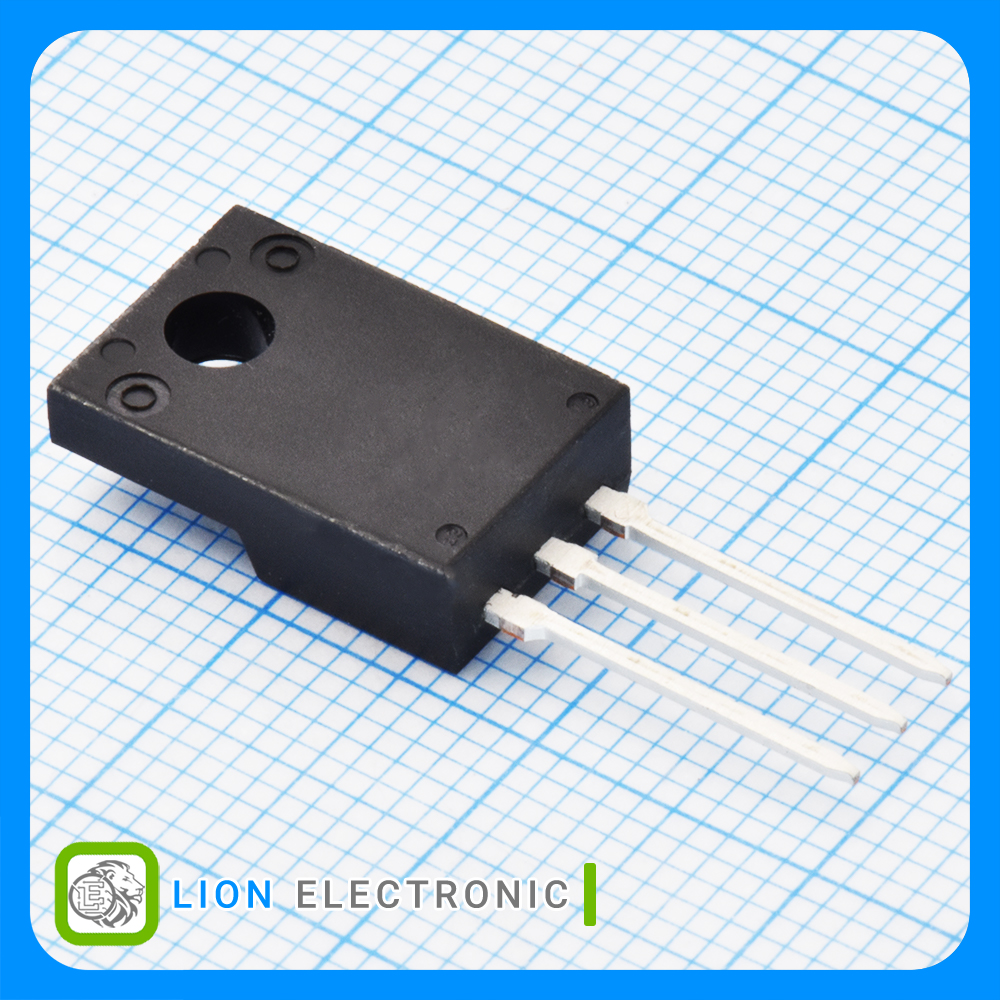

ترانزیستور IGBT با ولتاژ 600 ولت و جریان 20 آمپر با پکیج TO-220FP-3
IGBT Transistor 600V, 20A with TO-220FP-3 Package
Specifications
- Technology: Si
- Collector - Emitter Voltage VCEO Max: 600V
- Continuous Collector Current aT 25 c: 20A
- Collector - Emitter Saturation Voltage: 1.5V
- Maximum Gate Emitter Voltage: -25V, +25V
- Pd - Power Dissipation: 45W
- Mounting Style: Through Hole
- Package/Case: TO-220FP-3
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube

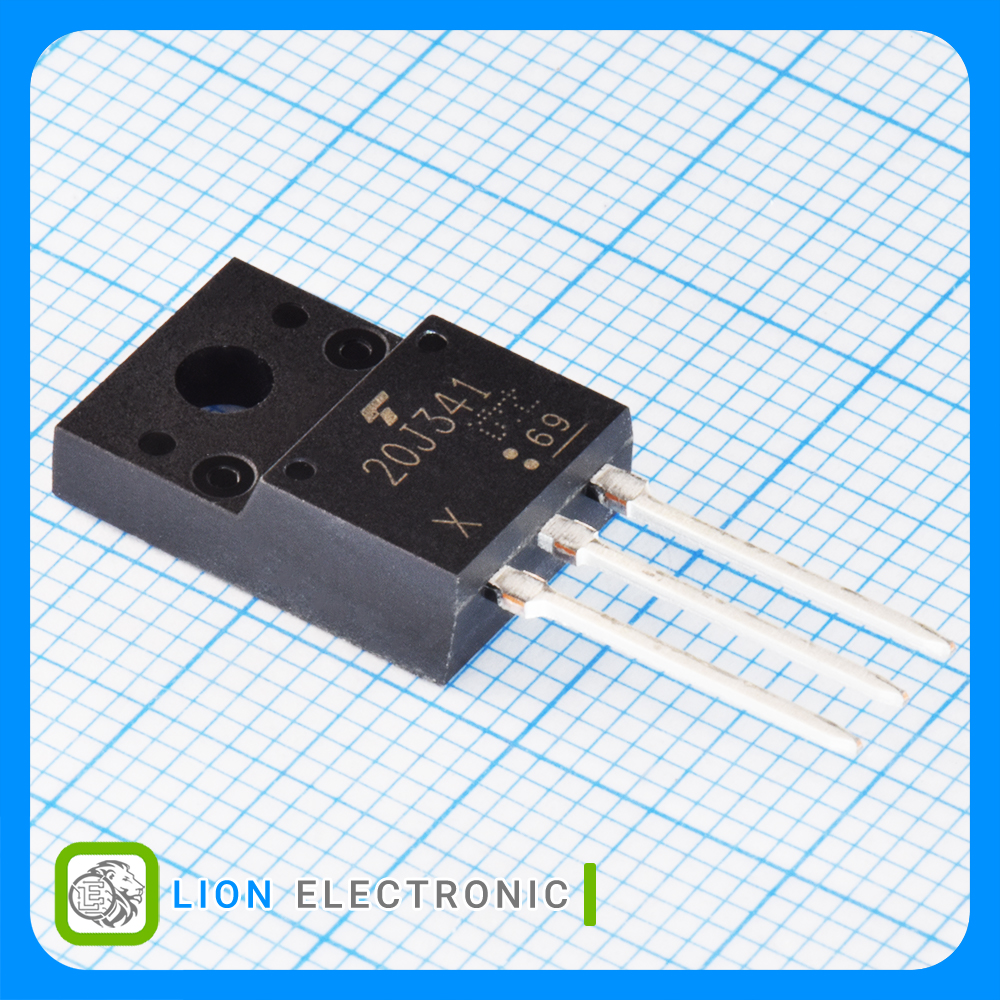

مشخصات آی جی بی تی GT20J341
آی جی بی تی GT20J341
Part Number
20A
Continuous Collector Current aT 25 c
-55C
Minimum Operating Temperature
Si
Technology
-25V, +25V
Maximum Gate Emitter Voltage
Tube
Packaging
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
1.5V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
45W
Pd - Power Dissipation
TO-220
Package-Case
