WILLSEMI
معرفی
تقویت کننده دقیق کم نویز 2 کاناله با پهنای باند 11.5 مگاهرتز و پکیج DFN2x2-8

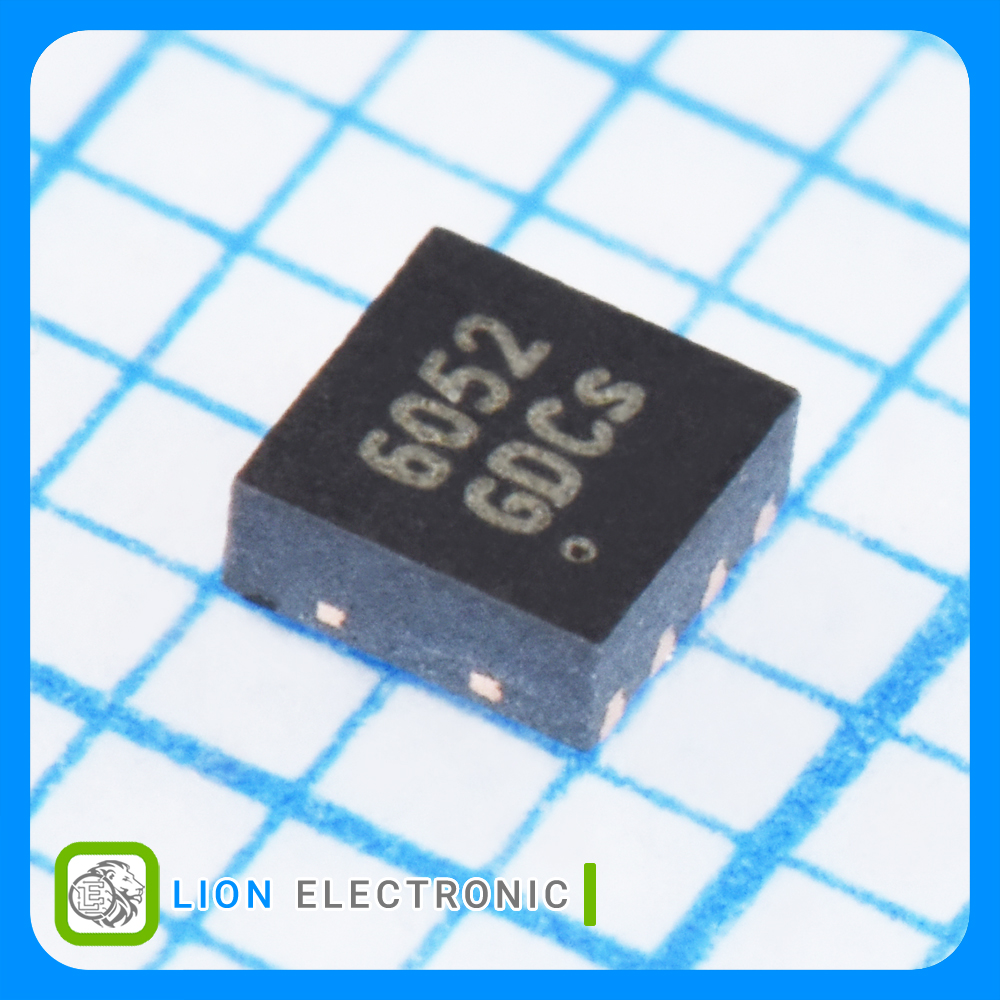

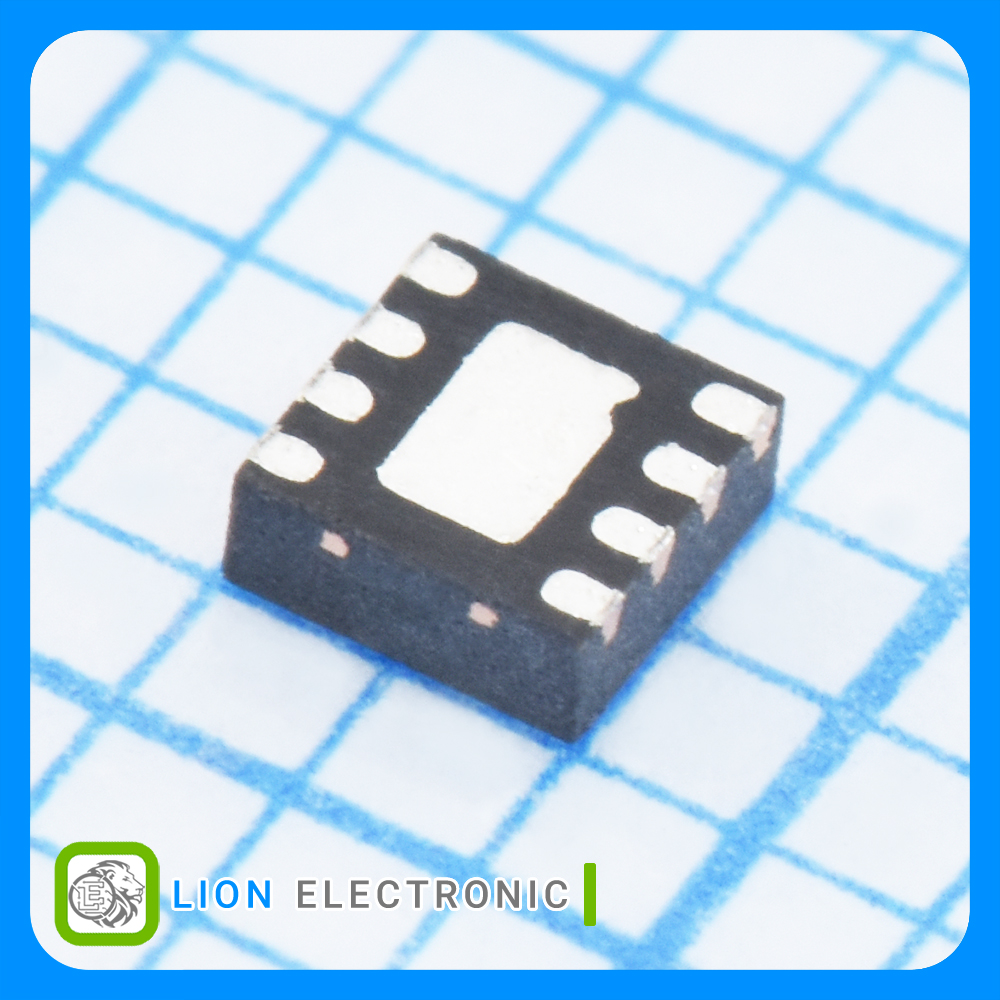

Dual High Precision, Low Noise Operational Amplifier 2-Channel, 11.5MHz with DFN2x2-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 350mA
- SR - Slew Rate: 6V/us
- GBP - Gain Bandwidth Product: 11.5MHz
- CMRR - Common Mode Rejection Ratio: 135dB
- Vos - Input Offset Voltage: 1uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.5V
- Operating Supply Current: 950uA
- Mounting Style: SMD/SMT
- Package/Case: DFN2x2-8
- Minimum Operating Temperature: -45C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ WS726052D-8/TR
آپ امپ WS726052D-8/TR
Part Number
2
Number of Channels
1uV
Vos - Input Offset Voltage
Reel
Packaging
-45C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
6V/us
SR - Slew Rate
2.5V
Supply Voltage - Min
350mA
Output Current per Channel
11.5MHz
GBP - Gain Bandwidth Product
135dB
CMRR - Common Mode Rejection Ratio
N/A
Ib - Input Bias Current
DFN2x2-8
Package-Case
950uA
Operating Supply Current
