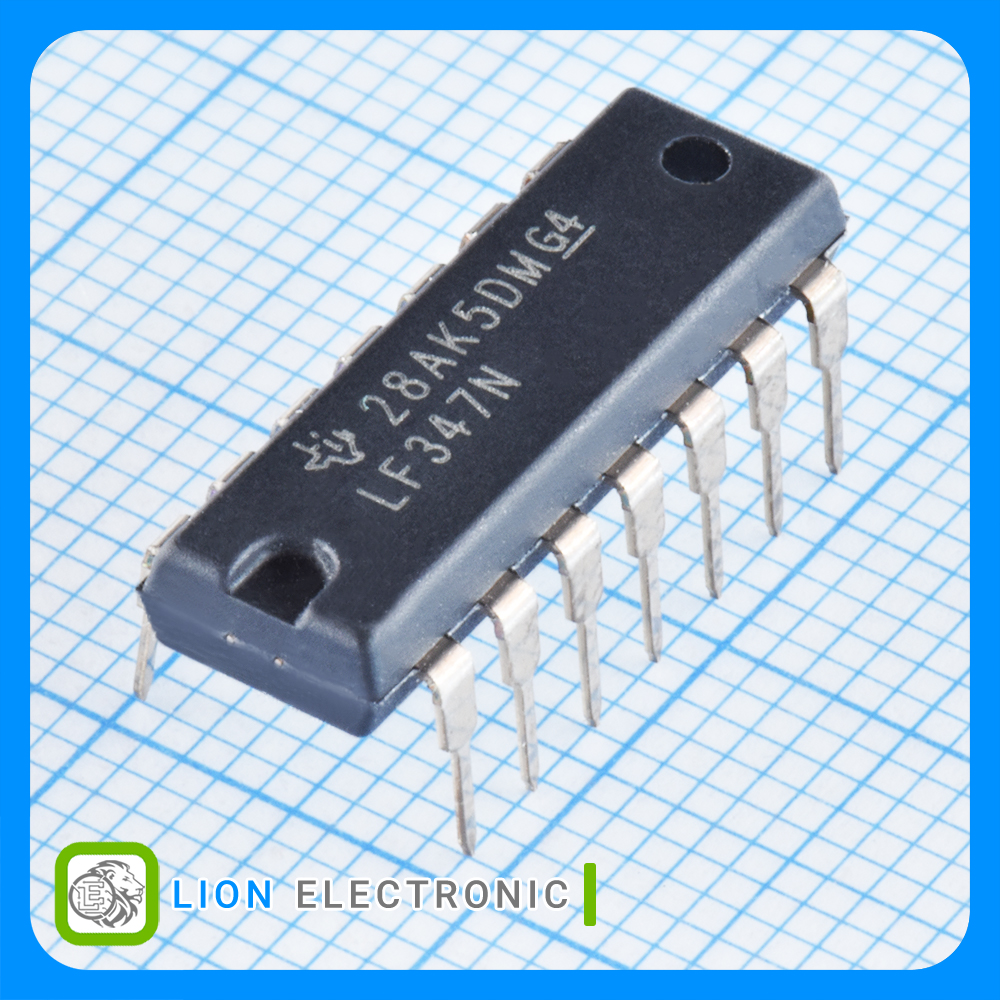

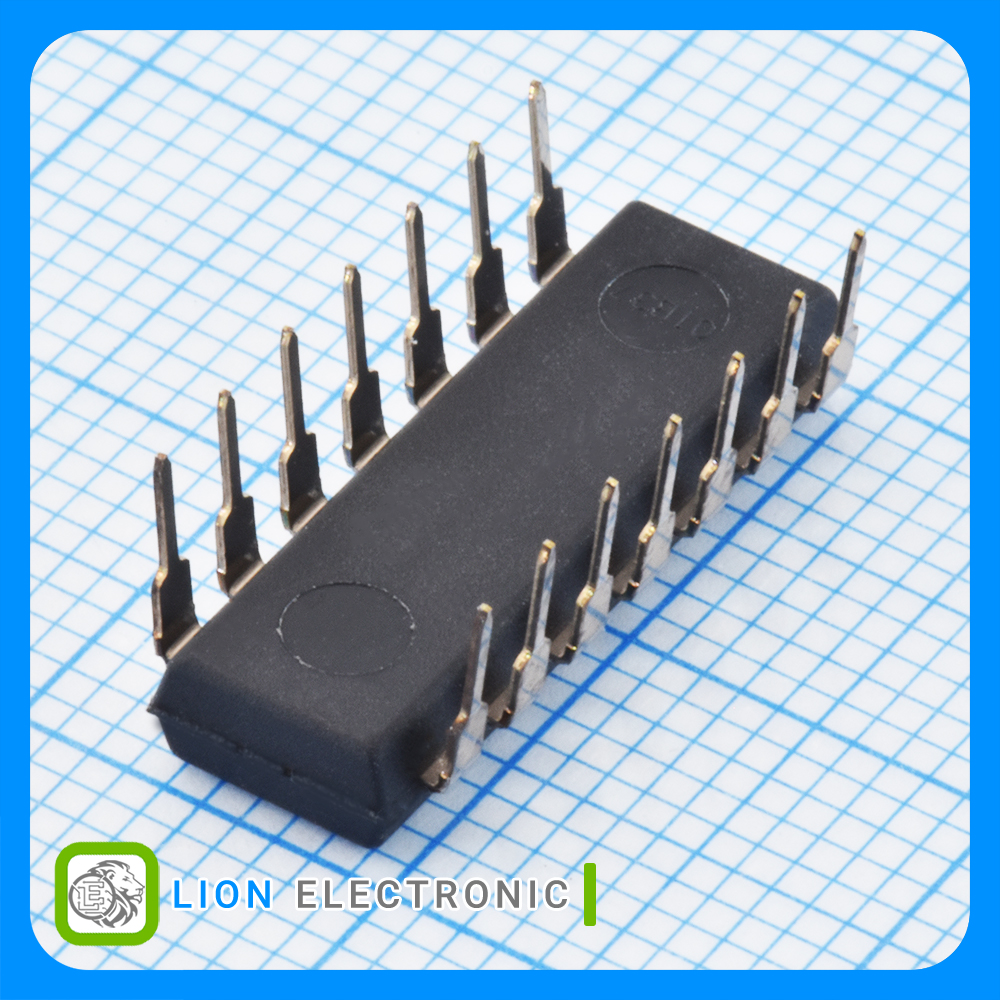

LF347N
LF347N
Part Number
421
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 4 کاناله با ورودی JFET و پهنای باند 3 مگاهرتز و پکیج PDIP-14
JFET-Input Quad Operational Amplifier 4-Channel, 3MHz with PDIP-14 Package
معرفی
آپامپ 4 کاناله با ورودی JFET و پهنای باند 3 مگاهرتز و پکیج PDIP-14
JFET-Input Quad Operational Amplifier 4-Channel, 3MHz with PDIP-14 Package
Specifications
- Number of Channels: 4
- Output Current per Channel: 31mA
- SR - Slew Rate: 13V/us
- GBP - Gain Bandwidth Product: 3MHz
- CMRR - Common Mode Rejection Ratio: 70dB to 100dB
- Ib - Input Bias Current: 200pA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 36V
- Supply Voltage - Min: 7V
- Operating Supply Current: 2mA
- Mounting Style: Through Hole
- Package/Case: DIP-14
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات آپ امپ LF347N

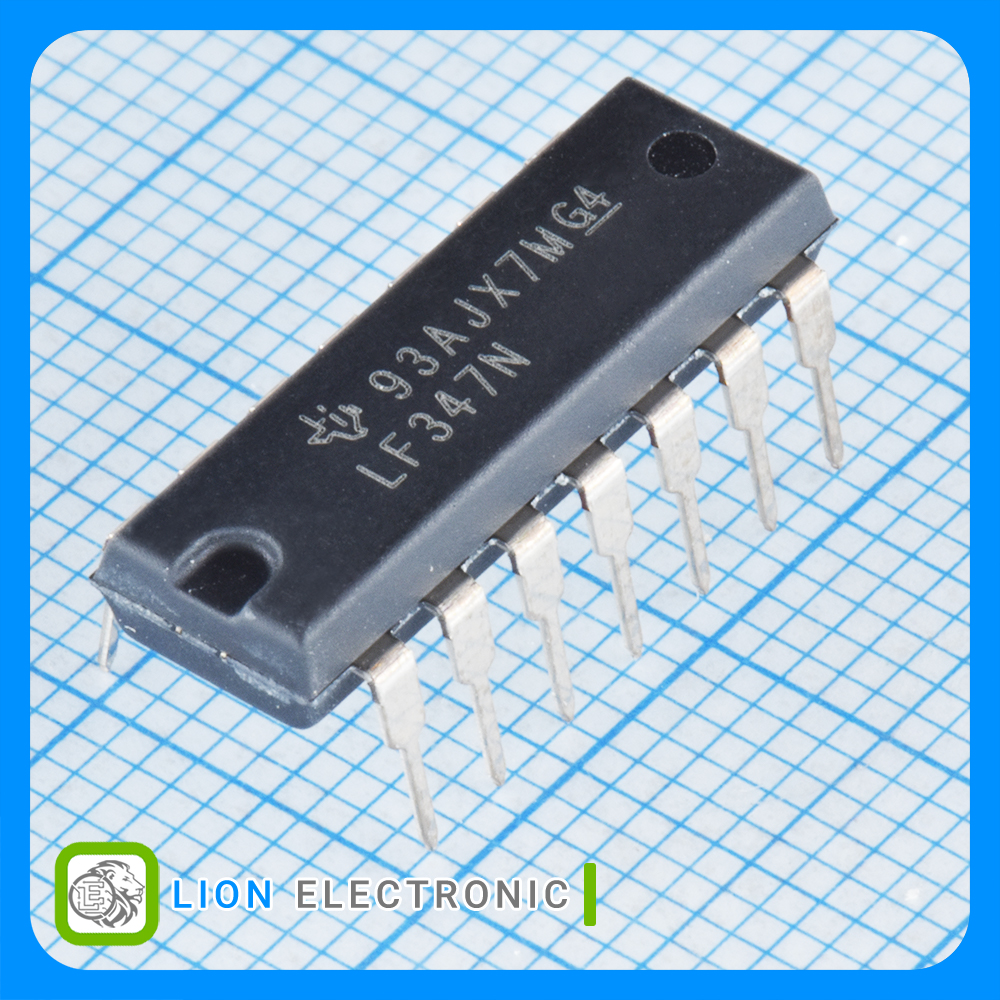

آپ امپ LF347N
Part Number
No Shutdown
Shutdown
4
Number of Channels
+70C
Maximum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
70dB to 100dB
CMRR - Common Mode Rejection Ratio
31mA
Output Current per Channel
200pA
Ib - Input Bias Current
3MHz
GBP - Gain Bandwidth Product
13V/us
SR - Slew Rate
3mV
Vos - Input Offset Voltage
36V
Supply Voltage - Max
7V
Supply Voltage - Min
DIP-14
Package-Case
2mA
Operating Supply Current
