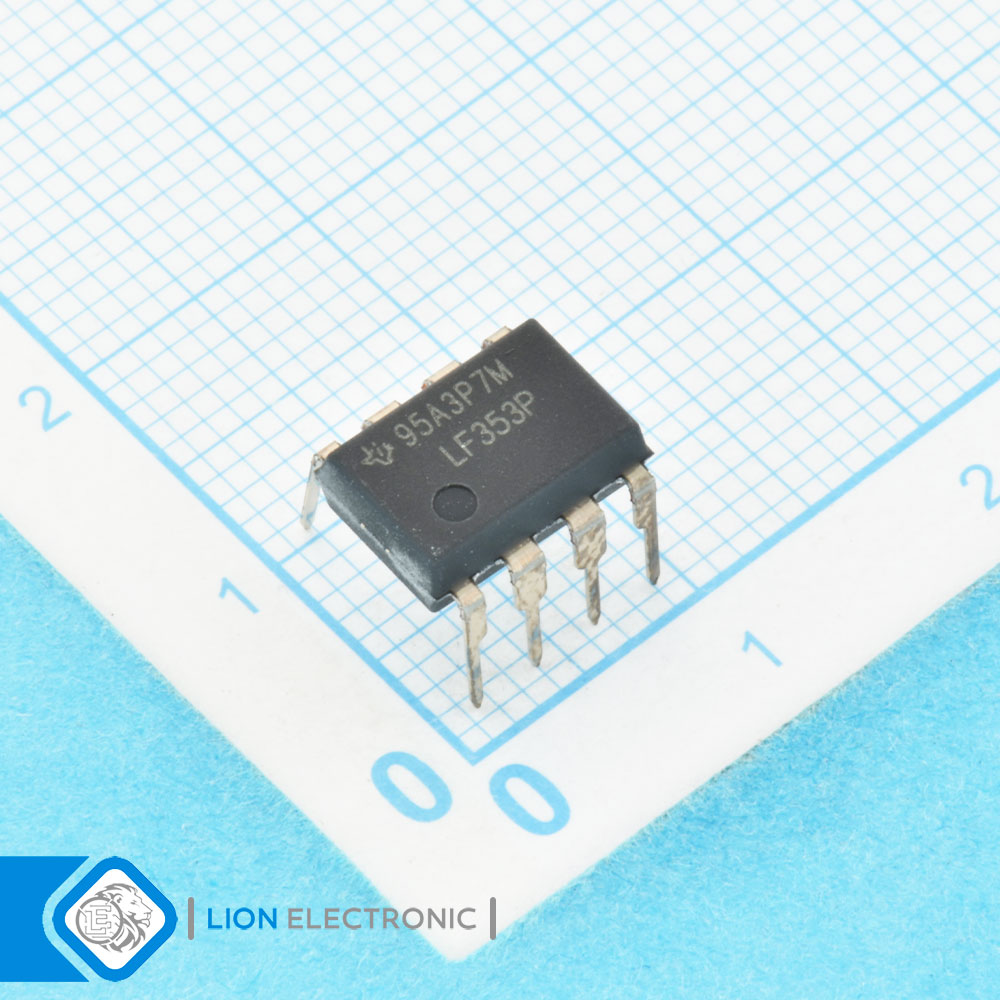

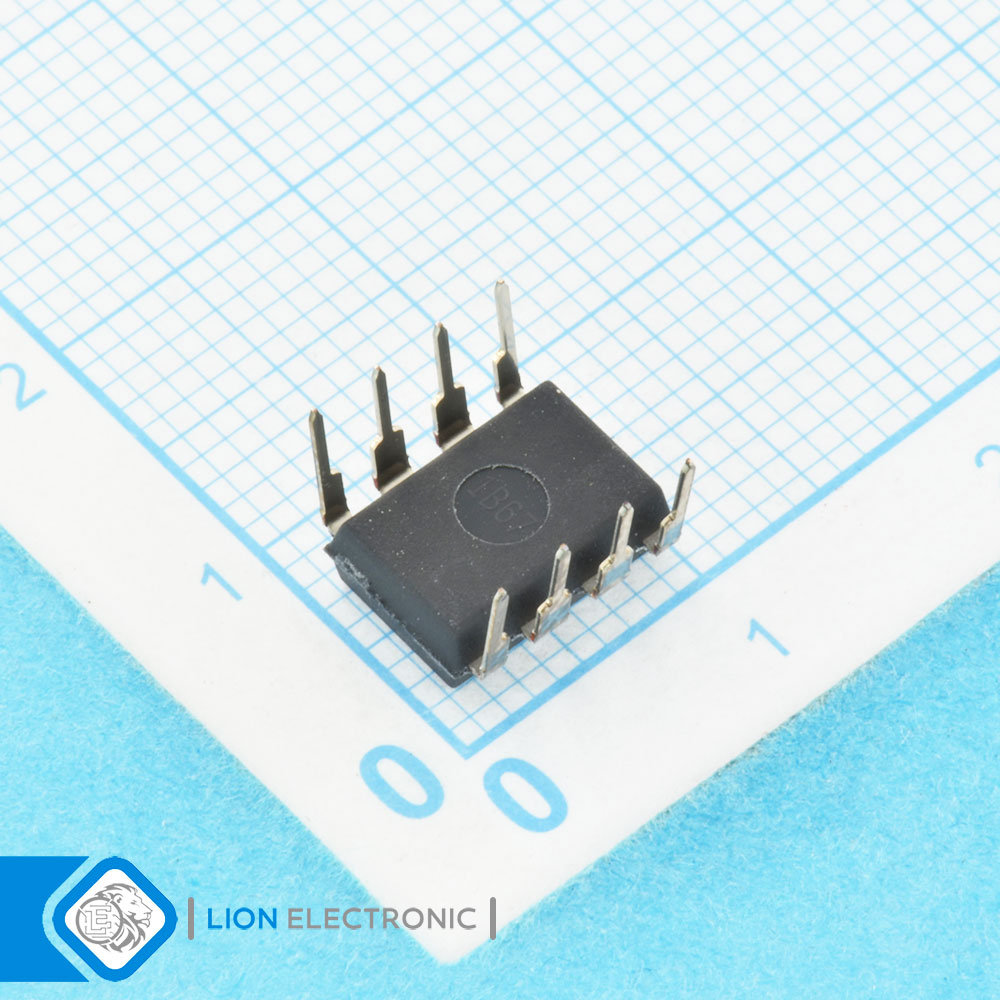

LF353P
LF353P
Part Number
423
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله پهن باند با ورودی JFET و پهنای باند 3 مگاهرتز و پکیج PDIP-8
Wide-Bandwidth JFET-Input Dual Operational Amplifier 2-Channel, 3MHz with PDIP-8 Package
معرفی
آپامپ 2 کاناله پهن باند با ورودی JFET و پهنای باند 3 مگاهرتز و پکیج PDIP-8
Wide-Bandwidth JFET-Input Dual Operational Amplifier 2-Channel, 3MHz with PDIP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 20mA
- SR - Slew Rate: 13V/us
- GBP - Gain Bandwidth Product: 3MHz
- CMRR - Common Mode Rejection Ratio: 70dB to 100dB
- Ib - Input Bias Current: 200pA
- Vos - Input Offset Voltage: 5mV
- Supply Voltage - Max: 36V
- Supply Voltage - Min: 7V
- Operating Supply Current: 1.8mA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +90C
- Packaging: Tube
مشخصات آپ امپ LF353P
آپ امپ LF353P
Part Number
No Shutdown
Shutdown
2
Number of Channels
Tube
Packaging
+90C
Maximum Operating Temperature
Through Hole
Mounting Style
0C
Minimum Operating Temperature
20mA
Output Current per Channel
70dB to 100dB
CMRR - Common Mode Rejection Ratio
200pA
Ib - Input Bias Current
3MHz
GBP - Gain Bandwidth Product
13V/us
SR - Slew Rate
5mV
Vos - Input Offset Voltage
36V
Supply Voltage - Max
7V
Supply Voltage - Min
DIP-8
Package-Case
1.8mA
Operating Supply Current
