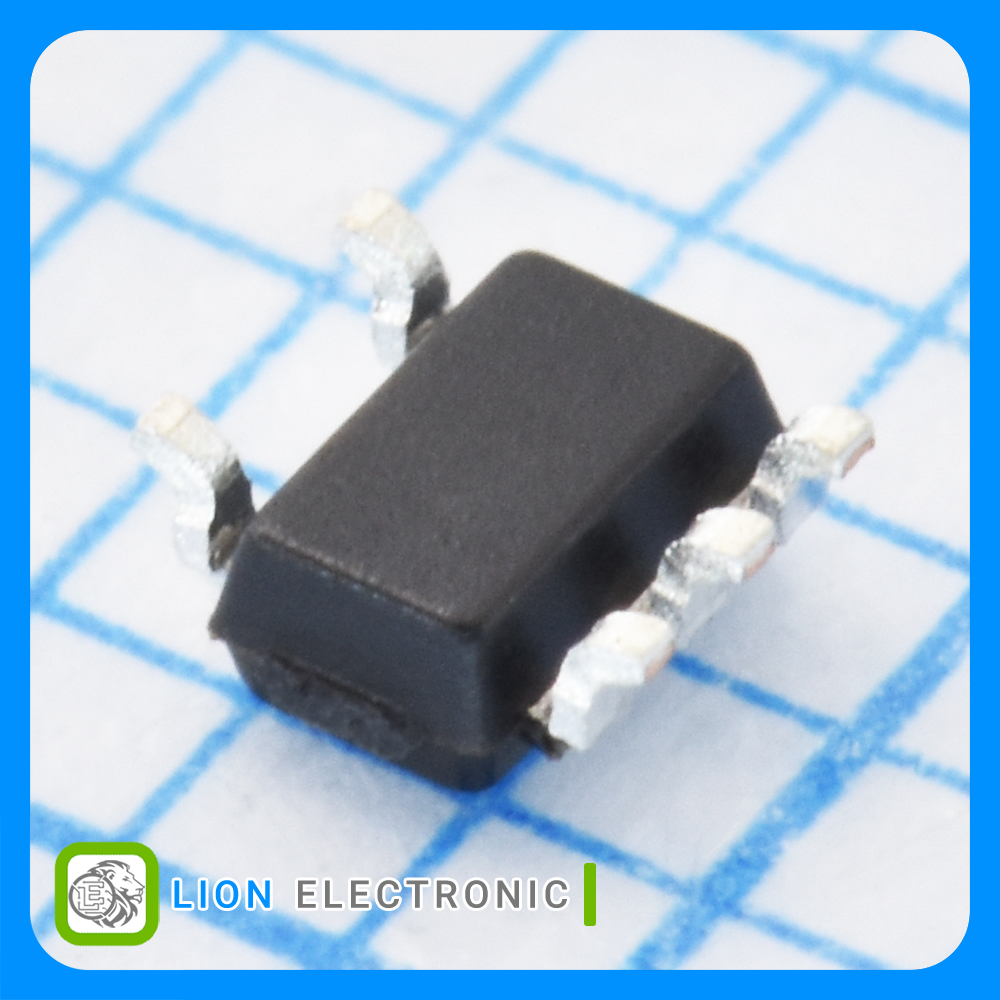

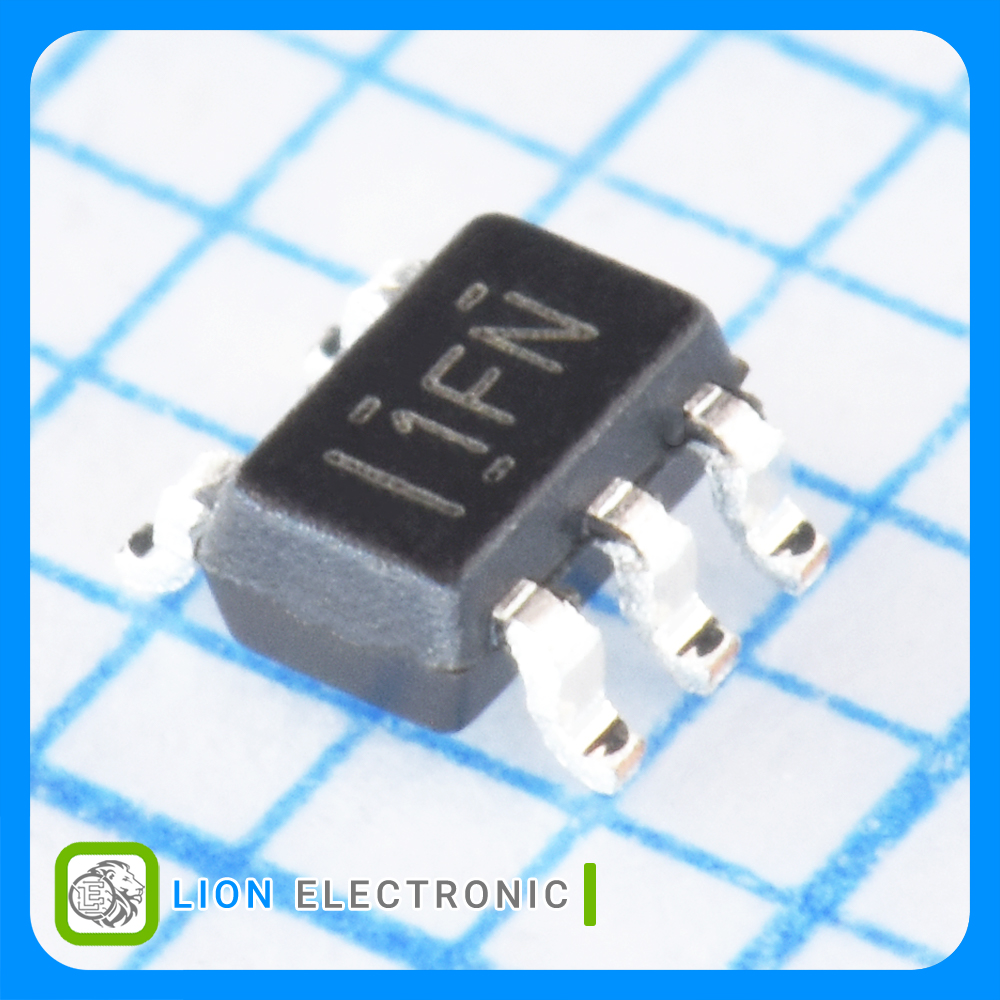

آپ امپ TLV9301IDCKR
TLV9301IDCKR
Part Number
4235
Lion Part
Datasheet
Texas Instruments Manufacture
SC-70 تقویت کننده عملیاتی 1 کاناله با پکیج
Rail-to-rail output Single Channel Op Amp 1MHz, 40V with Robust EMI performance SC-70
مشخصات آپ امپ TLV9301IDCKR
آپ امپ TLV9301IDCKR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
1MHz
GBP - Gain Bandwidth Product
3V/us
SR - Slew Rate
60mA
Output Current per Channel
500uV
Vos - Input Offset Voltage
110dB
CMRR - Common Mode Rejection Ratio
4.5V
Supply Voltage - Min
150uA
Operating Supply Current
40V
Supply Voltage - Max
SC-70-5
Package-Case
