LM321MFX/NOPB
LM321MFX/NOPB
Part Number
4238
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله با پهنای باند 1 مگاهرتز با مصرف توان پایین با پکیج SOT-23-5
Operational Amplifier 1-Channel, 1MHz, Low Power, Stable with High Capacitive Loads, SOT-23-5 Package
معرفی
آپامپ 1 کاناله با پهنای باند 1 مگاهرتز با مصرف توان پایین با پکیج SOT-23-5
Operational Amplifier 1-Channel, 1MHz, Low Power, Stable with High Capacitive Loads, SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 40mA
- SR - Slew Rate: 500mV/us
- GBP - Gain Bandwidth Product: 1MHz
- CMRR - Common Mode Rejection Ratio: 85dB
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 2mV
- Supply Voltage - Max: 32V
- Supply Voltage - Min: 3V
- Operating Supply Current: 660uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel

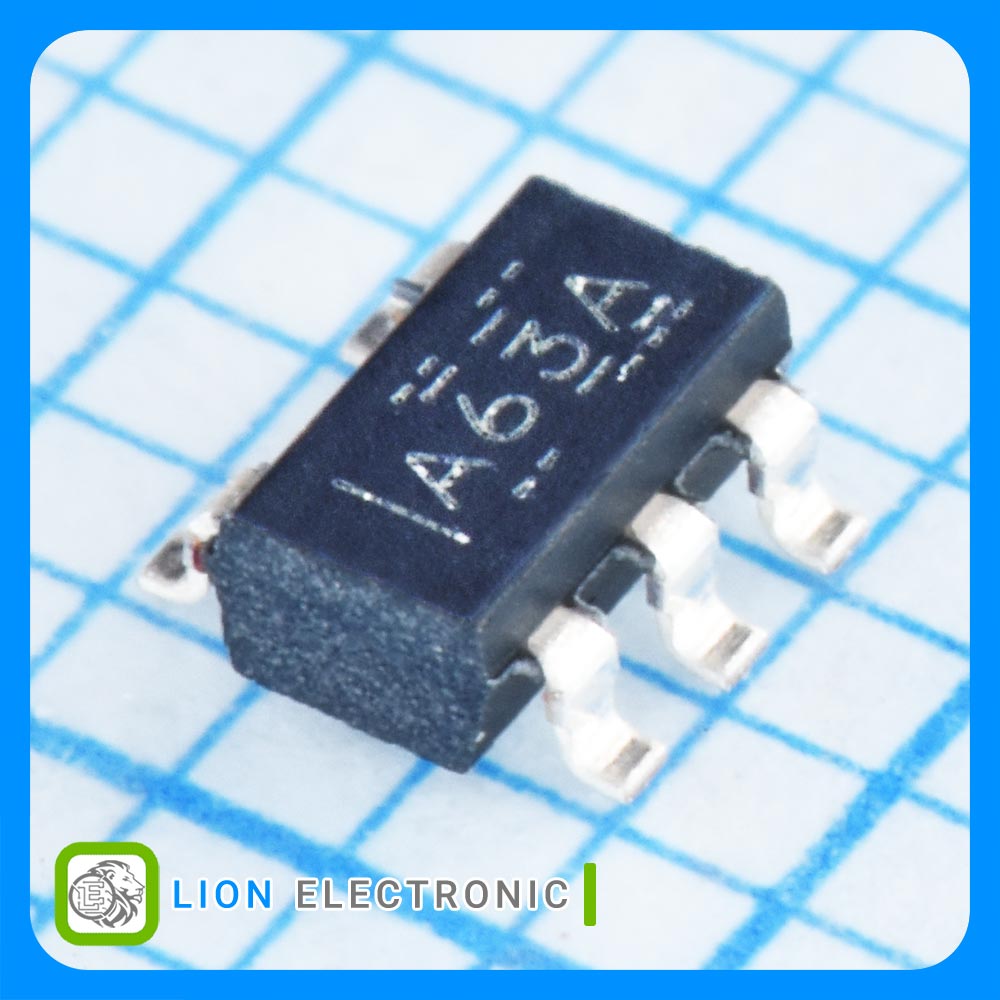

مشخصات آپ امپ LM321MFX/NOPB
آپ امپ LM321MFX/NOPB
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
500mV/us
SR - Slew Rate
1MHz
GBP - Gain Bandwidth Product
40mA
Output Current per Channel
85dB
CMRR - Common Mode Rejection Ratio
3V
Supply Voltage - Min
2mV
Vos - Input Offset Voltage
250nA
Ib - Input Bias Current
32V
Supply Voltage - Max
660uA
Operating Supply Current
SOT-23-5
Package-Case
