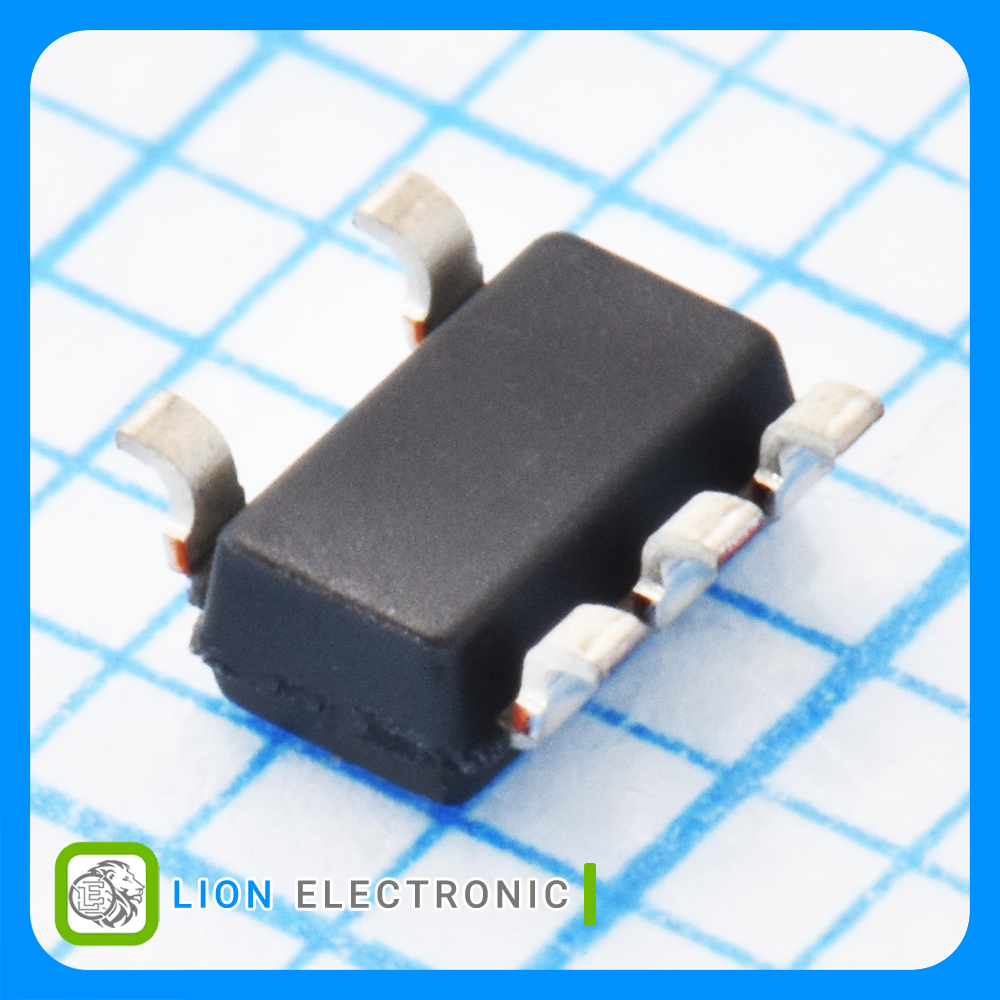

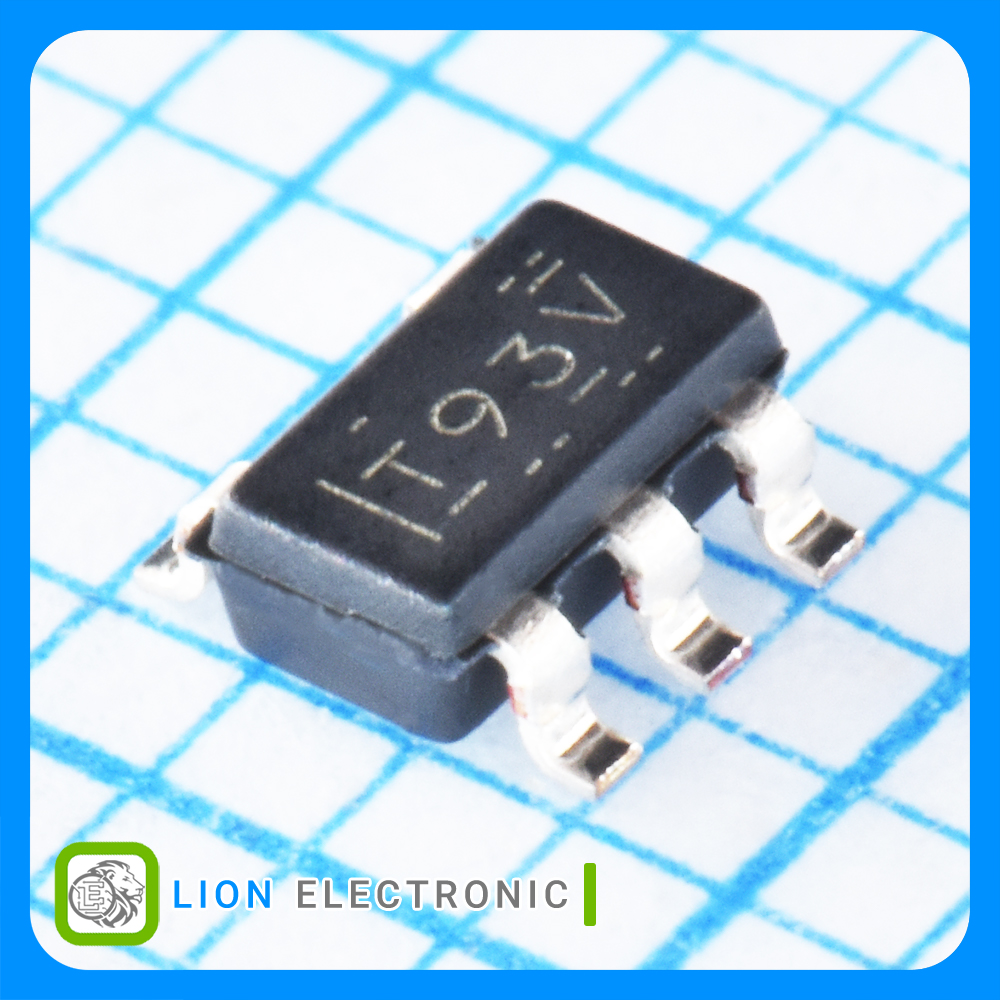

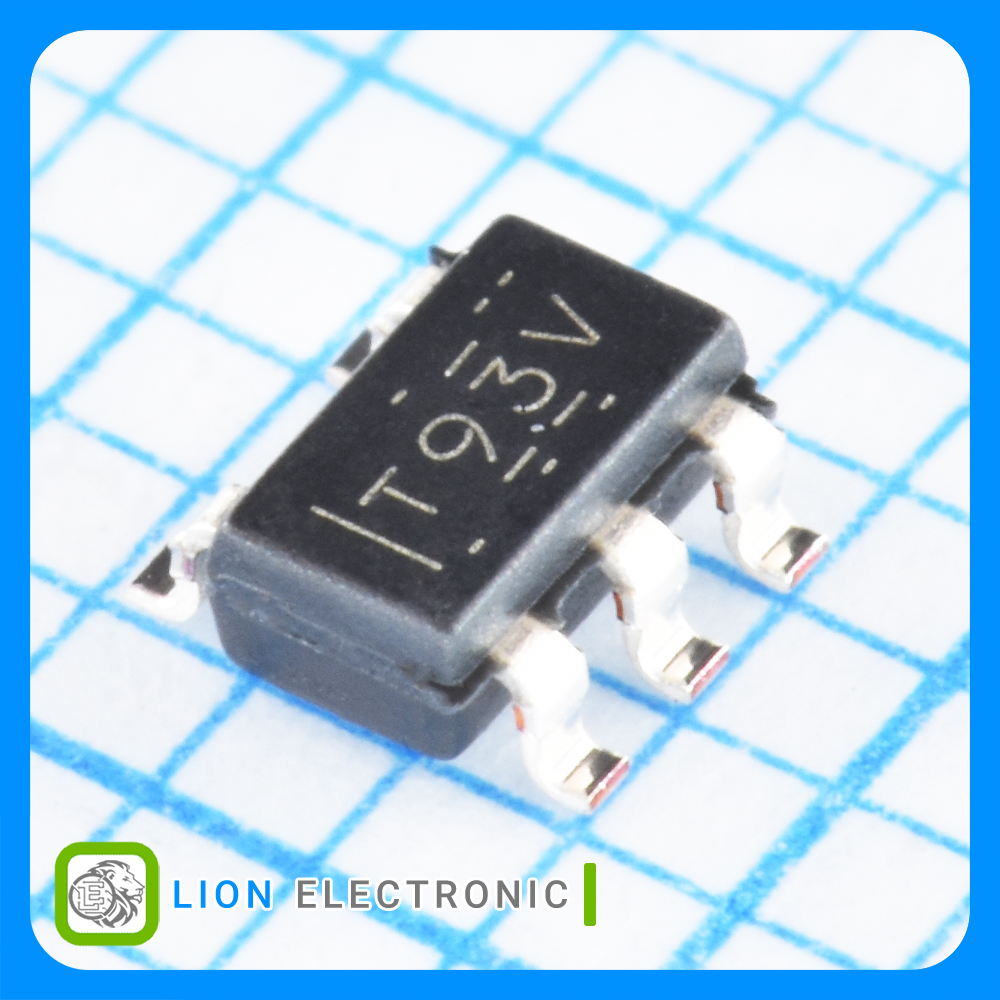

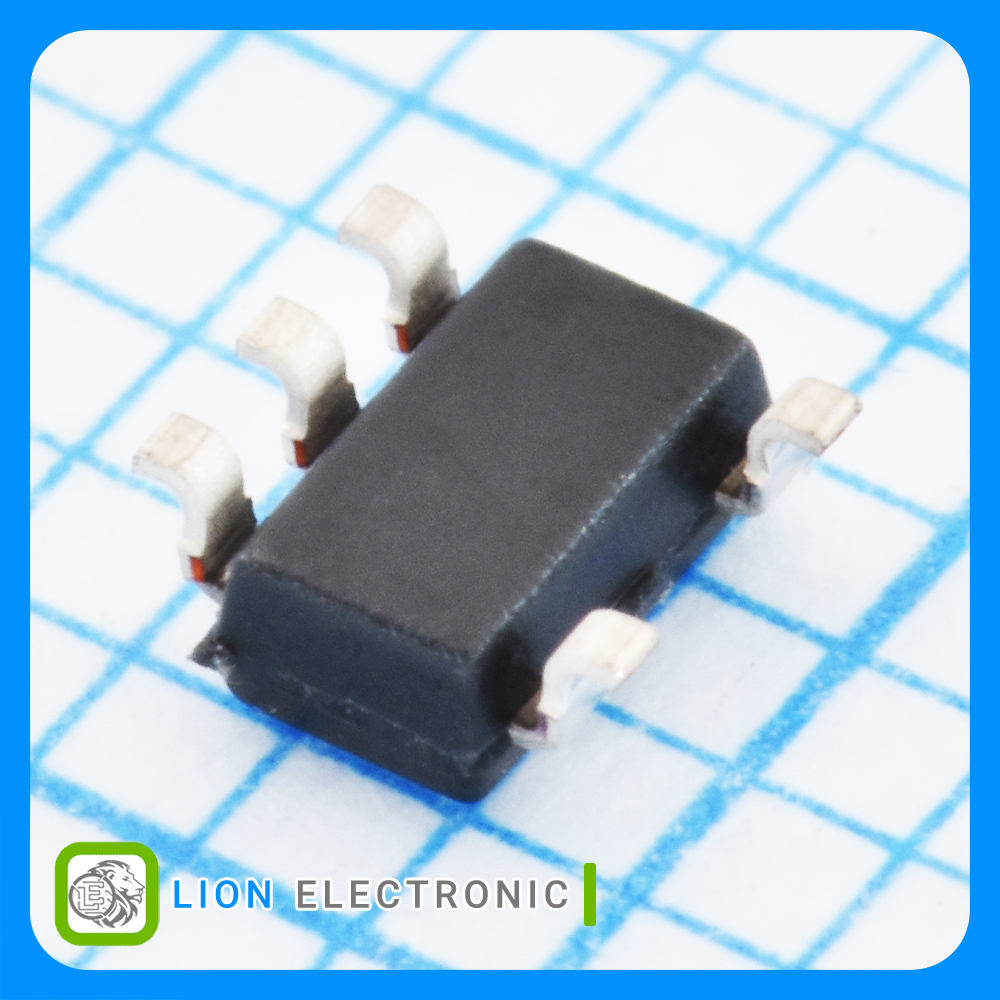

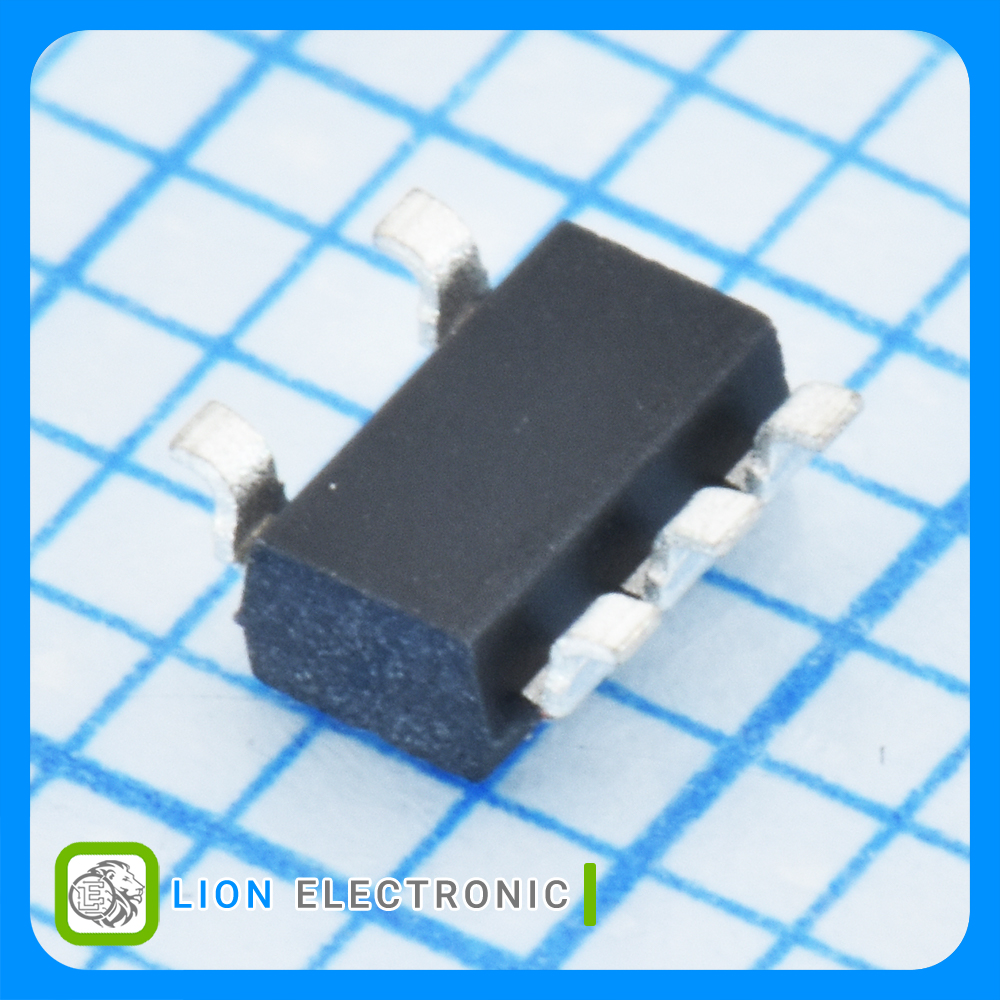

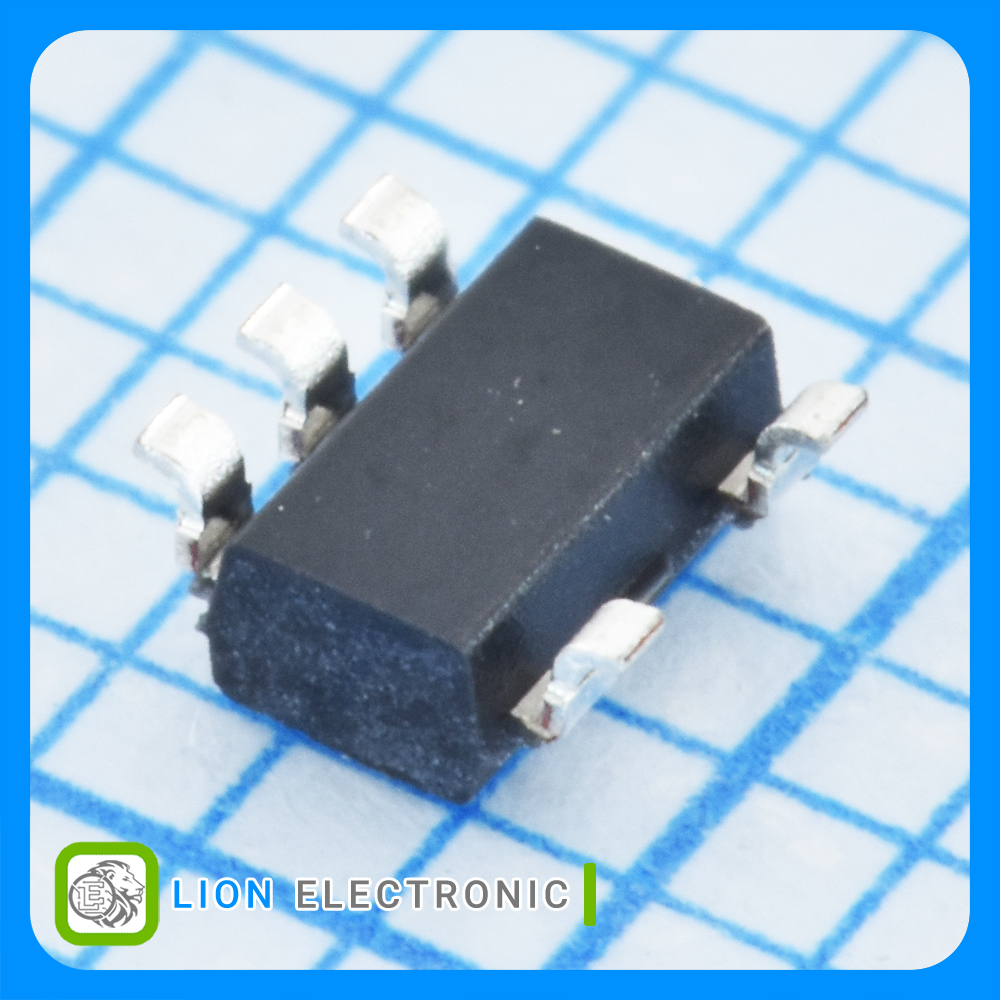

TLV9301IDBVR
TLV9301IDBVR
Part Number
4239
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله ریل-به-ریل با پهنای باند 1 مگاهرتز و 40 ولت با عملکرد مقاوم EMI و پکیج SOT-23-5
Operational Amplifier 1-Channel, Rail to rail, 1MHz, 40V with Robust EMI performance, SOT-23-5 Package
معرفی
آپامپ 1 کاناله ریل-به-ریل با پهنای باند 1 مگاهرتز و 40 ولت با عملکرد مقاوم EMI و پکیج SOT-23-5
Operational Amplifier 1-Channel, Rail to rail, 1MHz, 40V with Robust EMI performance, SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 60mA
- SR - Slew Rate: 3V/us
- GBP - Gain Bandwidth Product: 1MHz
- CMRR - Common Mode Rejection Ratio: 110dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: 500uV
- Supply Voltage - Max: 40V
- Supply Voltage - Min: 4.5V
- Operating Supply Current: 150uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ TLV9301IDBVR

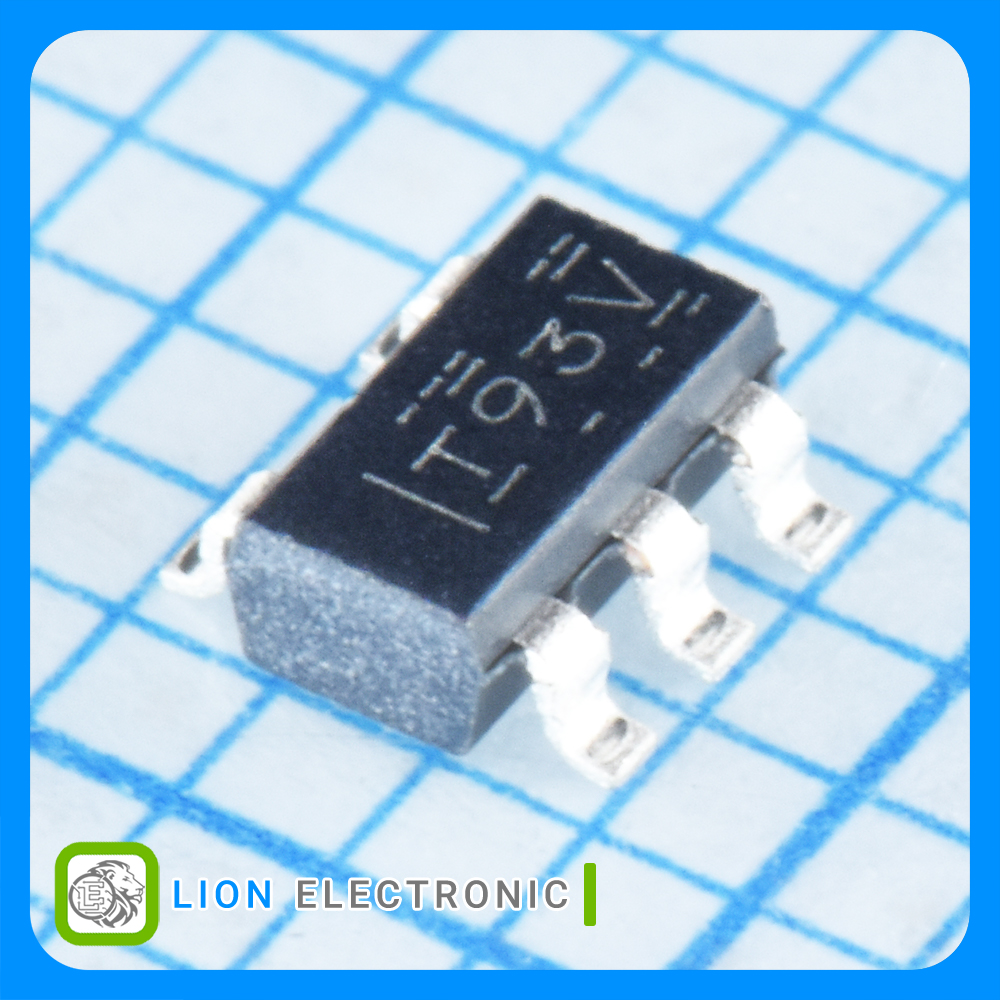

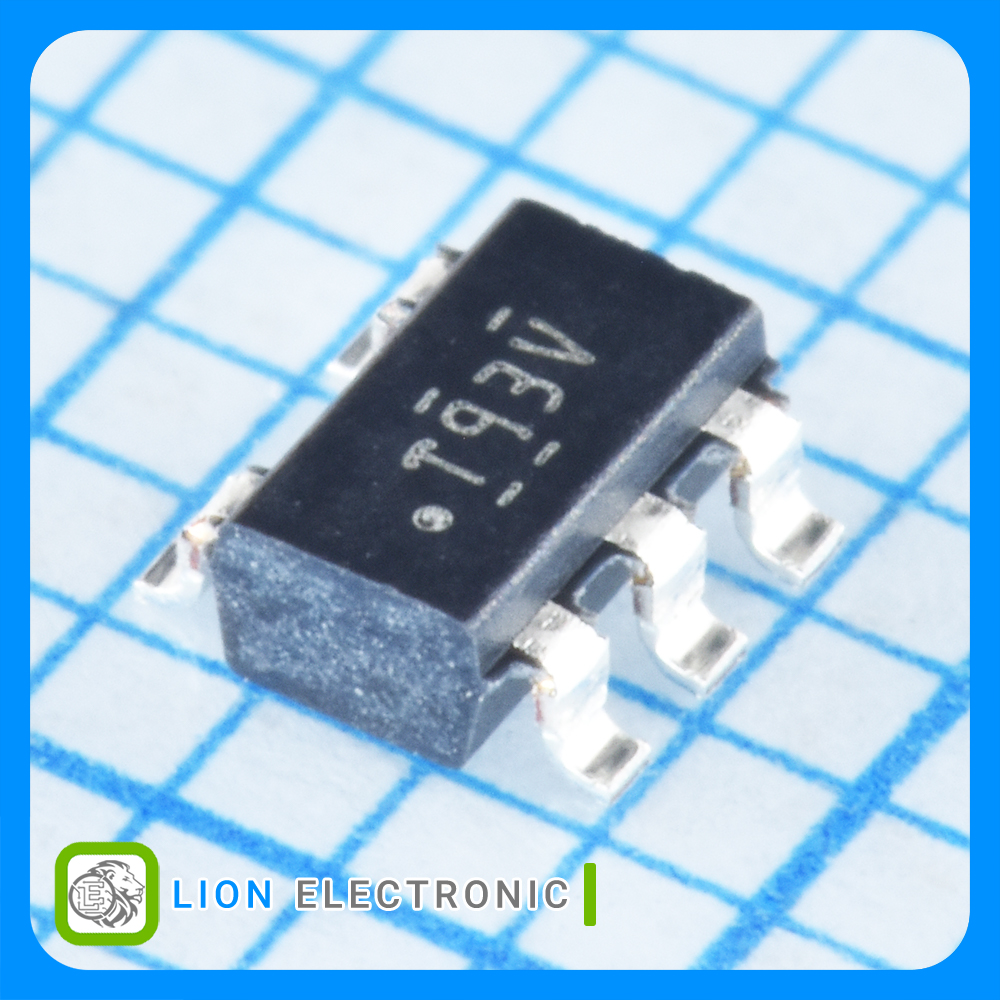

آپ امپ TLV9301IDBVR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
1MHz
GBP - Gain Bandwidth Product
3V/us
SR - Slew Rate
60mA
Output Current per Channel
500uV
Vos - Input Offset Voltage
110dB
CMRR - Common Mode Rejection Ratio
4.5V
Supply Voltage - Min
150uA
Operating Supply Current
40V
Supply Voltage - Max
SOT-23-5
Package-Case
