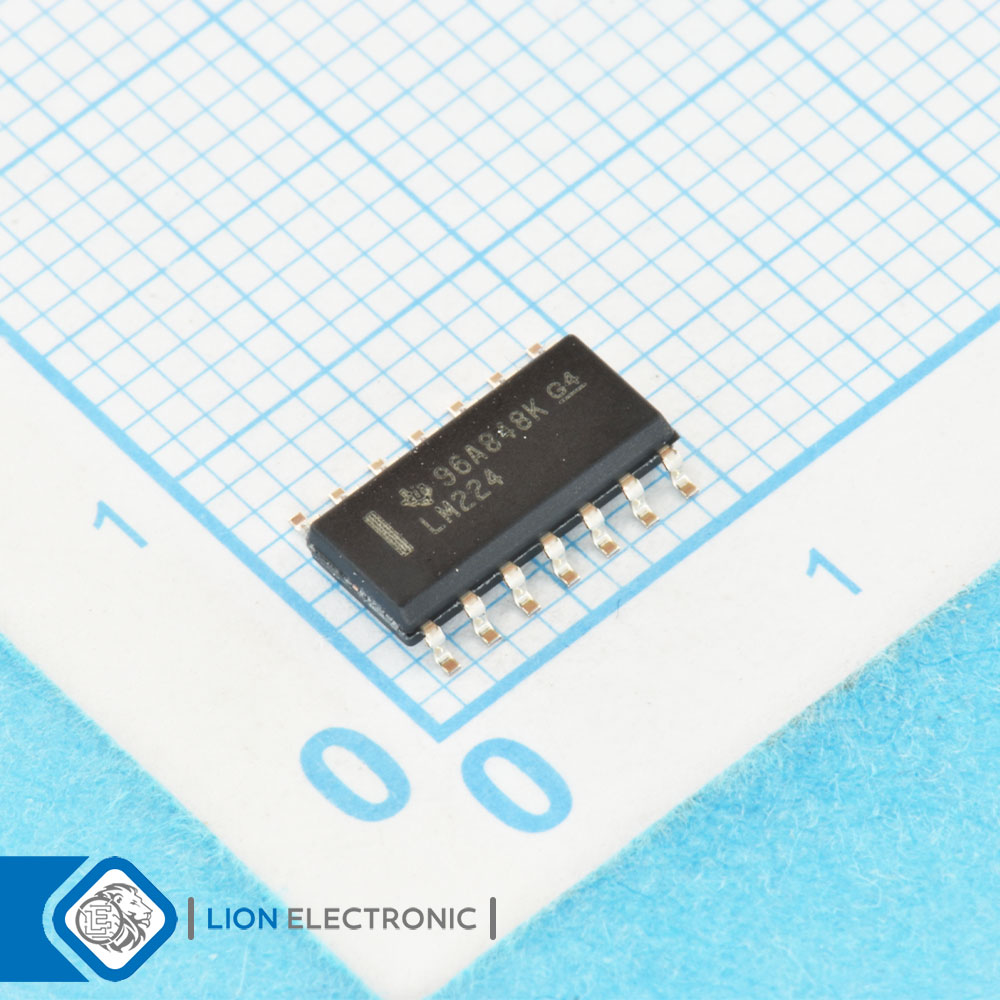

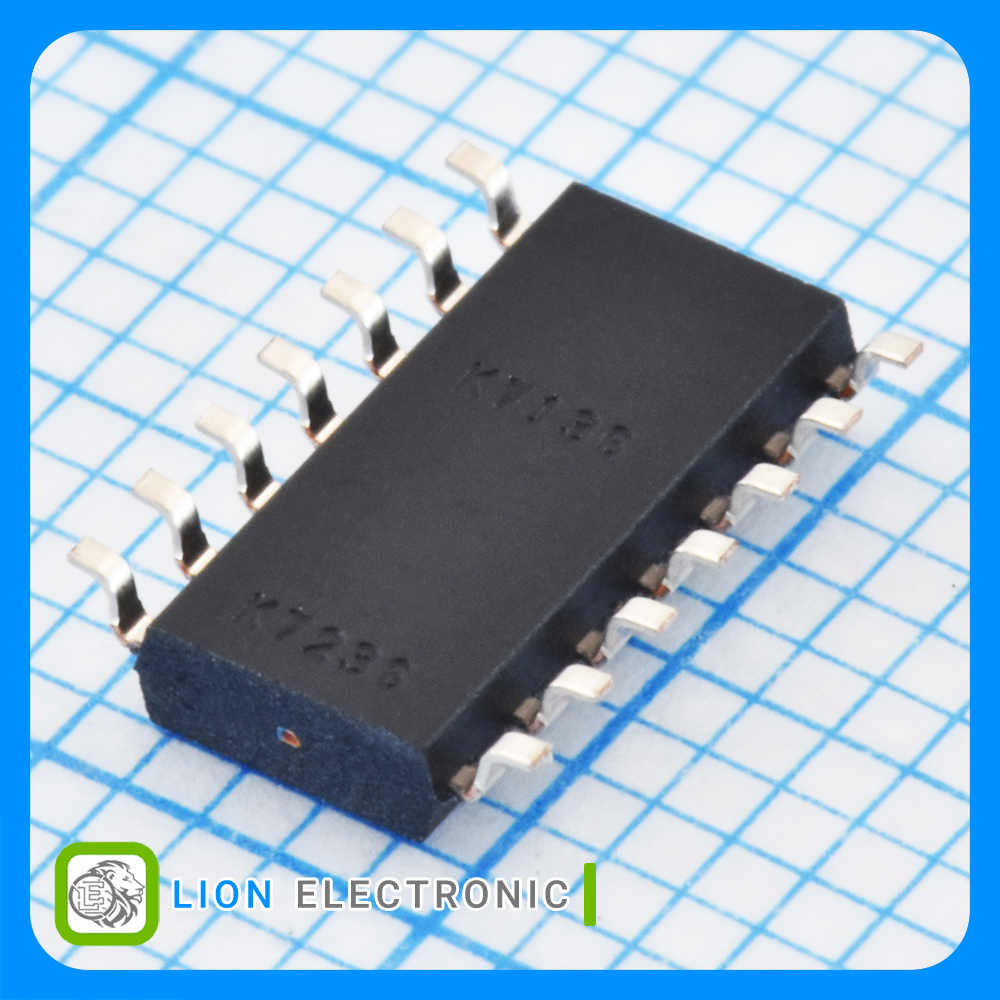

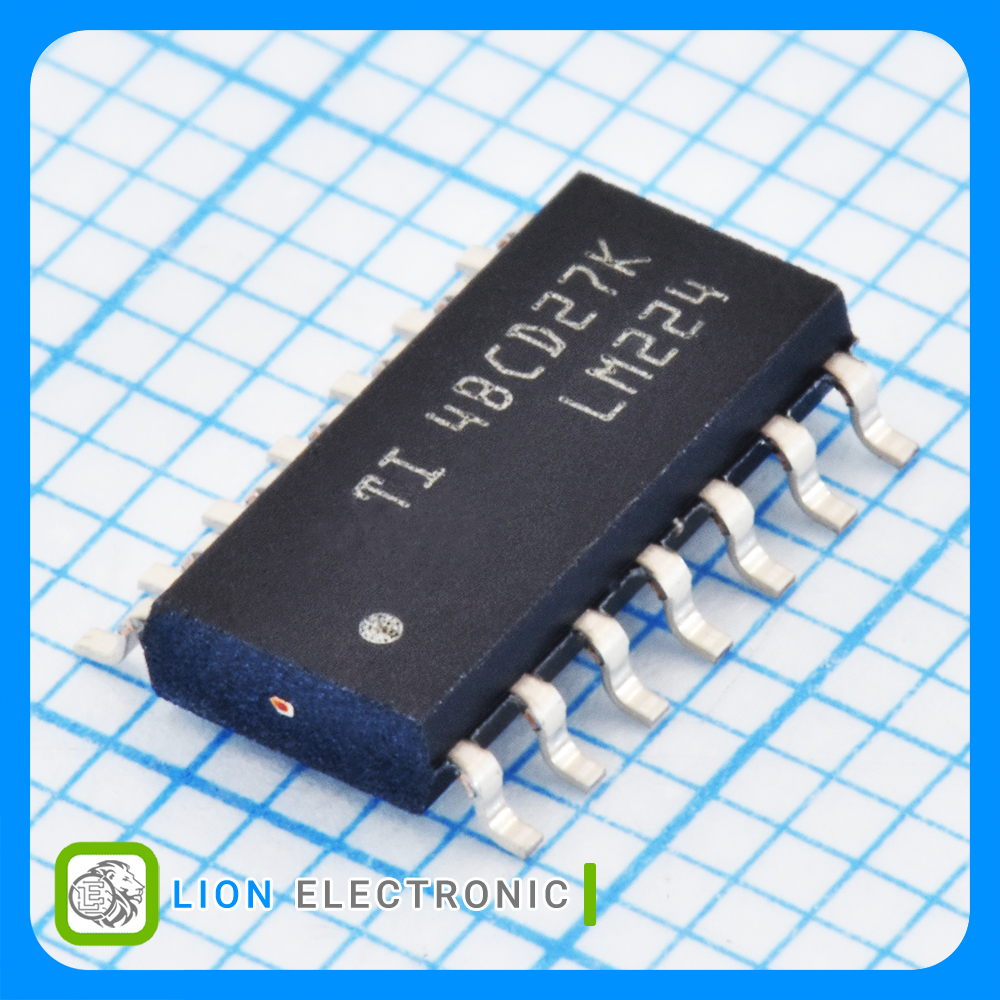

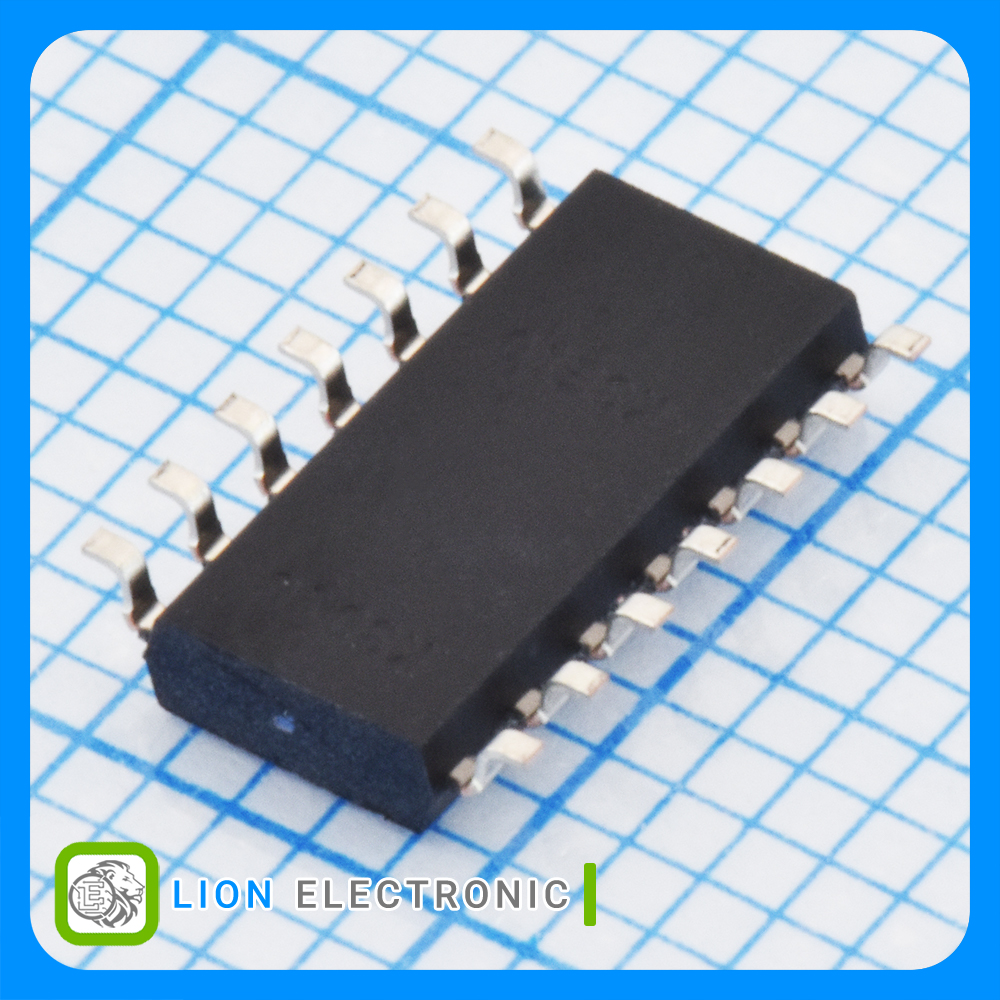

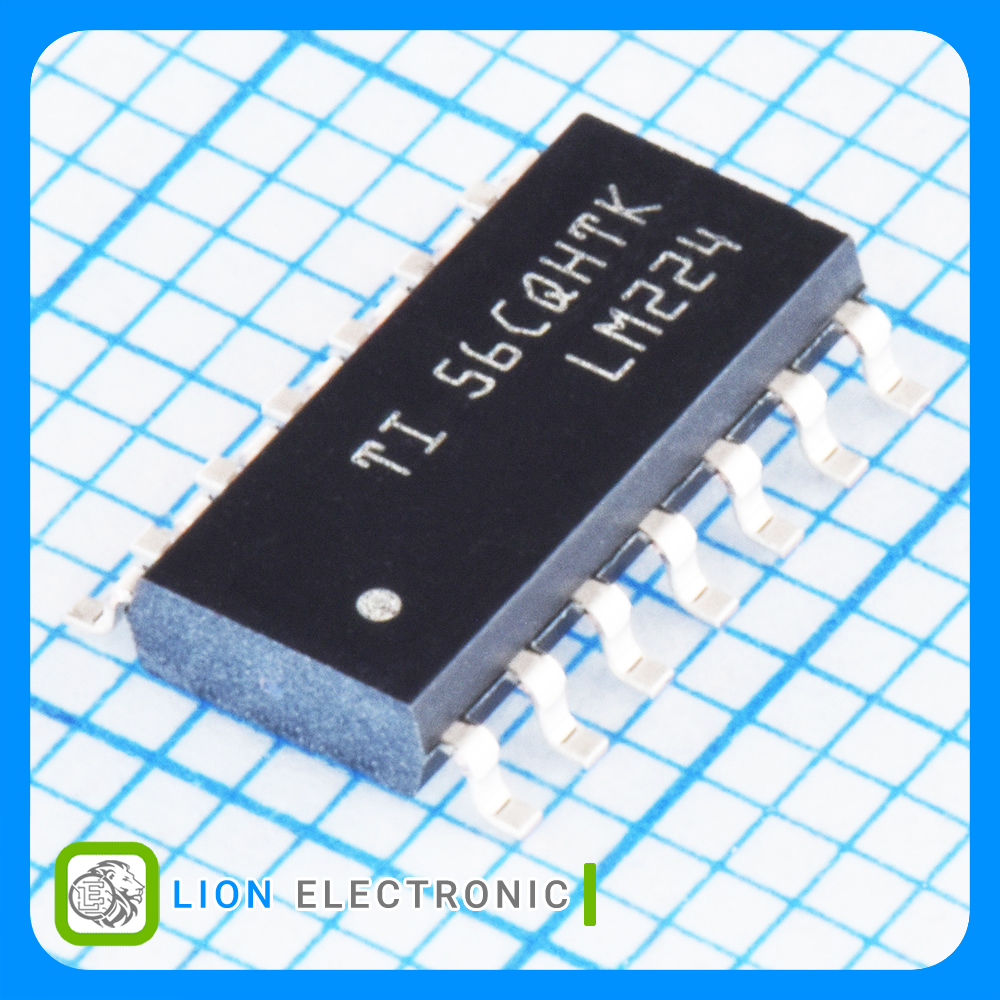

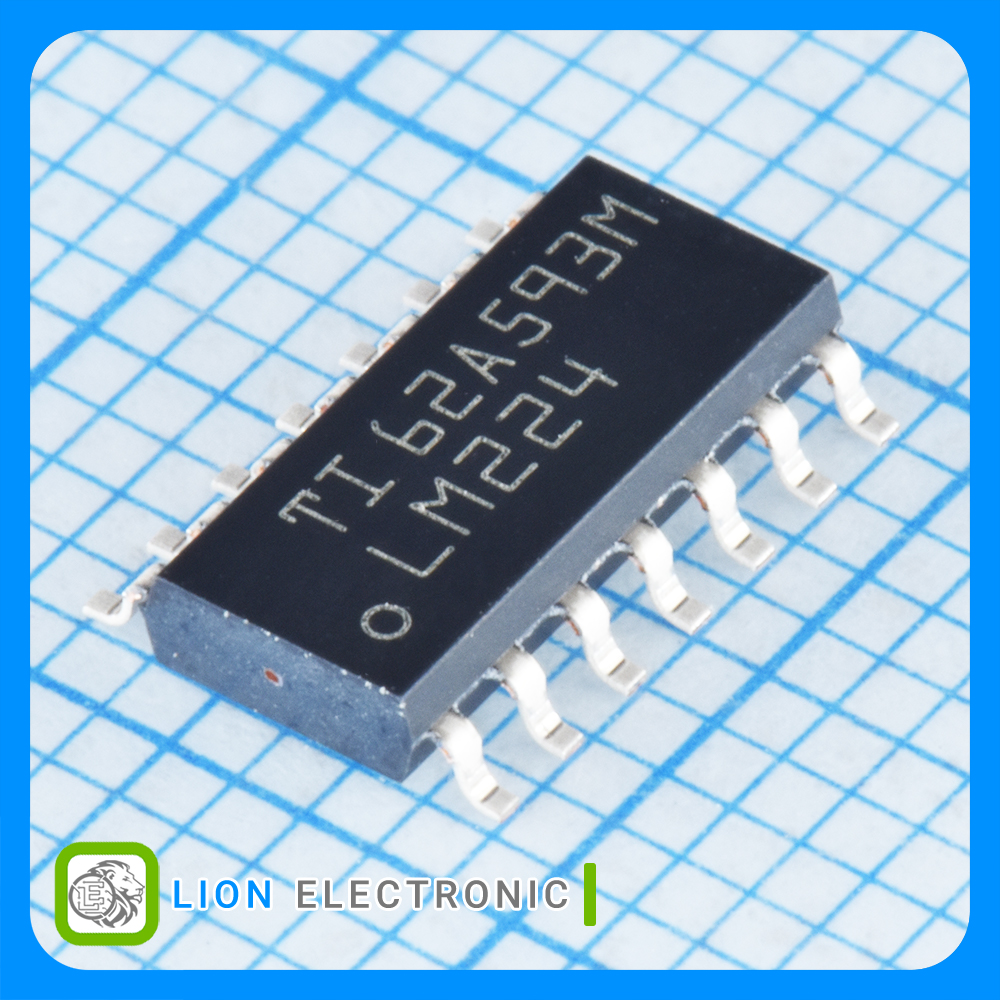

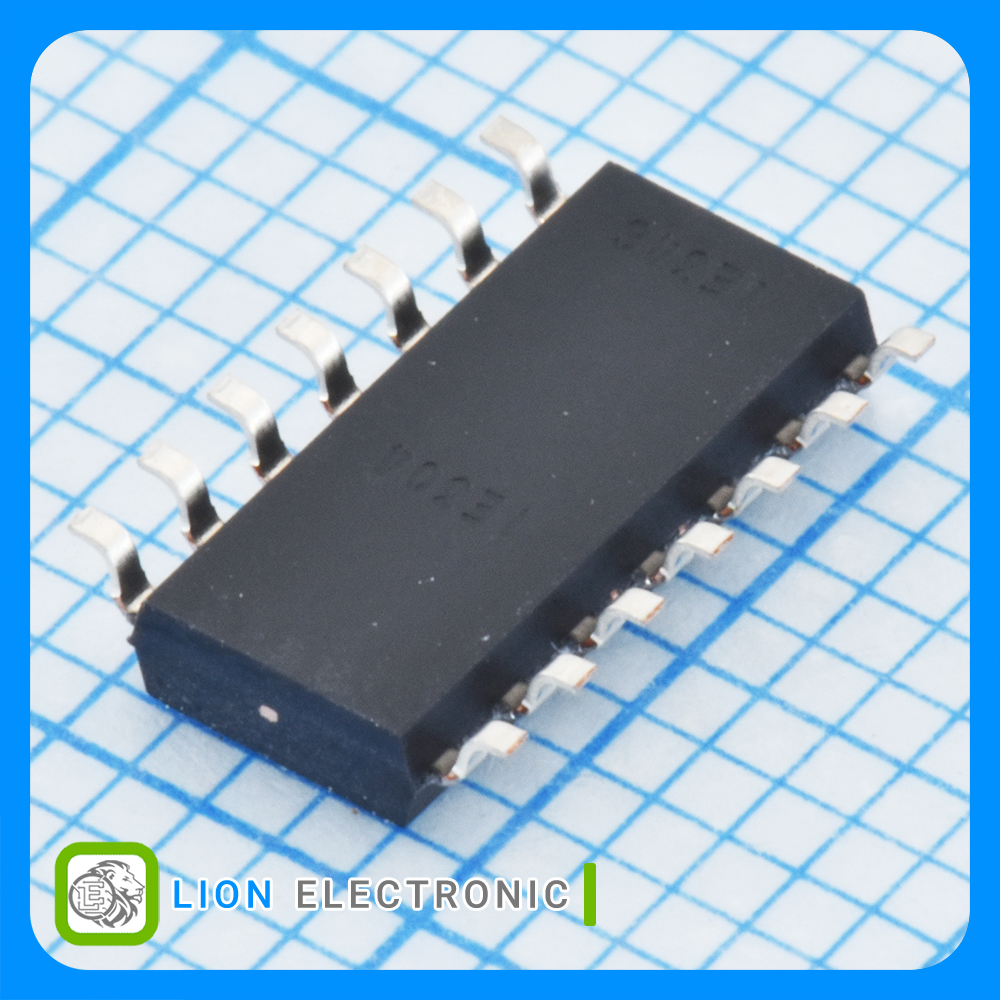

LM224DR
LM224DR
Part Number
426
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 4 کاناله با پهنای باند 1.2 مگاهرتز و پکیج SOIC-14
Quadruple Operational Amplifier 4-Channel, 1.2MHz with SOIC-14 Package
معرفی
آپامپ 4 کاناله با پهنای باند 1.2 مگاهرتز و پکیج SOIC-14
Quadruple Operational Amplifier 4-Channel, 1.2MHz with SOIC-14 Package
Specifications
- Number of Channels: 4
- Output Current per Channel: 30mA
- SR - Slew Rate: 500mV/us
- GBP - Gain Bandwidth Product: 1.2MHz
- CMRR - Common Mode Rejection Ratio: 70dB to 80dB
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 32V
- Supply Voltage - Min: 3V
- Operating Supply Current: 1.4mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات آپ امپ LM224DR
آپ امپ LM224DR
Part Number
No Shutdown
Shutdown
Reel
Packaging
4
Number of Channels
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
-25C
Minimum Operating Temperature
500mV/us
SR - Slew Rate
70dB to 80dB
CMRR - Common Mode Rejection Ratio
30mA
Output Current per Channel
1.2MHz
GBP - Gain Bandwidth Product
3V
Supply Voltage - Min
3mV
Vos - Input Offset Voltage
250nA
Ib - Input Bias Current
32V
Supply Voltage - Max
1.4mA
Operating Supply Current
SOIC-14
Package-Case
