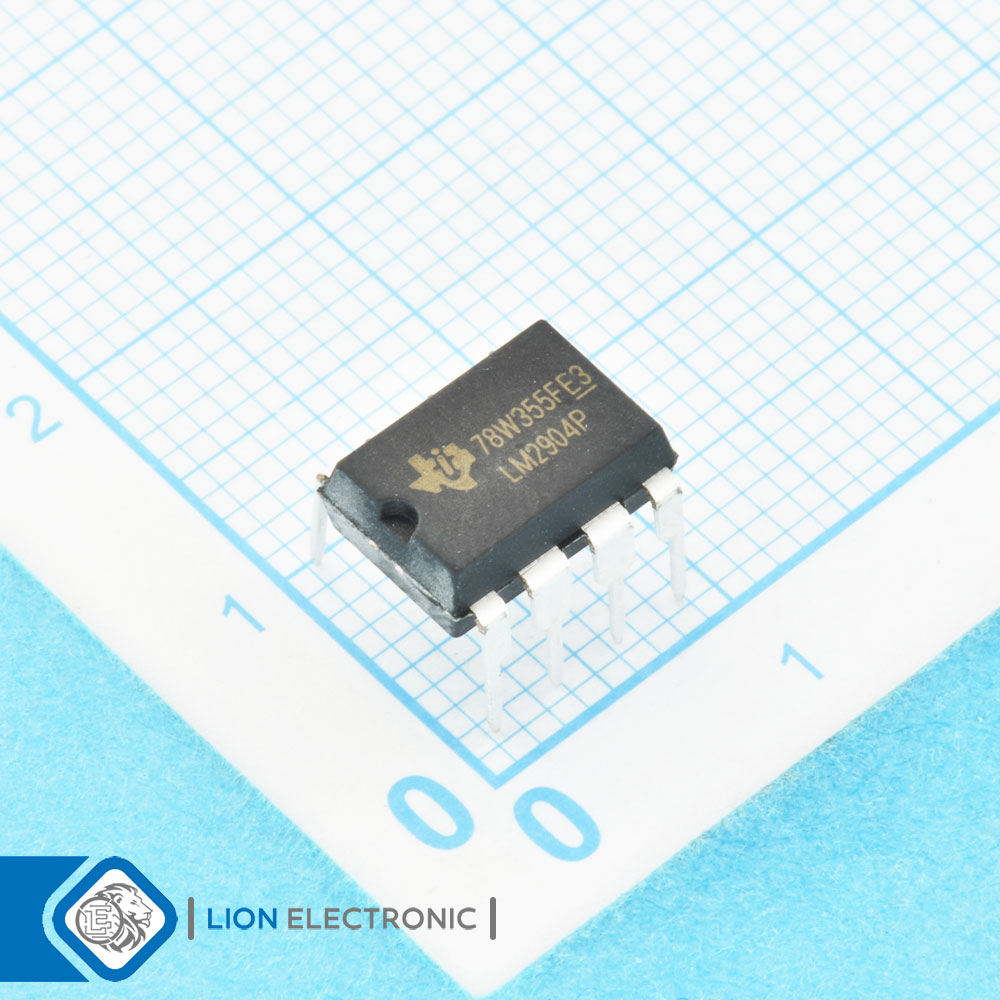

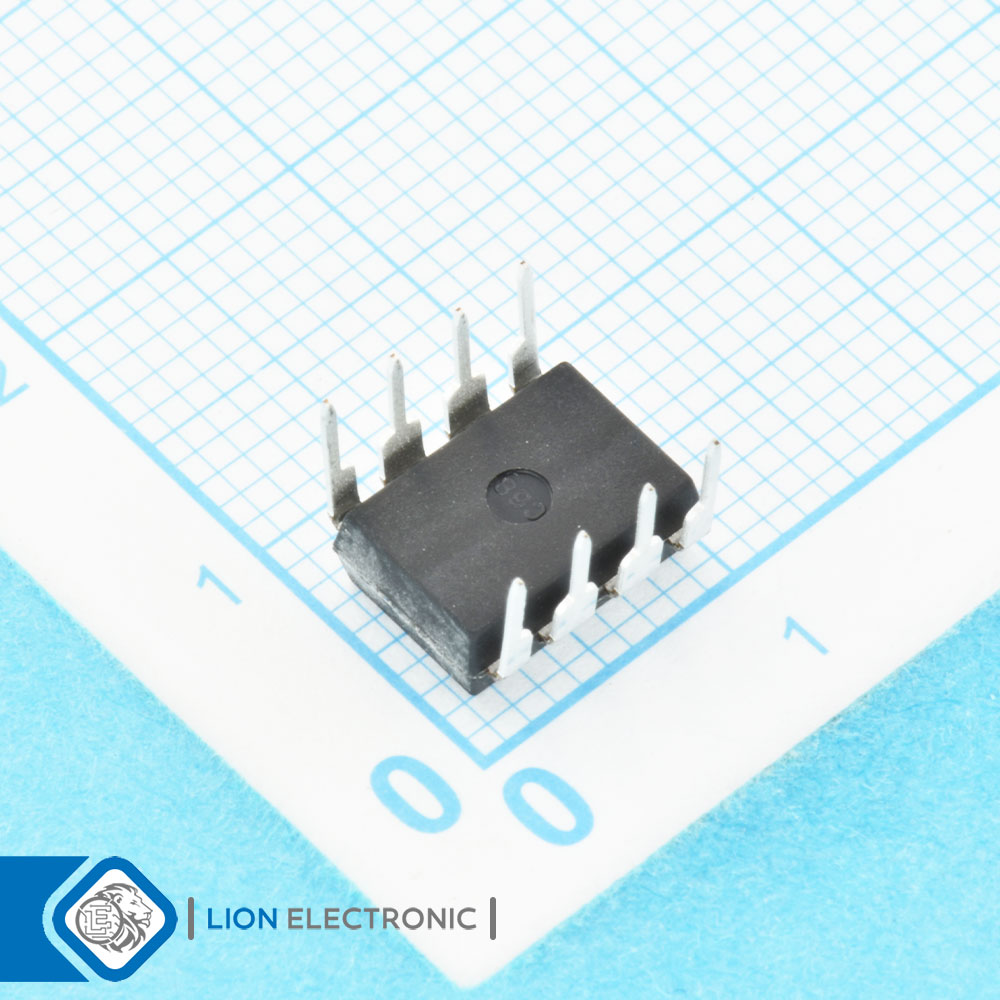

LM2904P
LM2904P
Part Number
429
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله با پهنای باند 700 کیلوهرتز و پکیج PDIP-8
Dual Operational Amplifier 2-Channel, 700KHz with PDIP-8 Package
معرفی
آپامپ 2 کاناله با پهنای باند 700 کیلوهرتز و پکیج PDIP-8
Dual Operational Amplifier 2-Channel, 700KHz with PDIP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 30mA
- SR - Slew Rate: 300mV/us
- GBP - Gain Bandwidth Product: 700KHz
- CMRR - Common Mode Rejection Ratio: 65dB to 80dB
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 26V
- Supply Voltage - Min: 3V
- Operating Supply Current: 350uA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات آپ امپ LM2904P
آپ امپ LM2904P
Part Number
No Shutdown
Shutdown
2
Number of Channels
-40C
Minimum Operating Temperature
Tube
Packaging
300mV/us
SR - Slew Rate
Through Hole
Mounting Style
65dB to 80dB
CMRR - Common Mode Rejection Ratio
+125C
Maximum Operating Temperature
700KHz
GBP - Gain Bandwidth Product
30mA
Output Current per Channel
3V
Supply Voltage - Min
3mV
Vos - Input Offset Voltage
250nA
Ib - Input Bias Current
26V
Supply Voltage - Max
350uA
Operating Supply Current
DIP-8
Package-Case
