EBYTE
معرفی
ماژول بیسیم 868/915 مگاهرتز مبتنی بر SI4463 با رابط SPI و تغذیه 1.8 تا 3.6 ولت توان خروجی 100 میلیوات

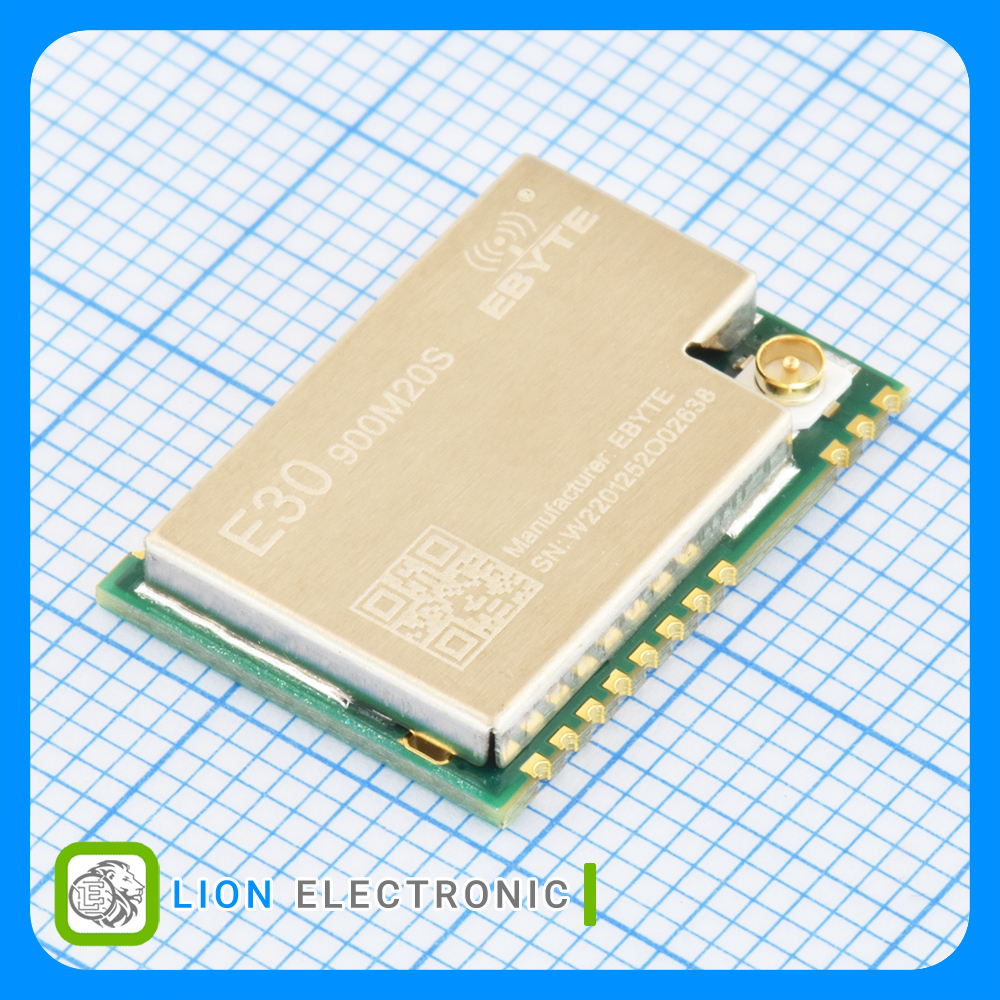

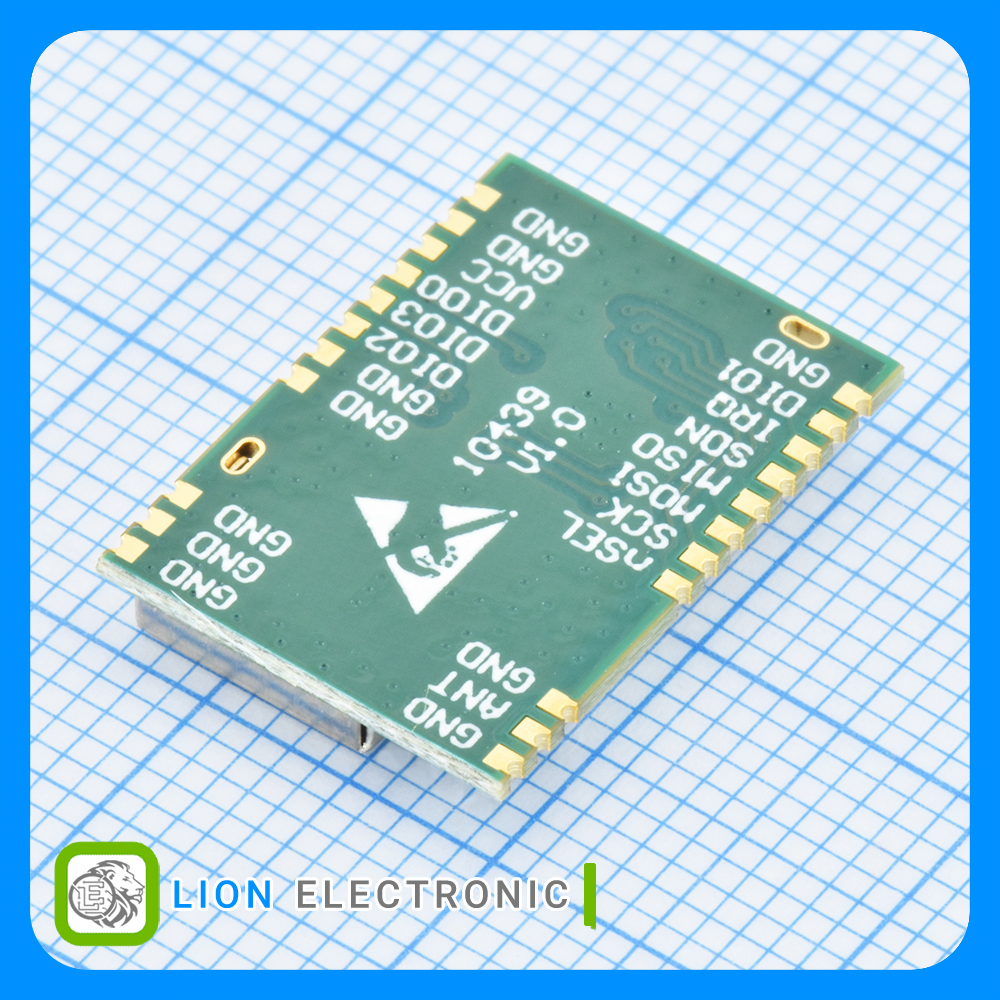

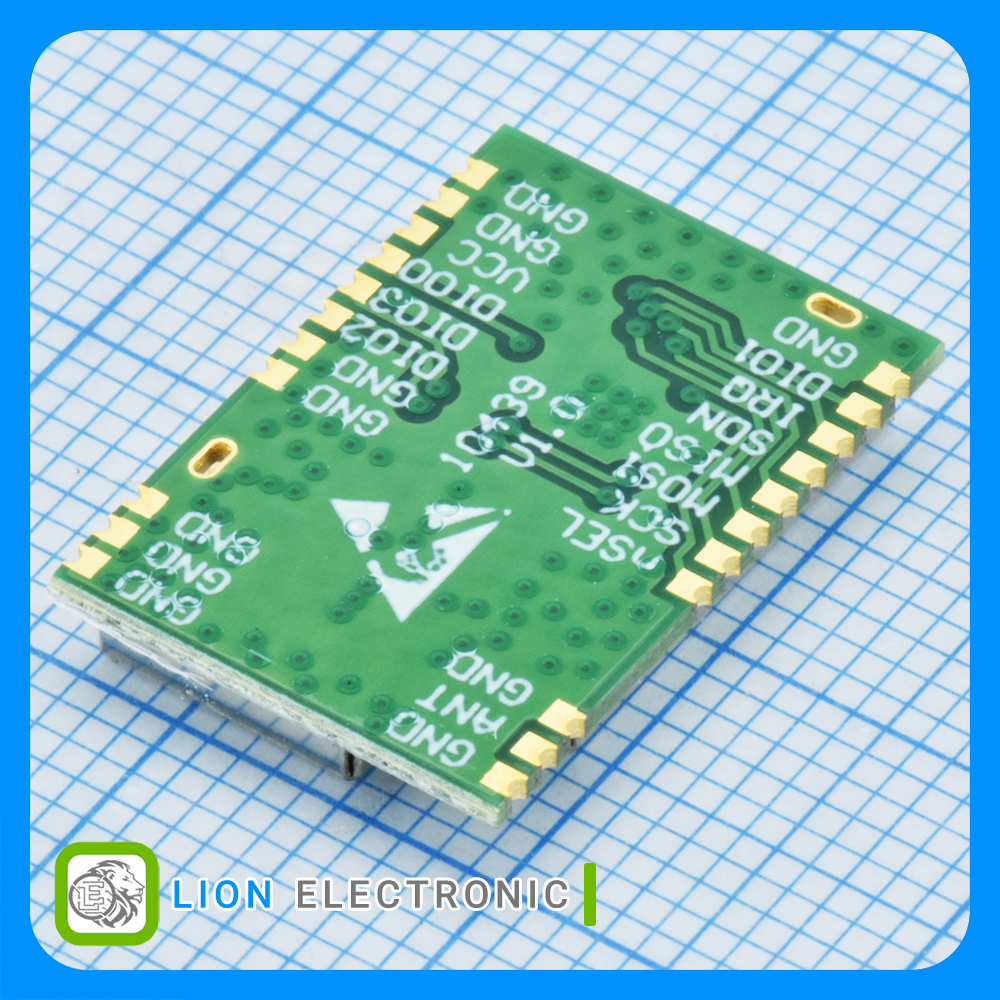

SI4463 Wireless Module 868/915MHz with SPI Interface and 1.8 - 3.6V Supply Voltage, 100mW Output Power
Specifications
- Product: Wireless Module
- Interface Type: SPI
- Antenna Connector Type: IPEX
- Frequency: 855MHz to 955MHz
- Output Power: 100mW
- Operating Supply Voltage: 1.8 - 3.6V
- Supply Current Transmitting: 100mA
- Supply Current Receiving: 16mA
- Dimensions: 14mm x 20mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ماژول وایرلس E30-900M20S

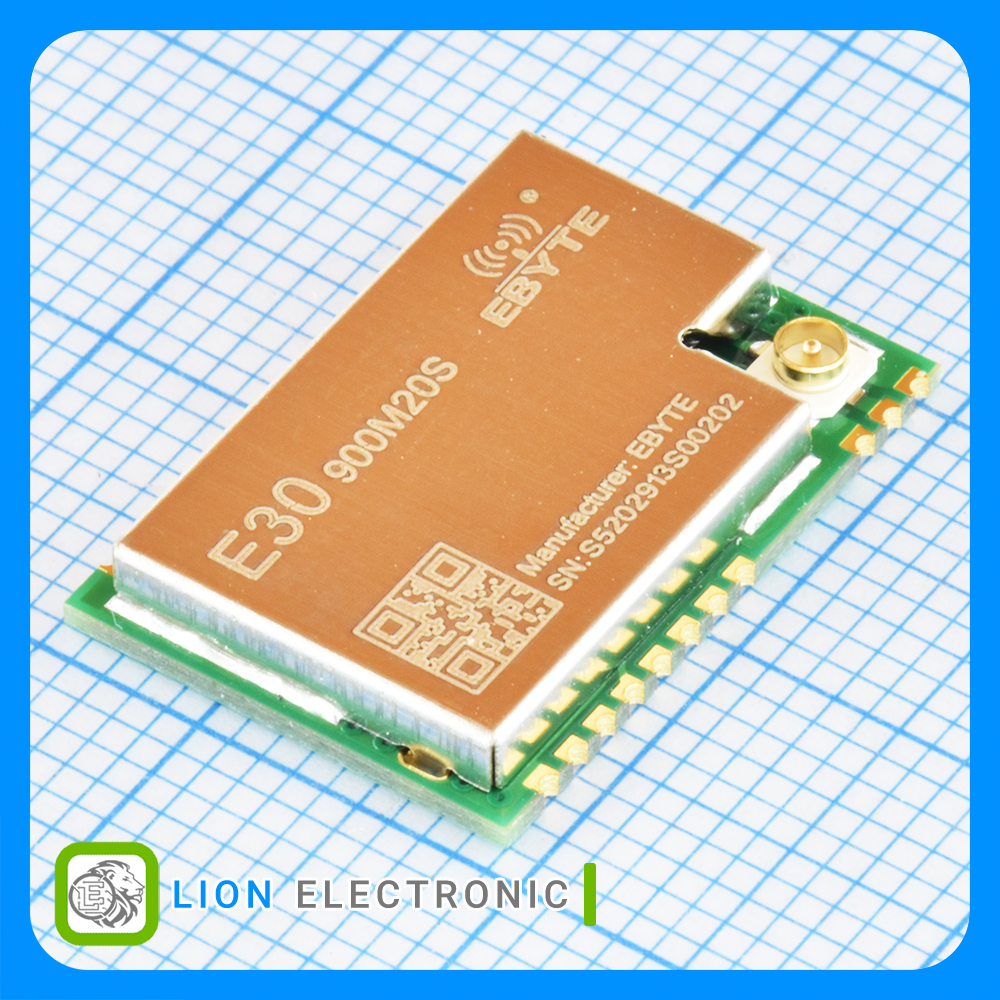

ماژول وایرلس E30-900M20S
Part Number
IPEX
Antenna Connector Type
Reel
Packaging
100mW
Output Power
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
16mA
Supply Current Receiving
100mA
Supply Current Transmitting
14mm x 20mm
Dimensions
1.8 - 3.6V
Operating Supply Voltage
855MHz to 955MHz
Frequency
Wireless Module
Product
SPI
Interface Type
