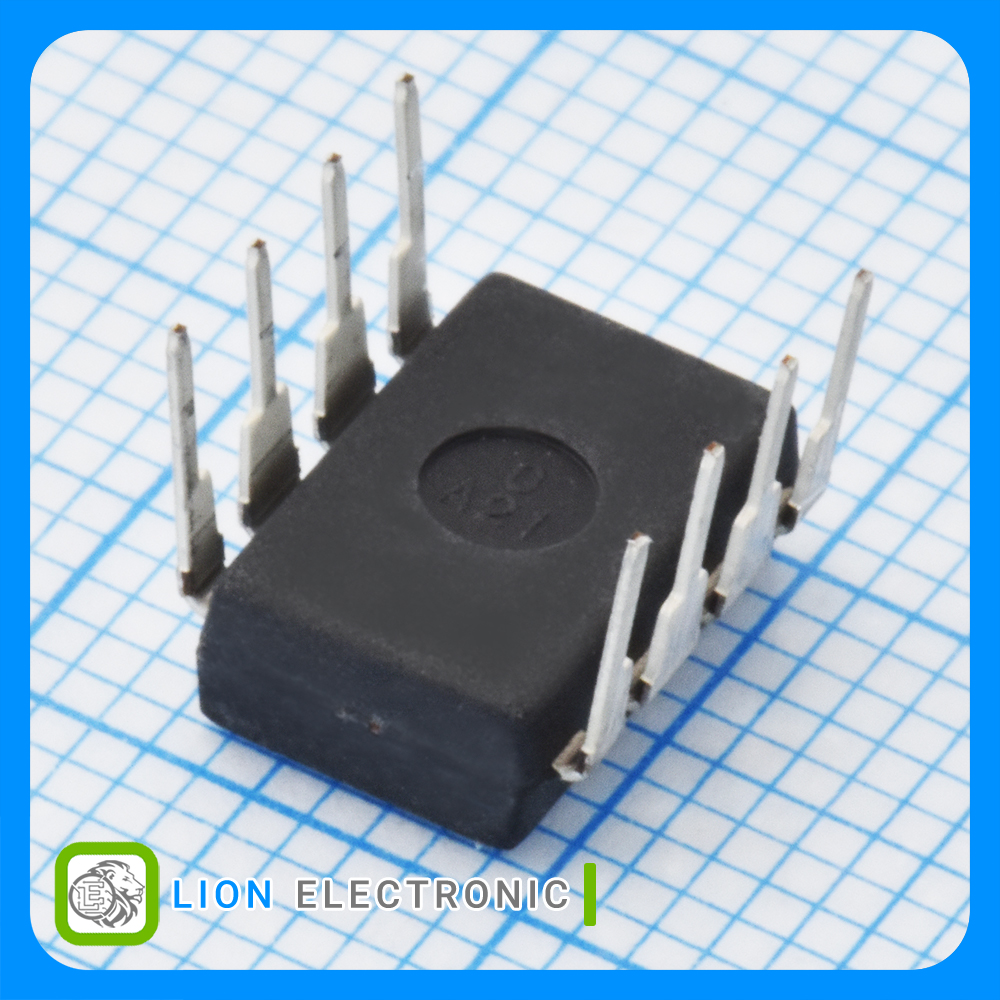

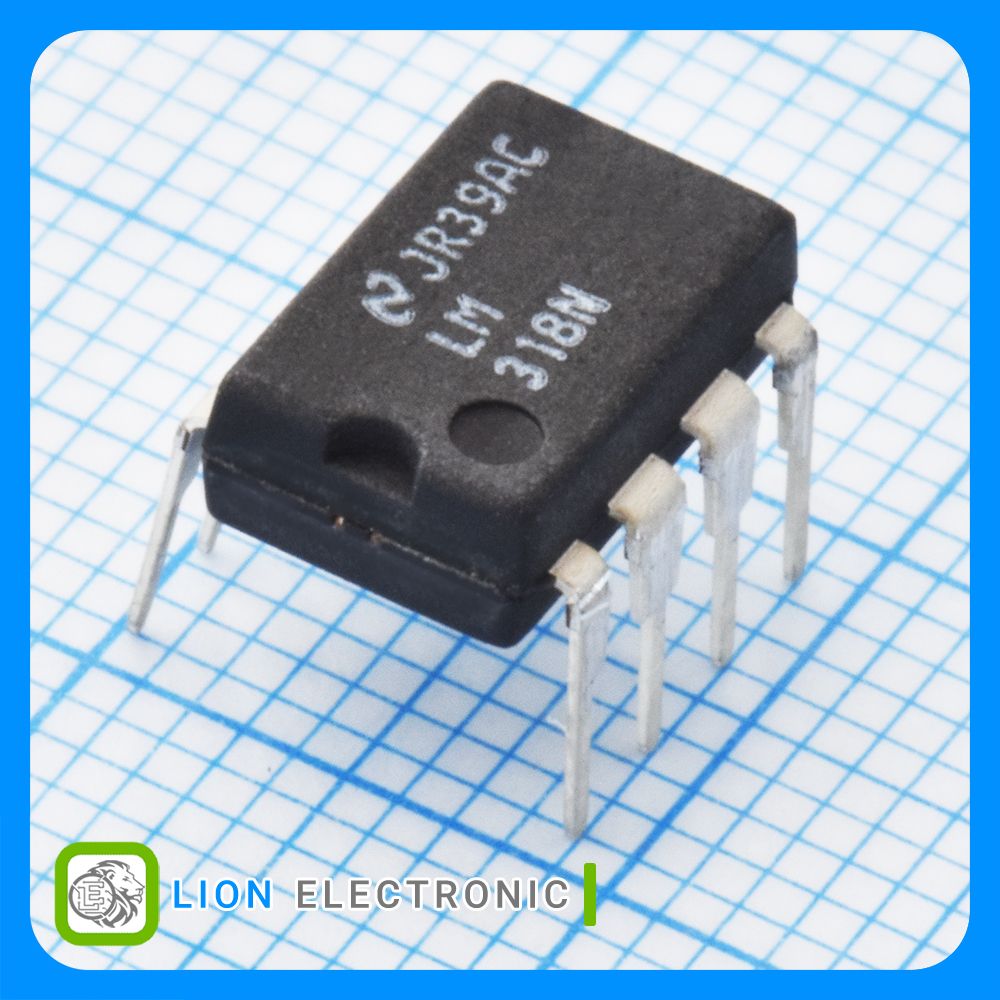

LM318N
LM318N
Part Number
430
Lion Part
Datasheet
National Semiconductor Manufacture
آپامپ 1 کاناله با پهنای باند 15 مگاهرتز و پکیج PDIP-8
Single Channel Operational Amplifier 1-Channel, 15MHz with PDIP-8 Package
معرفی
آپامپ 1 کاناله با پهنای باند 15 مگاهرتز و پکیج PDIP-8
Single Channel Operational Amplifier 1-Channel, 15MHz with PDIP-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 20mA
- SR - Slew Rate: 70V/us
- GBP - Gain Bandwidth Product: 15MHz
- CMRR - Common Mode Rejection Ratio: 70dB
- Ib - Input Bias Current: 500nA
- Vos - Input Offset Voltage: 4mV
- Supply Voltage - Max: 40V
- Supply Voltage - Min: 10V
- Operating Supply Current: 10mA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات آپ امپ LM318N
آپ امپ LM318N
Part Number
No Shutdown
Shutdown
1
Number of Channels
+70C
Maximum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
20mA
Output Current per Channel
70dB
CMRR - Common Mode Rejection Ratio
4mV
Vos - Input Offset Voltage
70V/us
SR - Slew Rate
15MHz
GBP - Gain Bandwidth Product
500nA
Ib - Input Bias Current
40V
Supply Voltage - Max
10V
Supply Voltage - Min
DIP-8
Package-Case
10mA
Operating Supply Current
