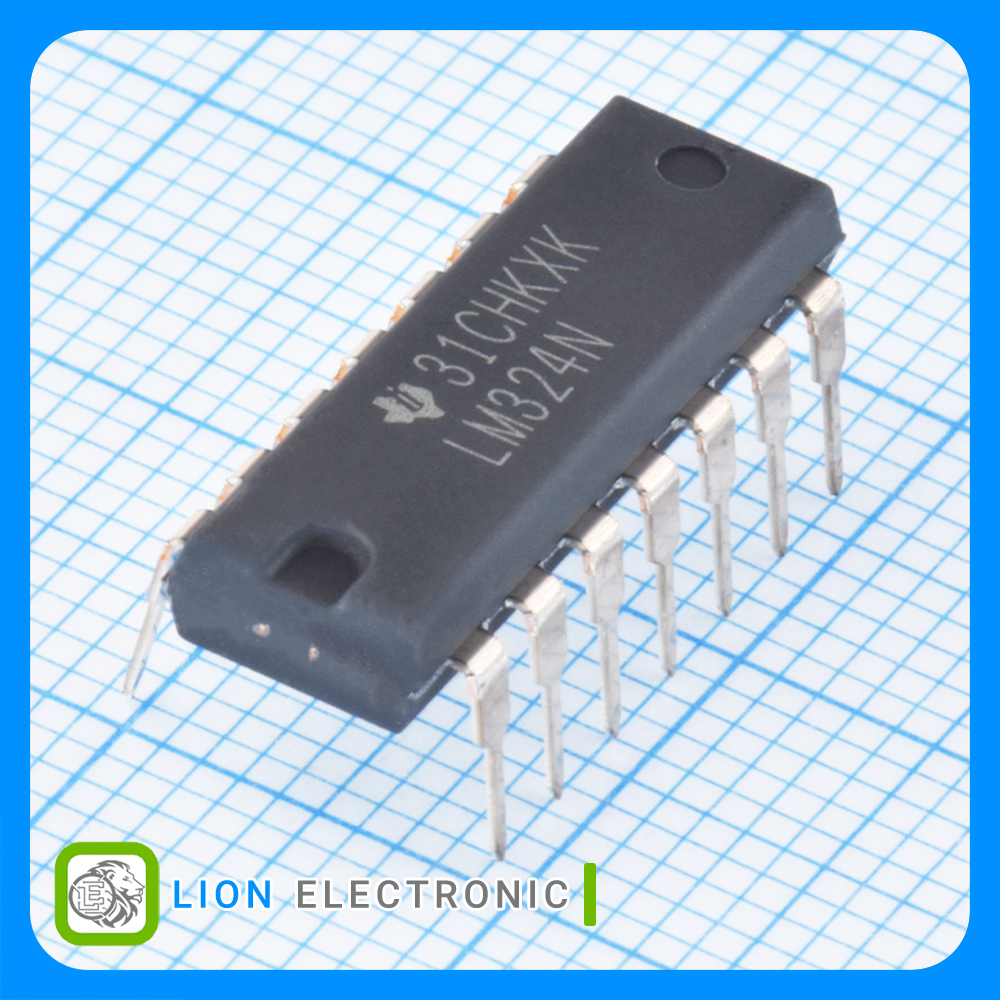

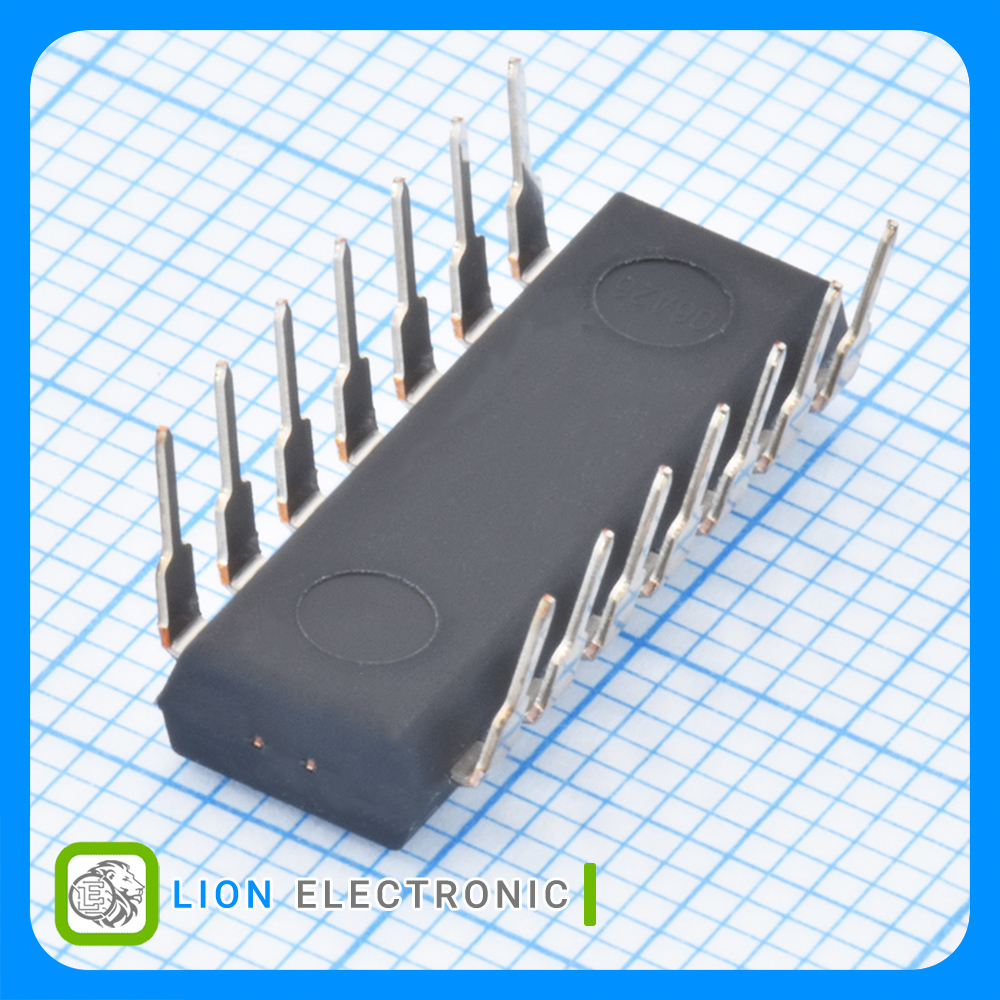

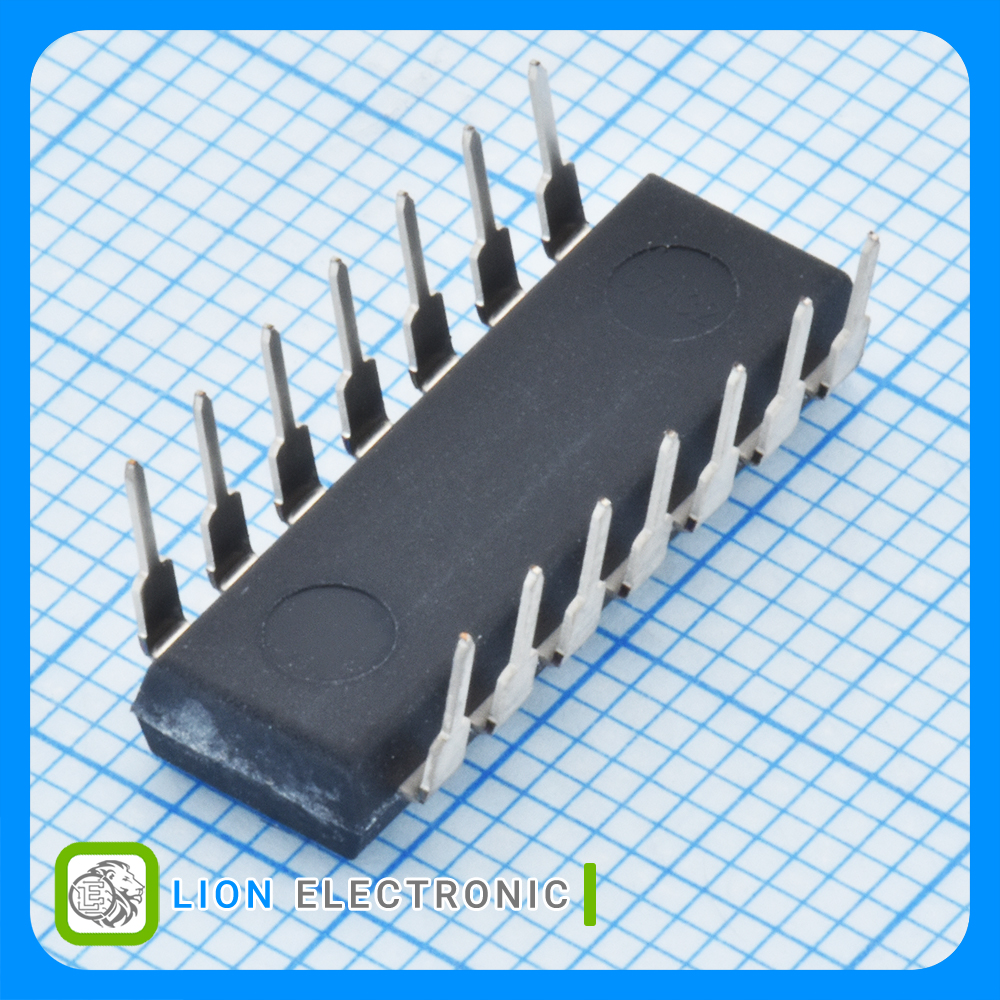

LM324N
LM324N
Part Number
432
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 4 کاناله با پهنای باند 1.2 مگاهرتز و پکیج PDIP-14
Quad Operational Amplifier 4-Channel, 1.2MHz with PDIP-14 Package
معرفی
آپامپ 4 کاناله با پهنای باند 1.2 مگاهرتز و پکیج PDIP-14
Quad Operational Amplifier 4-Channel, 1.2MHz with PDIP-14 Package
Specifications
- Number of Channels: 4
- Output Current per Channel: 20mA
- SR - Slew Rate: 500mV/us
- GBP - Gain Bandwidth Product: 1.2MHz
- CMRR - Common Mode Rejection Ratio: 65dB to 80dB
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 32V
- Supply Voltage - Min: 3V
- Operating Supply Current: 1.5mA
- Mounting Style: Through Hole
- Package/Case: DIP-14
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +90C
- Packaging: Tube
مشخصات آپ امپ LM324N

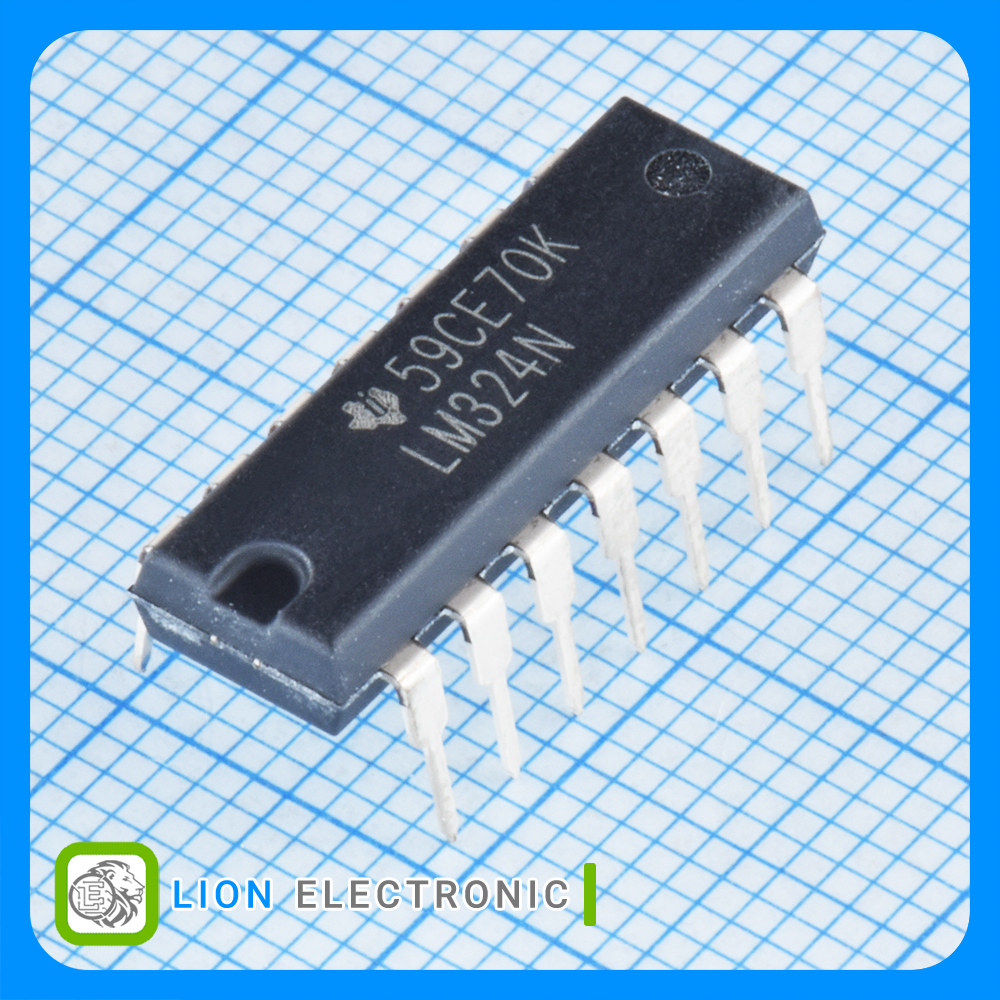

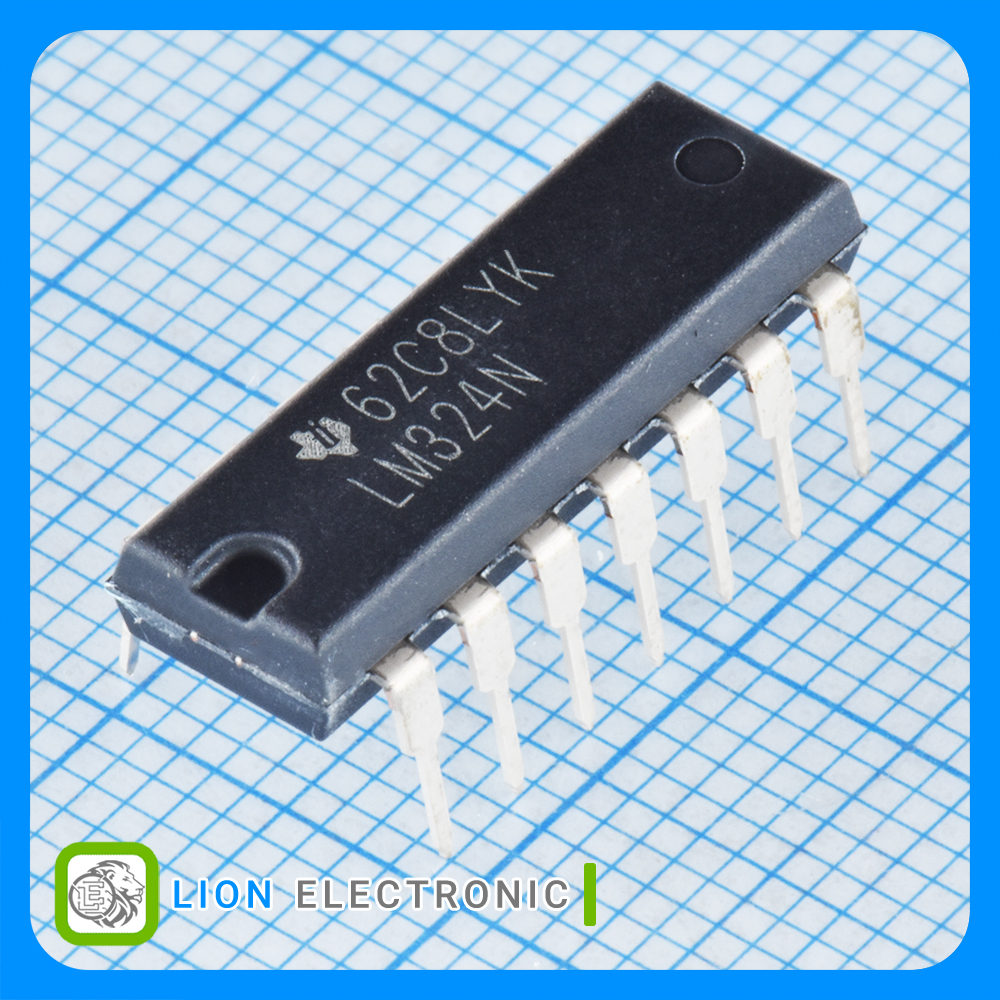

آپ امپ LM324N
Part Number
No Shutdown
Shutdown
4
Number of Channels
Tube
Packaging
Through Hole
Mounting Style
+90C
Maximum Operating Temperature
65dB to 80dB
CMRR - Common Mode Rejection Ratio
500mV/us
SR - Slew Rate
0C
Minimum Operating Temperature
20mA
Output Current per Channel
1.2MHz
GBP - Gain Bandwidth Product
3V
Supply Voltage - Min
3mV
Vos - Input Offset Voltage
250nA
Ib - Input Bias Current
32V
Supply Voltage - Max
DIP-14
Package-Case
1.5mA
Operating Supply Current
