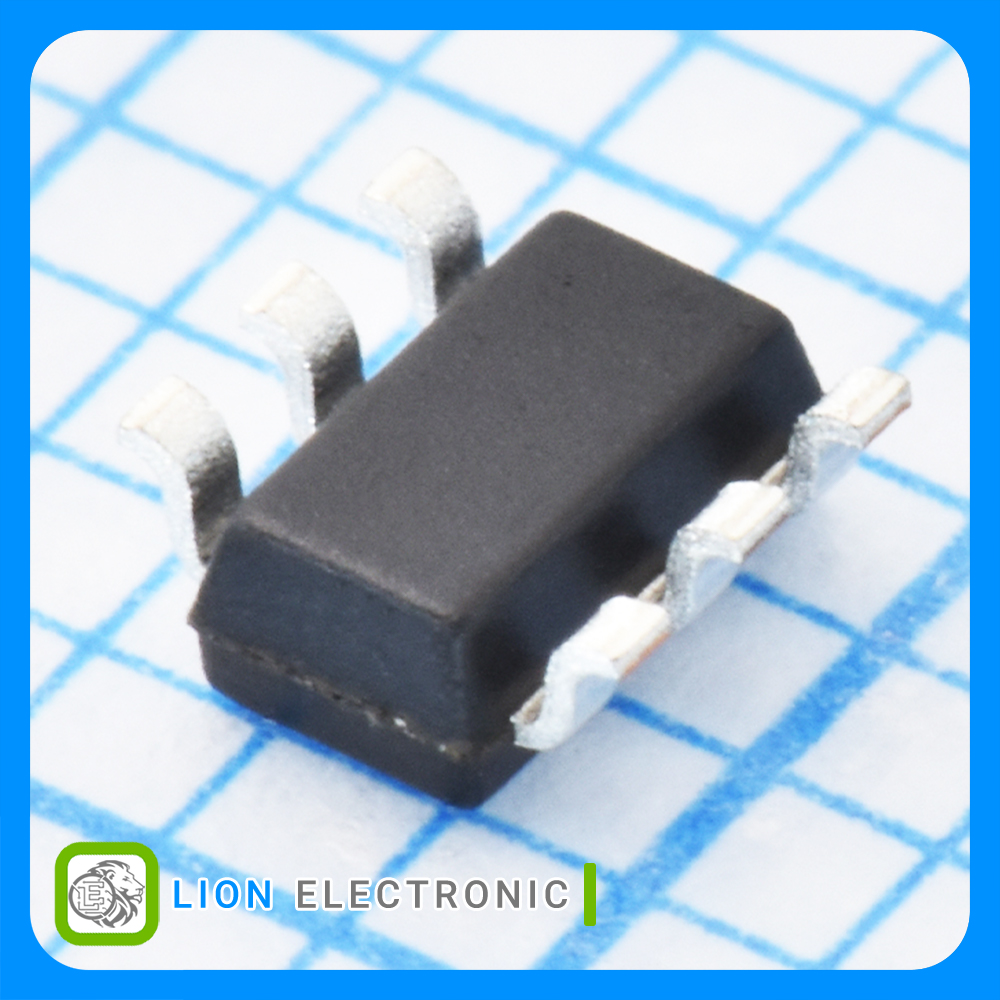

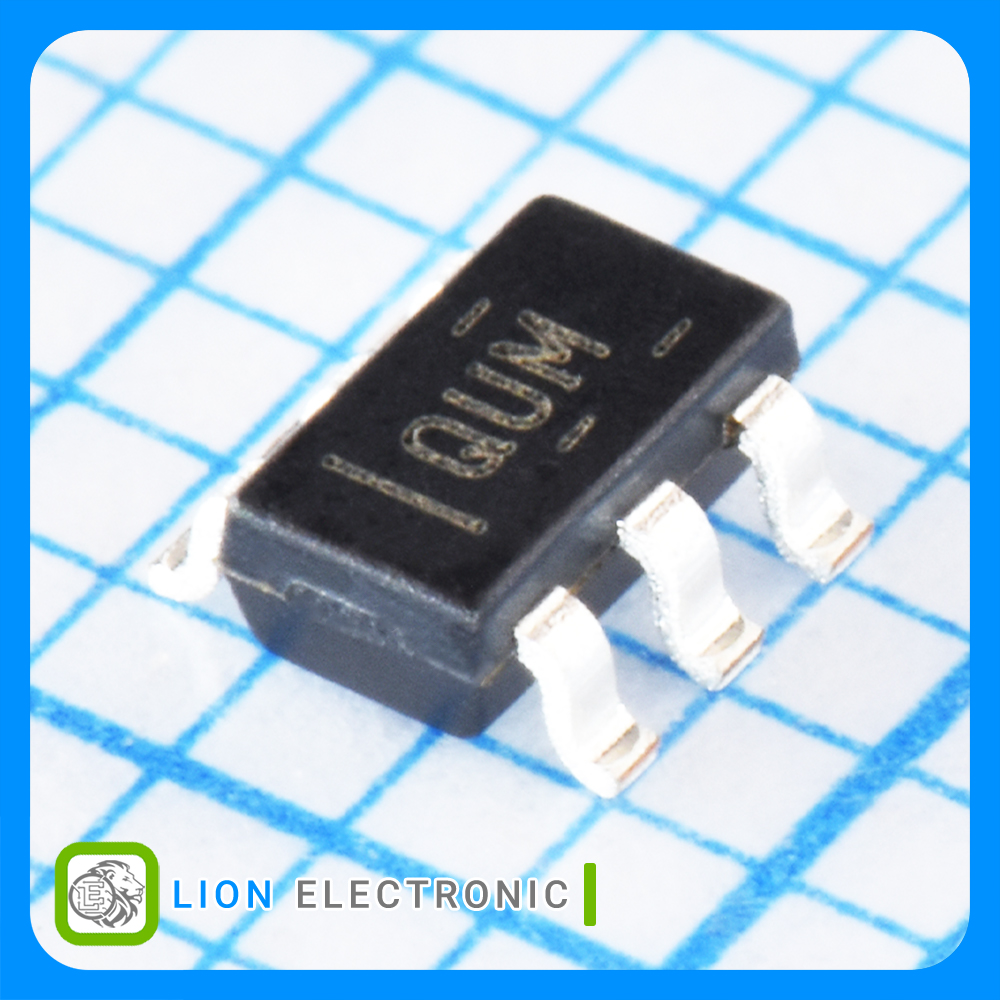

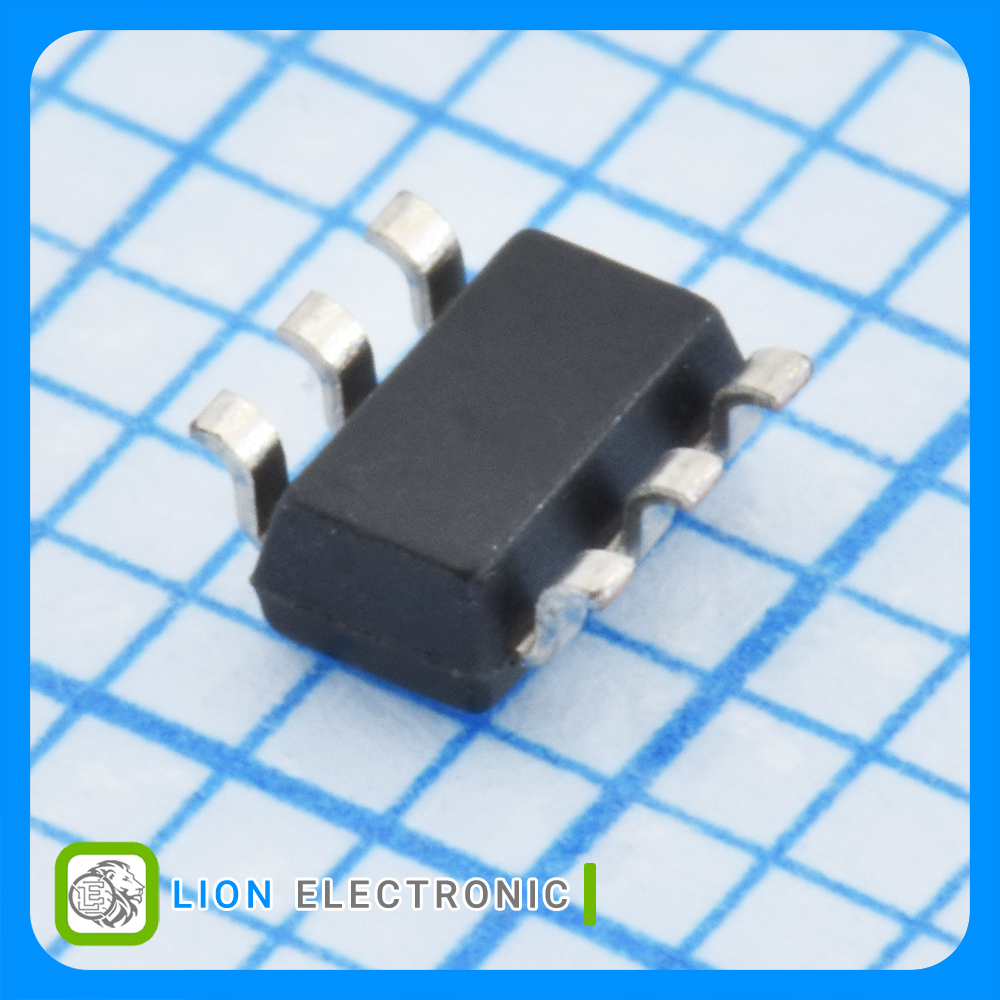

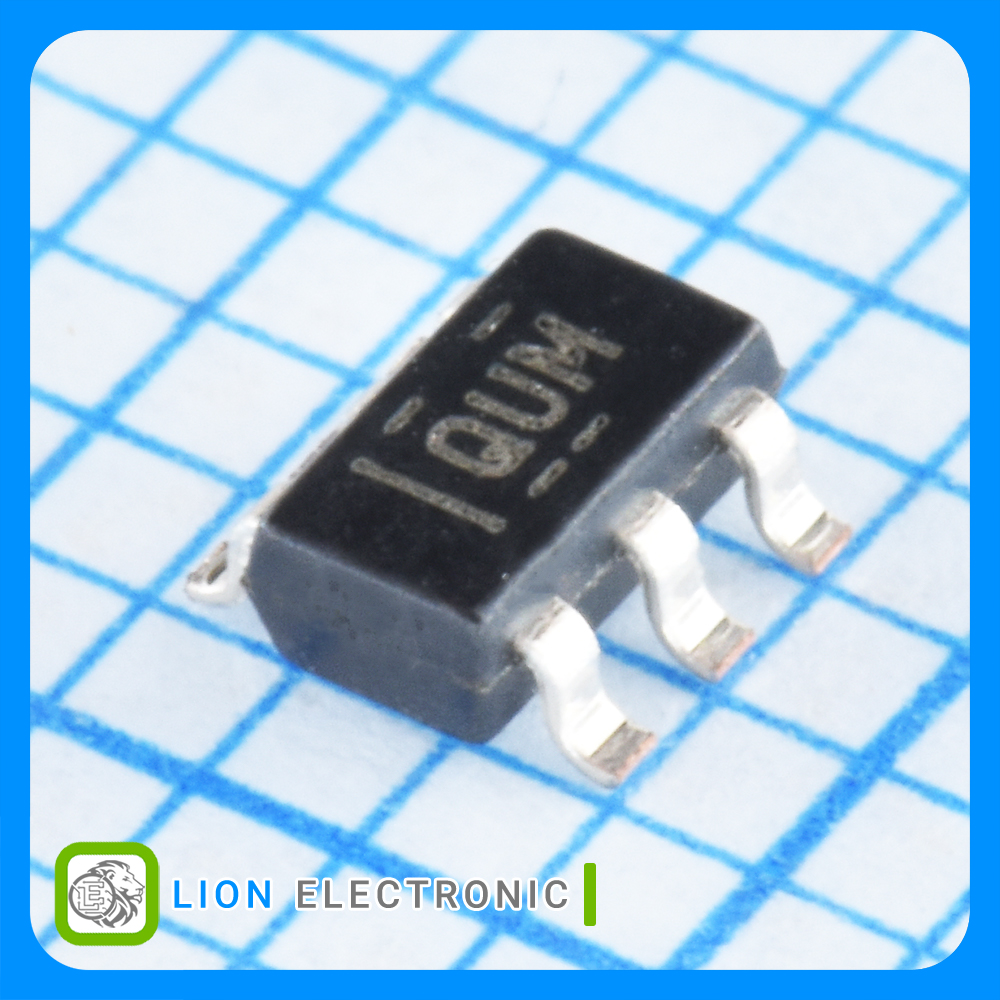

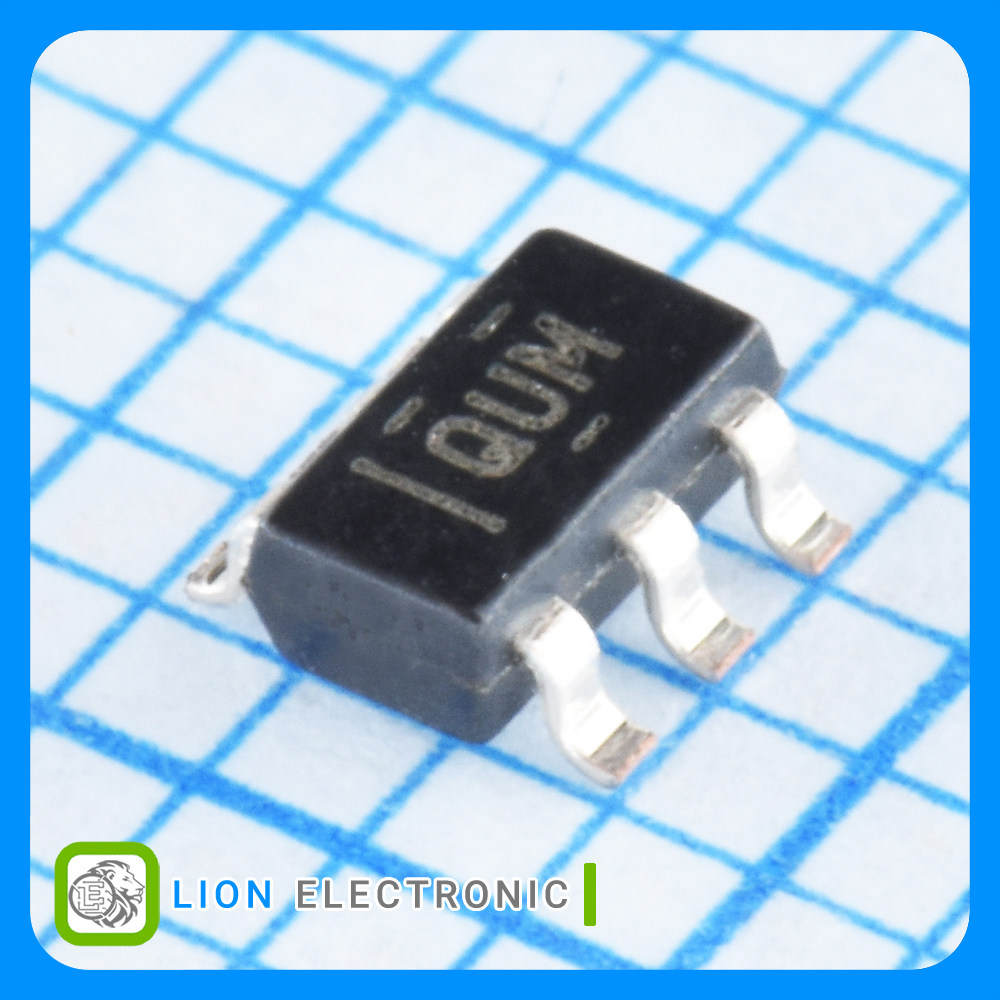

OPA835IDBVR
OPA835IDBVR
Part Number
4353
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله کم توان با پهنای باند 30 مگاهرتز و پکیج SOT-23-6
Single Ultra-Low-Power, Rail-to-Rail Output, Negative-Rail Input, Voltage-Feedback (VFB) Operational Amplifier 1-Channel, 30MHz with SOT-23-6 Package
معرفی
آپامپ 1 کاناله کم توان با پهنای باند 30 مگاهرتز و پکیج SOT-23-6
Single Ultra-Low-Power, Rail-to-Rail Output, Negative-Rail Input, Voltage-Feedback (VFB) Operational Amplifier 1-Channel, 30MHz with SOT-23-6 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 40mA
- SR - Slew Rate: 160V/us
- GBP - Gain Bandwidth Product: 30MHz
- CMRR - Common Mode Rejection Ratio: 113dB
- Ib - Input Bias Current: 200nA
- Vos - Input Offset Voltage: 100uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.5V
- Operating Supply Current: 250uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ OPA835IDBVR
آپ امپ OPA835IDBVR
Part Number
1
Number of Channels
120dB
Voltage Gain dB
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
100uV
Vos - Input Offset Voltage
5.5V
Supply Voltage - Max
40mA
Output Current per Channel
2.5V
Supply Voltage - Min
113dB
CMRR - Common Mode Rejection Ratio
30MHz
GBP - Gain Bandwidth Product
200nA
Ib - Input Bias Current
160V/us
SR - Slew Rate
250uA
Operating Supply Current
SOT-23-6
Package-Case
