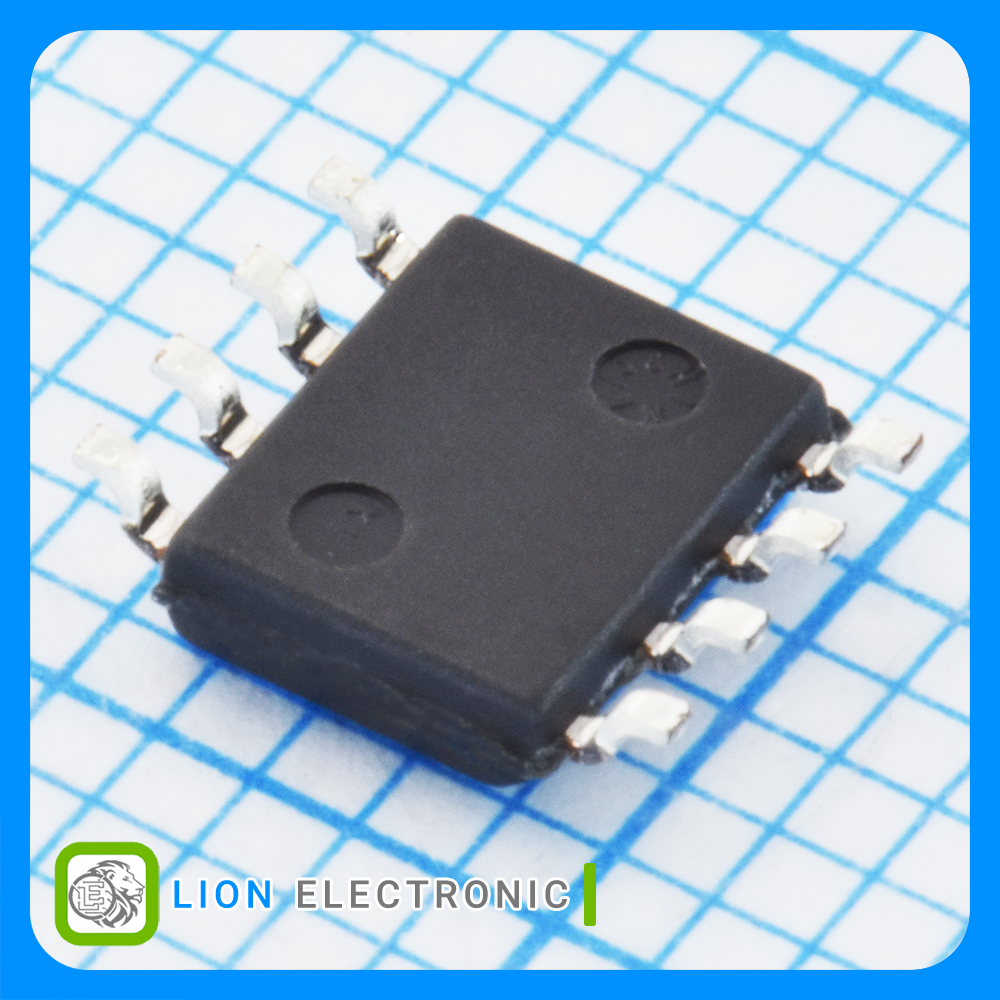

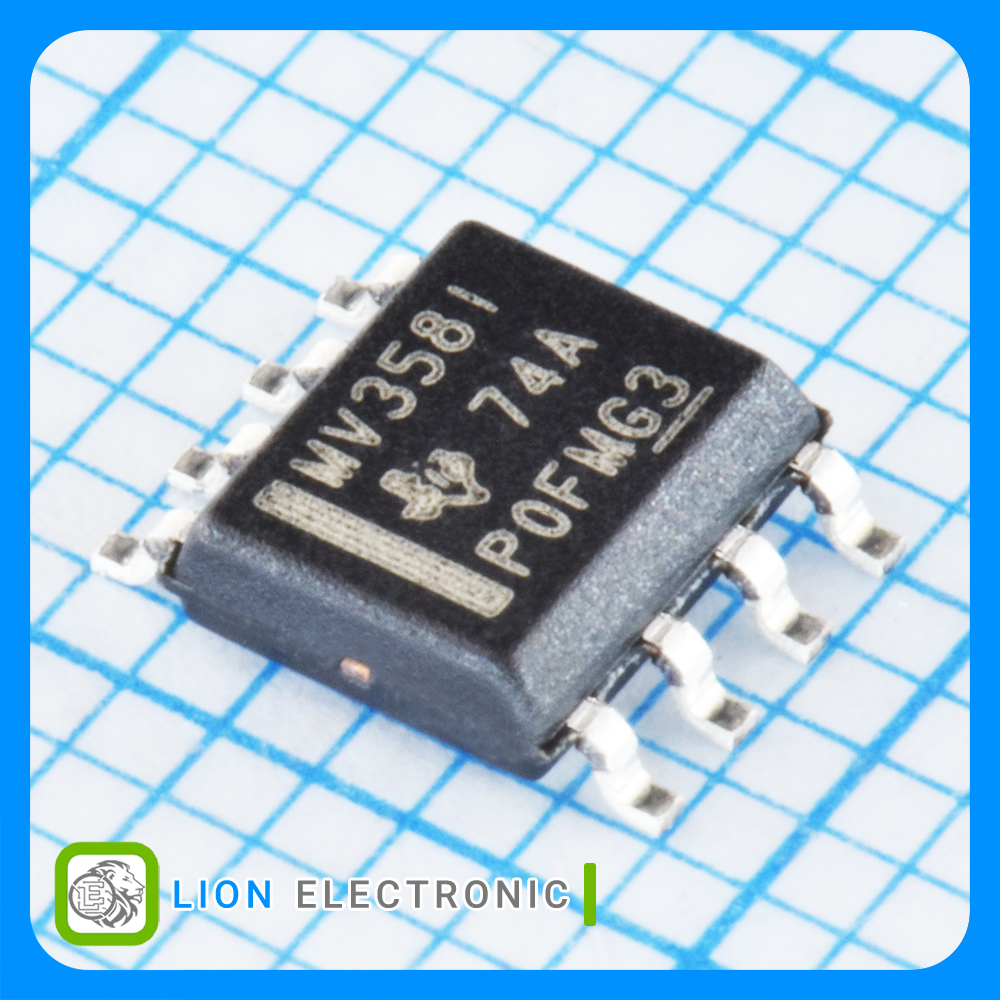

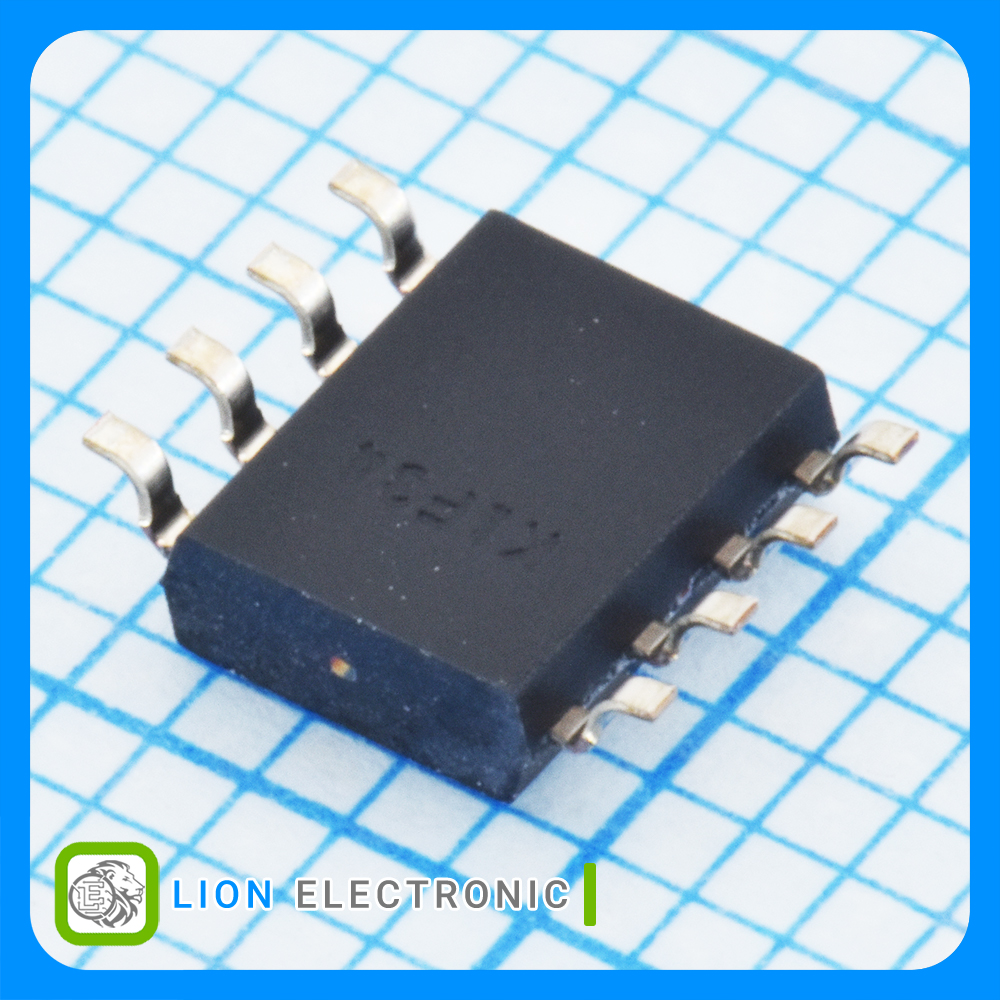

LMV358IDR
LMV358IDR
Part Number
436
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله با پهنای باند 1 مگاهرتز و پکیج SOIC-8
Operational Amplifier 2-Channel, 1MHz with SOIC-8 Package
معرفی
آپامپ 2 کاناله با پهنای باند 1 مگاهرتز و پکیج SOIC-8
Operational Amplifier 2-Channel, 1MHz with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 160mA
- SR - Slew Rate: 1V/us
- GBP - Gain Bandwidth Product: 1MHz
- CMRR - Common Mode Rejection Ratio: 50dB to 65dB
- Ib - Input Bias Current: 250nA
- Vos - Input Offset Voltage: 1.7mV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 105uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ LMV358IDR

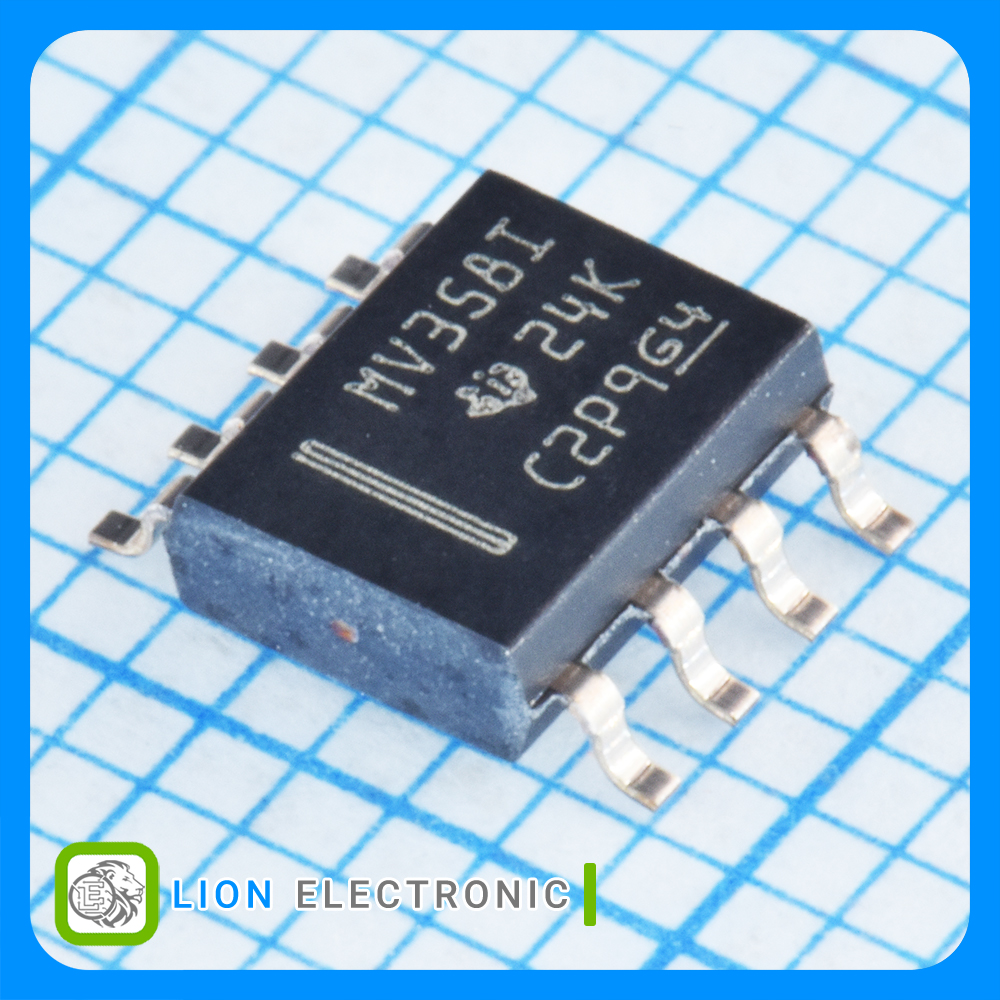

آپ امپ LMV358IDR
Part Number
No Shutdown
Shutdown
50dB to 65dB
CMRR - Common Mode Rejection Ratio
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
1V/us
SR - Slew Rate
1MHz
GBP - Gain Bandwidth Product
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
160mA
Output Current per Channel
1.7mV
Vos - Input Offset Voltage
105uA
Operating Supply Current
250nA
Ib - Input Bias Current
SOIC-8
Package-Case
