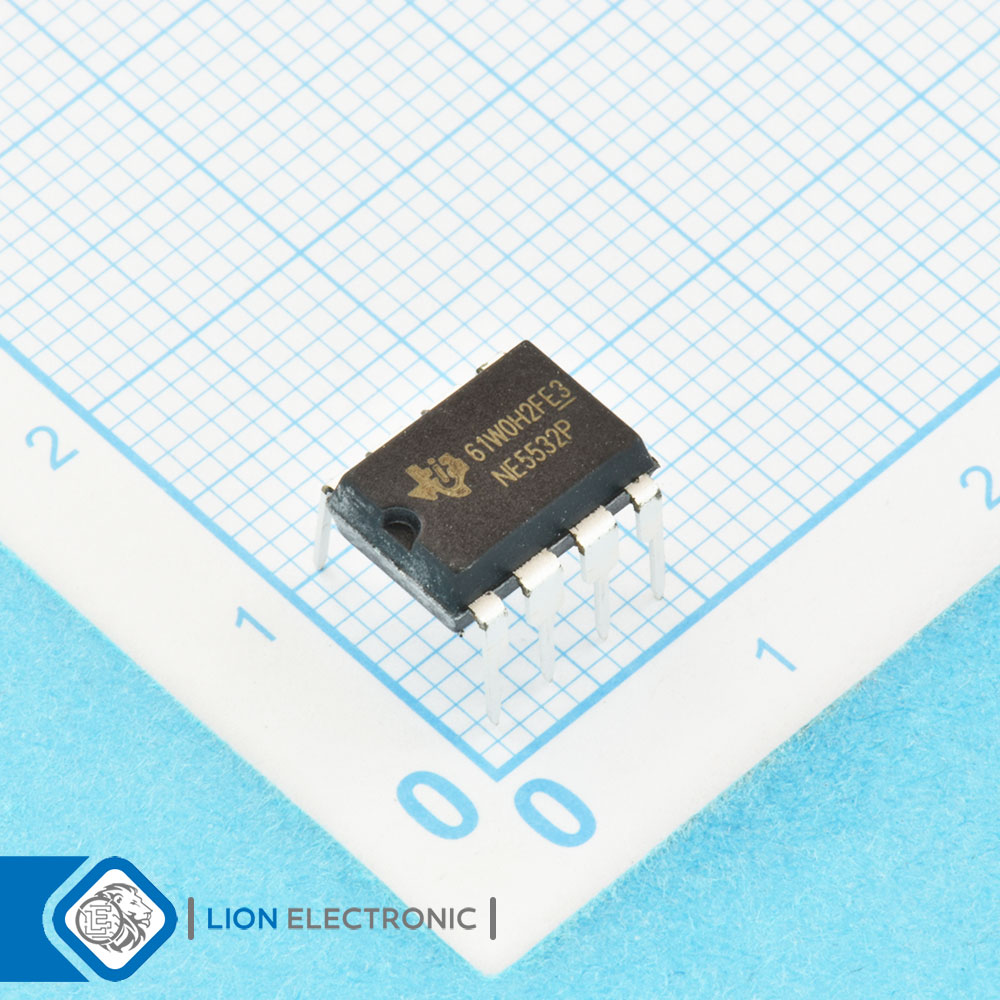

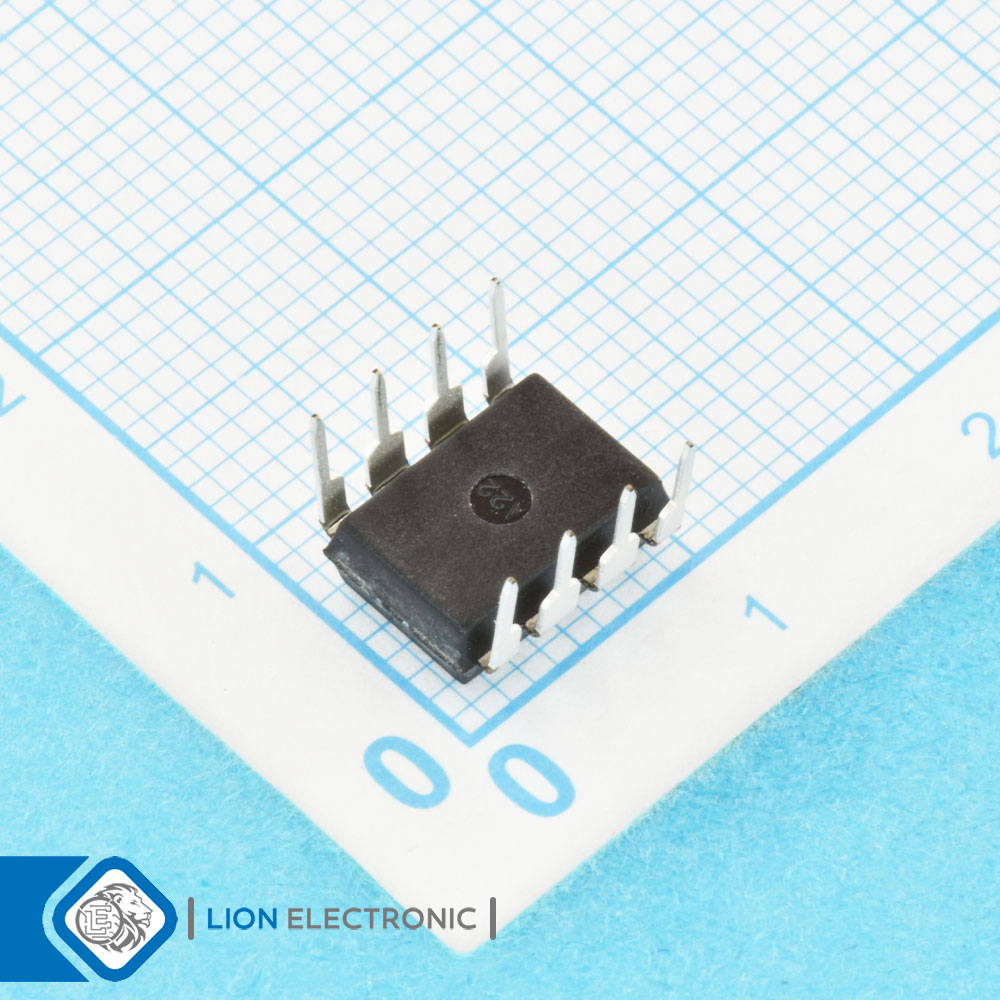

NE5532P
NE5532P
Part Number
438
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله صوتی با نویز کم، پهنای باند 10 مگاهرتز و پکیج PDIP-8
Dual Low-Noise Audio Operational Amplifier 2-Channel, 10MHz with PDIP-8 Package
معرفی
آپامپ 2 کاناله صوتی با نویز کم، پهنای باند 10 مگاهرتز و پکیج PDIP-8
Dual Low-Noise Audio Operational Amplifier 2-Channel, 10MHz with PDIP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 38mA
- SR - Slew Rate: 9V/us
- GBP - Gain Bandwidth Product: 10MHz
- CMRR - Common Mode Rejection Ratio: 70dB to 100dB
- Ib - Input Bias Current: 800nA
- Vos - Input Offset Voltage: 4mV
- Supply Voltage - Max: 22V
- Supply Voltage - Min: 0V
- Operating Supply Current: 500uA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +90C
- Packaging: Tube
مشخصات آپ امپ NE5532P
آپ امپ NE5532P
Part Number
No Shutdown
Shutdown
2
Number of Channels
0V
Supply Voltage - Min
Tube
Packaging
+90C
Maximum Operating Temperature
Through Hole
Mounting Style
0C
Minimum Operating Temperature
70dB 70dB to 100dB
CMRR - Common Mode Rejection Ratio
38mA
Output Current per Channel
9V/us
SR - Slew Rate
10MHz
GBP - Gain Bandwidth Product
4mV
Vos - Input Offset Voltage
22V
Supply Voltage - Max
800nA
Ib - Input Bias Current
500uA
Operating Supply Current
DIP-8
Package-Case
