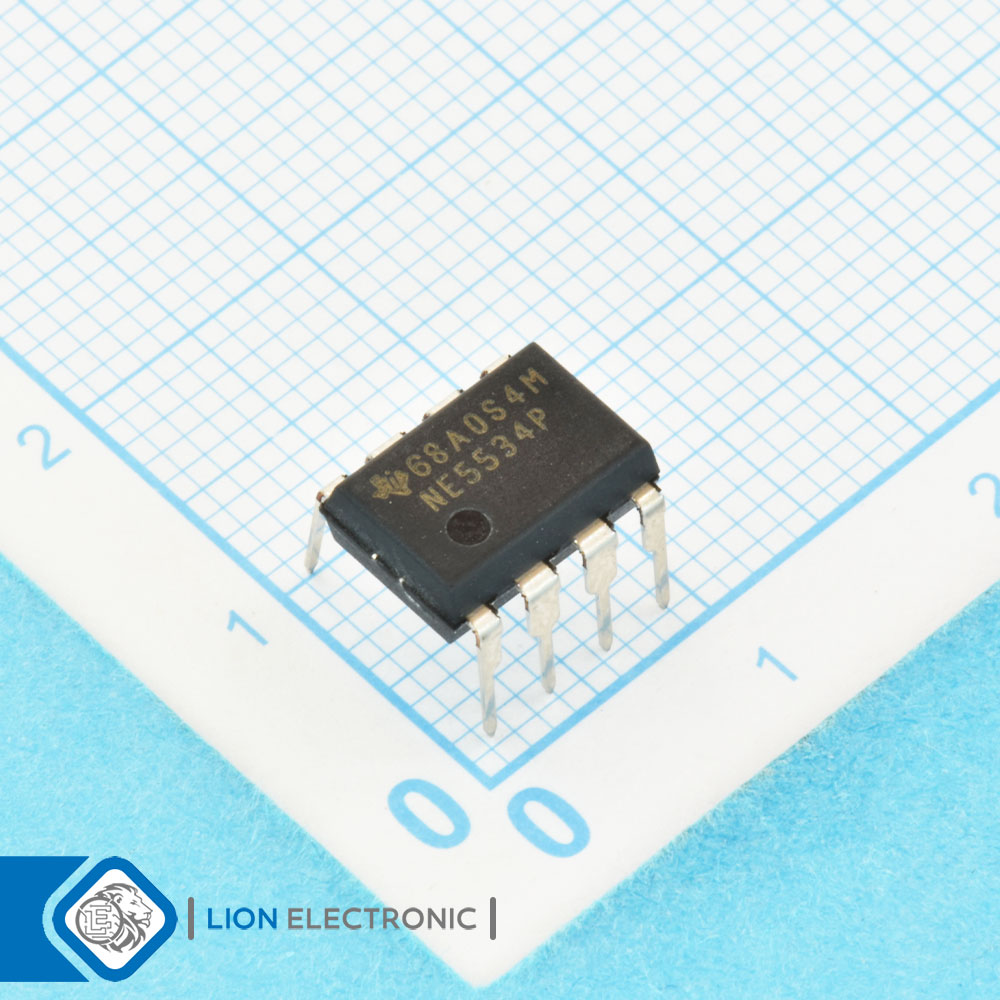

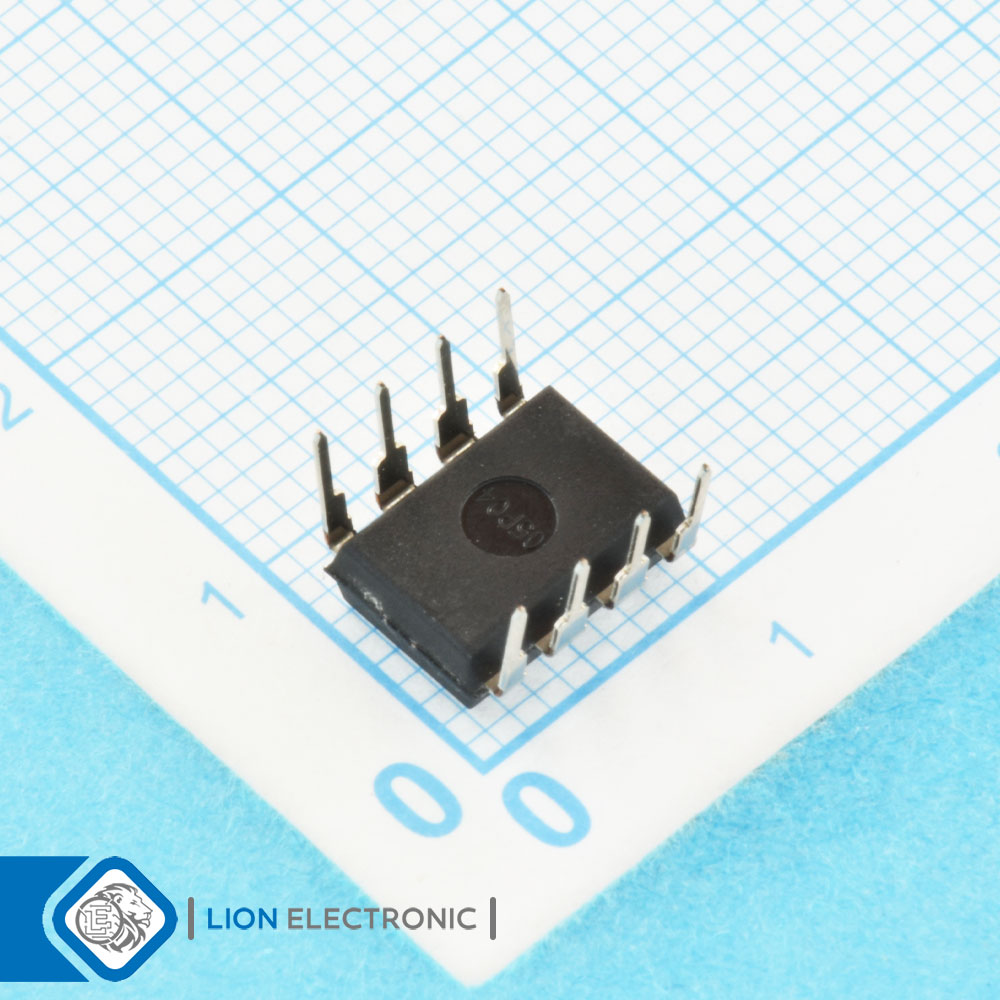

NE5534P
NE5534P
Part Number
439
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله با نویز کم، پهنای باند 10 مگاهرتز و پکیج PDIP-8
Low-Noise Operational Amplifier 1-Channel, 10MHz with PDIP-8 Package
معرفی
آپامپ 1 کاناله با نویز کم، پهنای باند 10 مگاهرتز و پکیج PDIP-8
Low-Noise Operational Amplifier 1-Channel, 10MHz with PDIP-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 38mA
- SR - Slew Rate: 13V/us
- GBP - Gain Bandwidth Product: 10MHz
- CMRR - Common Mode Rejection Ratio: 70dB to 100dB
- Ib - Input Bias Current: 1.5uA
- Vos - Input Offset Voltage: 500uV
- Supply Voltage - Max: 30V
- Supply Voltage - Min: 10V
- Operating Supply Current: 500uA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Tube
مشخصات آپ امپ NE5534P

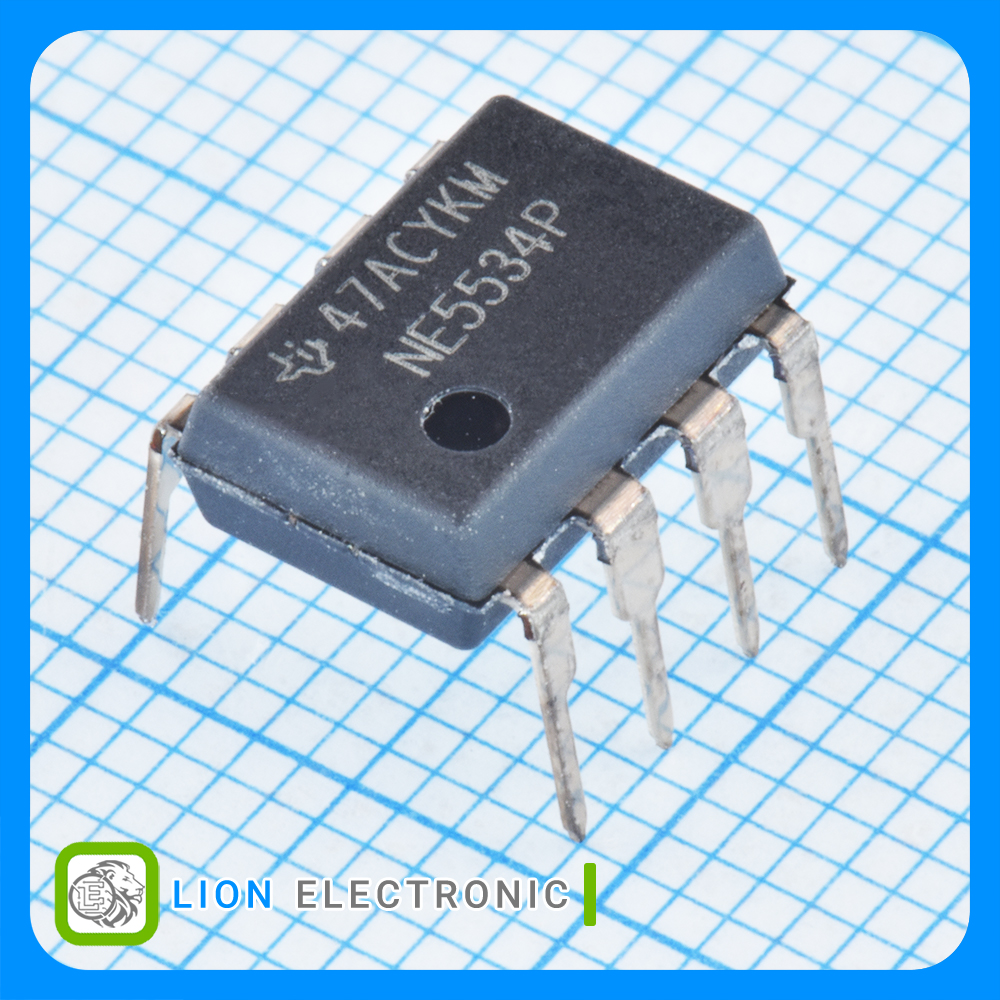

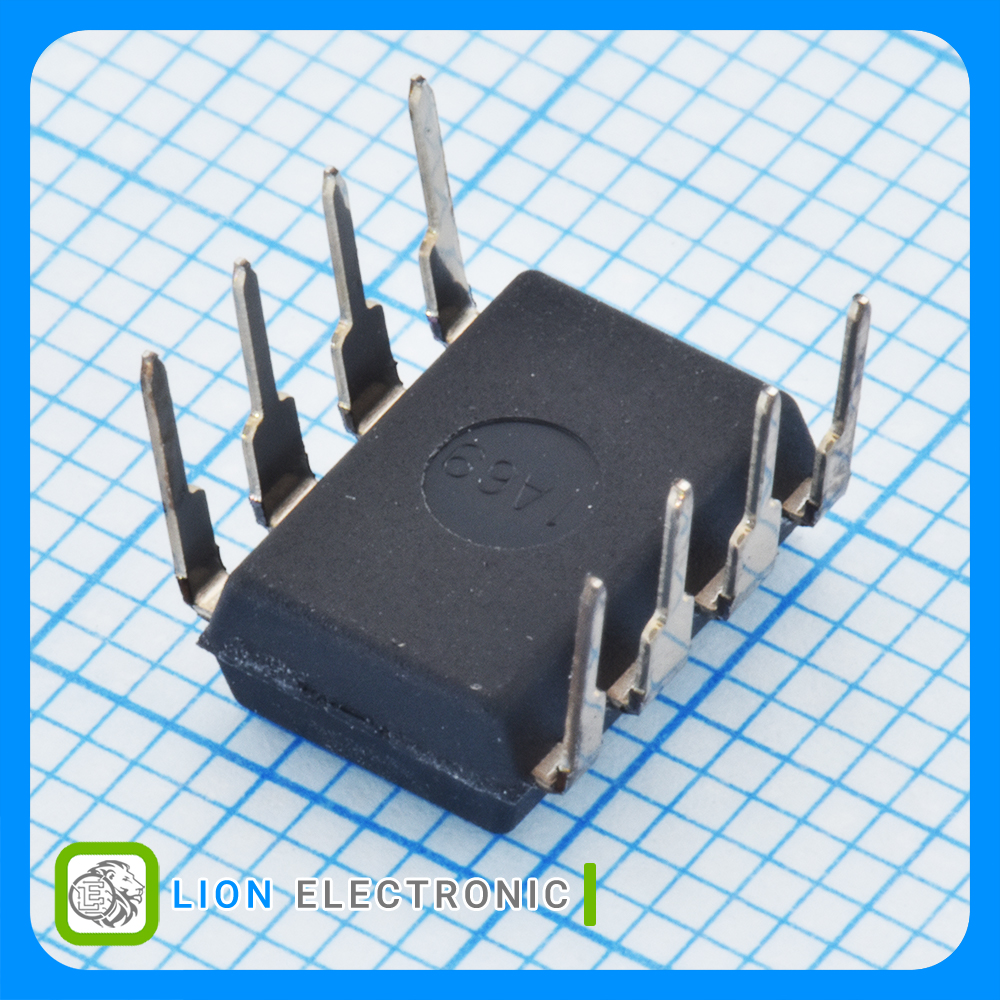

آپ امپ NE5534P
Part Number
No Shutdown
Shutdown
1
Number of Channels
+70C
Maximum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
70dB to 100dB
CMRR - Common Mode Rejection Ratio
38mA
Output Current per Channel
500uV
Vos - Input Offset Voltage
13V/us
SR - Slew Rate
10MHz
GBP - Gain Bandwidth Product
30V
Supply Voltage - Max
1.5uA
Ib - Input Bias Current
10V
Supply Voltage - Min
500uA
Operating Supply Current
DIP-8
Package-Case
