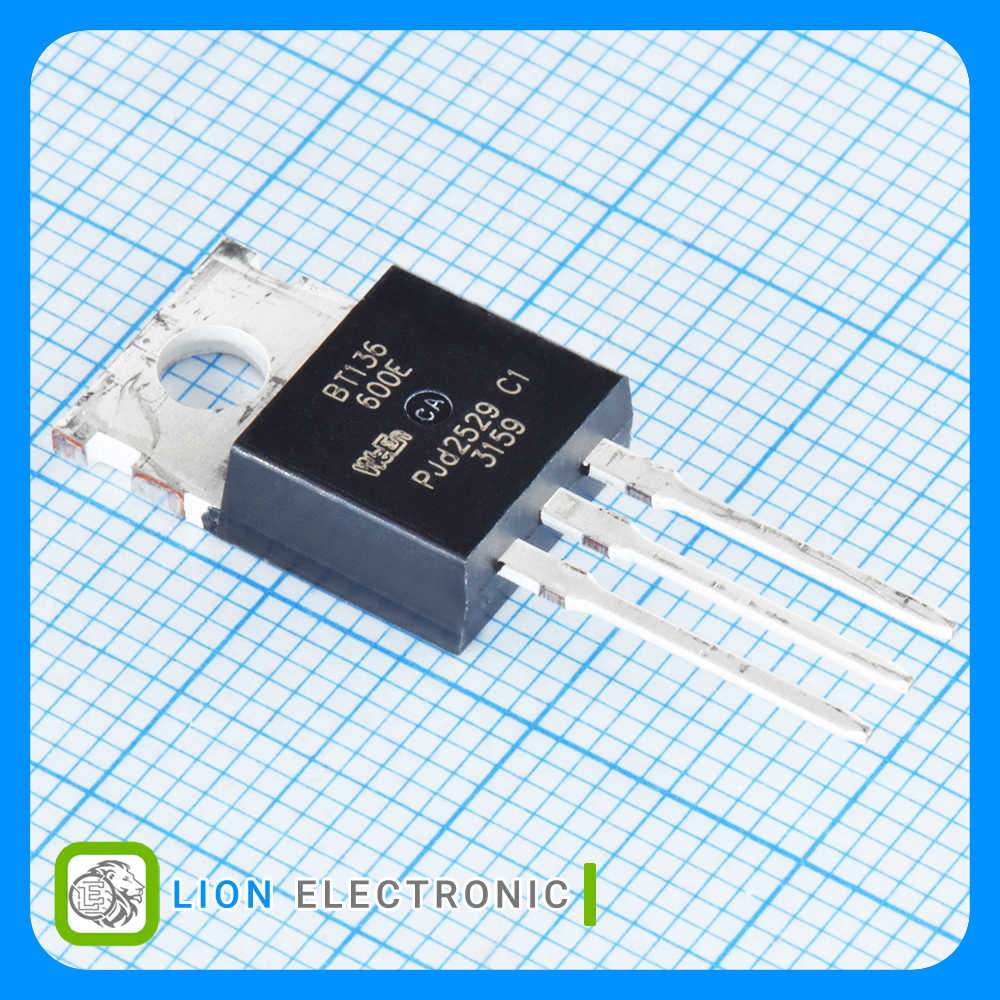

BT136-600E
BT136-600E
Part Number
44
Lion Part
Datasheet
NXP Semiconductors Manufacture
ترایاک 600 ولت 4 آمپر با پکیج TO-220-3

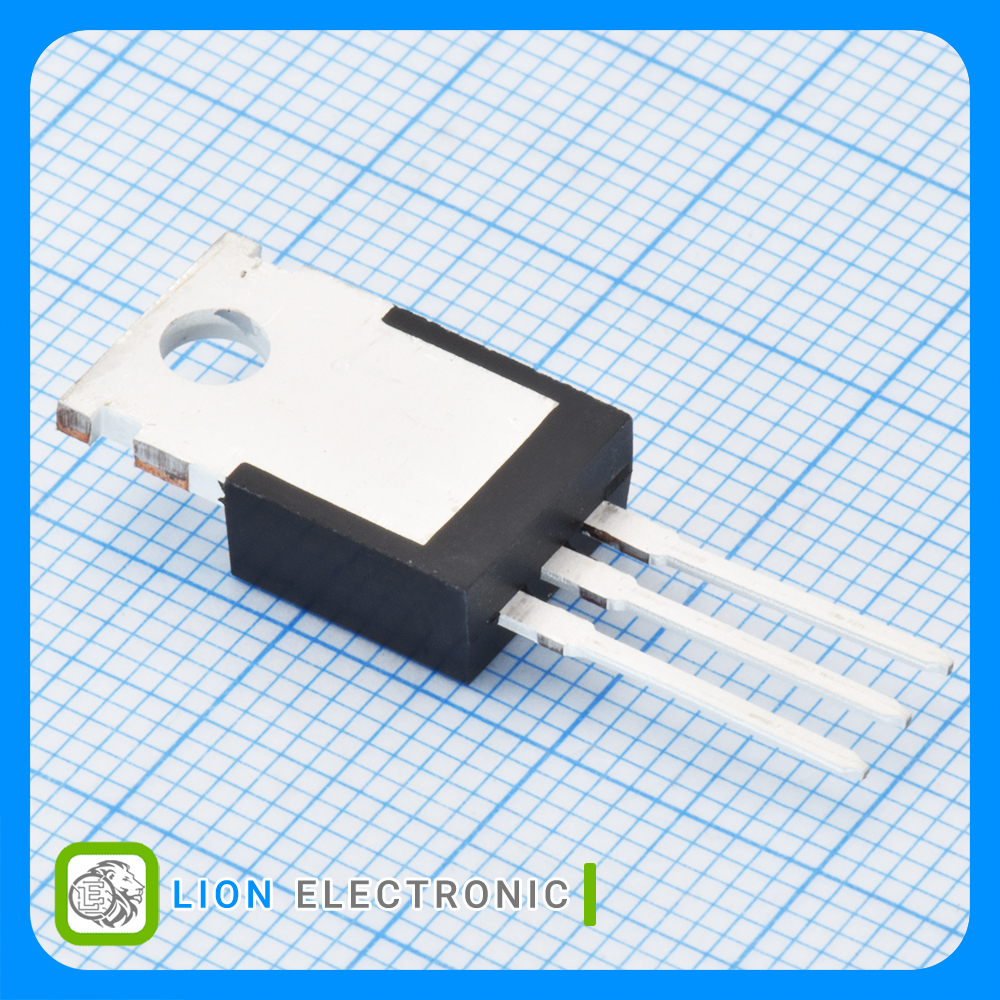

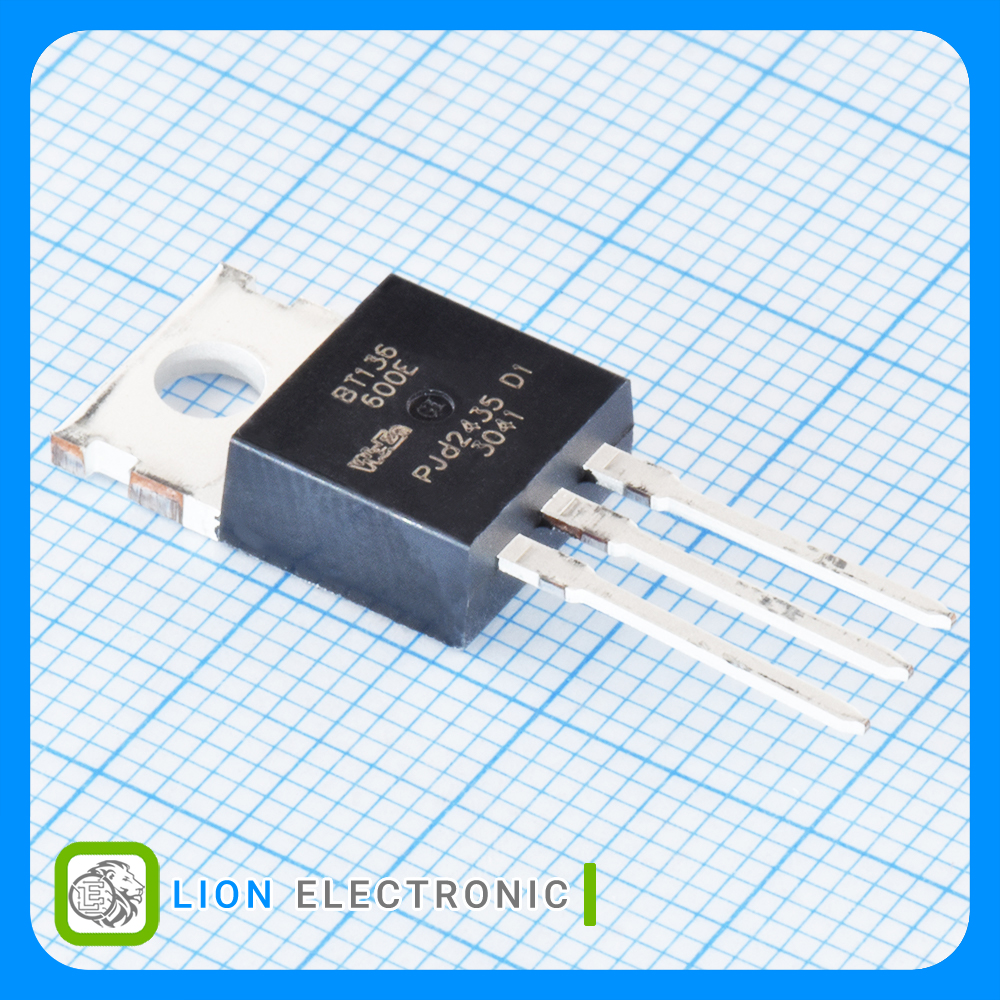

Triac 600V, 4A with TO-220-3 Package
معرفی
ترایاک 600 ولت 4 آمپر با پکیج TO-220-3
Triac 600V, 4A with TO-220-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 4A
- On-State Voltage: 1.7V
- Gate Trigger Voltage - Vgt: 1V
- Gate Trigger Current - Igt: 25mA
- Non Repetitive On-State Current: 27A
- Off-State Leakage Current @ VDRM IDRM: 100uA
- Holding Current Ih Max: 15mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات BT136-600E
BT136-600E
Part Number
27A
Non Repetitive On-State Current
4A
On-State RMS Current - It RMS
15mA
Holding Current Ih Max
100uA
Off-State Leakage Current @ VDRM IDRM
1V
Gate Trigger Voltage - Vgt
600V
Rated Repetitive Off-State Voltage VDRM
25mA
Gate Trigger Current - Igt
-40C
Minimum Operating Temperature
1.7V
On-State Voltage
Tube
Packaging
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
TO-220
Package-Case
