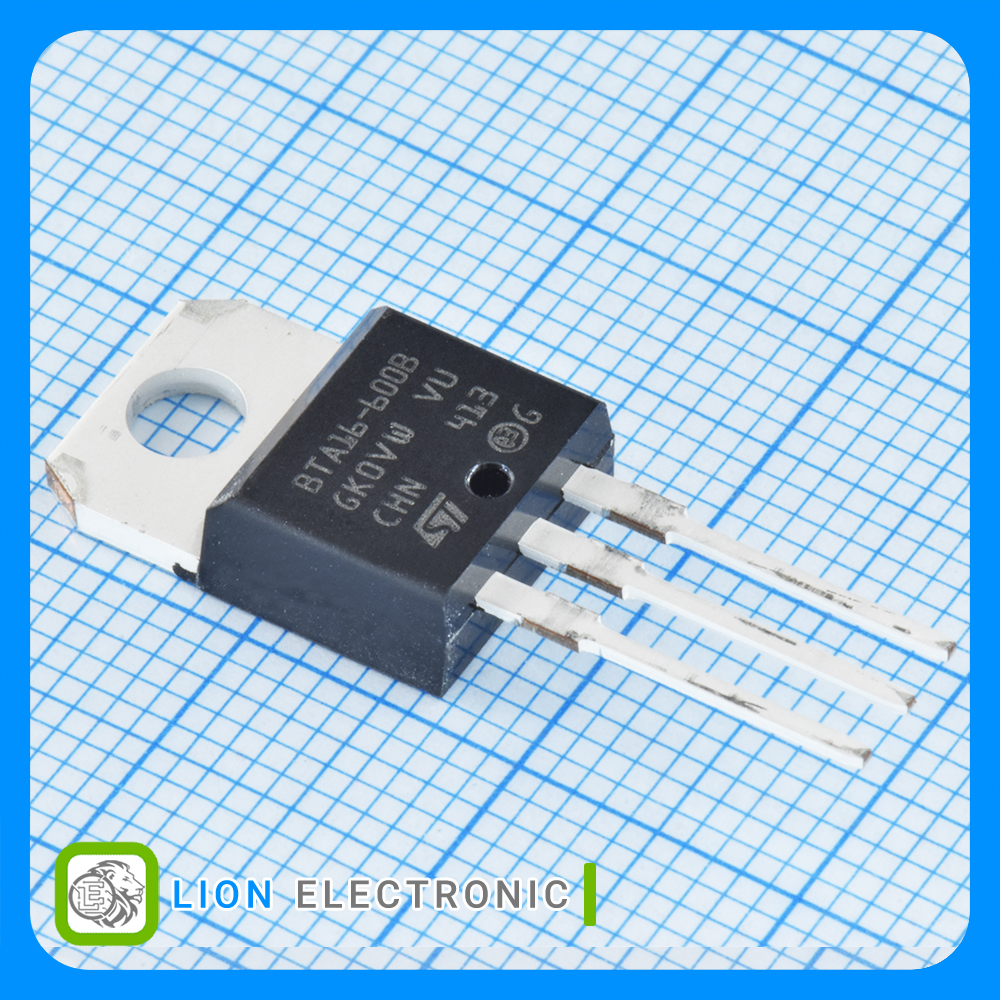

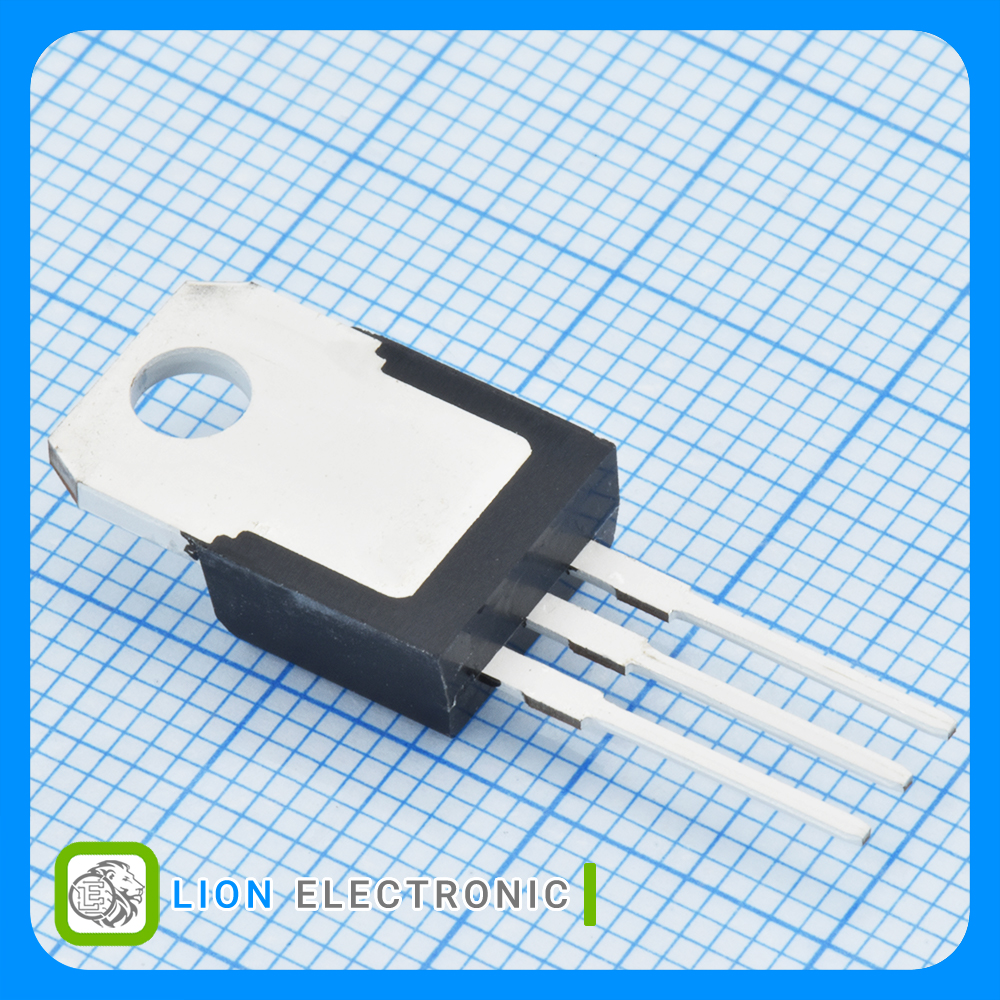

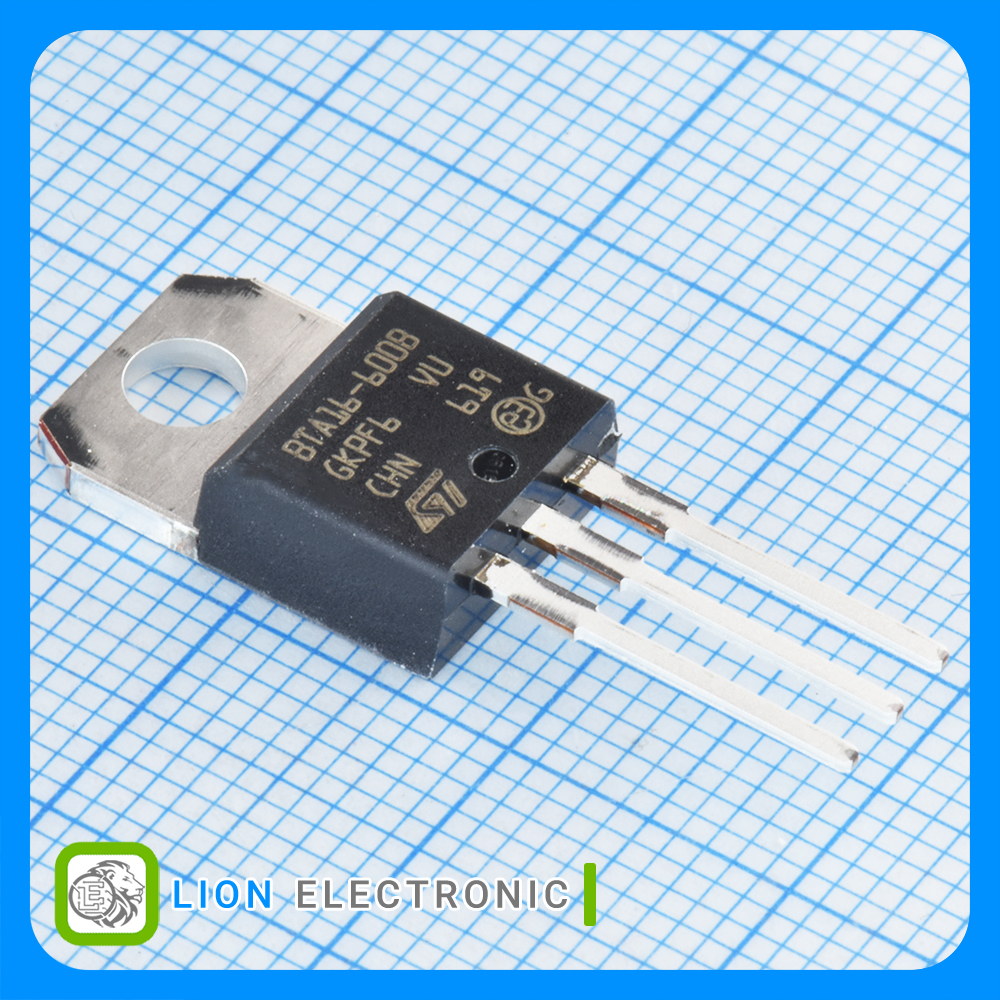

BTA16-600BRG
BTA16-600BRG
Part Number
6661
Lion Part
Datasheet
STMicroelectronics Manufacture
ترایاک 600 ولت 16 آمپر با پکیج TO-220AB-3
Triac 600V, 16A with TO-220AB-3 Package
معرفی
ترایاک 600 ولت 16 آمپر با پکیج TO-220AB-3
Triac 600V, 16A with TO-220AB-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State Voltage: 1.55V
- Gate Trigger Voltage - Vgt: 1.3V
- Gate Trigger Current - Igt: 10mA
- Non Repetitive On-State Current: 168A
- Off-State Leakage Current @ VDRM IDRM: 5uA
- Holding Current Ih Max: 50mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات ترایاک BTA16-600BRG
ترایاک BTA16-600BRG
Part Number
---
On-State RMS Current - It RMS
5uA
Off-State Leakage Current @ VDRM IDRM
1.55V
On-State Voltage
600V
Rated Repetitive Off-State Voltage VDRM
1.3V
Gate Trigger Voltage - Vgt
168A
Non Repetitive On-State Current
-40C
Minimum Operating Temperature
Tube
Packaging
50mA
Holding Current Ih Max
Through Hole
Mounting Style
10mA
Gate Trigger Current - Igt
+125C
Maximum Operating Temperature
TO-220
Package-Case
