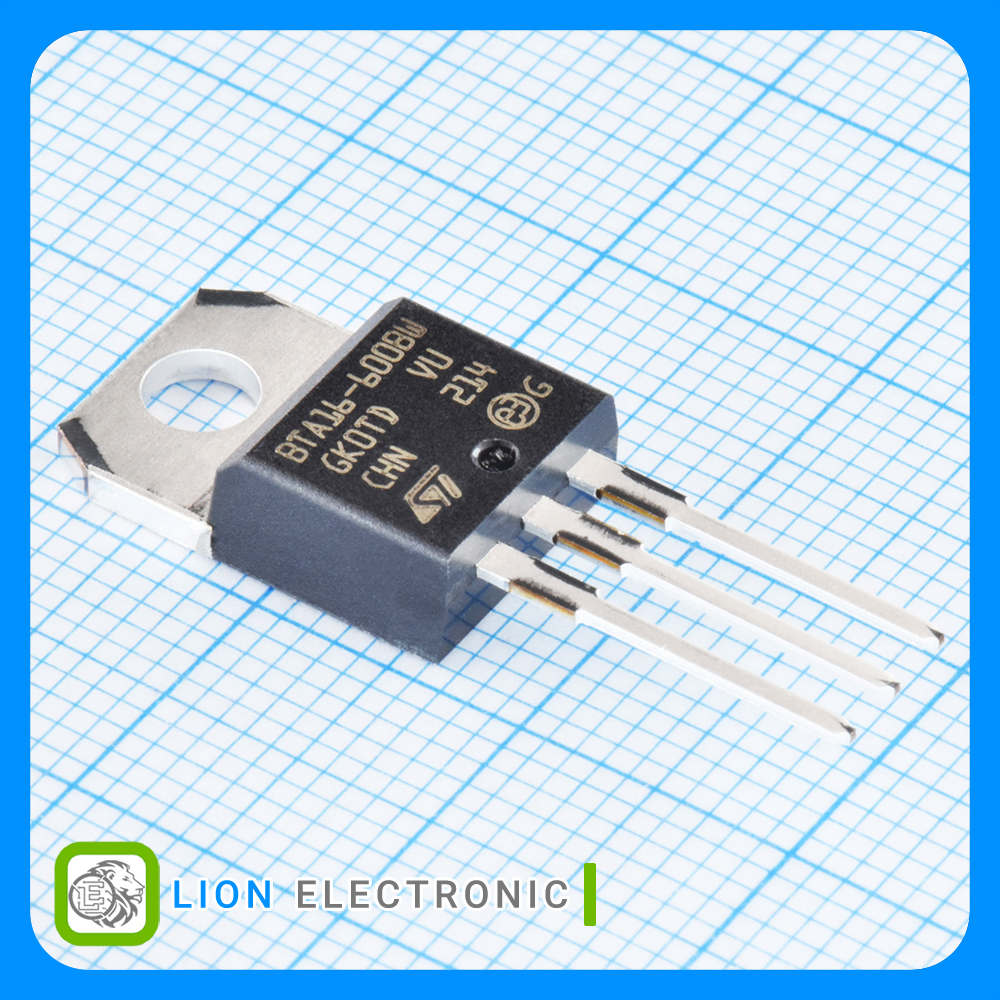

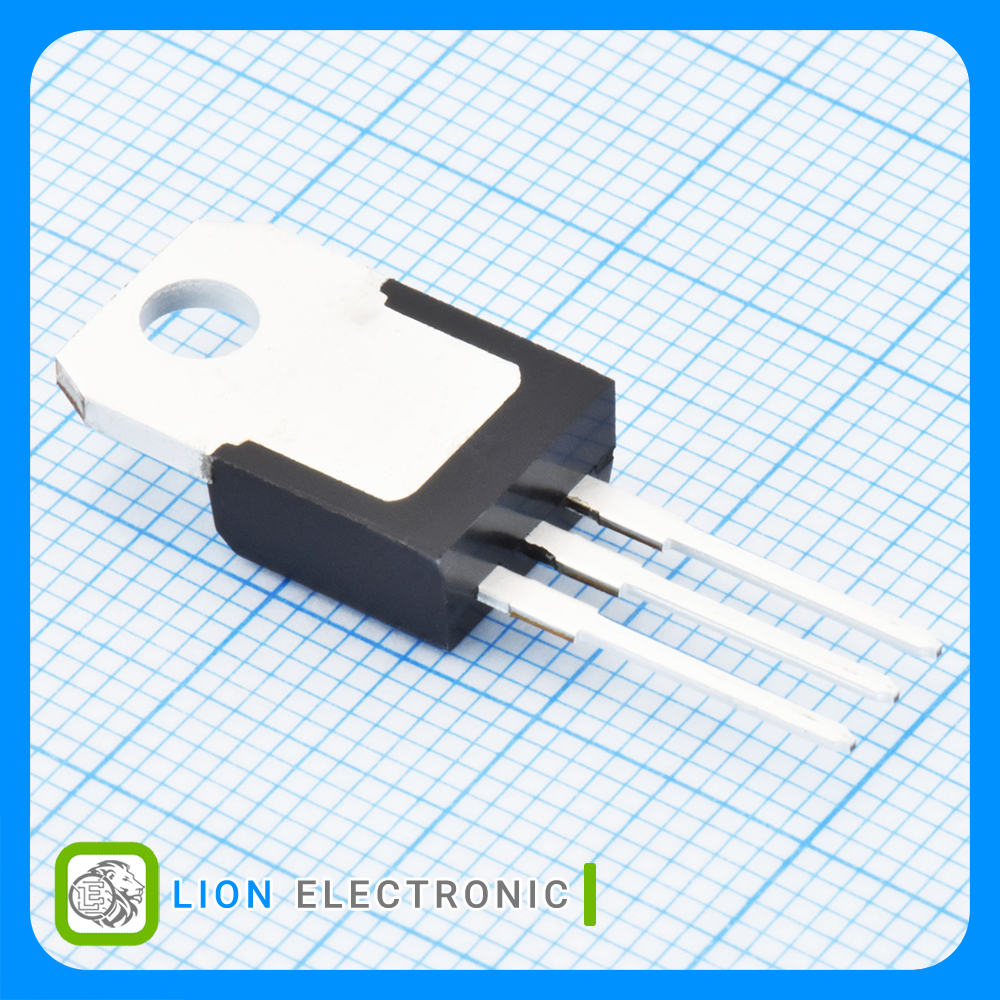

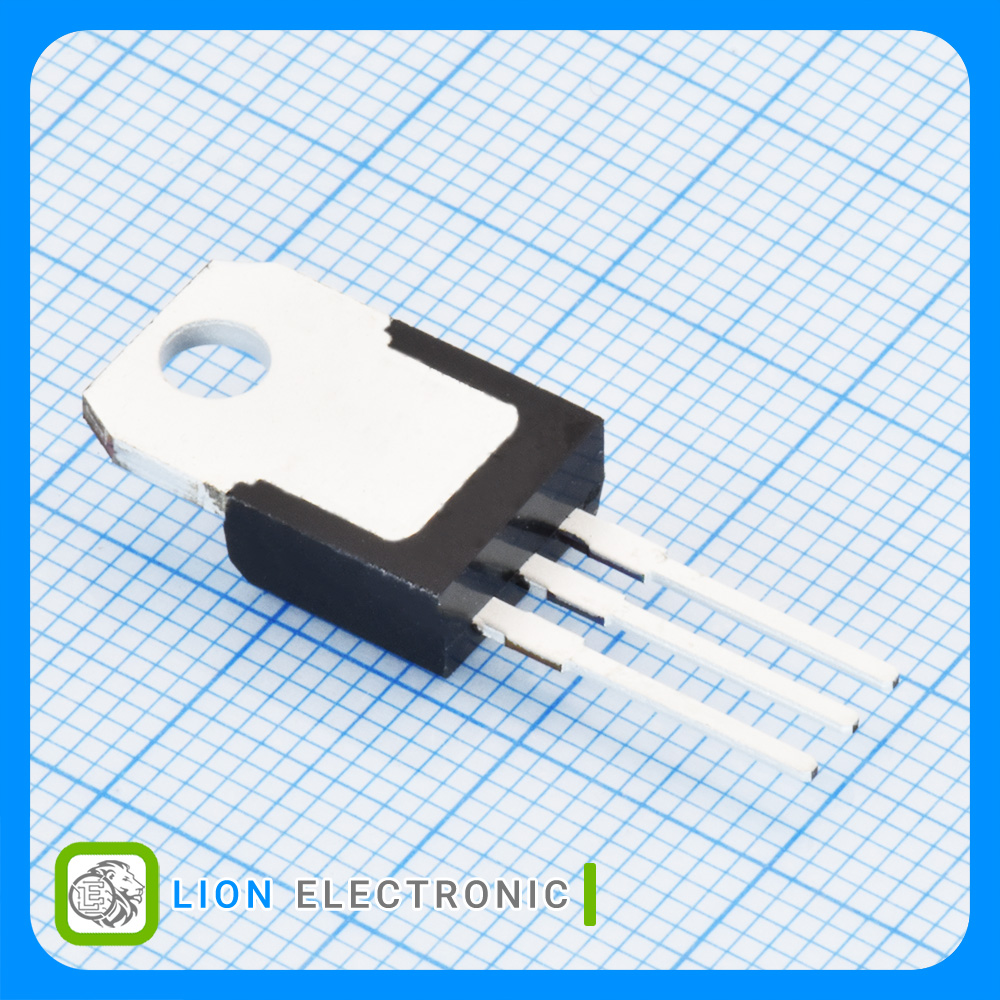

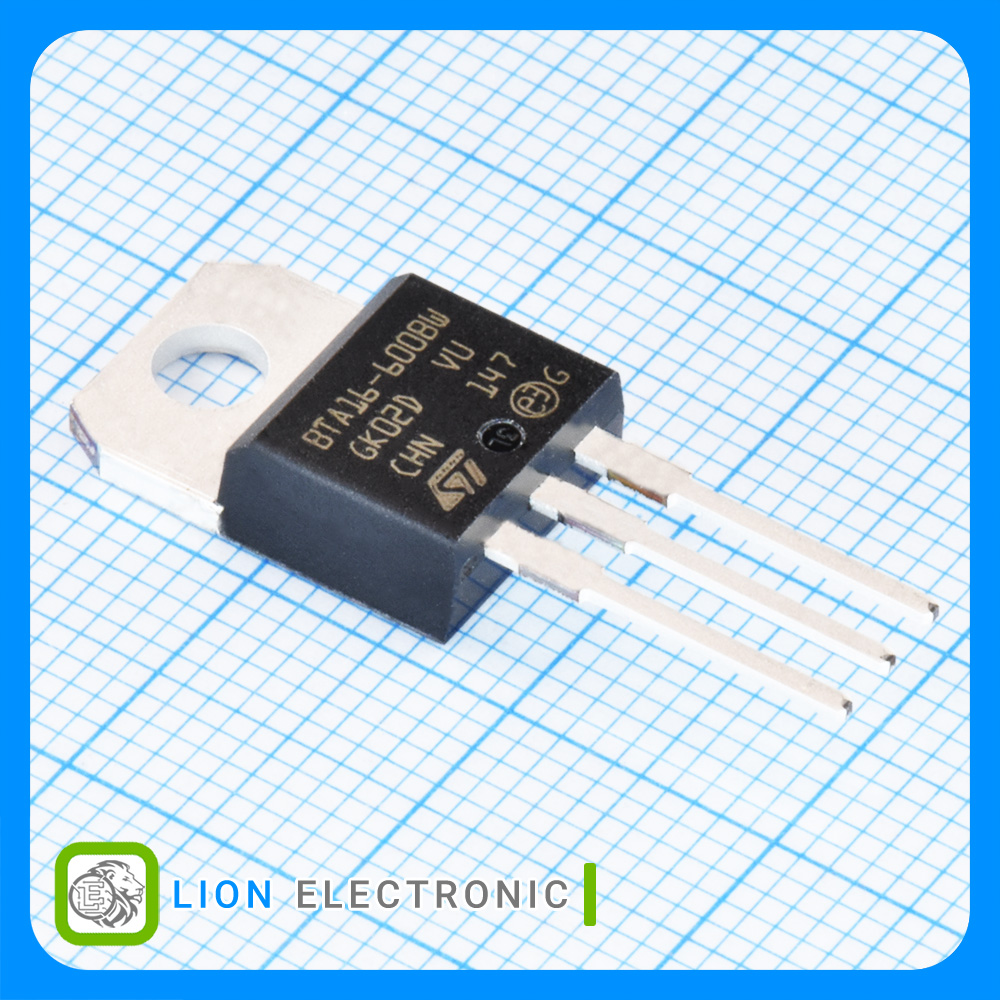

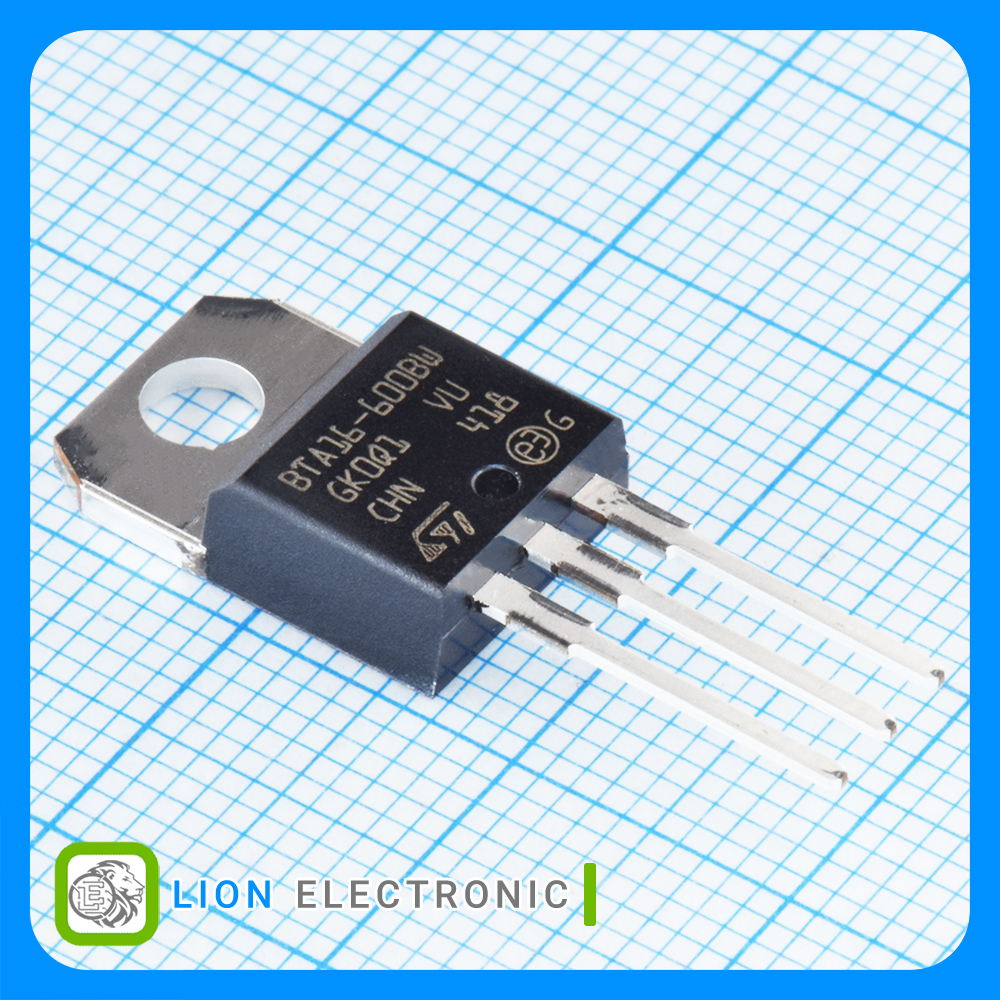

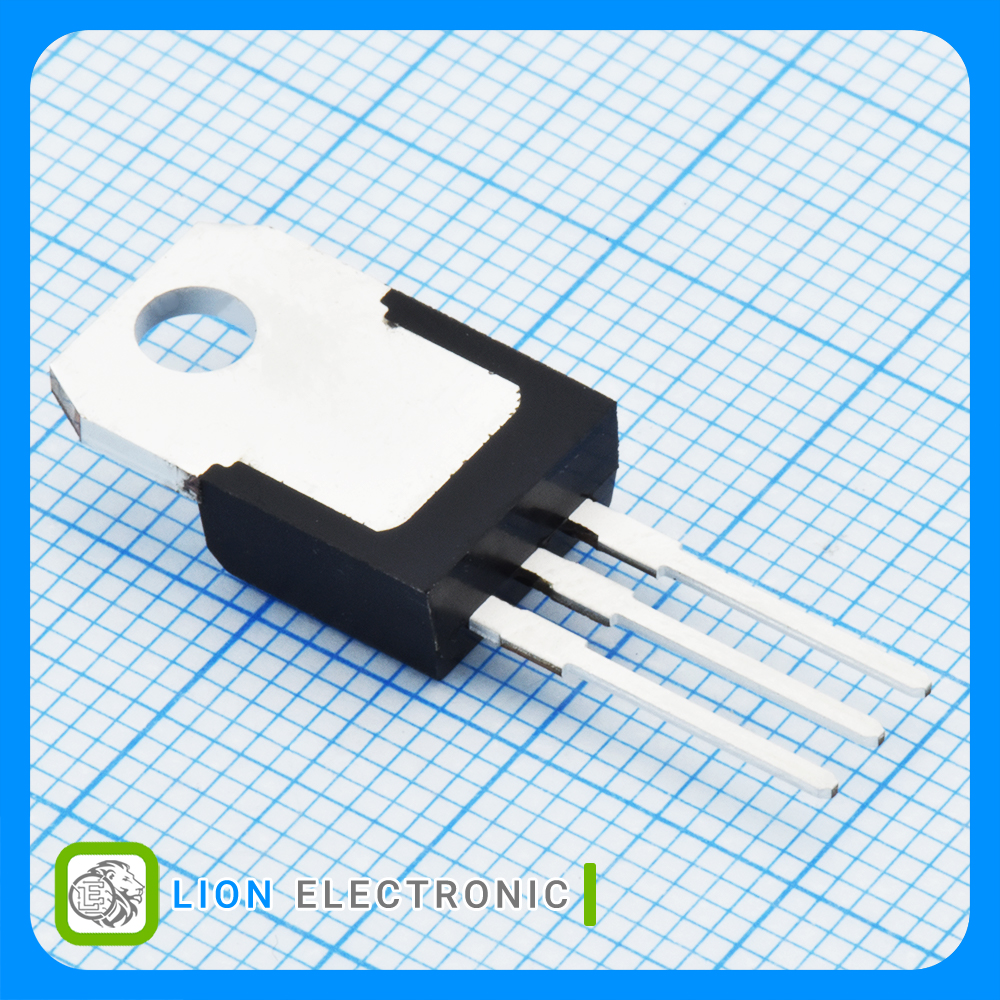

ترایاک BTA16-600BW
BTA16-600BW
Part Number
5802
Lion Part
Datasheet
STMicroelectronics Manufacture
ترایاک 600 ولت 16 آمپر با پکیج TO-220-3
Snubberless Triac 600V, 16A with TO-220-3 Package
مشخصات ترایاک BTA16-600BW
ترایاک BTA16-600BW
Part Number
5uA
Off-State Leakage Current @ VDRM IDRM
1.55V
On-State Voltage
600V
Rated Repetitive Off-State Voltage VDRM
16A
On-State RMS Current - It RMS
1.3V
Gate Trigger Voltage - Vgt
168A
Non Repetitive On-State Current
-40C
Minimum Operating Temperature
Tube
Packaging
50mA
Holding Current Ih Max
50mA
Gate Trigger Current - Igt
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
TO-220-3
Package-Case
