MSKSEMI
معرفی

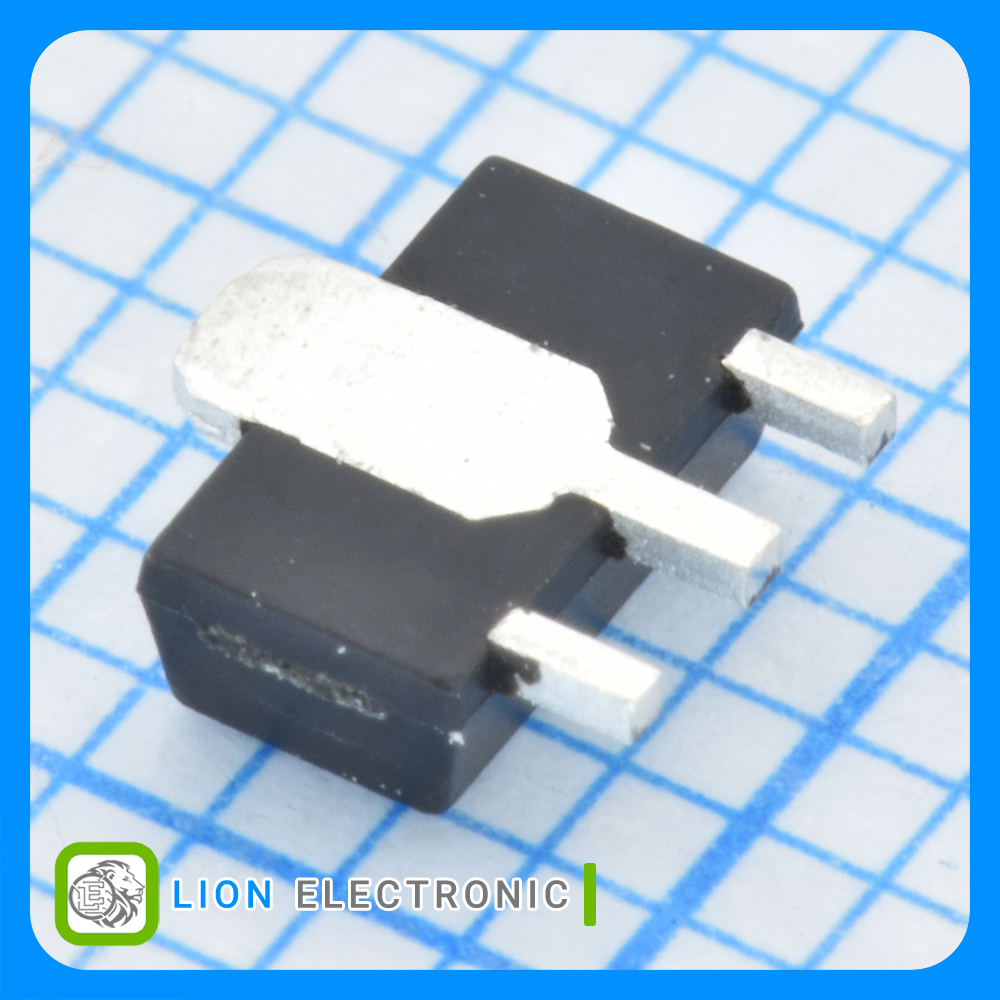

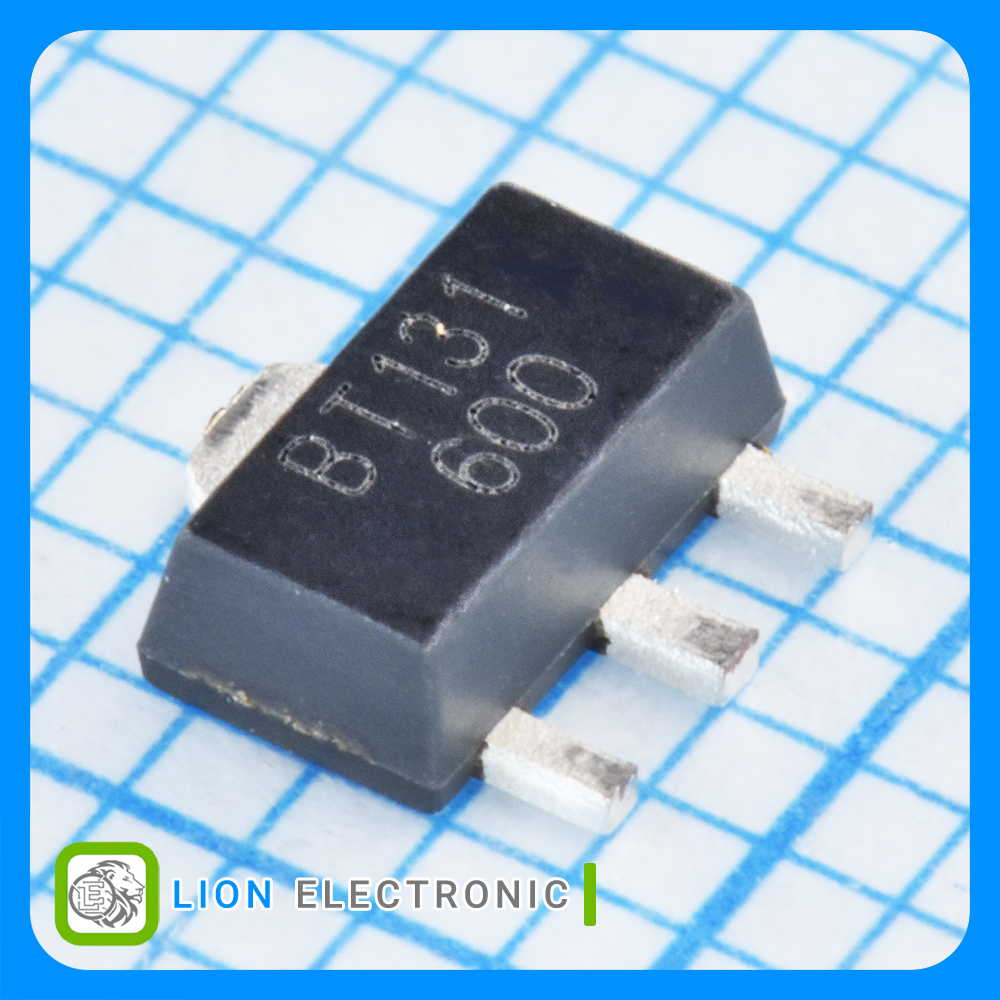

ترایاک 600 ولت 2 آمپر با پکیج SOT-89
600V 2A Triac SOT-89 Package
مشخصات BT131-600-MS
BT131-600-MS
Part Number
---
Packaging
10uA
Off-State Leakage Current @ VDRM IDRM
15mA
Holding Current Ih Max
600V
Rated Repetitive Off-State Voltage VDRM
-40C
Minimum Operating Temperature
25mA
Gate Trigger Current - Igt
1.5V
Gate Trigger Voltage - Vgt
1.7V
On-State Voltage
SMD/SMT
Mounting Style
2A
On-State RMS Current - It RMS
20A
Non Repetitive On-State Current
+125C
Maximum Operating Temperature
SOT-89
Package-Case
