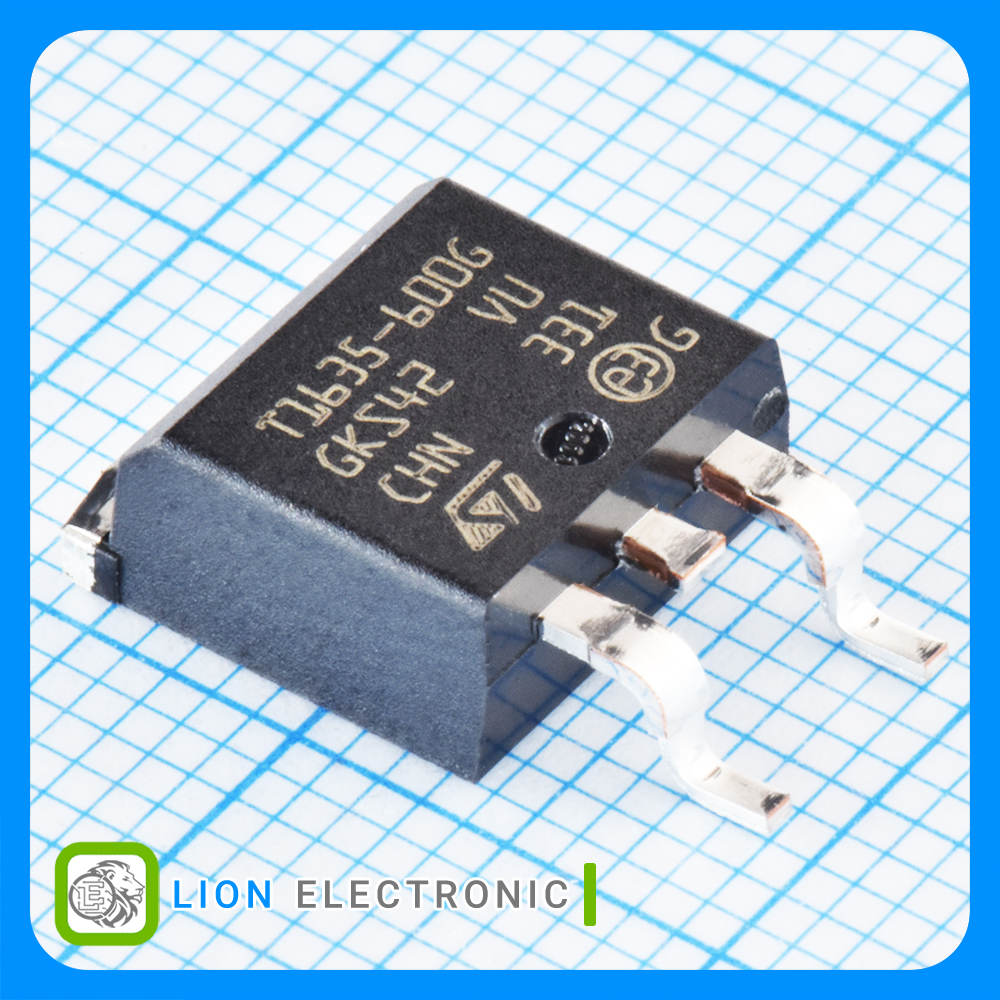

T1635-600G
T1635-600G
Part Number
5806
Lion Part
Datasheet
STMicroelectronics Manufacture
ترایاک 600 ولت 16 آمپر با پکیج D2PAK

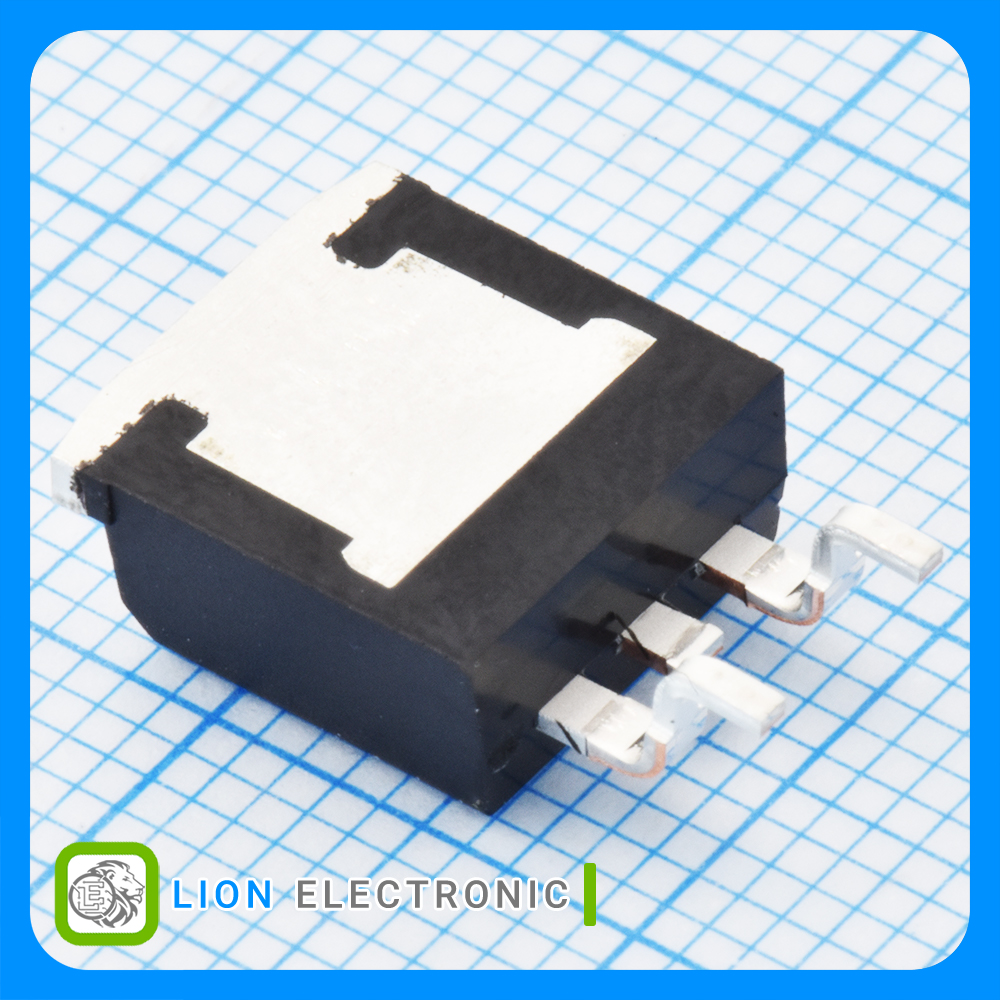

Triac 600V, 16A with D2PAK Package
معرفی
ترایاک 600 ولت 16 آمپر با پکیج D2PAK
Triac 600V, 16A with D2PAK Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 16A
- On-State Voltage: 1.55V
- Gate Trigger Voltage - Vgt: 1.3V
- Gate Trigger Current - Igt: 35mA
- Non Repetitive On-State Current: 168A
- Off-State Leakage Current @ VDRM IDRM: 5uA
- Holding Current Ih Max: 35mA
- Mounting Style: SMD/SMT
- Package/Case: D2PAK
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات ترایاک T1635-600G
ترایاک T1635-600G
Part Number
5uA
Off-State Leakage Current @ VDRM IDRM
1.55V
On-State Voltage
Reel
Packaging
16A
On-State RMS Current - It RMS
1.3V
Gate Trigger Voltage - Vgt
600V
Rated Repetitive Off-State Voltage VDRM
168A
Non Repetitive On-State Current
-40C
Minimum Operating Temperature
35mA
Holding Current Ih Max
SMD/SMT
Mounting Style
35mA
Gate Trigger Current - Igt
+125C
Maximum Operating Temperature
D2PAK
Package-Case
