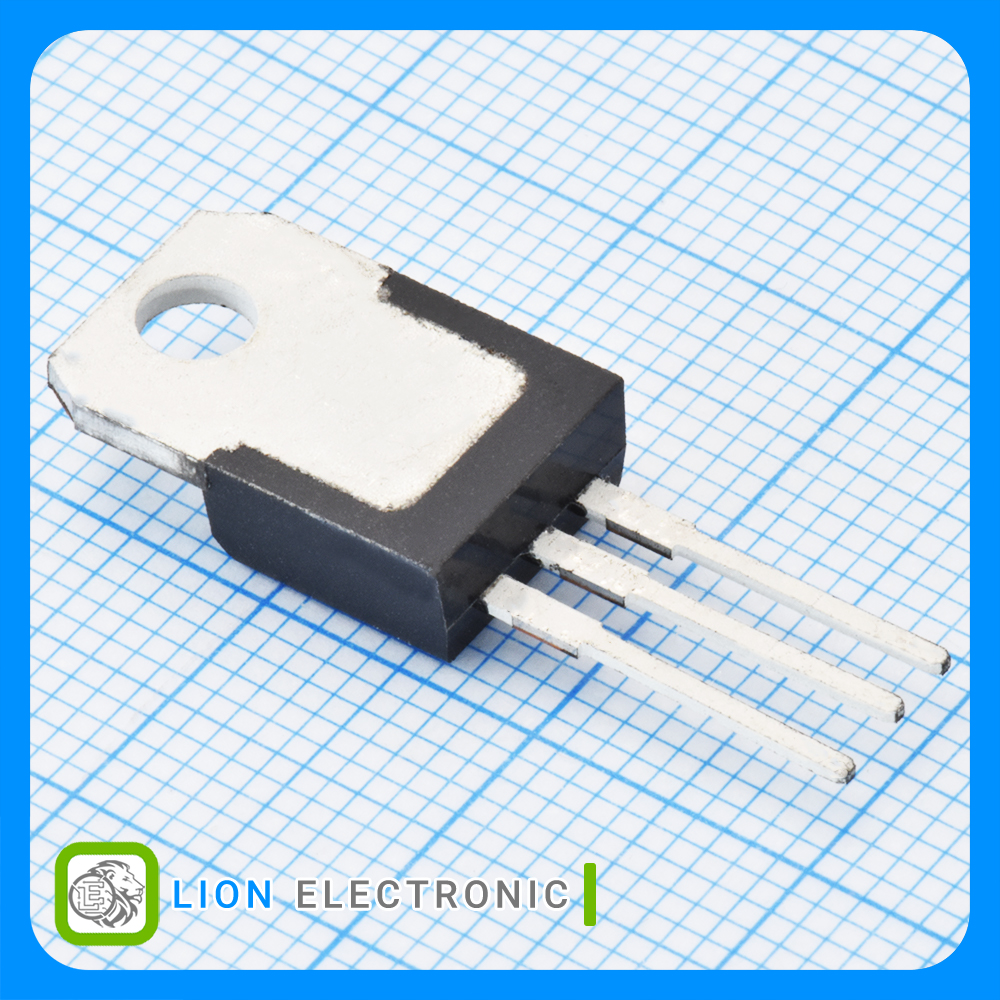

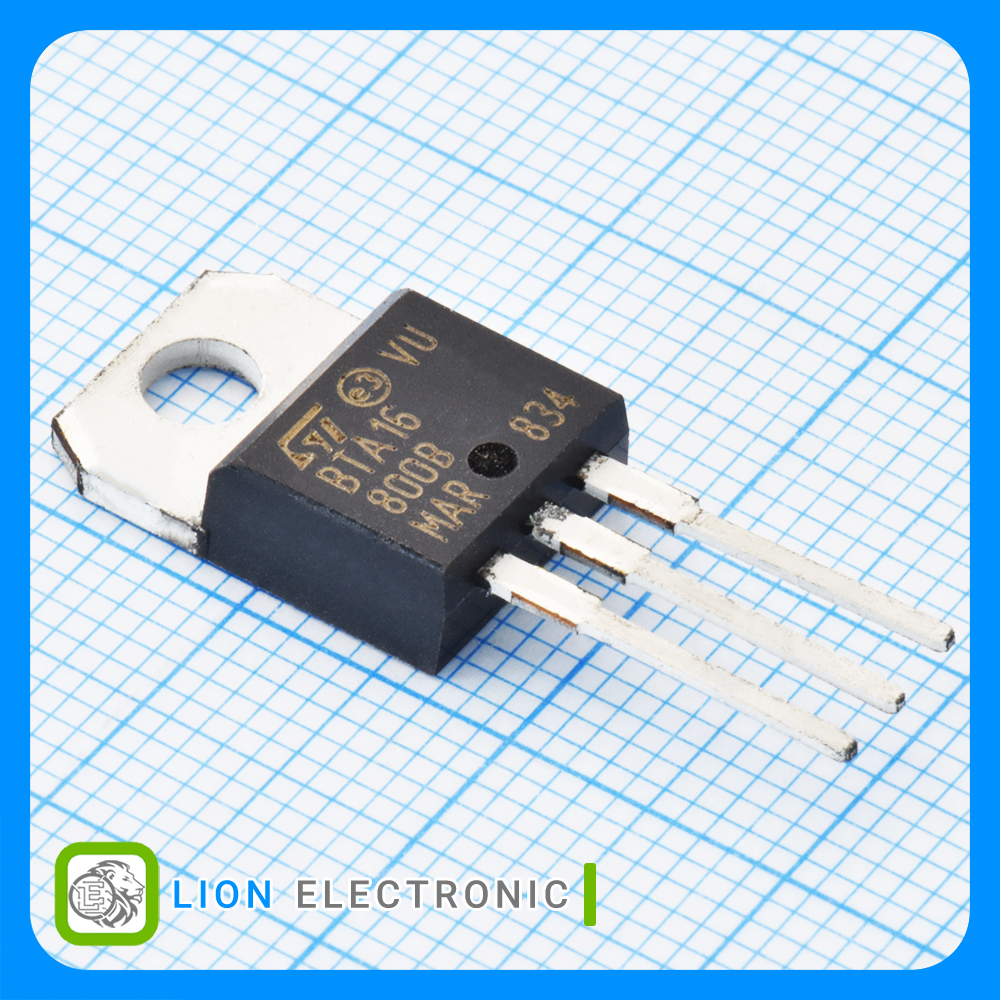

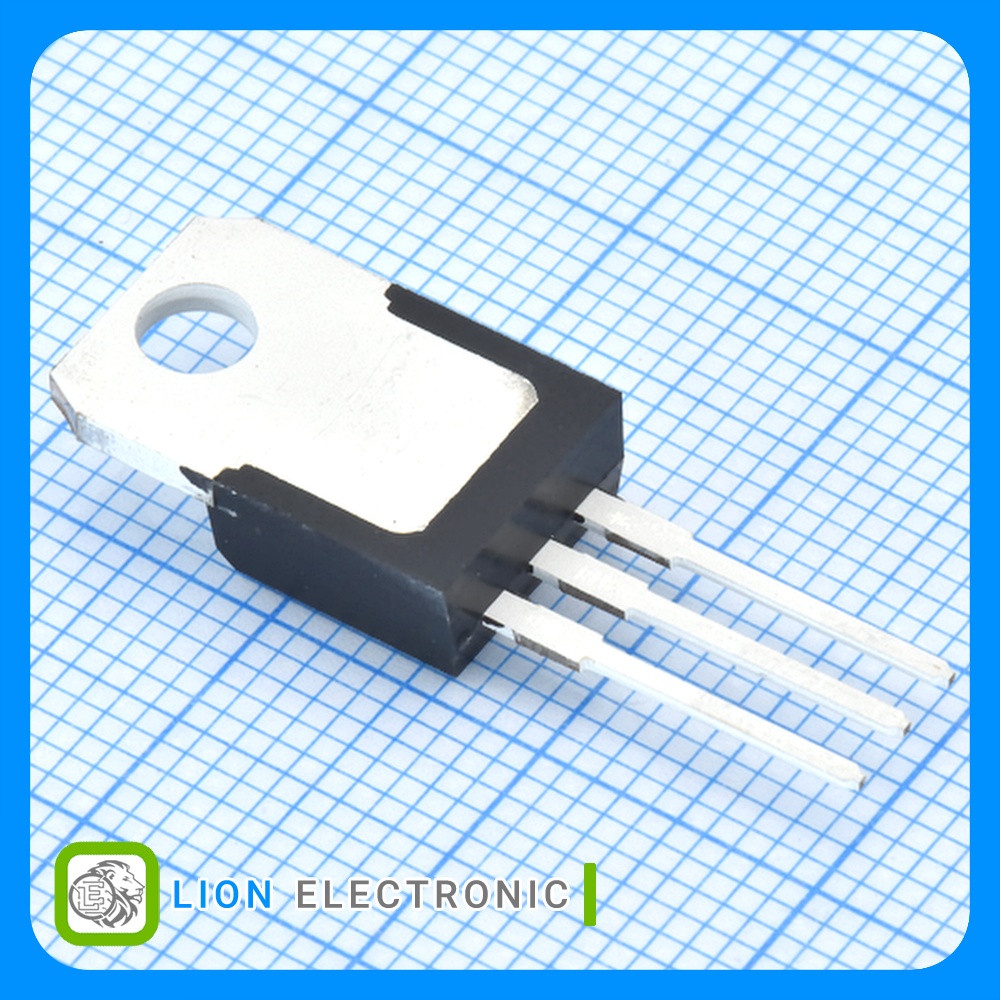

BTA16-800B
BTA16-800B
Part Number
5803
Lion Part
Datasheet
STMicroelectronics Manufacture
ترایاک استاندارد 800 ولت 16 آمپر با پکیج TO-220-3
Standard Triac 800V, 16A with TO-220-3 Package
معرفی
ترایاک استاندارد 800 ولت 16 آمپر با پکیج TO-220-3
Standard Triac 800V, 16A with TO-220-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 800V
- On-State RMS Current - It RMS: 16A
- On-State Voltage: 1.55V
- Gate Trigger Voltage - Vgt: 1.3V
- Gate Trigger Current - Igt: 50mA
- Non Repetitive On-State Current: 168A
- Off-State Leakage Current @ VDRM IDRM: 5uA
- Holding Current Ih Max: 50mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات ترایاک BTA16-800B

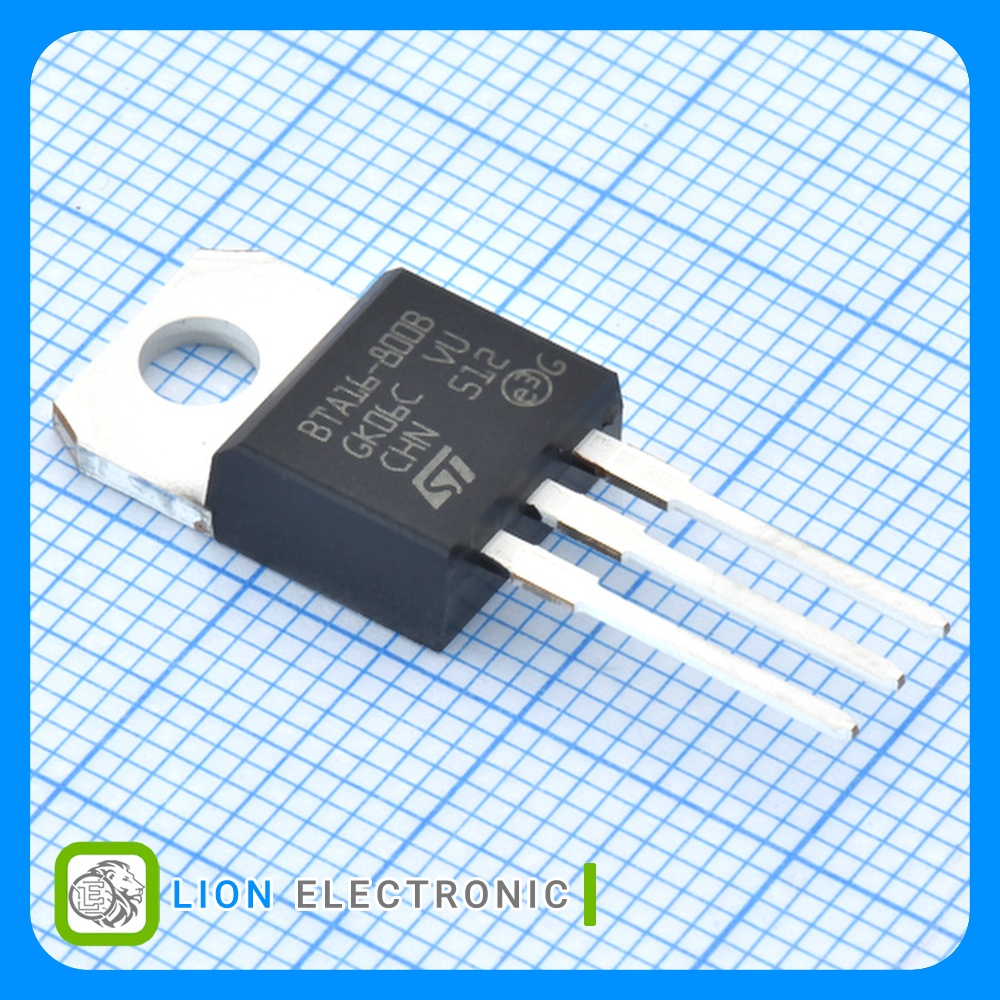

ترایاک BTA16-800B
Part Number
5uA
Off-State Leakage Current @ VDRM IDRM
1.55V
On-State Voltage
16A
On-State RMS Current - It RMS
1.3V
Gate Trigger Voltage - Vgt
-40C
Minimum Operating Temperature
168A
Non Repetitive On-State Current
Tube
Packaging
800V
Rated Repetitive Off-State Voltage VDRM
50mA
Gate Trigger Current - Igt
50mA
Holding Current Ih Max
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
TO-220-3
Package-Case
