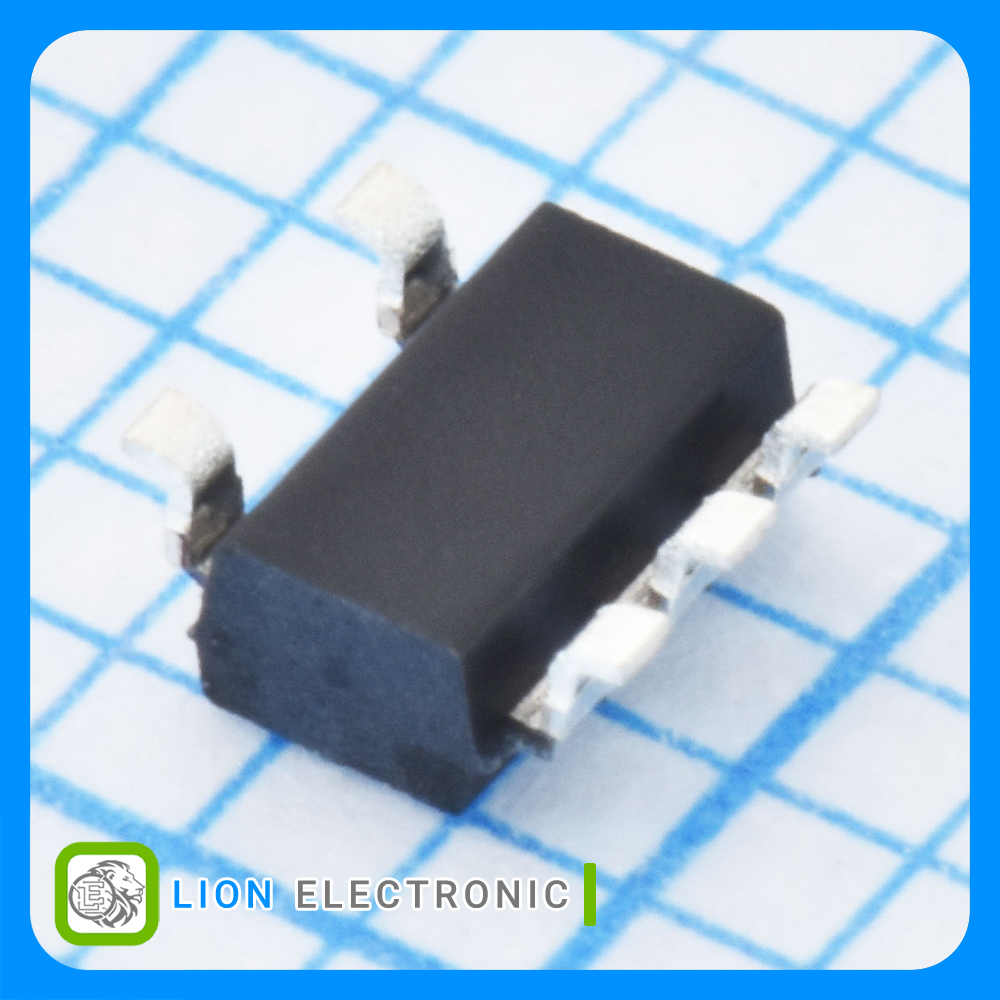

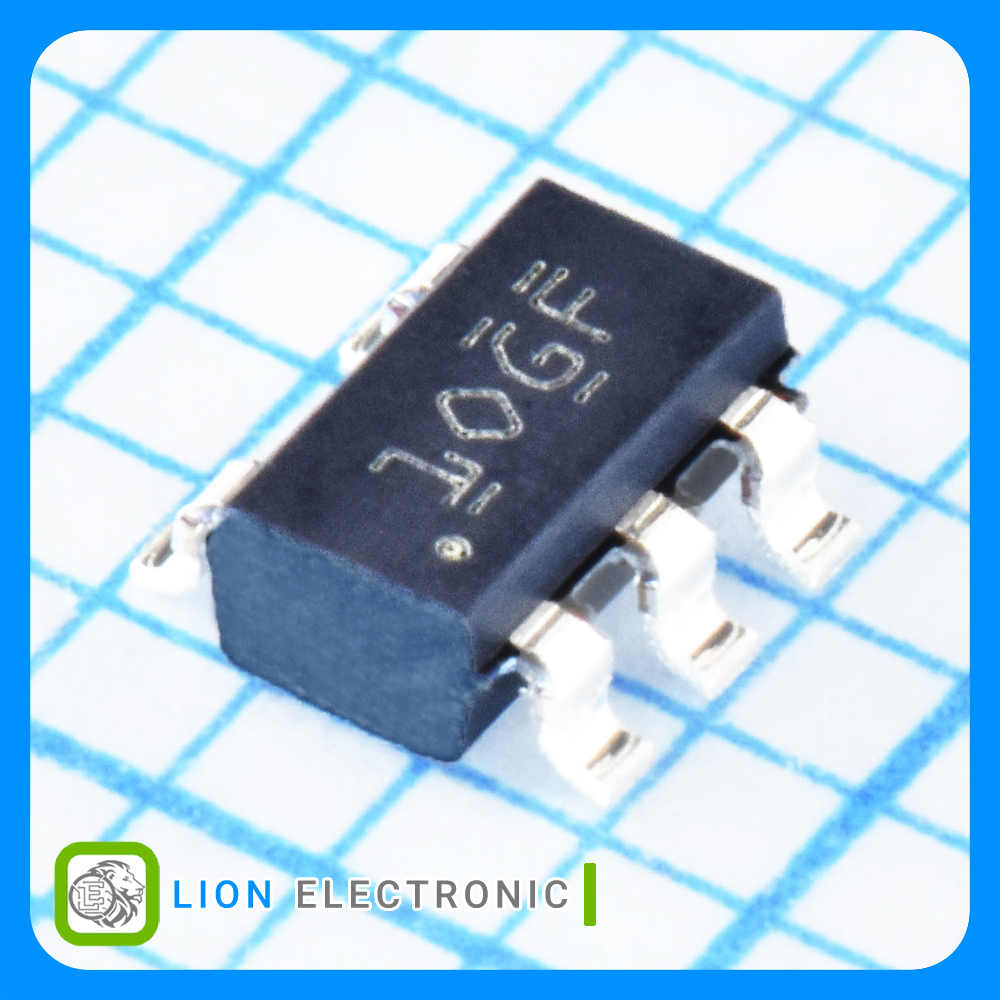

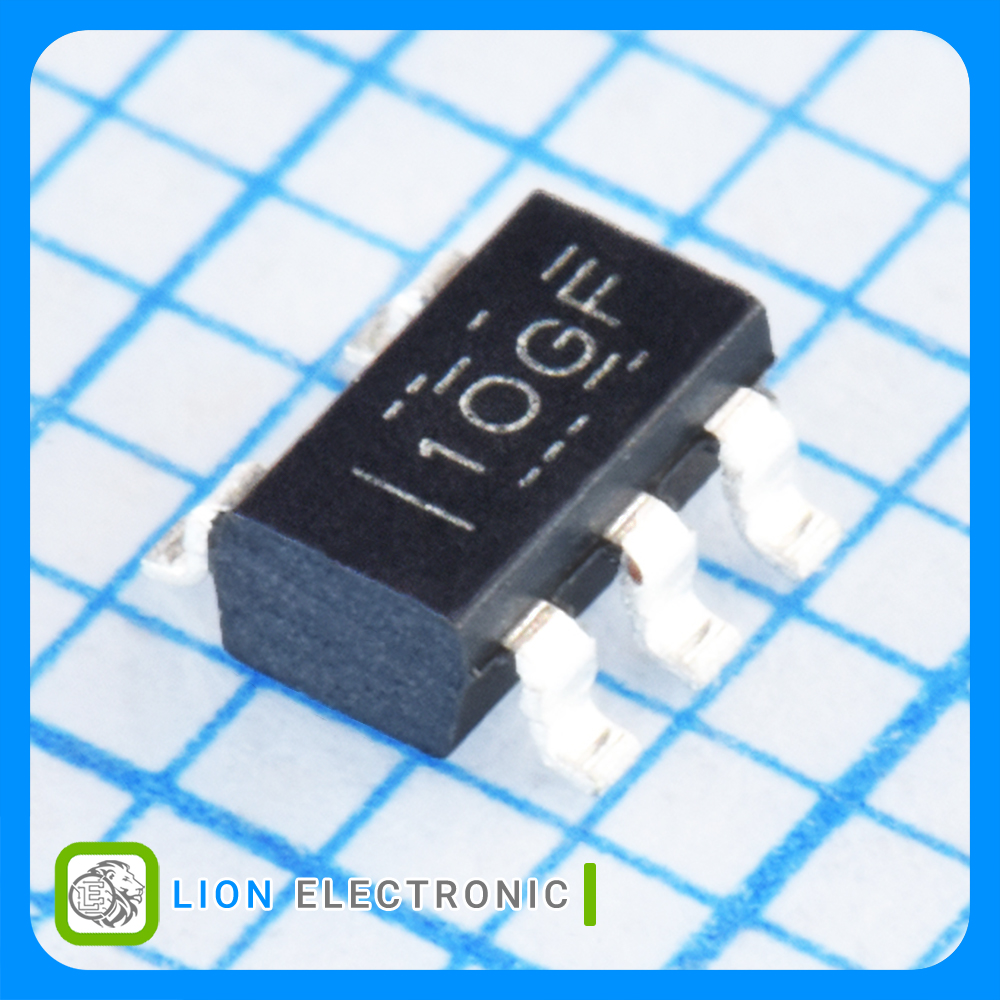

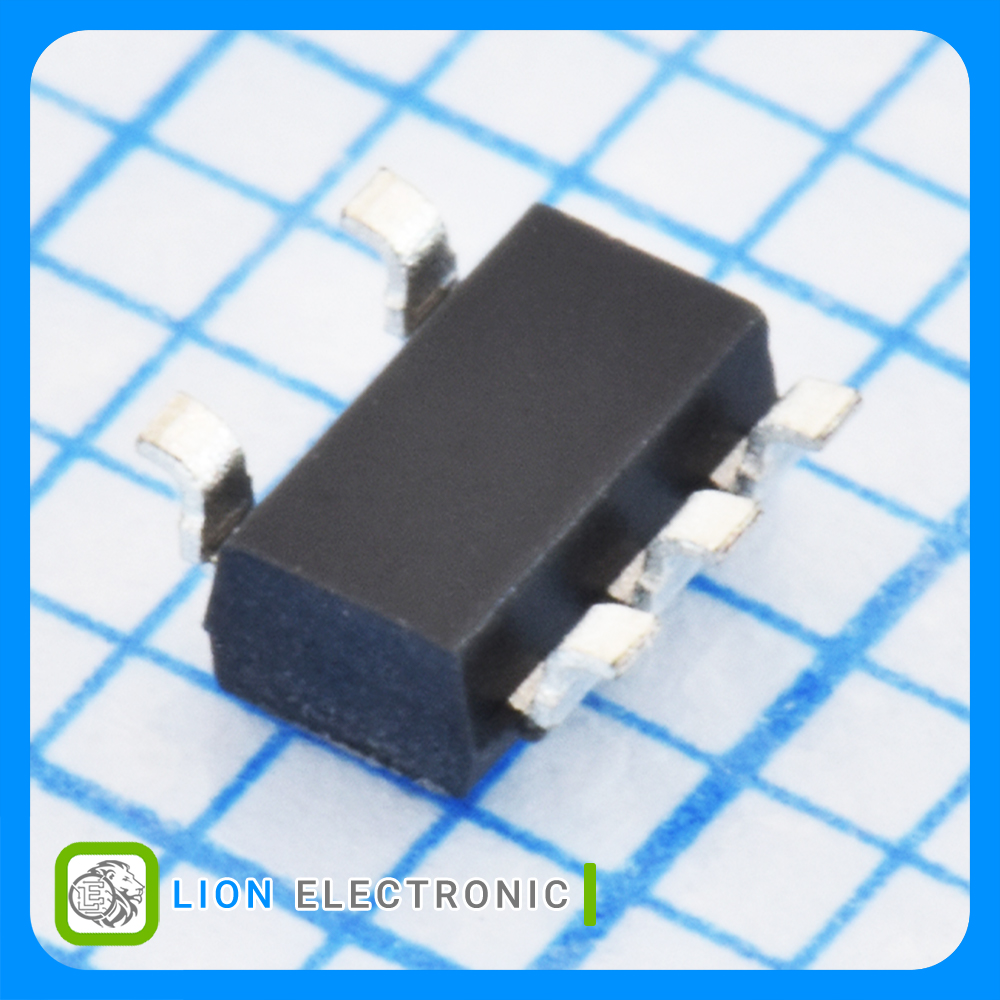

TLV9001IDBVR
TLV9001IDBVR
Part Number
4408
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله با پهنای باند 1 مگاهرتز و پکیج SOT-23-5
Operational Amplifier 1-Channel, 1MHz with SOT-23-5 Package
معرفی
آپامپ 1 کاناله با پهنای باند 1 مگاهرتز و پکیج SOT-23-5
Operational Amplifier 1-Channel, 1MHz with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 40mA
- SR - Slew Rate: 2V/us
- GBP - Gain Bandwidth Product: 1MHz
- CMRR - Common Mode Rejection Ratio: 95dB
- Ib - Input Bias Current: 5pA
- Vos - Input Offset Voltage: 400uV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 1.8V
- Operating Supply Current: 60uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ TLV9001IDBVR

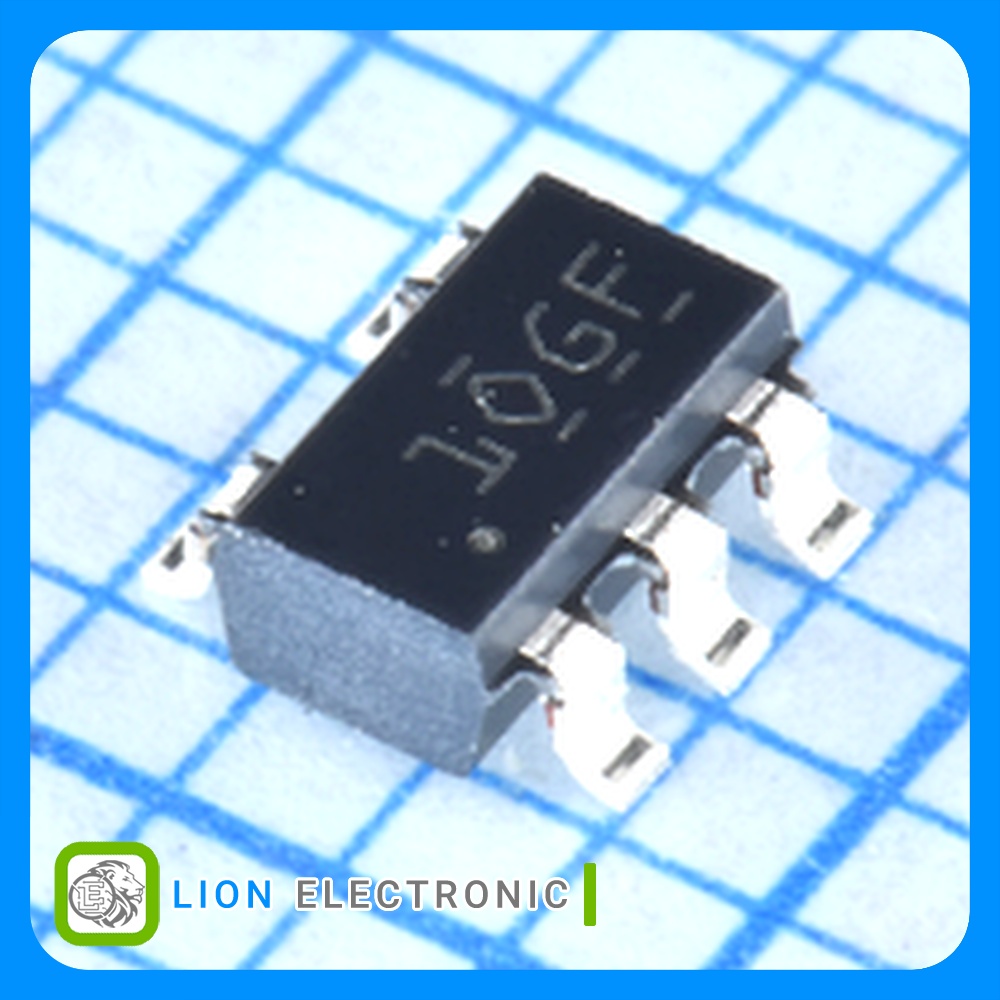

آپ امپ TLV9001IDBVR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
5pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
1MHz
GBP - Gain Bandwidth Product
1.8V
Supply Voltage - Min
2V/us
SR - Slew Rate
5.5V
Supply Voltage - Max
40mA
Output Current per Channel
400uV
Vos - Input Offset Voltage
95dB
CMRR - Common Mode Rejection Ratio
60uA
Operating Supply Current
SOT-23-5
Package-Case
