TDK
معرفی
وریستور 30 ولت AC ولتاژ وریستور 47 ولت جریان ضربه 2 کیلوآمپر تلرانس 10% سایز 20 میلیمتر

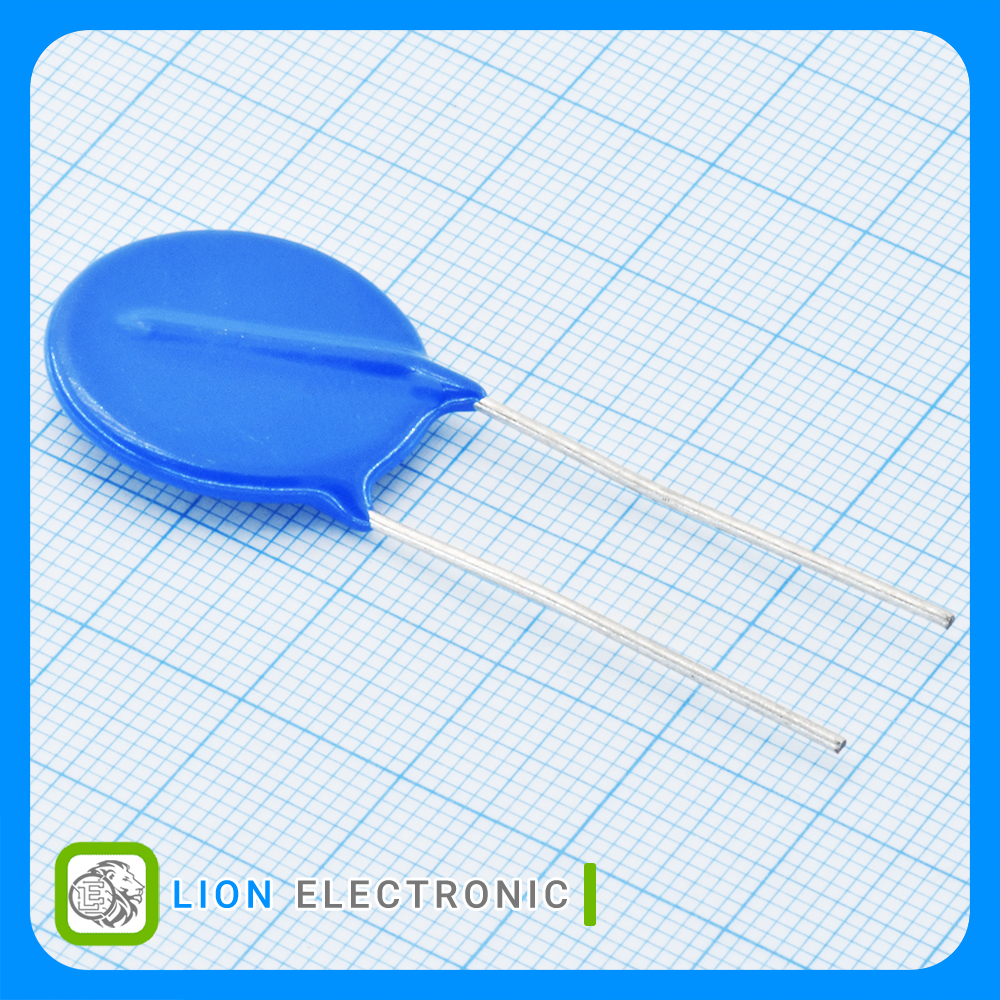

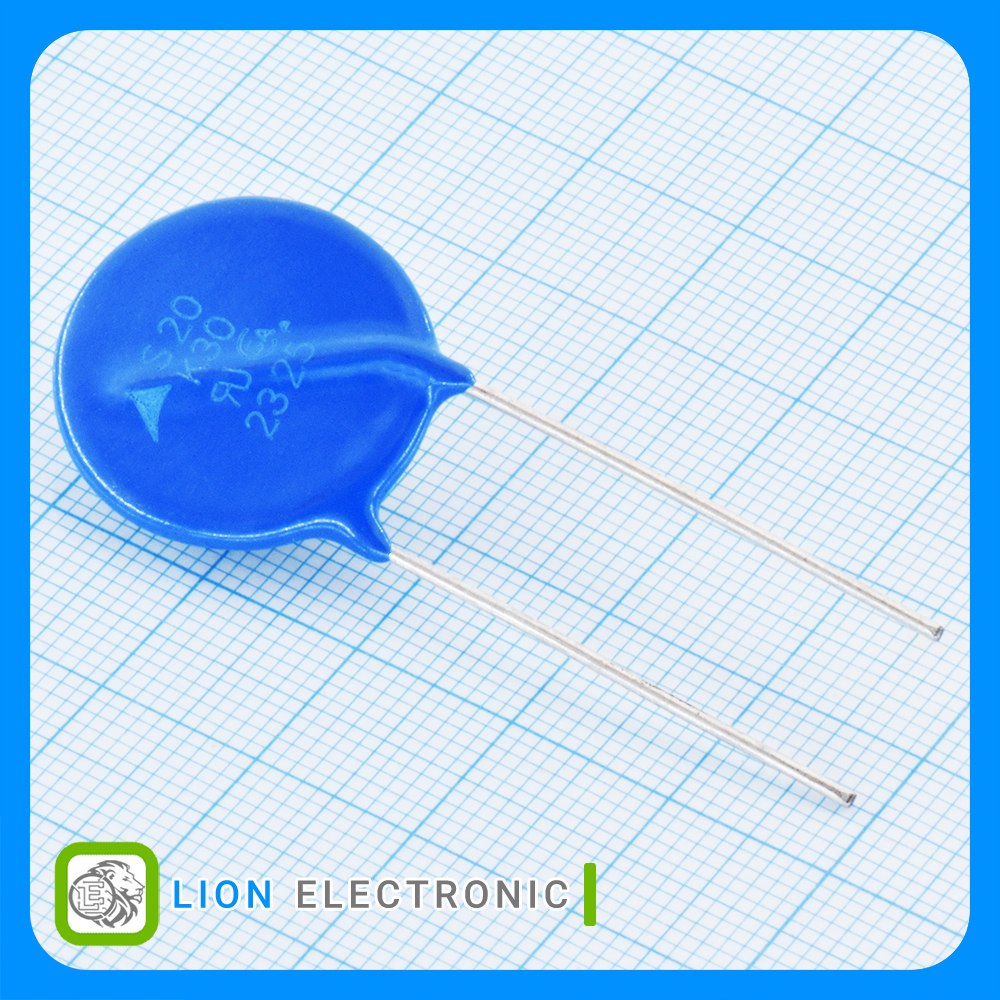

Varistor 30VAC, Varistor Voltage 47V with 2kA Peak Surge Current, 10% 20mm Standard
Specifications
- Product: MOV
- Varistor Voltage: 47V
- Clamping Voltage: 93V
- Voltage Rating AC: 30VAC
- Voltage Rating DC: 38VDC
- Peak Surge Current: 2kA
- Surge Energy Rating: 26J
- Capacitance: 9.35nF
- Diameter: 20mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Bulk
مشخصات وریستور B72220S0300K101
وریستور B72220S0300K101
Part Number
47V
Varistor Voltage
30VAC
Voltage Rating AC
Bulk
Packaging
2kA
Peak Surge Current
-40C
Minimum Operating Temperature
26J
Surge Energy Rating
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
38VDC
Voltage Rating DC
20mm
Diameter
9.35nF
Capacitance
93V
Clamping Voltage
MOV
Product
N/A
Package-Case
