TDK
معرفی
وریستور 250 ولت AC ولتاژ وریستور 390 ولت جریان ضربه 4.5 کیلوآمپر سایز 14 میلیمتر تلرانس 10% استاندارد

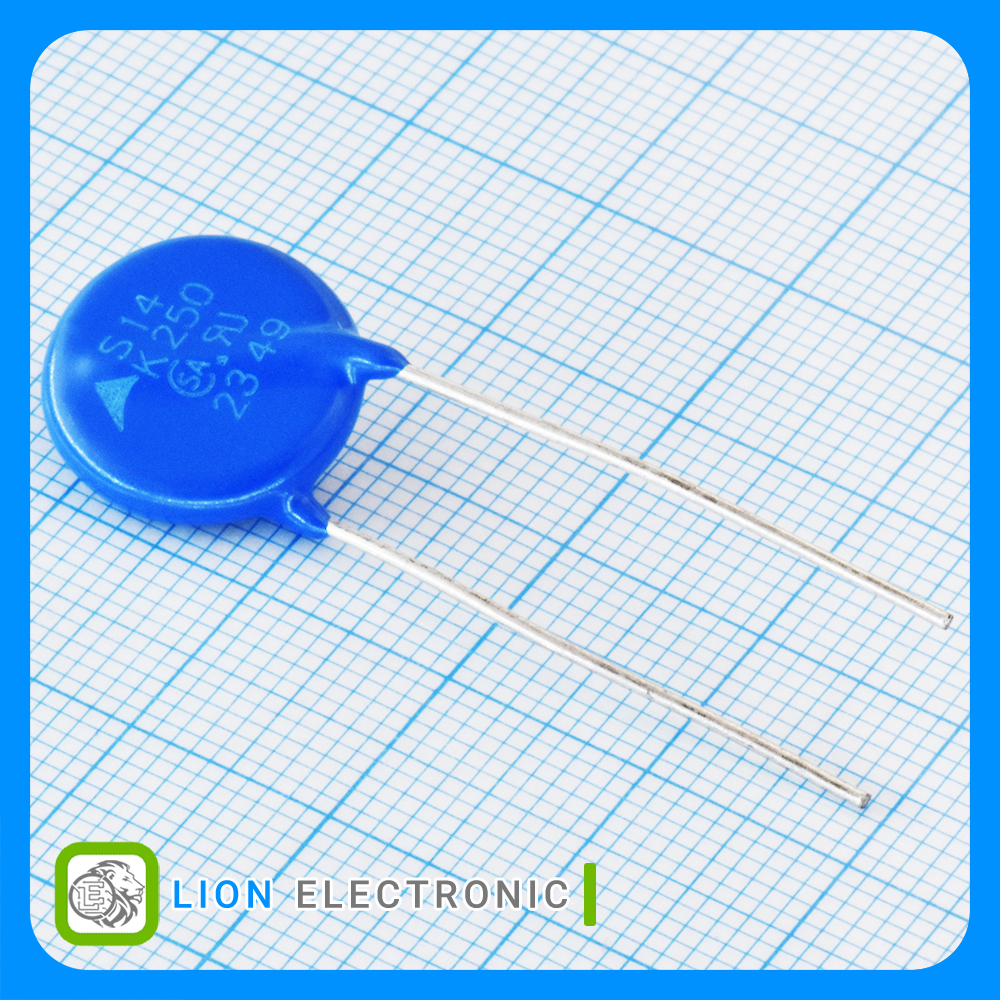

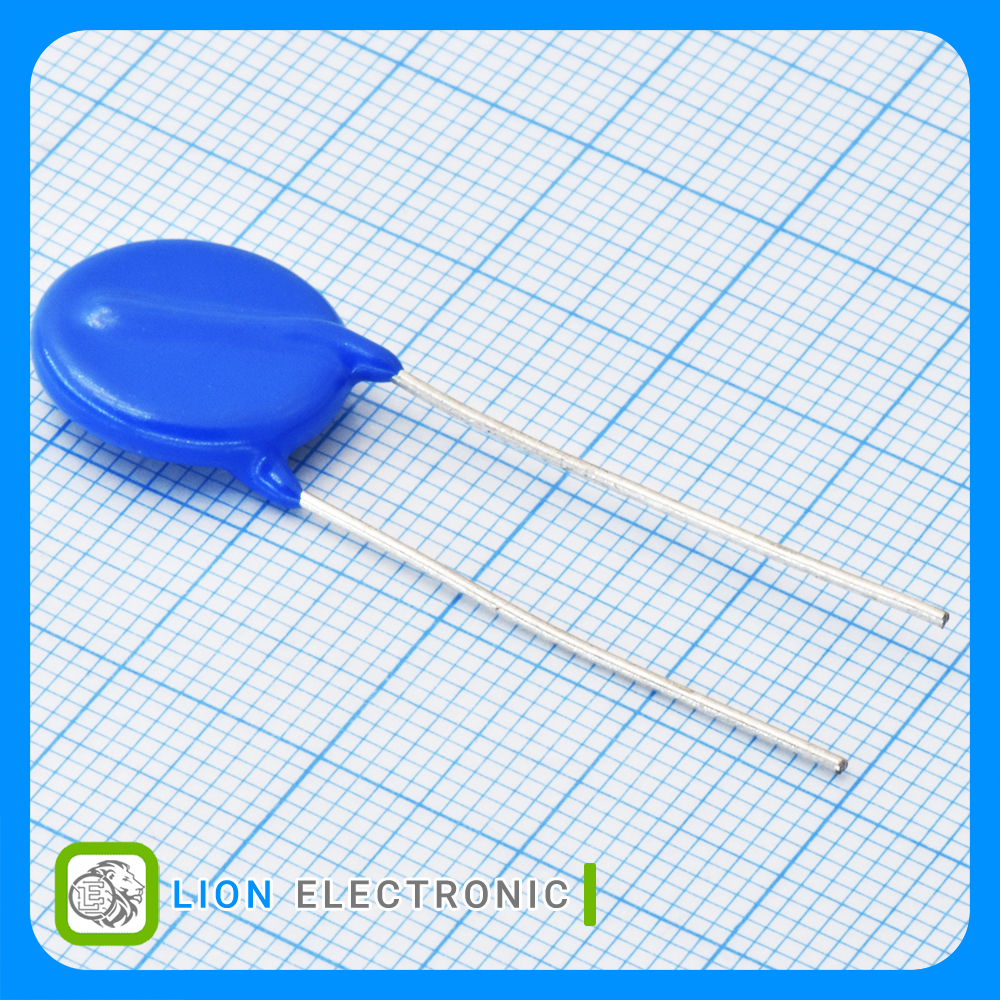

Varistor 250 VAC, Varistor Voltage 390V with 4.5kA Peak Surge Current, 14mm Size, 10% Standard
Specifications
- Product: MOV
- Varistor Voltage: 390V
- Clamping Voltage: 650V
- Voltage Rating AC: 250 VAC
- Voltage Rating DC: 320VDC
- Peak Surge Current: 4.5kA
- Surge Energy Rating: 65J
- Capacitance: 490pF
- Diameter: 14mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Bulk
مشخصات وریستور B72214S0251K101
وریستور B72214S0251K101
Part Number
390V
Varistor Voltage
250 VAC
Voltage Rating AC
Bulk
Packaging
-40C
Minimum Operating Temperature
4.5kA
Peak Surge Current
Through Hole
Mounting Style
65J
Surge Energy Rating
+105C
Maximum Operating Temperature
320VDC
Voltage Rating DC
14mm
Diameter
490pF
Capacitance
650V
Clamping Voltage
MOV
Product
N/A
Package-Case
