TDK
معرفی
وریستور 250 ولت AC ولتاژ وریستور 390 ولت جریان ضربه 1.2 کیلوآمپر سایز 7 میلیمتر تلرانس 10% استاندارد

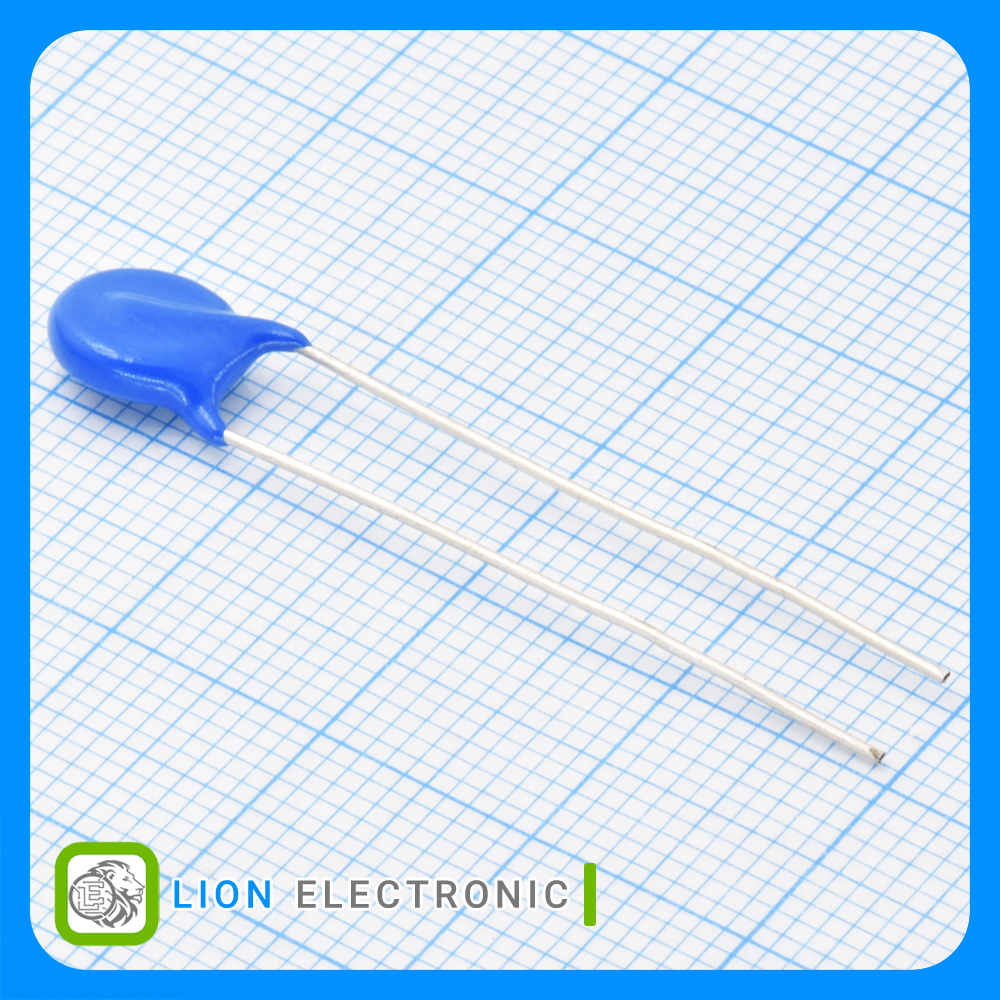

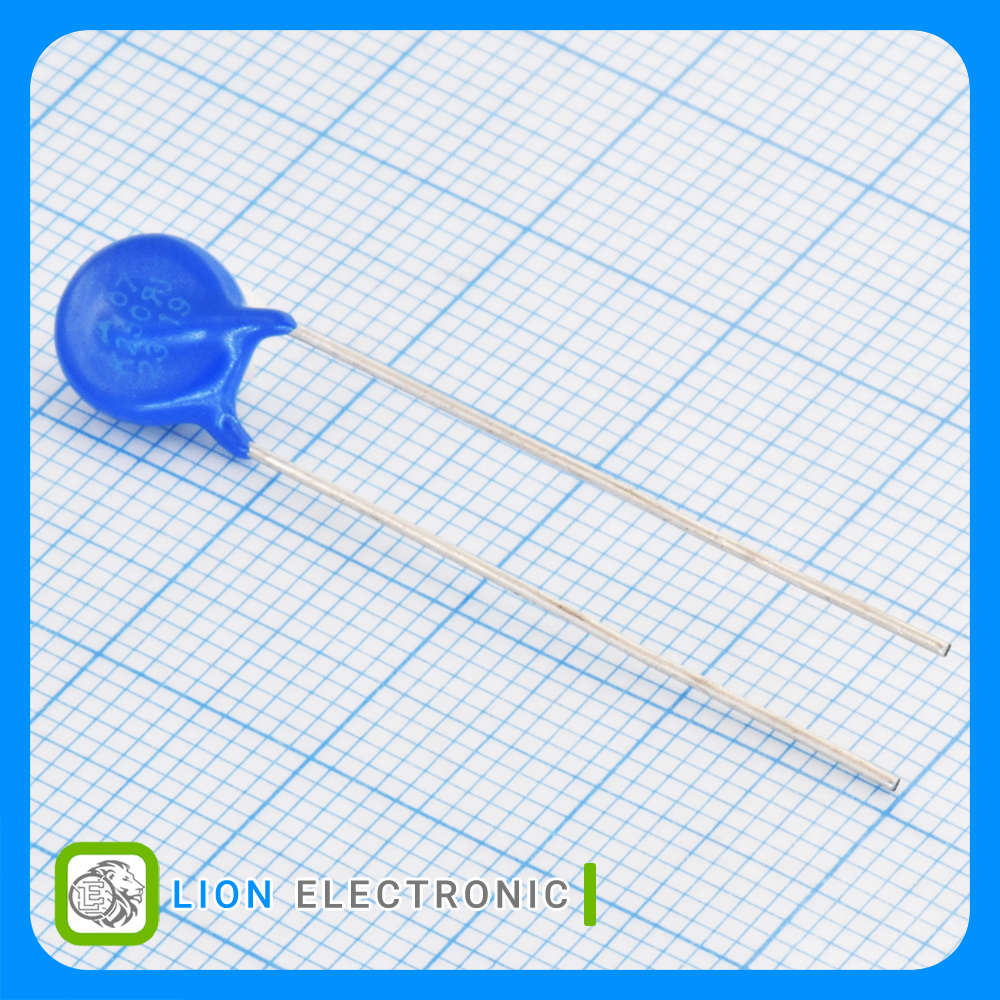

Varistor 250 VAC, Varistor Voltage 390V with 1.2kA Peak Surge Current, 7mm Size, 10% Standard
Specifications
- Product: MOV
- Varistor Voltage: 390V
- Clamping Voltage: 650V
- Voltage Rating AC: 250 VAC
- Voltage Rating DC: 320VDC
- Peak Surge Current: 1.2kA
- Surge Energy Rating: 19J
- Capacitance: 120pF
- Diameter: 7mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات وریستور B72207S0251K101
وریستور B72207S0251K101
Part Number
390V
Varistor Voltage
1.2kA
Peak Surge Current
250 VAC
Voltage Rating AC
Bulk
Packaging
19J
Surge Energy Rating
-40C
Minimum Operating Temperature
Through Hole
Mounting Style
7mm
Diameter
+125C
Maximum Operating Temperature
320VDC
Voltage Rating DC
120pF
Capacitance
650V
Clamping Voltage
MOV
Product
N/A
Package-Case
