B72205S0251K101
TDK
معرفی
وریستور 250 ولت AC ولتاژ وریستور 390 ولت جریان ضربه 400 آمپر، سایز 5 میلیمتر با تلرانس 10%، نوع استاندارد

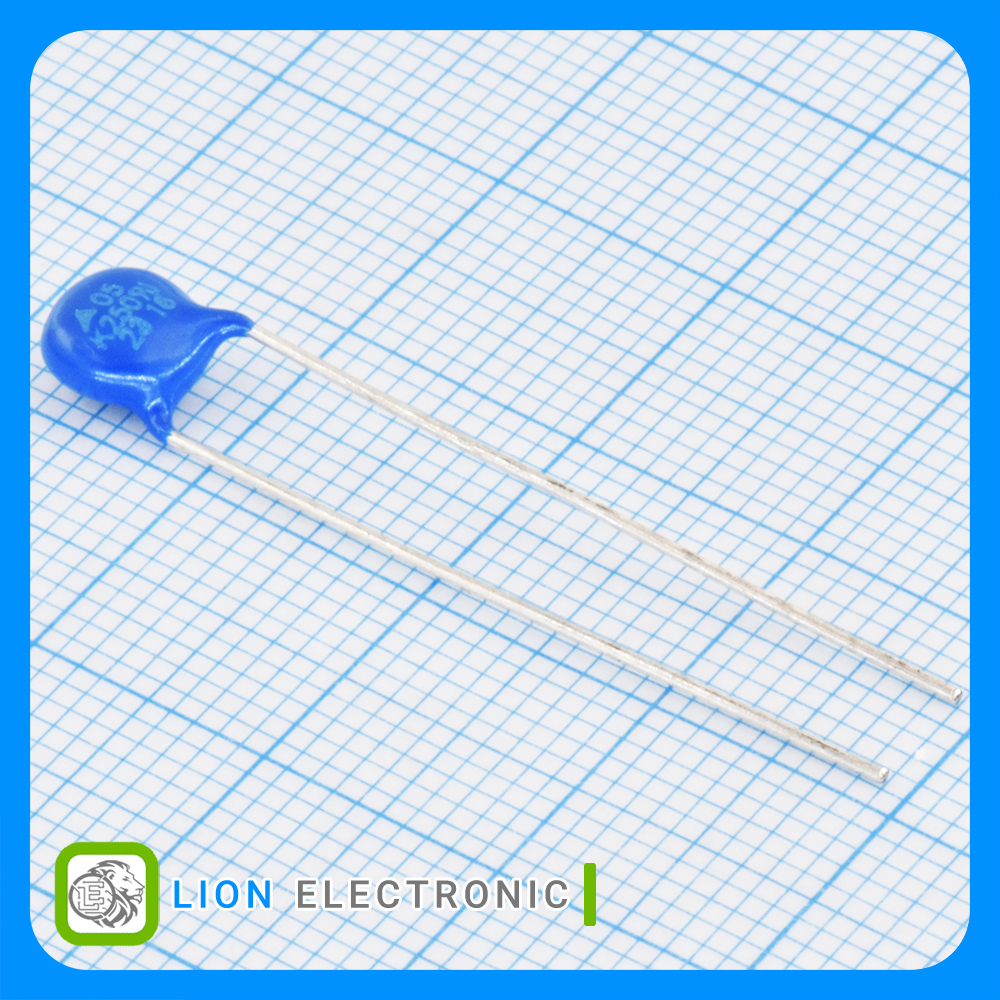

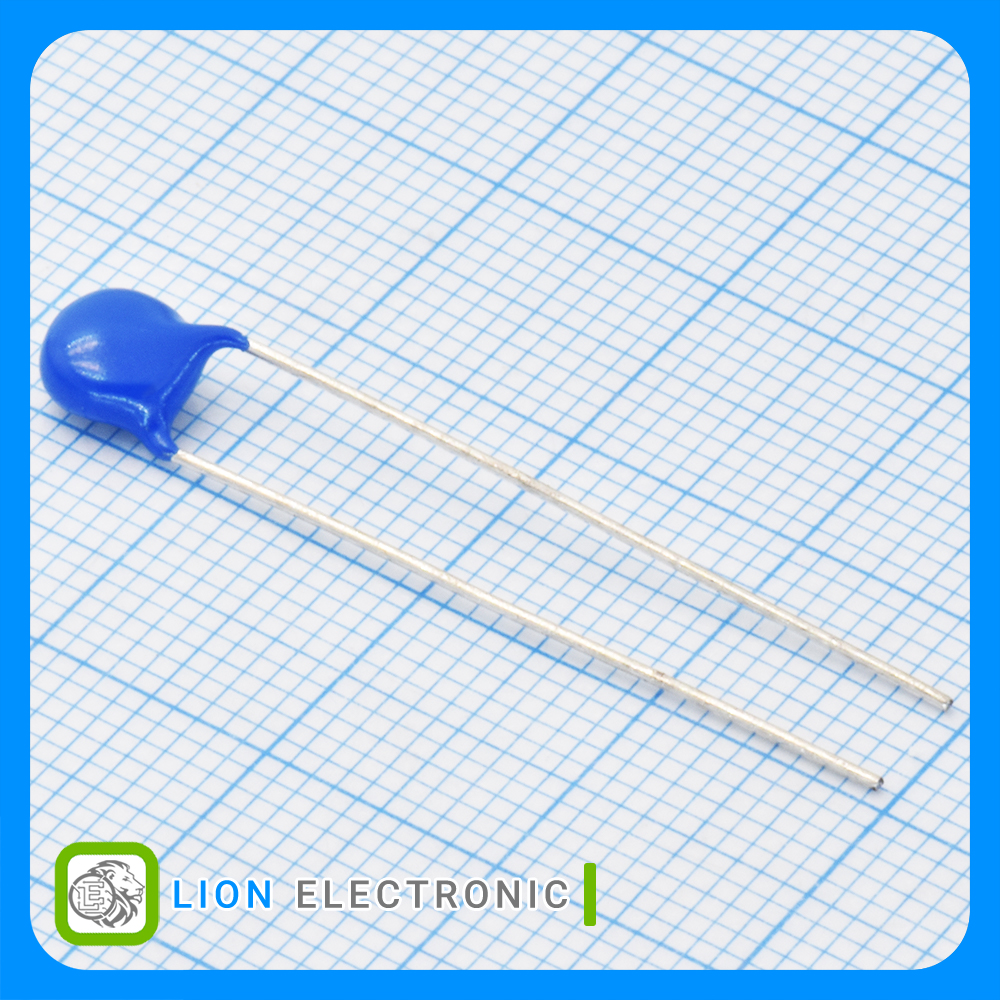

Varistor 250 VAC, Varistor Voltage 390V with 400A Peak Surge Current, 5mm Size, 10% Tolerance, Standard Type
Specifications
- Product: MOV
- Varistor Voltage: 390V
- Clamping Voltage: 650V
- Voltage Rating AC: 250 VAC
- Voltage Rating DC: 320VDC
- Peak Surge Current: 400A
- Surge Energy Rating: 8.2J
- Capacitance: 65pF
- Diameter: 5mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Bulk
مشخصات وریستور B72205S0251K101
وریستور B72205S0251K101
Part Number
400A
Peak Surge Current
8.2J
Surge Energy Rating
390V
Varistor Voltage
Bulk
Packaging
250 VAC
Voltage Rating AC
-40C
Minimum Operating Temperature
5mm
Diameter
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
65pF
Capacitance
320VDC
Voltage Rating DC
650V
Clamping Voltage
MOV
Product
N/A
Package-Case
