TDK
معرفی

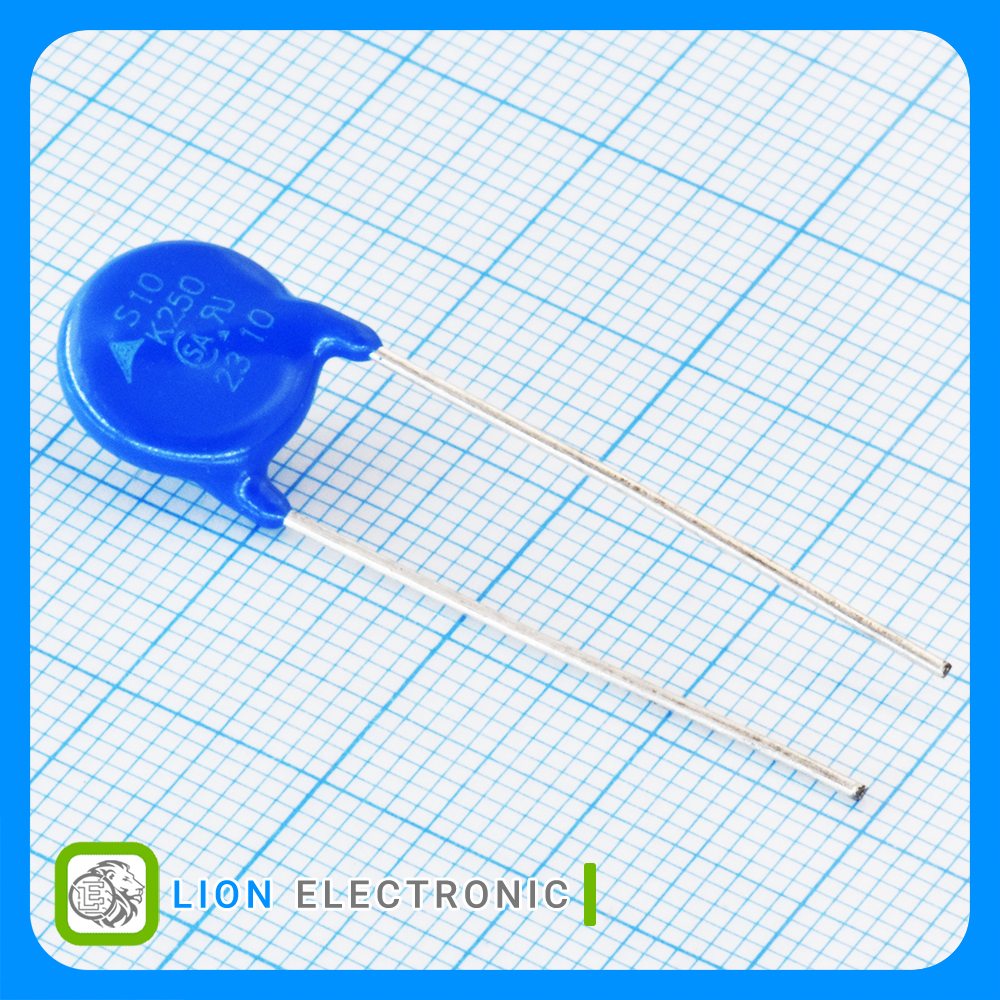

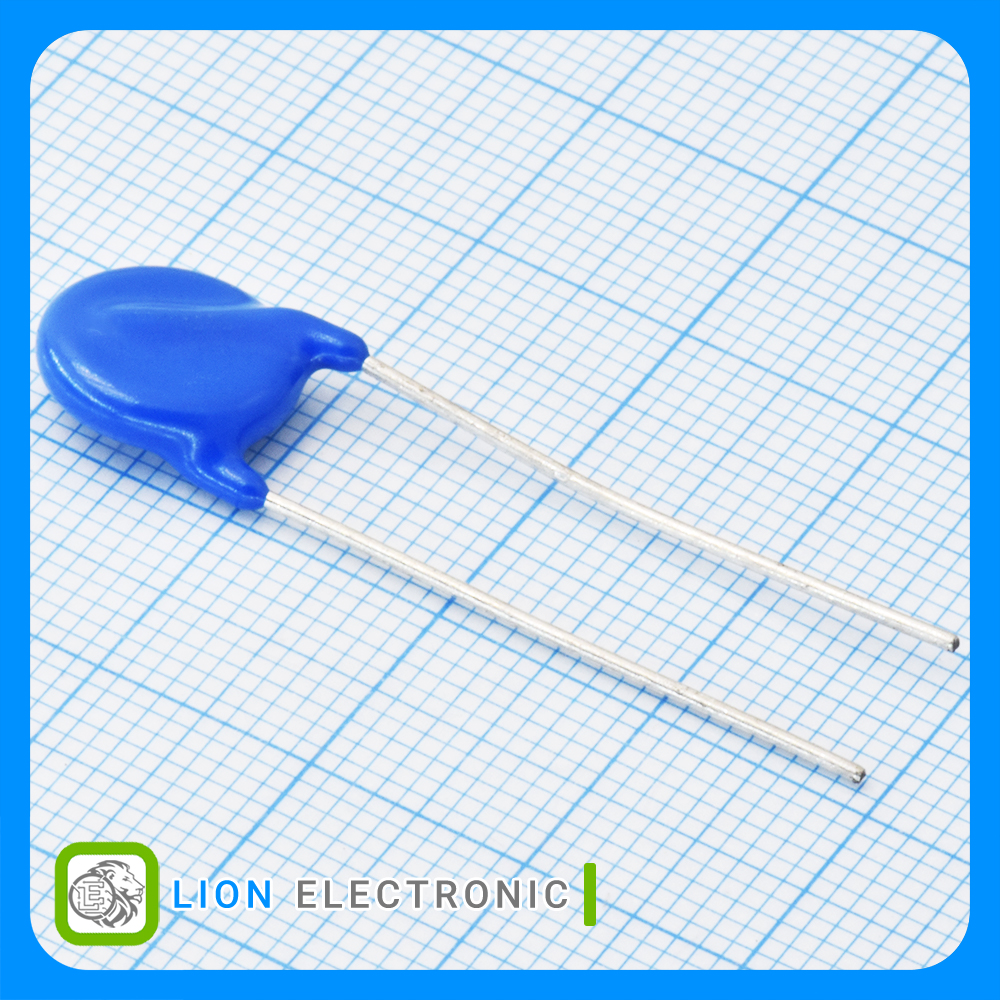

وریستور استاندارد 250 ولت AC ولتاژ وریستور 390 ولت جریان ضربه 2.5 کیلوآمپر سایز 10 میلیمتر
Varistor Standard 250 VAC, Varistor Voltage 390V with 2.5kA Peak Surge Current, 10mm Size
Specifications
- Product: MOV
- Varistor Voltage: 390V
- Clamping Voltage: 650V
- Voltage Rating AC: 250 VAC
- Voltage Rating DC: 320VDC
- Peak Surge Current: 2.5kA
- Surge Energy Rating: 38J
- Capacitance: 245pF
- Diameter: 10mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Bulk
مشخصات وریستور B72210S0251K101
وریستور B72210S0251K101
Part Number
390V
Varistor Voltage
250 VAC
Voltage Rating AC
Bulk
Packaging
2.5kA
Peak Surge Current
-40C
Minimum Operating Temperature
38J
Surge Energy Rating
Through Hole
Mounting Style
+105C
Maximum Operating Temperature
10mm
Diameter
320VDC
Voltage Rating DC
245pF
Capacitance
650V
Clamping Voltage
MOV
Product
N/A
Package-Case
