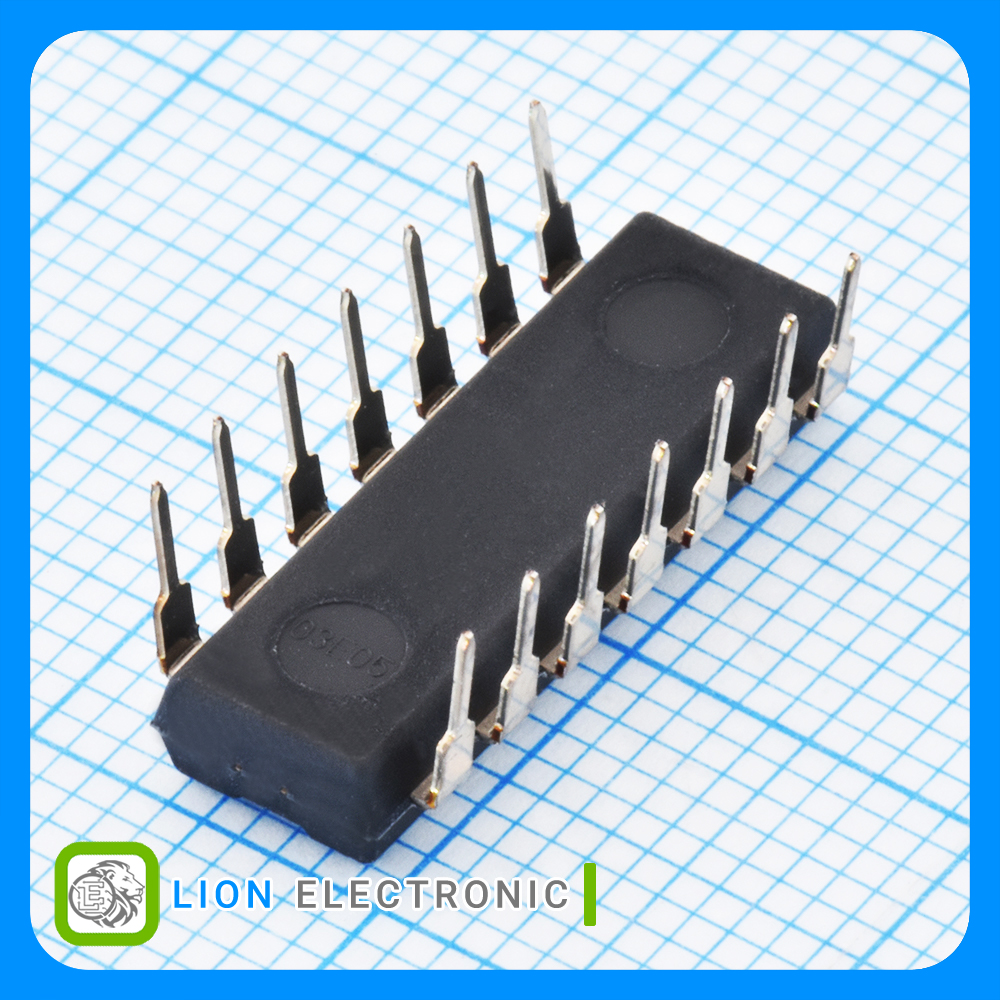

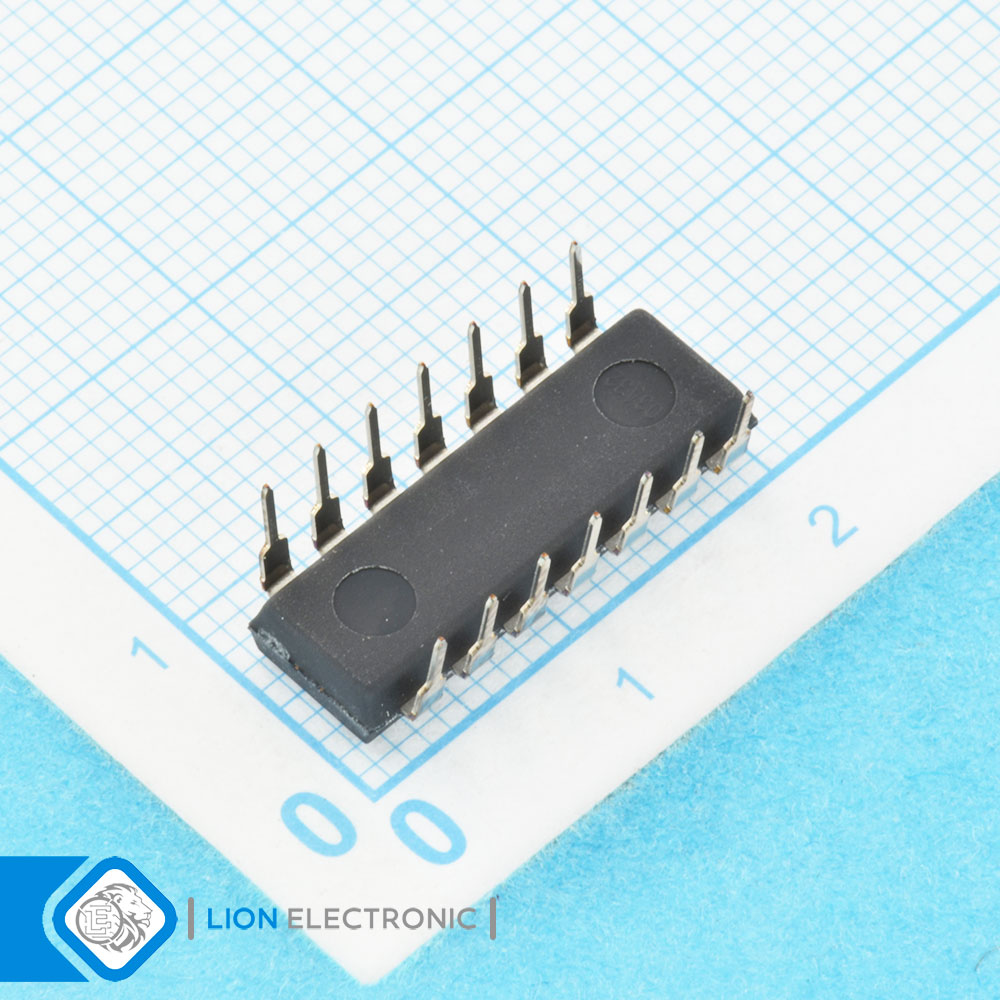

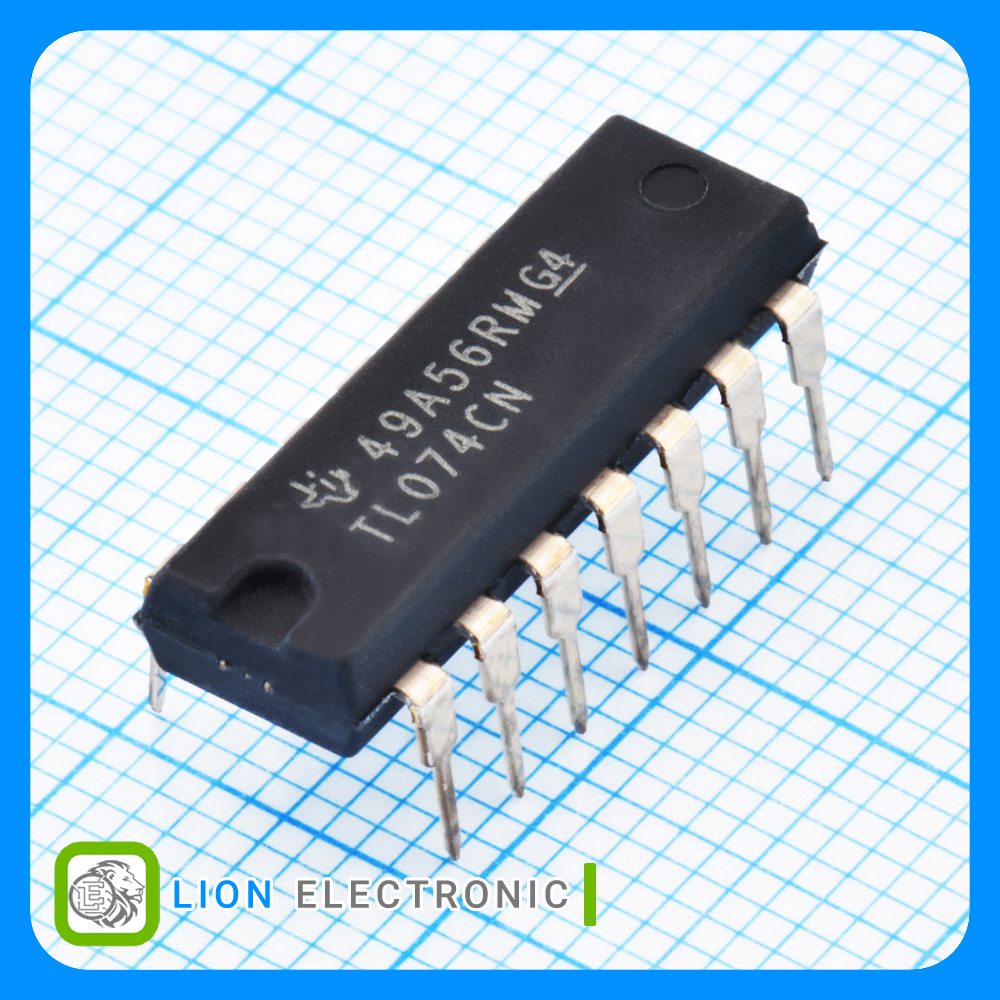

TL074CN
TL074CN
Part Number
444
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 4 کاناله نویز کم با ورودی JFET و پهنای باند 3 مگاهرتز و پکیج PDIP-14
Low-Noise JFET-Input Operational Amplifier 4-Channel, 3MHz with PDIP-14 Package
معرفی
آپامپ 4 کاناله نویز کم با ورودی JFET و پهنای باند 3 مگاهرتز و پکیج PDIP-14
Low-Noise JFET-Input Operational Amplifier 4-Channel, 3MHz with PDIP-14 Package
Specifications
- Number of Channels: 4
- Output Current per Channel: 10mA
- SR - Slew Rate: 13V/us
- GBP - Gain Bandwidth Product: 3MHz
- CMRR - Common Mode Rejection Ratio: 100dB
- Ib - Input Bias Current: 200pA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 30V
- Supply Voltage - Min: 7V
- Operating Supply Current: 1.4mA
- Mounting Style: Through Hole
- Package/Case: DIP-14
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات آپ امپ TL074CN

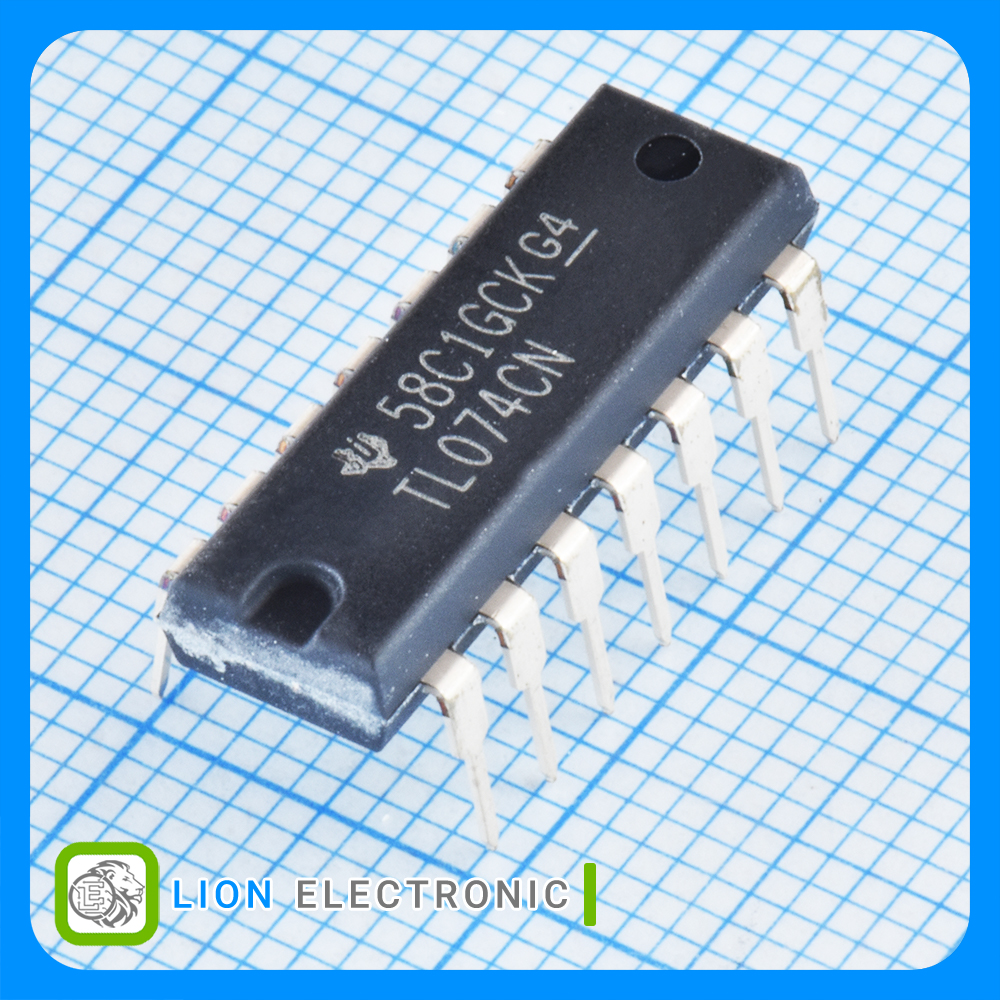

آپ امپ TL074CN
Part Number
No Shutdown
Shutdown
4
Number of Channels
-40C
Minimum Operating Temperature
Tube
Packaging
10mA
Output Current per Channel
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
200pA
Ib - Input Bias Current
3MHz
GBP - Gain Bandwidth Product
13V/us
SR - Slew Rate
100dB
CMRR - Common Mode Rejection Ratio
3mV
Vos - Input Offset Voltage
30V
Supply Voltage - Max
7V
Supply Voltage - Min
DIP-14
Package-Case
1.4mA
Operating Supply Current
