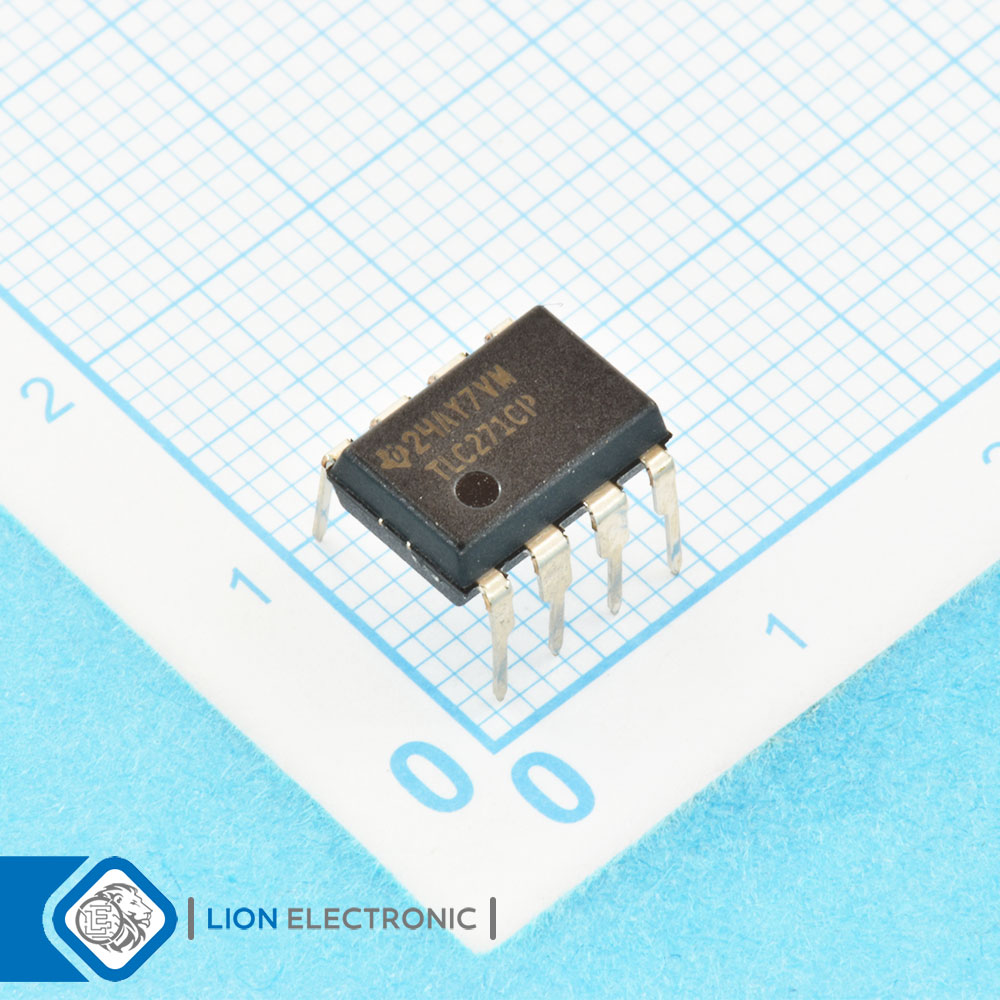

TLC271CP
TLC271CP
Part Number
447
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله LinCMOS قابل برنامهریزی با مصرف توان پایین، پهنای باند 1.7 مگاهرتز و پکیج PDIP-8
Single LinCMOS Programmable Low-Power Operational Amplifier 1-Channel, 1.7MHz with PDIP-8 Package
معرفی
آپامپ 1 کاناله LinCMOS قابل برنامهریزی با مصرف توان پایین، پهنای باند 1.7 مگاهرتز و پکیج PDIP-8
Single LinCMOS Programmable Low-Power Operational Amplifier 1-Channel, 1.7MHz with PDIP-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 10mA
- SR - Slew Rate: 3.6V/us
- GBP - Gain Bandwidth Product: 1.7MHz
- CMRR - Common Mode Rejection Ratio: 65dB to 80dB
- Ib - Input Bias Current: 60pA
- Vos - Input Offset Voltage: 1.1mV
- Supply Voltage - Max: 16V
- Supply Voltage - Min: 3V
- Operating Supply Current: 675uA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +90C
- Packaging: Tube
مشخصات آپ امپ TLC271CP
آپ امپ TLC271CP
Part Number
1
Number of Channels
No Shutdown
Shutdown
10mA
Output Current per Channel
Tube
Packaging
+90C
Maximum Operating Temperature
Through Hole
Mounting Style
65dB to 80dB
CMRR - Common Mode Rejection Ratio
0C
Minimum Operating Temperature
60pA
Ib - Input Bias Current
1.7MHz
GBP - Gain Bandwidth Product
3.6V/us
SR - Slew Rate
1.1mV
Vos - Input Offset Voltage
3V
Supply Voltage - Min
16V
Supply Voltage - Max
DIP-8
Package-Case
675uA
Operating Supply Current
