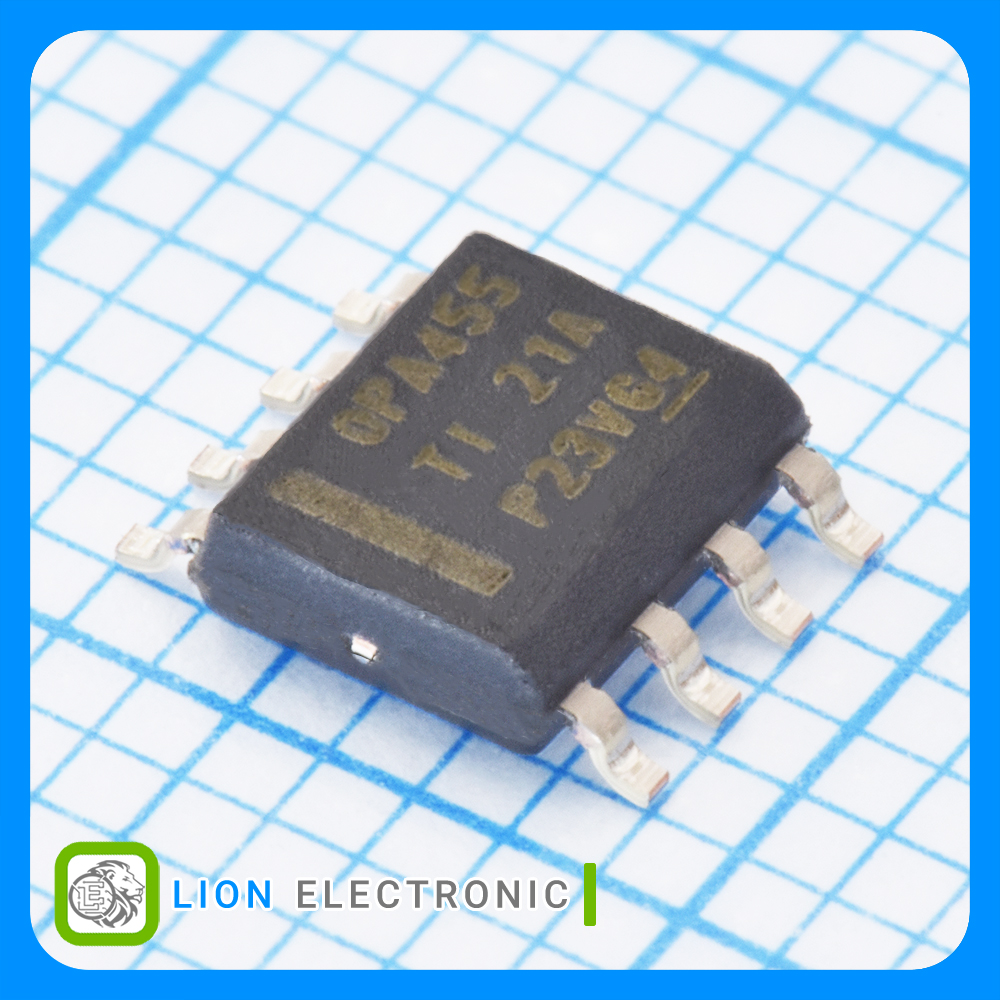

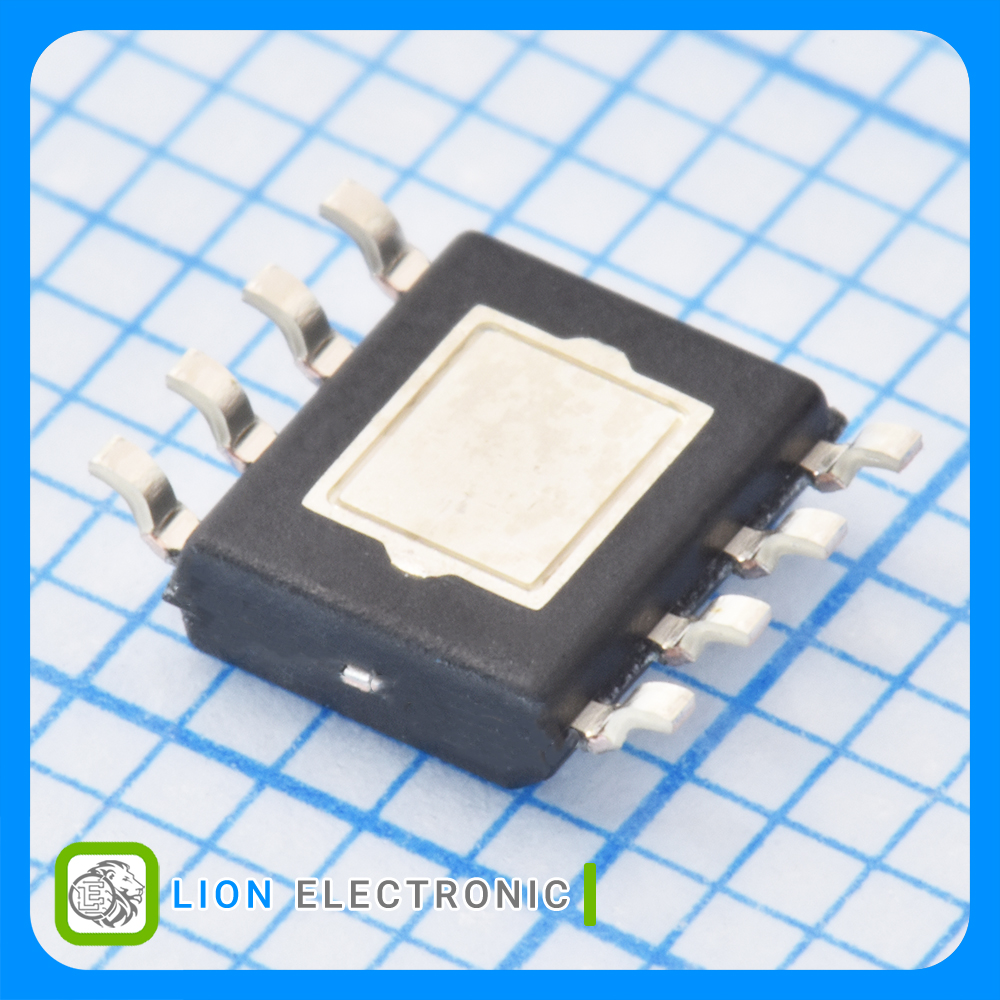

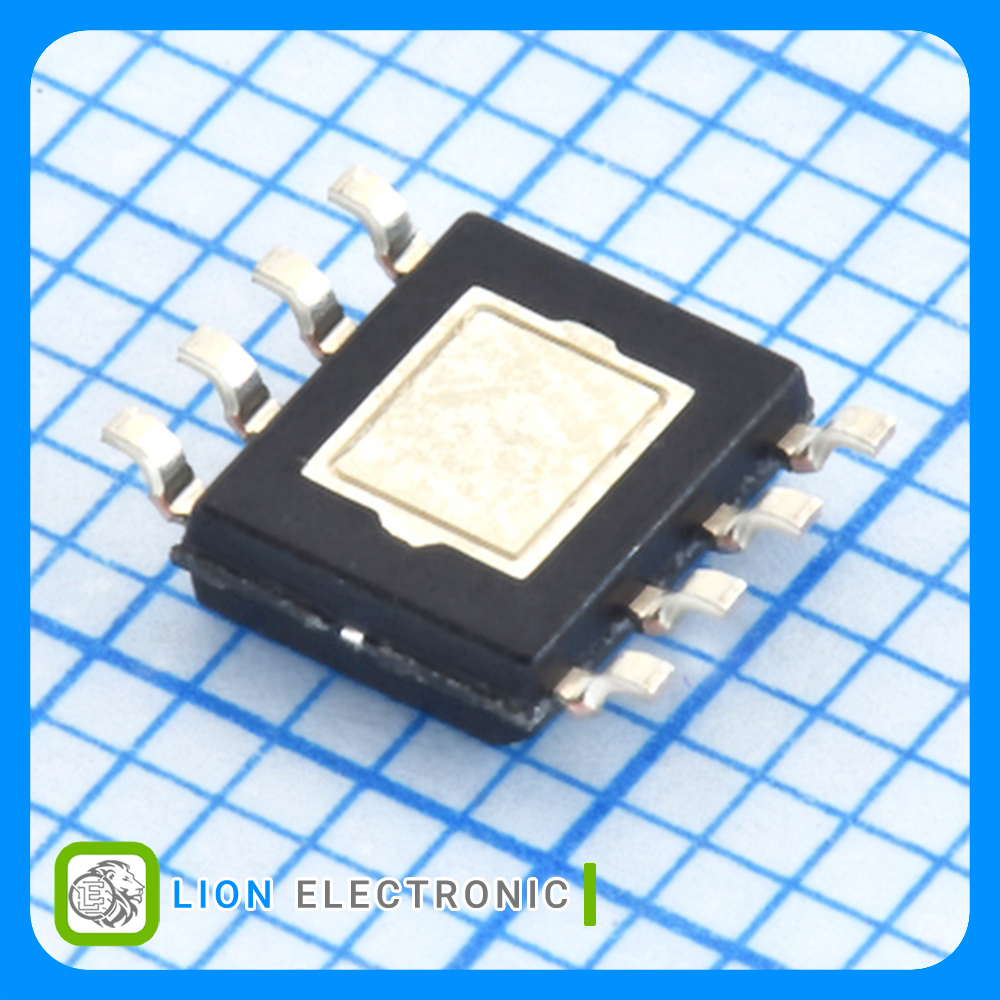

OPA455IDDA
OPA455IDDA
Part Number
4478
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله 6.5 مگاهرتز با محدوده گسترده تغذیه، 150 ولت، پایداری بهره واحد و محافظت محدودیت جریان با پکیج HSOIC-8
Wide power-supply range Operational Amplifier 1-Channel, 6.5MHz, 150V with Unity Gain Stability and Current limit protection with HSOIC-8 Package
معرفی
آپامپ 1 کاناله 6.5 مگاهرتز با محدوده گسترده تغذیه، 150 ولت، پایداری بهره واحد و محافظت محدودیت جریان با پکیج HSOIC-8
Wide power-supply range Operational Amplifier 1-Channel, 6.5MHz, 150V with Unity Gain Stability and Current limit protection with HSOIC-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 45mA
- SR - Slew Rate: 32V/us
- GBP - Gain Bandwidth Product: 6.5MHz
- CMRR - Common Mode Rejection Ratio: 120dB
- Ib - Input Bias Current: 100pA
- Vos - Input Offset Voltage: 200uV
- Supply Voltage - Max: 140V
- Supply Voltage - Min: 6V
- Operating Supply Current: 3.2mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات آپ امپ OPA455IDDA
آپ امپ OPA455IDDA
Part Number
1
Number of Channels
-40C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
100pA
Ib - Input Bias Current
45mA
Output Current per Channel
200uV
Vos - Input Offset Voltage
6.5MHz
GBP - Gain Bandwidth Product
32V/us
SR - Slew Rate
120dB
CMRR - Common Mode Rejection Ratio
6V
Supply Voltage - Min
140V
Supply Voltage - Max
3.2mA
Operating Supply Current
SOIC-8
Package-Case
