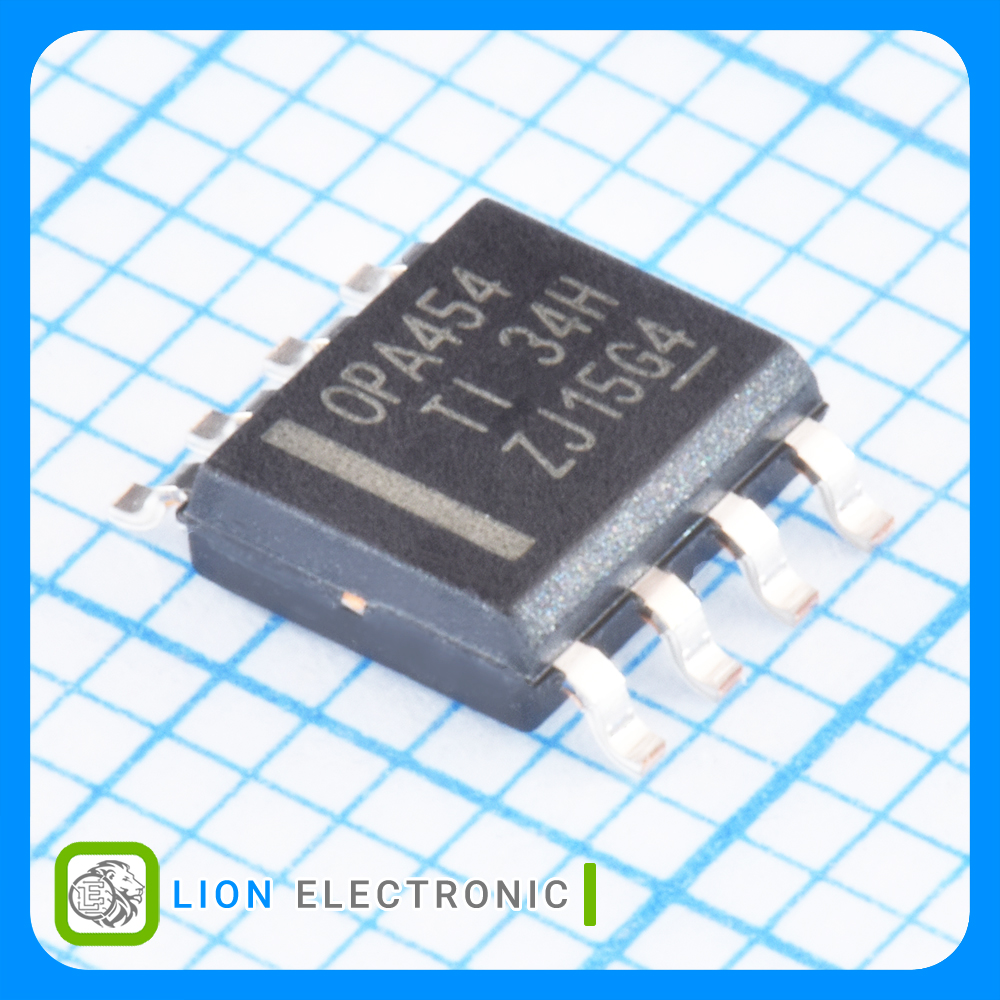

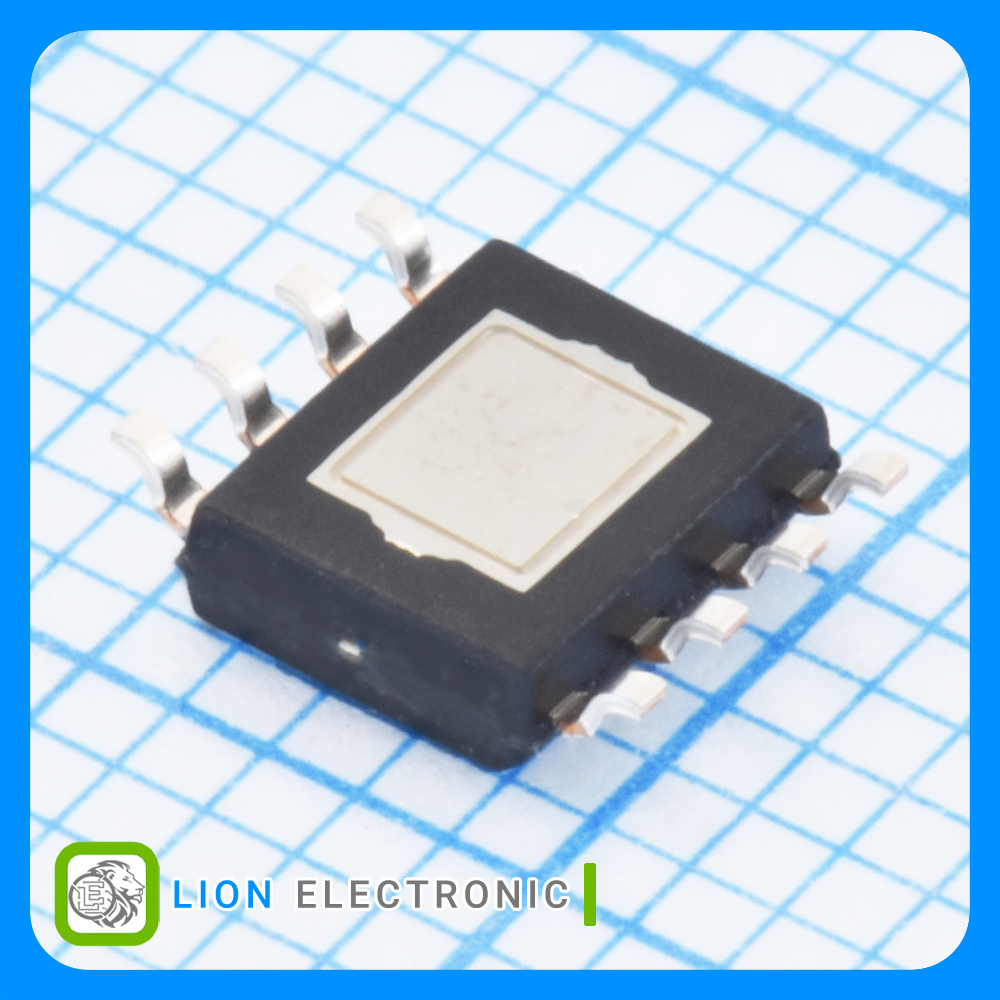

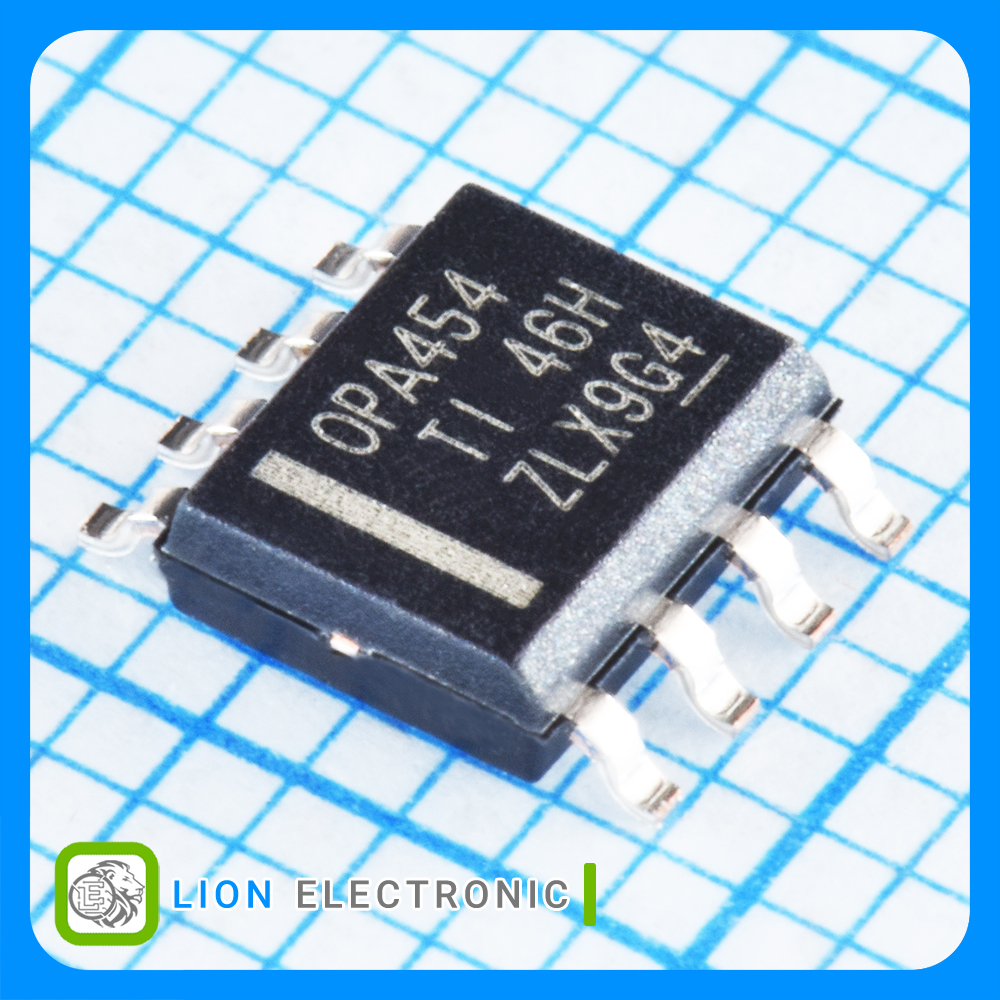

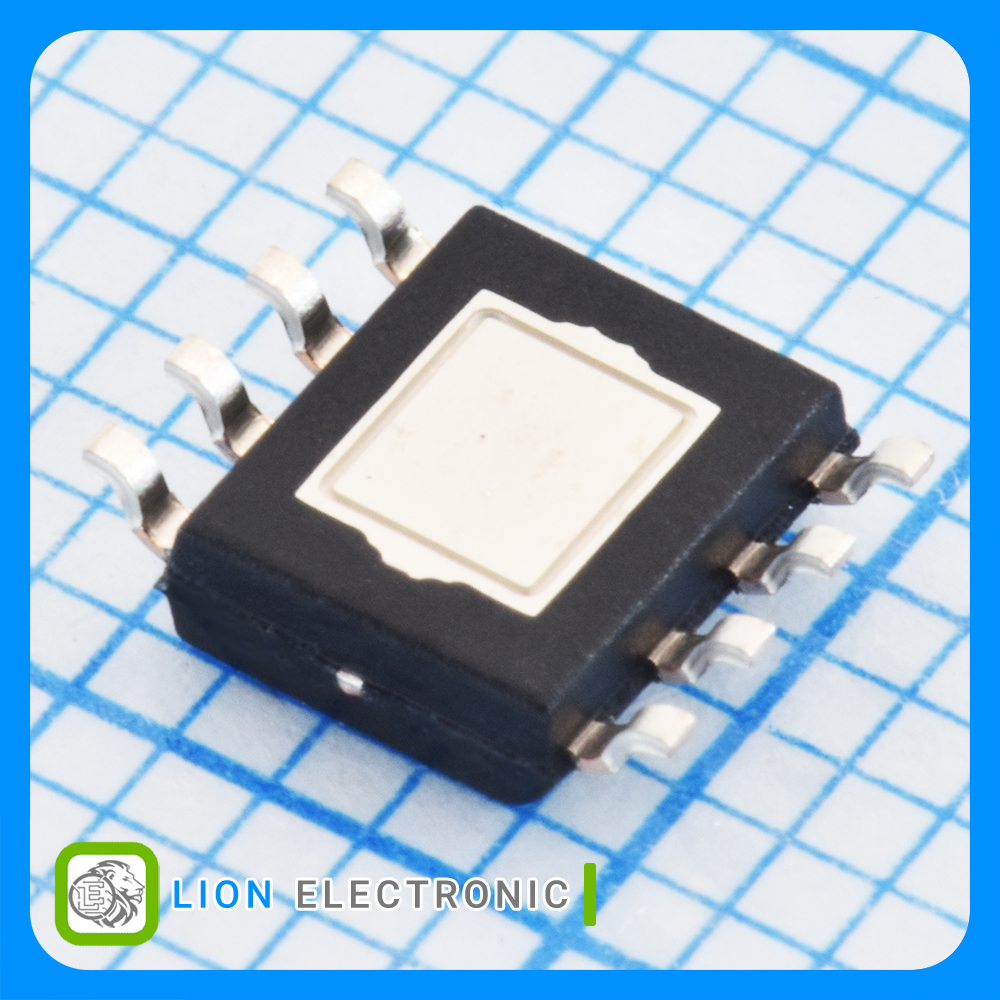

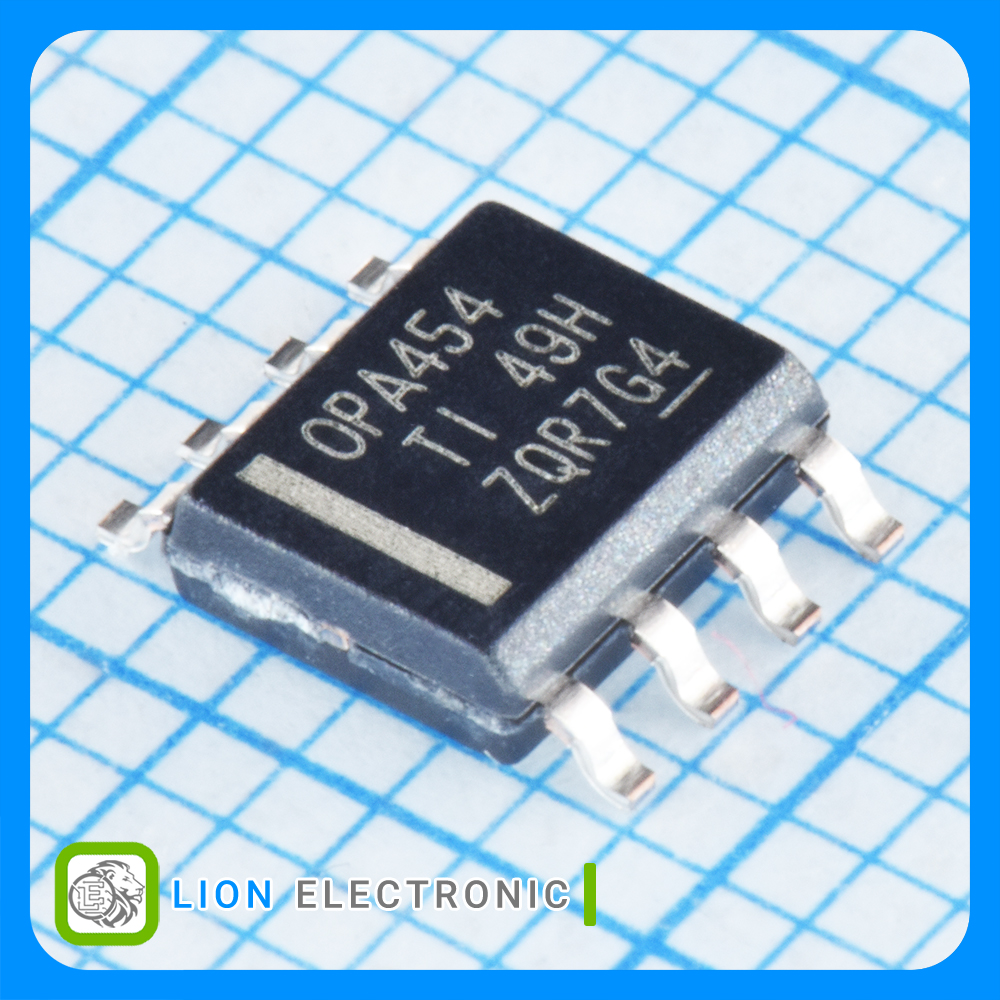

OPA454AIDDA
OPA454AIDDA
Part Number
4479
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله با پهنای باند 2.5 مگاهرتز، محدوده تغذیه وسیع و پایداری بهره واحد با پکیج SOIC-8
Operational Amplifier 1-Channel, 2.5MHz, Wide Power-Supply Range with Stable Unity Gain, SOIC-8 Package
معرفی
آپامپ 1 کاناله با پهنای باند 2.5 مگاهرتز، محدوده تغذیه وسیع و پایداری بهره واحد با پکیج SOIC-8
Operational Amplifier 1-Channel, 2.5MHz, Wide Power-Supply Range with Stable Unity Gain, SOIC-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 25mA
- SR - Slew Rate: 13V/us
- GBP - Gain Bandwidth Product: 2.5MHZ
- CMRR - Common Mode Rejection Ratio: 147dB
- Ib - Input Bias Current: 100pA
- Vos - Input Offset Voltage: 4mV
- Supply Voltage - Max: 100V
- Supply Voltage - Min: 10V
- Operating Supply Current: 3.2mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات آپ امپ OPA454AIDDA
آپ امپ OPA454AIDDA
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
25mA
Output Current per Channel
100pA
Ib - Input Bias Current
2.5MHZ
GBP - Gain Bandwidth Product
13V/us
SR - Slew Rate
4mV
Vos - Input Offset Voltage
147dB
CMRR - Common Mode Rejection Ratio
100V
Supply Voltage - Max
10V
Supply Voltage - Min
3.2mA
Operating Supply Current
SOIC-8
Package-Case
