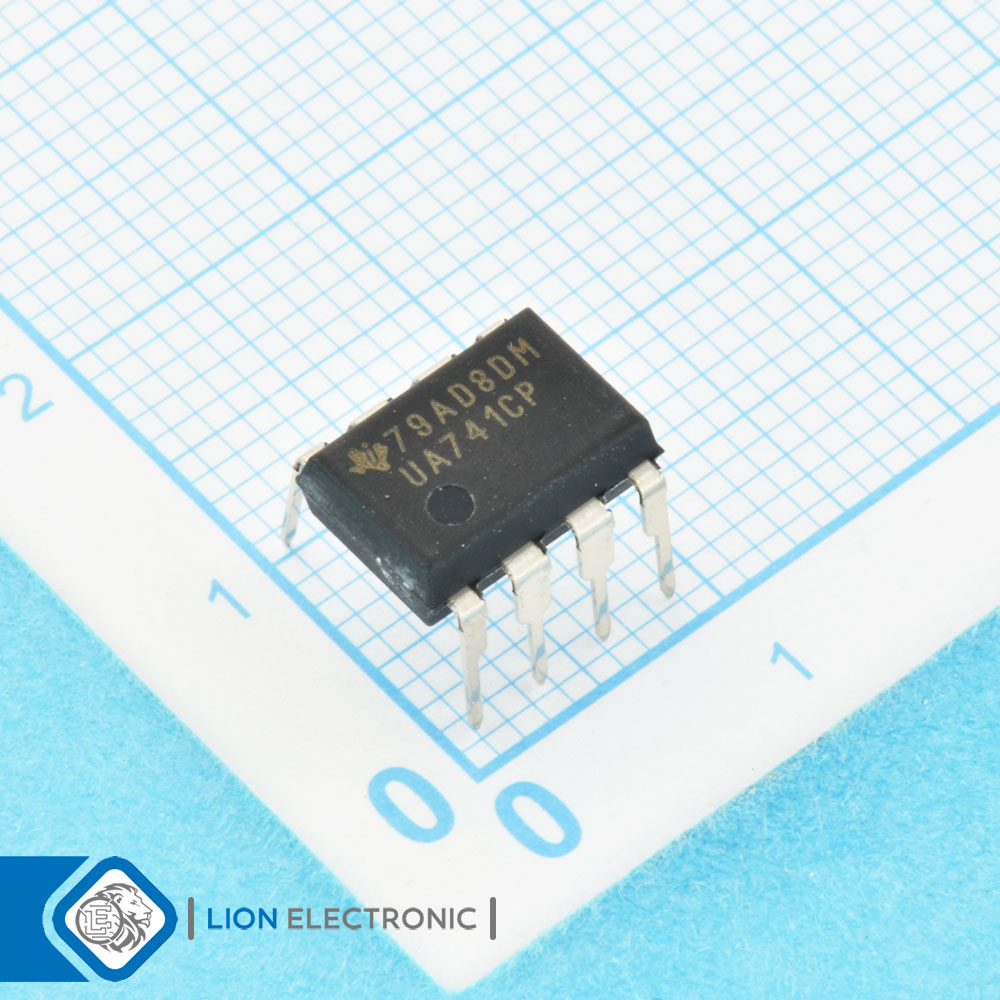

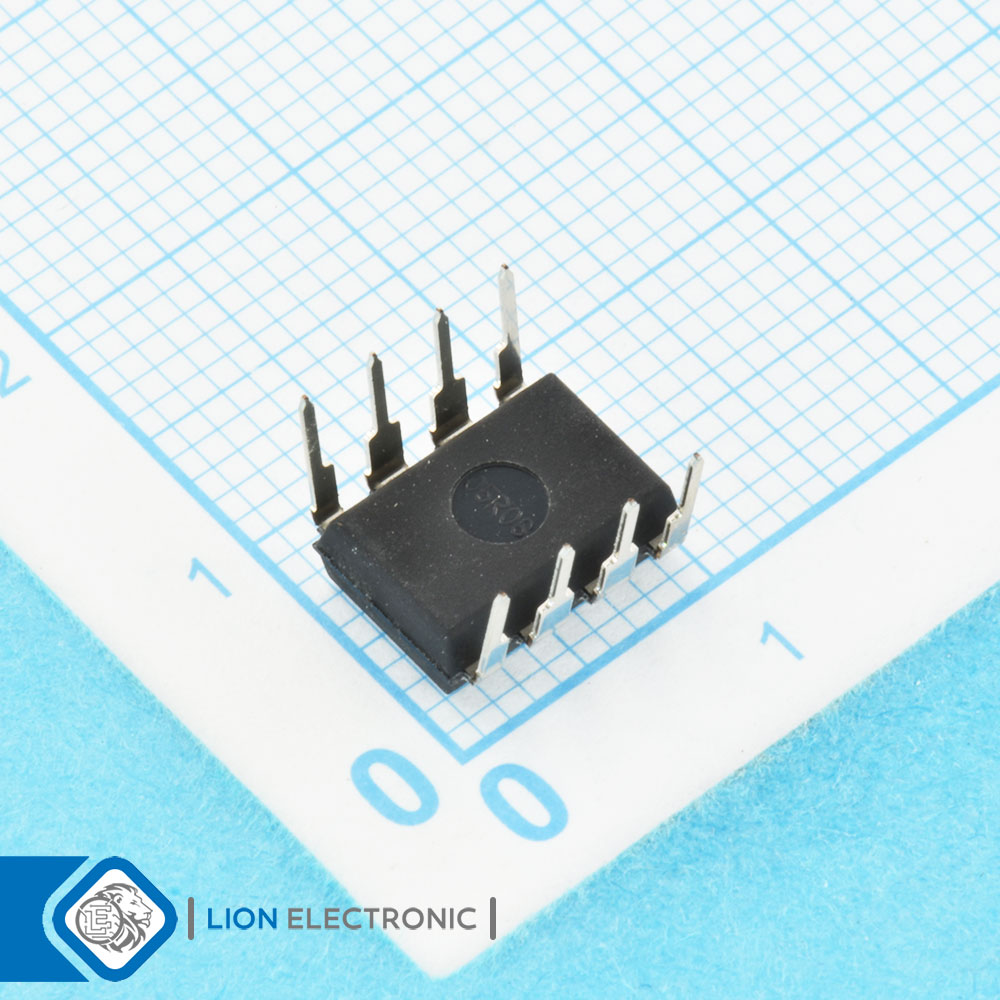

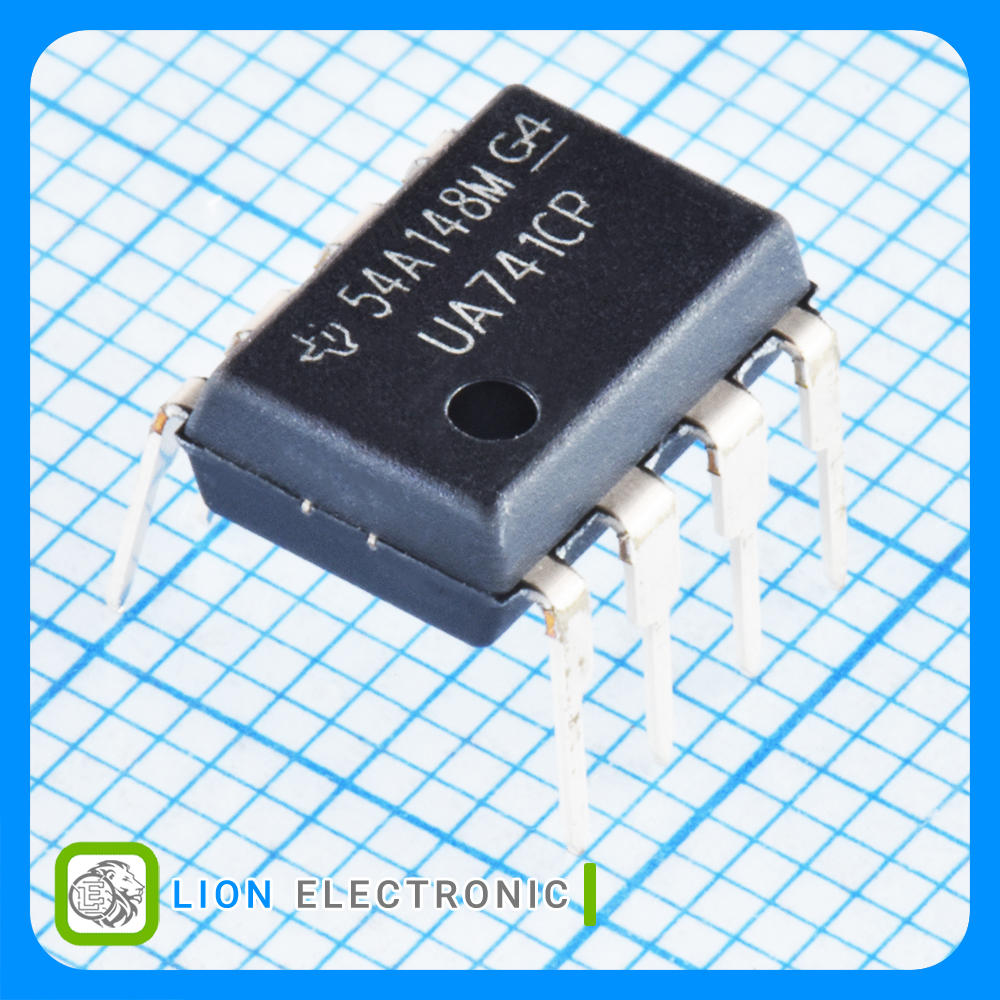

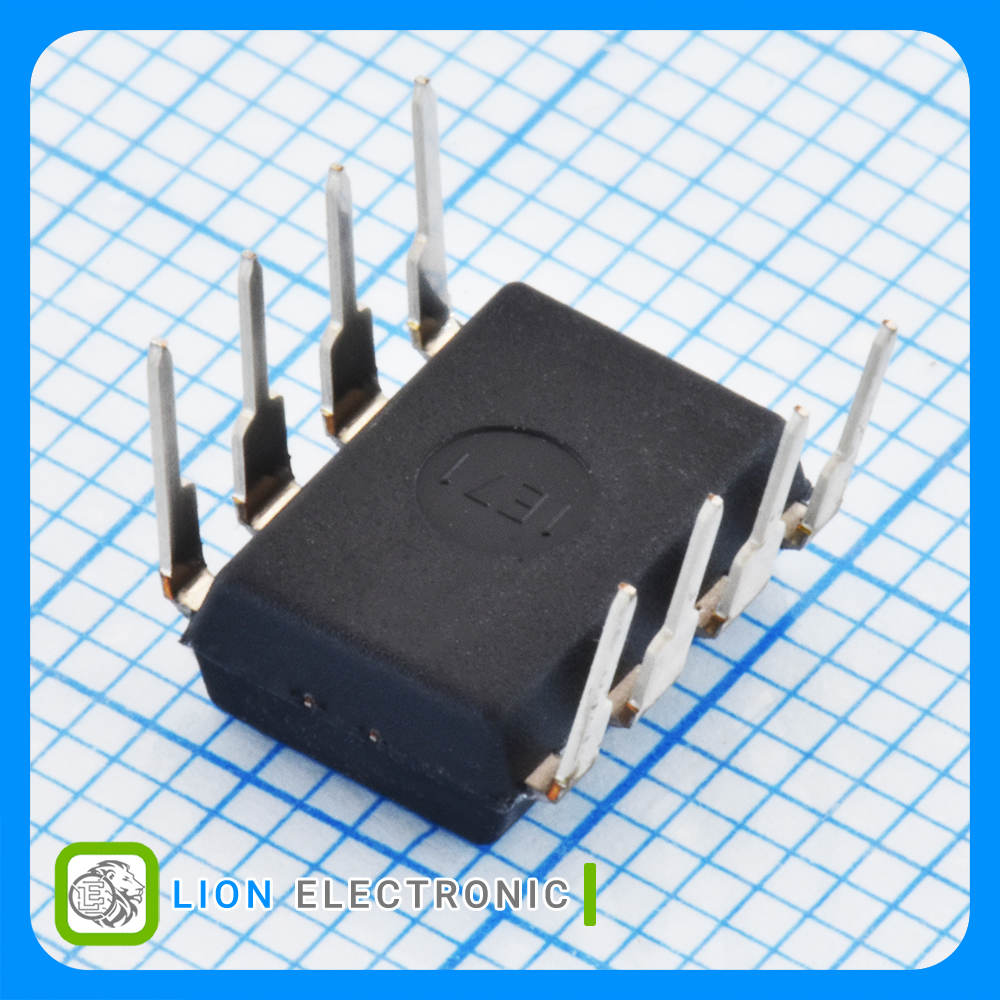

UA741CP
UA741CP
Part Number
449
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله عمومی با پهنای باند 1 مگاهرتز و پکیج PDIP-8
General-Purpose Operational Amplifier 1-Channel, 1MHz with PDIP-8 Package
معرفی
آپامپ 1 کاناله عمومی با پهنای باند 1 مگاهرتز و پکیج PDIP-8
General-Purpose Operational Amplifier 1-Channel, 1MHz with PDIP-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 25mA
- SR - Slew Rate: 500mV/us
- GBP - Gain Bandwidth Product: 1MHz
- CMRR - Common Mode Rejection Ratio: 70dB to 90dB
- Ib - Input Bias Current: 500nA
- Vos - Input Offset Voltage: 1mV
- Supply Voltage - Max: 36V
- Supply Voltage - Min: 7V
- Operating Supply Current: 1.7mA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +90C
- Packaging: Tube
مشخصات آپ امپ UA741CP

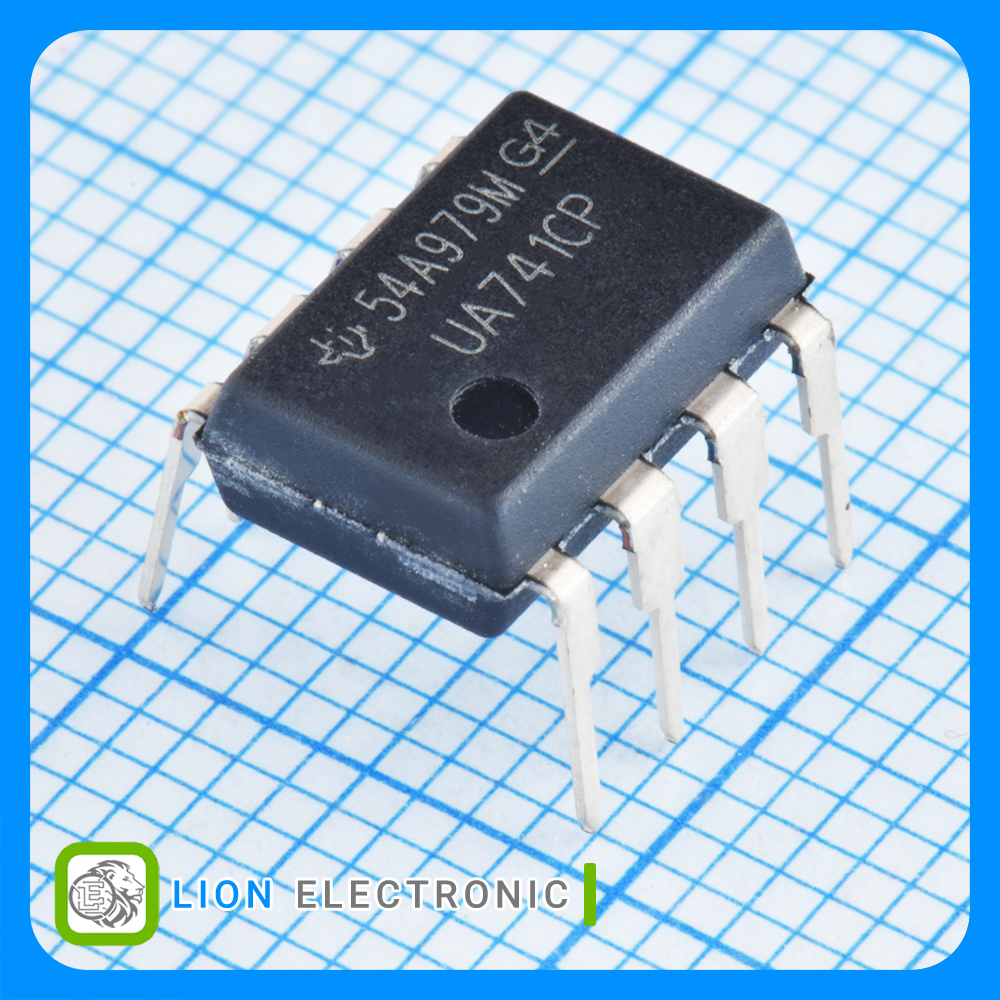

آپ امپ UA741CP
Part Number
1
Number of Channels
No Shutdown
Shutdown
Tube
Packaging
+90C
Maximum Operating Temperature
Through Hole
Mounting Style
0C
Minimum Operating Temperature
500mV/us
SR - Slew Rate
25mA
Output Current per Channel
70dB to 90dB
CMRR - Common Mode Rejection Ratio
1MHz
GBP - Gain Bandwidth Product
1mV
Vos - Input Offset Voltage
500nA
Ib - Input Bias Current
36V
Supply Voltage - Max
7V
Supply Voltage - Min
DIP-8
Package-Case
1.7mA
Operating Supply Current
