WeEn/NXP
معرفی

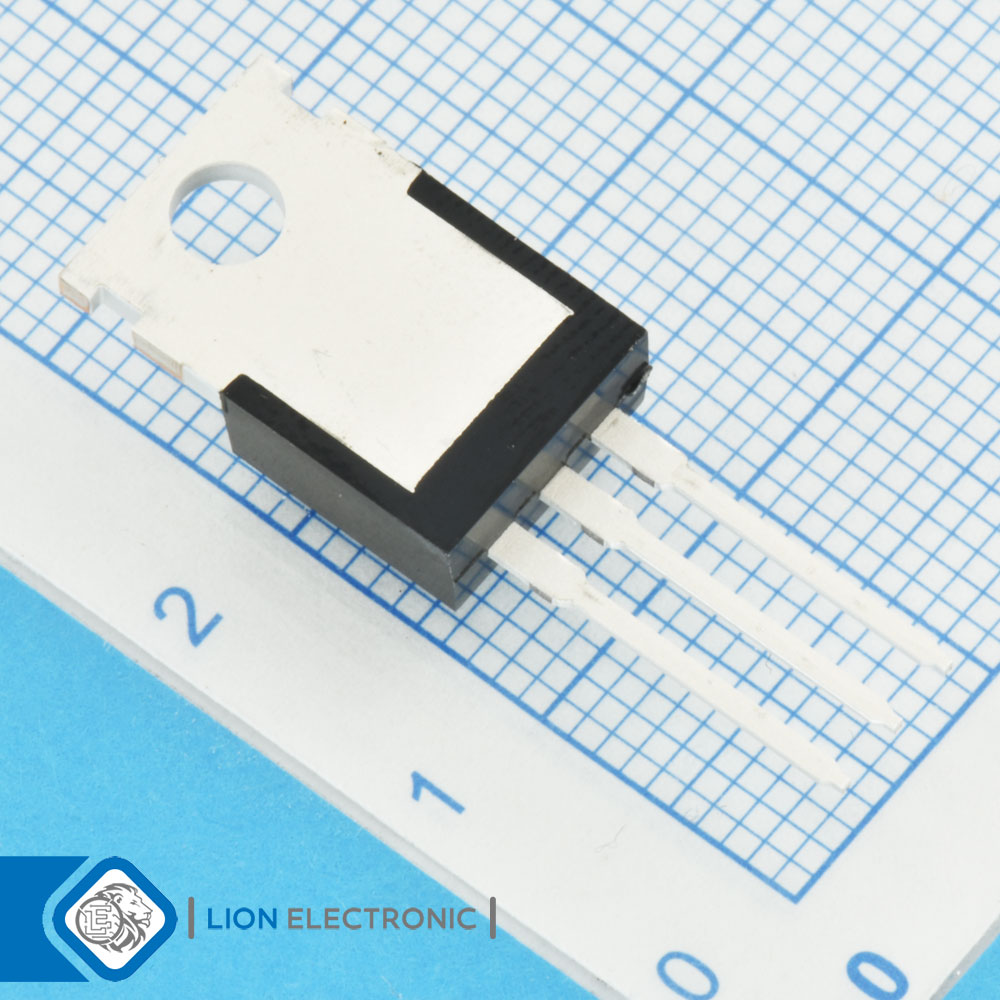

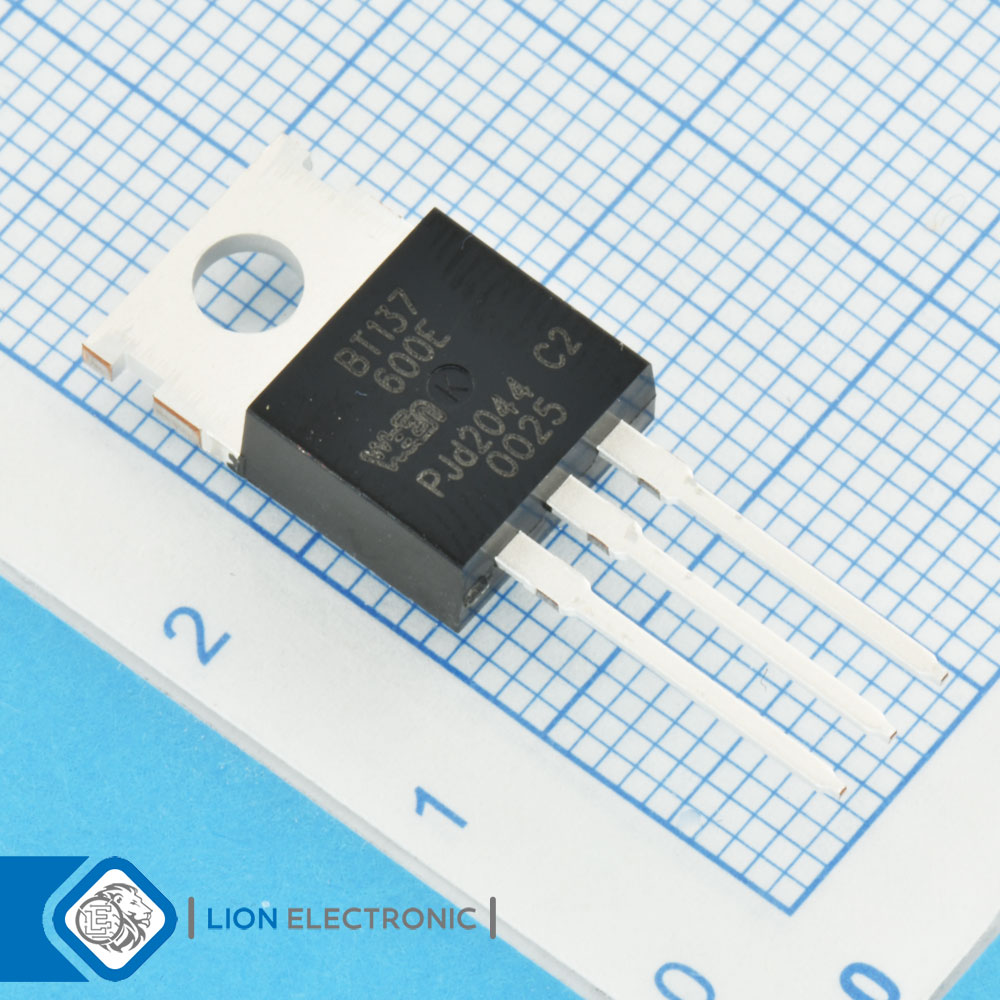

ترایاک 600 ولت 8 آمپر با پکیج TO-220-3
Triac 600V, 8A with TO-220-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 8A
- On-State Voltage: 1.65V
- Gate Trigger Voltage - Vgt: 700mV
- Gate Trigger Current - Igt: 11mA
- Non Repetitive On-State Current: 71A
- Off-State Leakage Current @ VDRM IDRM: 100uA
- Holding Current Ih Max: 20mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات BT137-600E
BT137-600E
Part Number
700mV
Gate Trigger Voltage - Vgt
8A
On-State RMS Current - It RMS
11mA
Gate Trigger Current - Igt
20mA
Holding Current Ih Max
71A
Non Repetitive On-State Current
100uA
Off-State Leakage Current @ VDRM IDRM
600V
Rated Repetitive Off-State Voltage VDRM
-40C
Minimum Operating Temperature
1.65V
On-State Voltage
Tube
Packaging
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
TO-220-3
Package-Case
