OMRON
معرفی

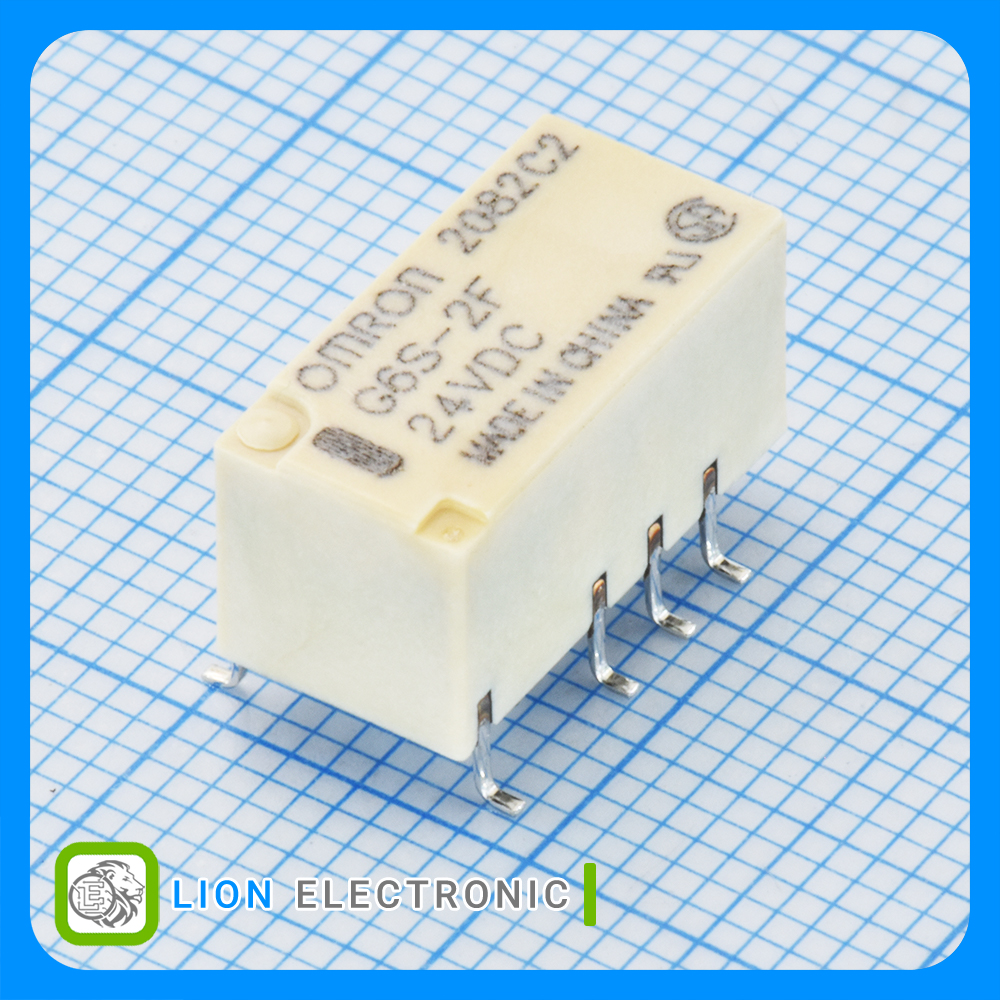

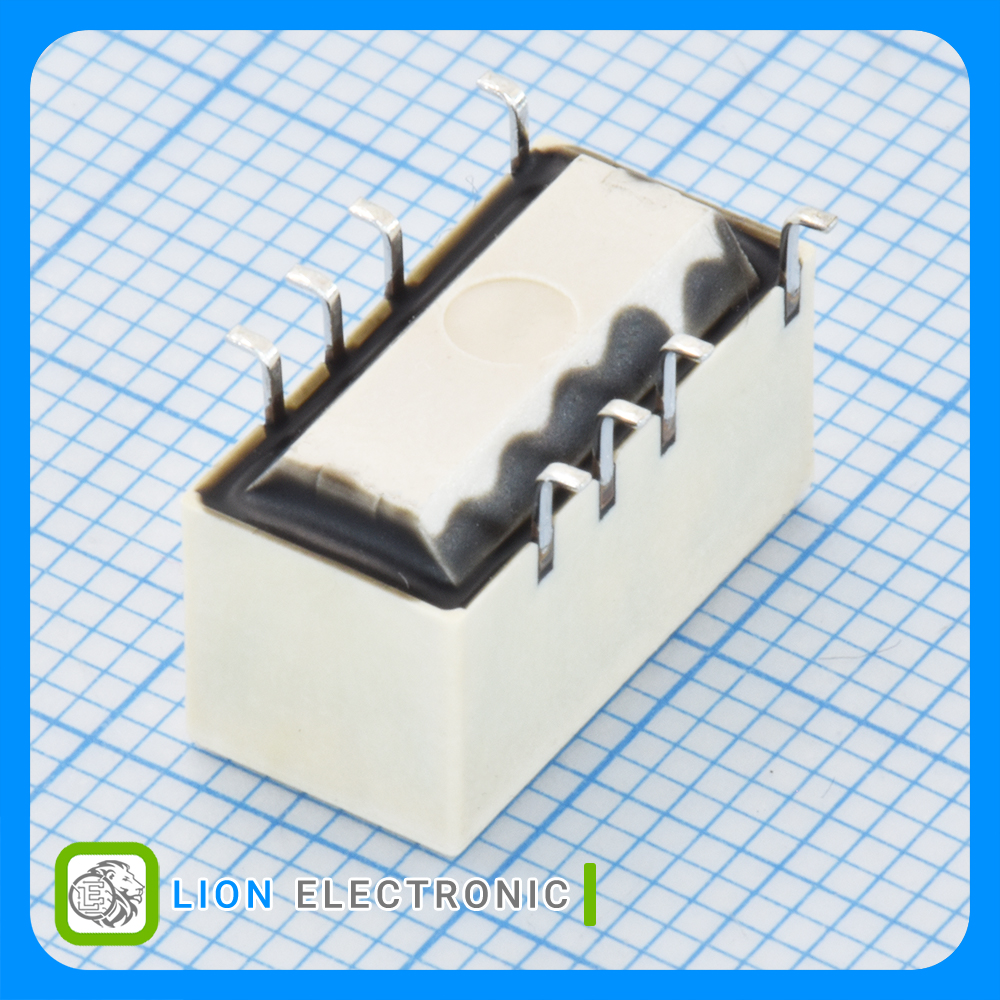

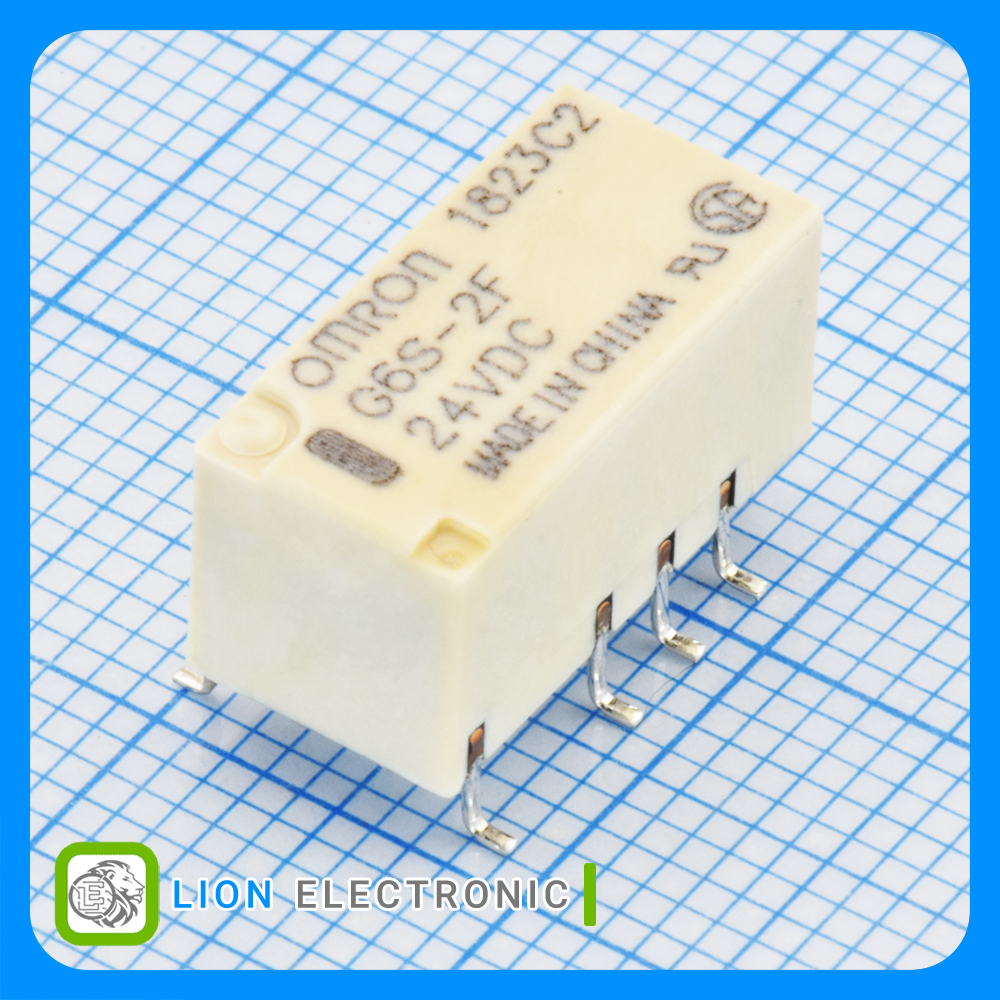

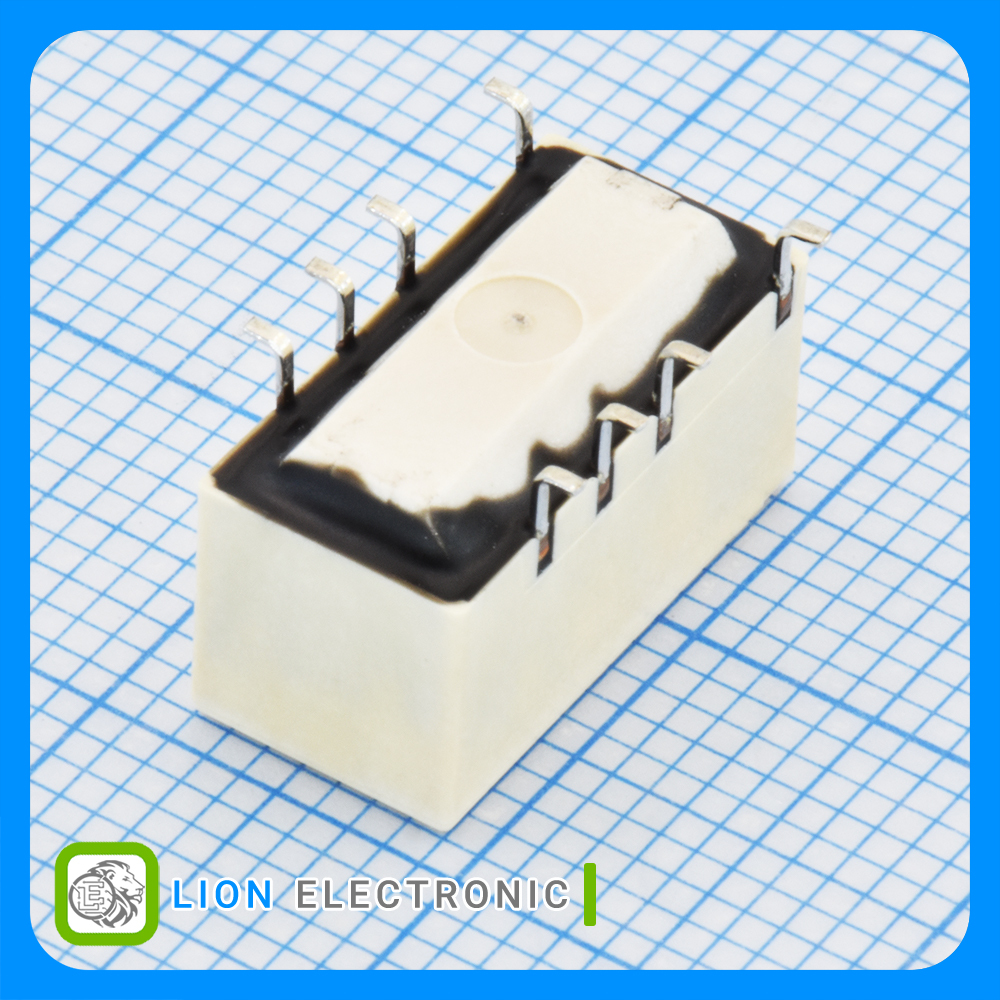

رله غیرلچینگ 2 کنتاکت تغییر (DPDT-NO, NC) ولتاژ کویل 24 ولت DC جریان کنتاکت 2 آمپر با نصب سطحی
Non-Latching General Purpose Relay 2 Form C (DPDT-NO, NC), 24VDC with 2A Contact Current, SMD/SMT Mounting
Specifications
- Relay Contact Form: 2 Form C (DPDT-NO, NC)
- Coil Voltage: 24VDC
- Contact Current Rating: 2A
- Coil Resistance: 2.88kΩ
- Coil Current: 8.3mA
- Power Consumption: 200mW
- Height: 9.2mm
- Length: 14.8mm
- Width: 7.3mm
- Coil Type: Non-Latching
- Mounting Style: SMD/SMT
- Packaging: Tube
- Max Switching Voltage: 250VAC 220VDC
مشخصات رله G6S-2F-24VDC

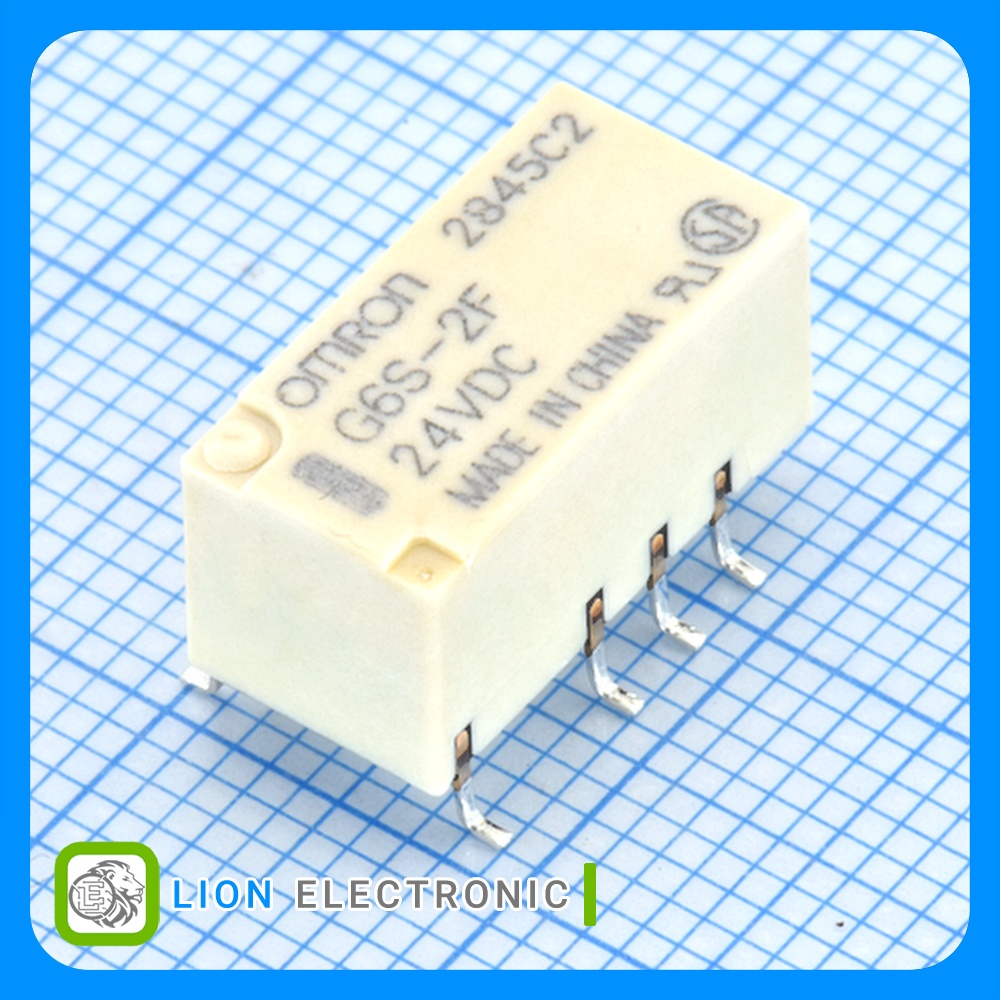

رله G6S-2F-24VDC
Part Number
Non-Latching
Coil Type
2A
Contact Current Rating
200mW
Power Consumption
8.3mA
Coil Current
2 Form C (DPDT-NO, NC)
Relay Contact Form
24VDC
Coil Voltage
250VAC 220VDC
Max Switching Voltage
N/A
insulation class
Tube
Packaging
SMD/SMT
Mounting Style
2.88kΩ
Coil Resistance
7.3mm
Width
14.8mm
Length
9.2mm
Height
