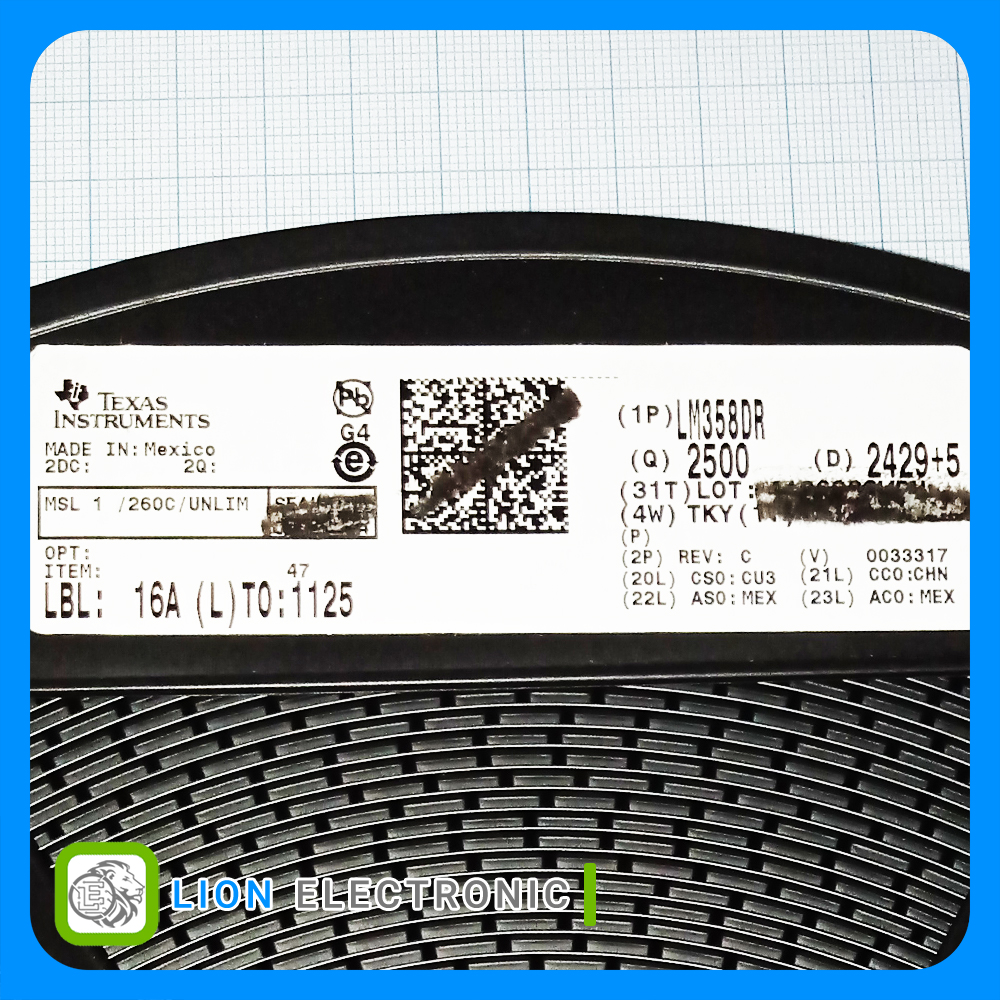

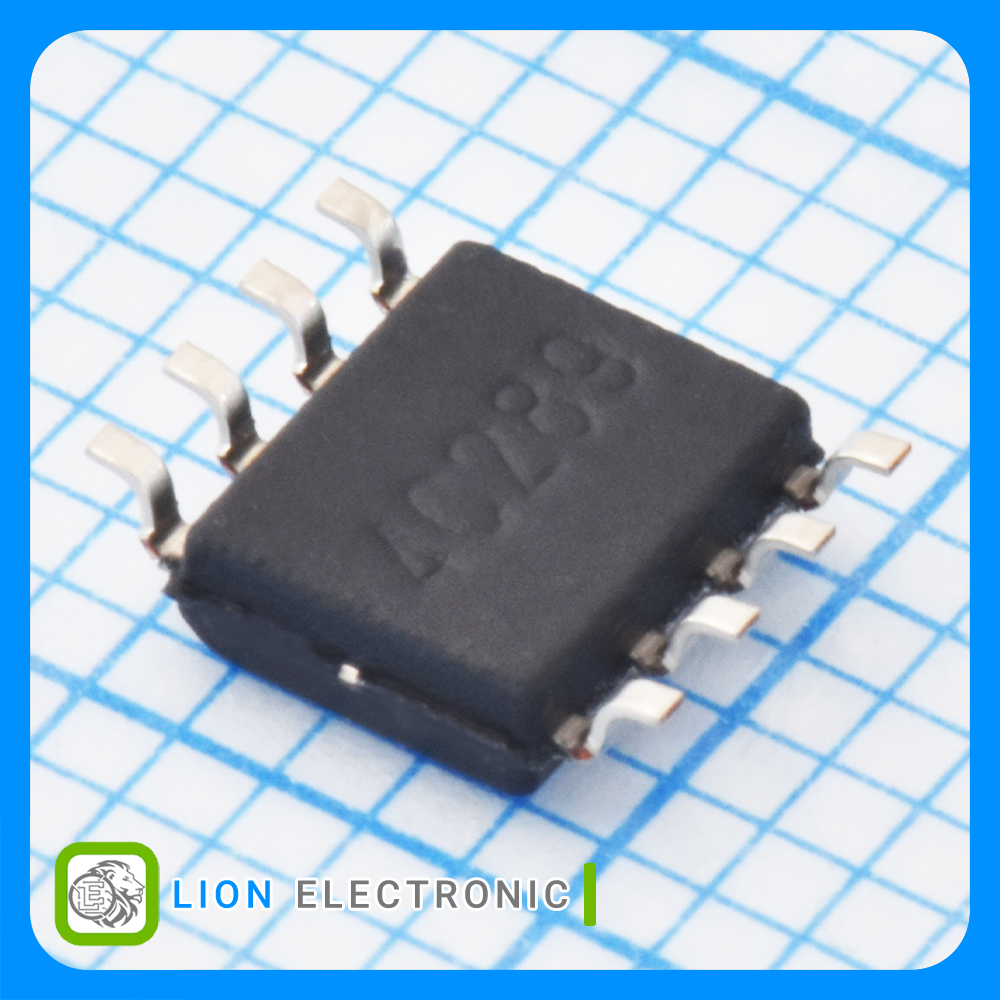

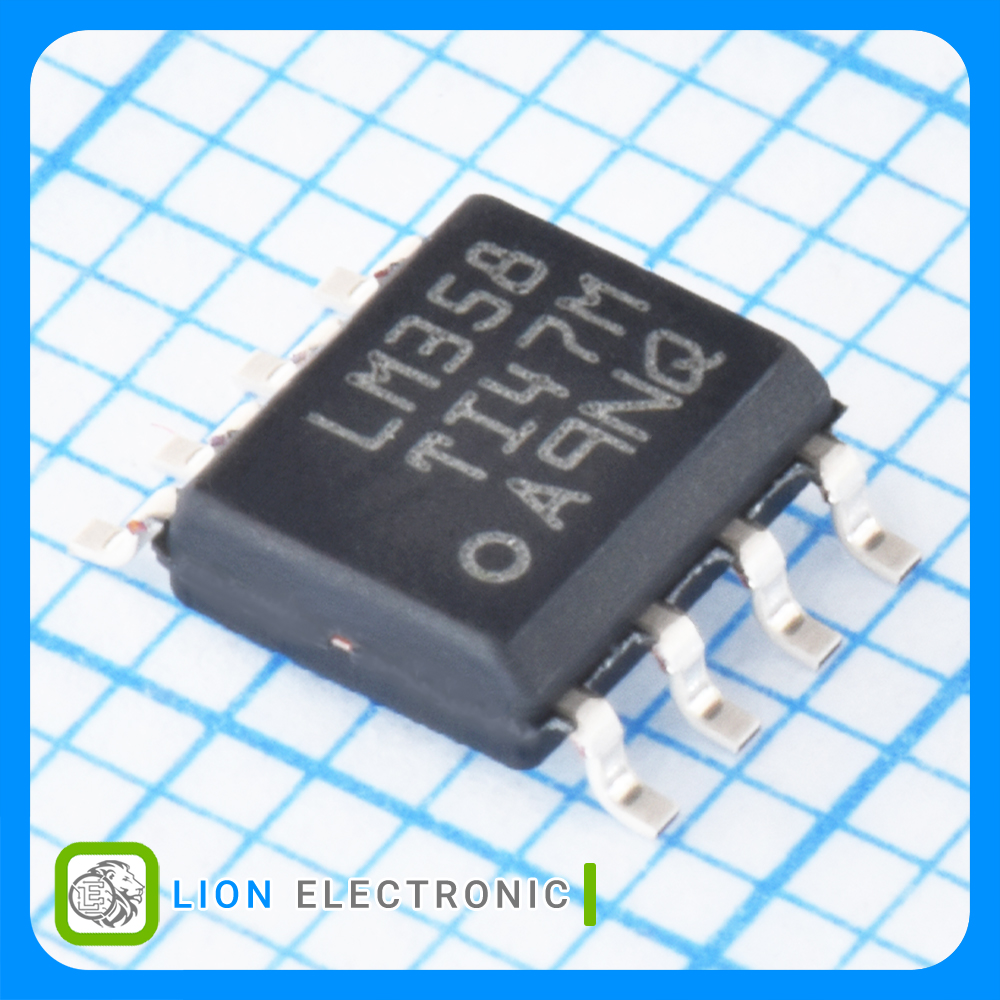

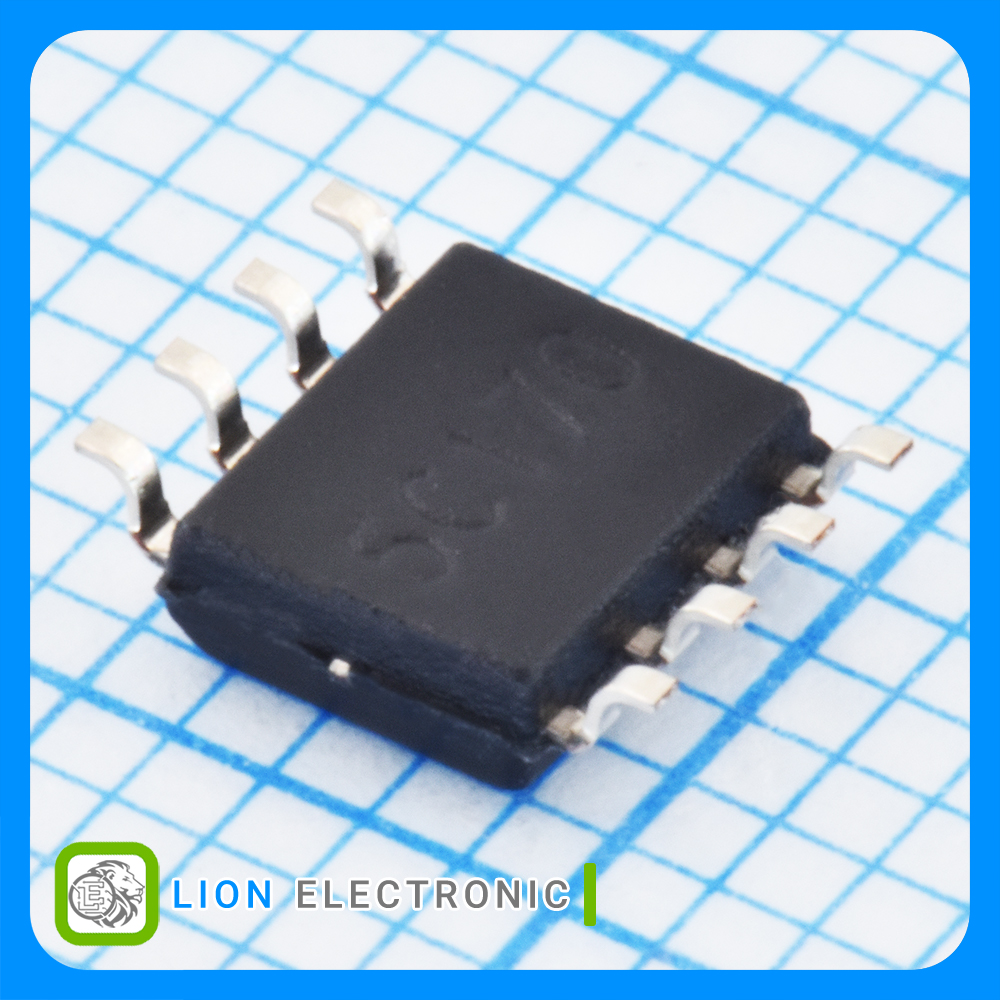

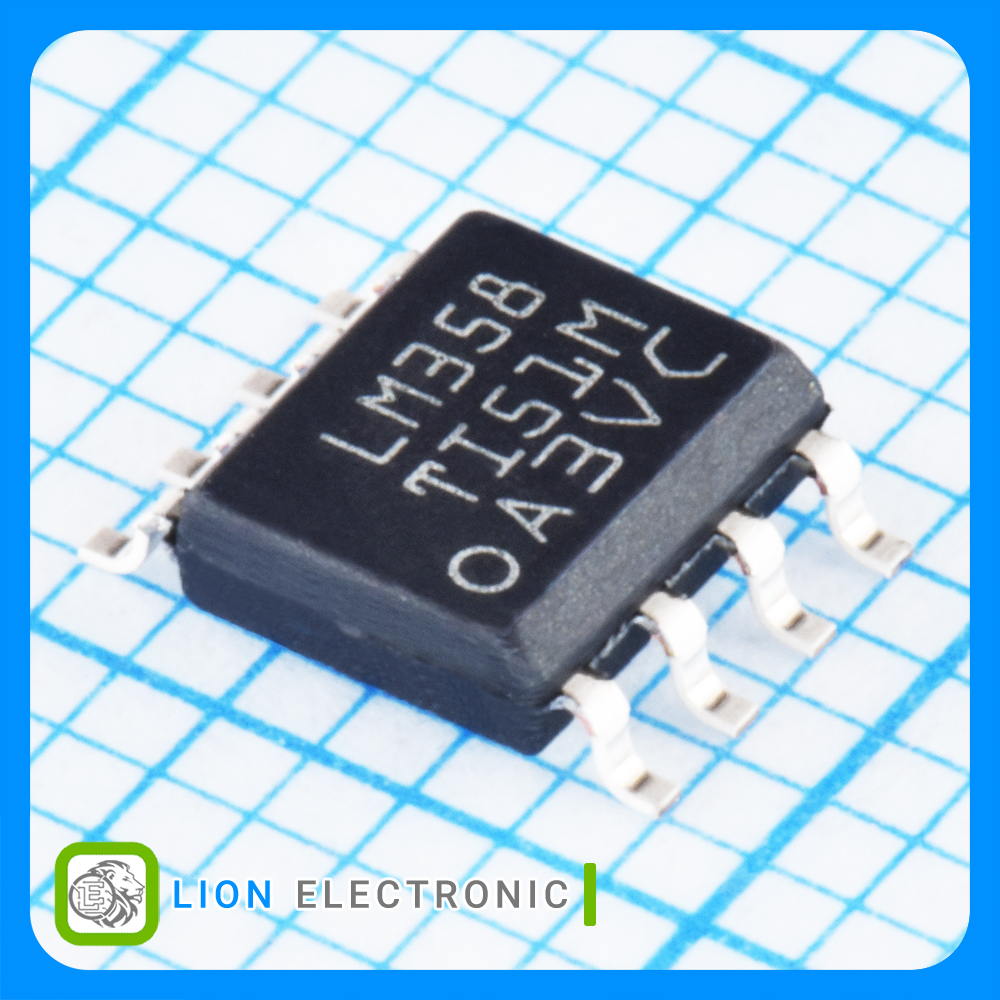

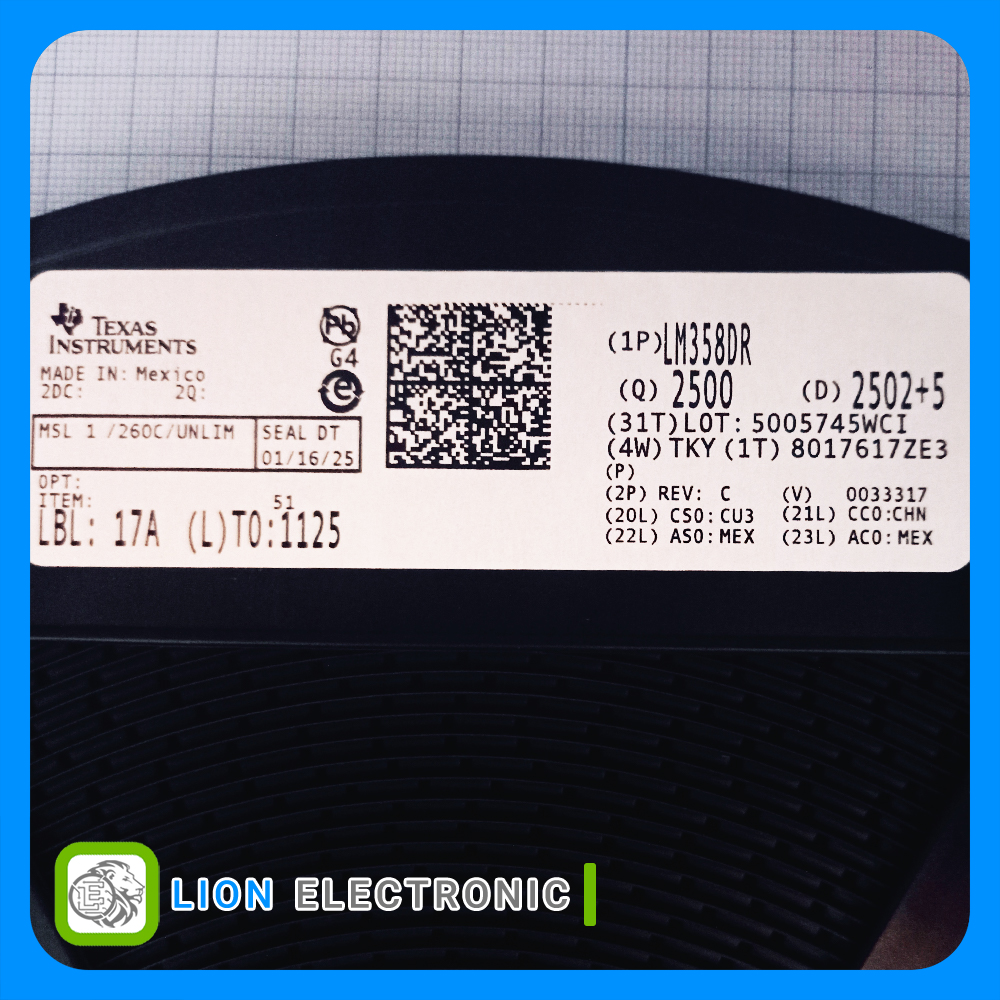

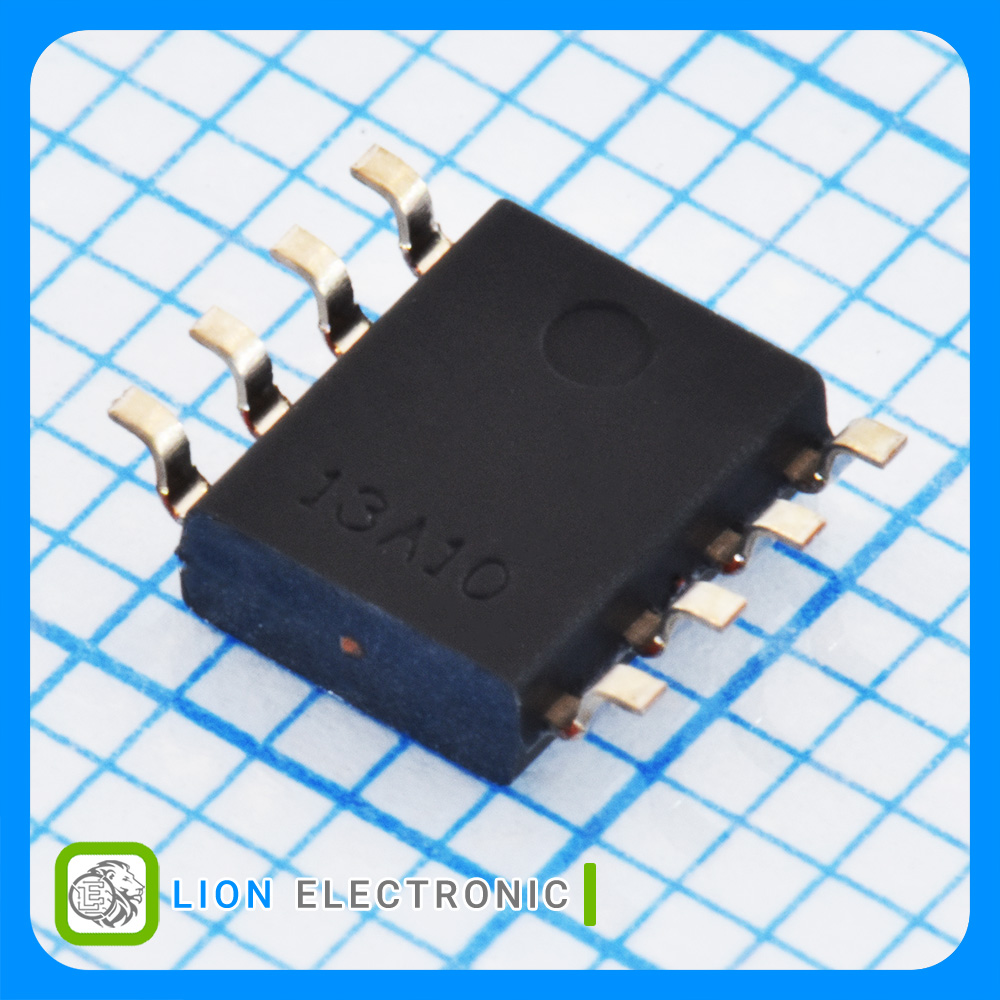

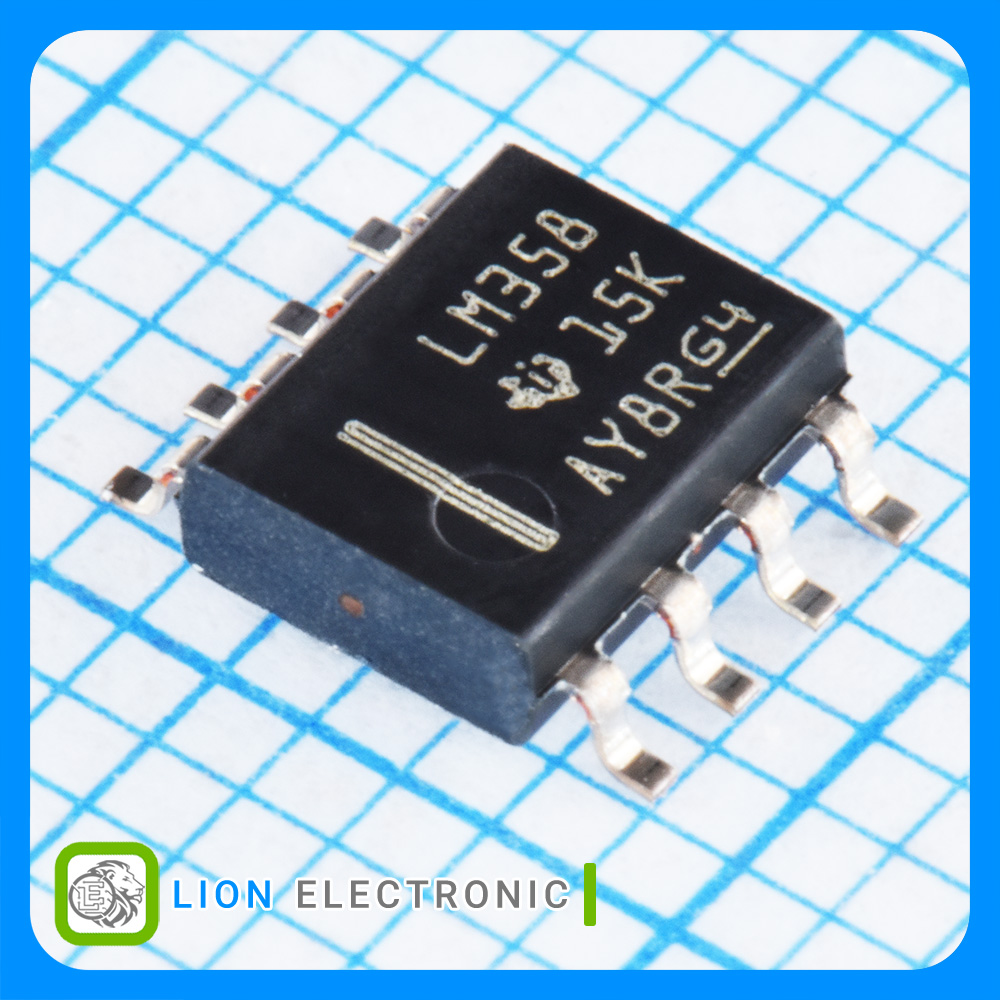

LM358DR
LM358DR
Part Number
451
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 2 کاناله با پهنای باند 700 کیلوهرتز و پکیج SOIC-8
Dual Operational Amplifier 2-Channel, 700KHz with SOIC-8 Package
معرفی
آپامپ 2 کاناله با پهنای باند 700 کیلوهرتز و پکیج SOIC-8
Dual Operational Amplifier 2-Channel, 700KHz with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 30mA
- SR - Slew Rate: 300mV/us
- GBP - Gain Bandwidth Product: 700KHz
- CMRR - Common Mode Rejection Ratio: 65dB to 80dB
- Ib - Input Bias Current: 150nA
- Vos - Input Offset Voltage: 3mV
- Supply Voltage - Max: 32V
- Supply Voltage - Min: 3V
- Operating Supply Current: 350uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Reel
مشخصات آپ امپ LM358DR

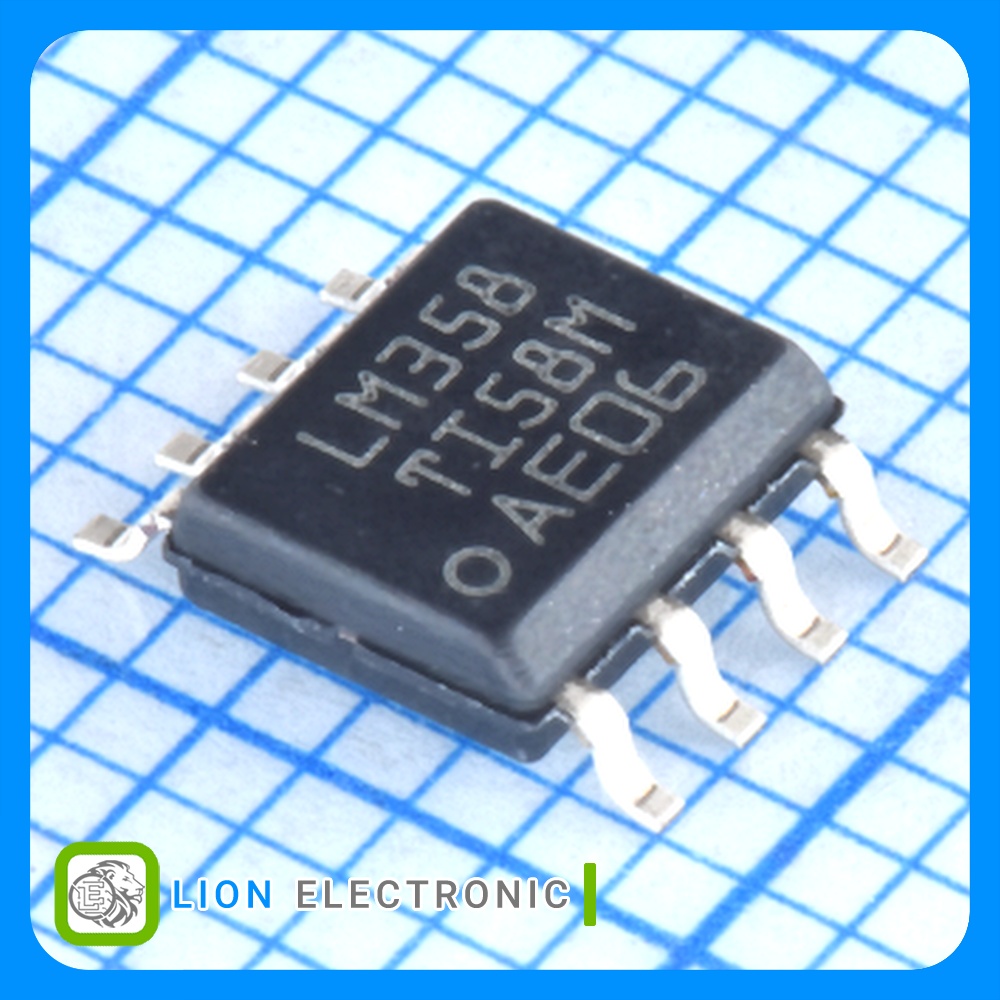

آپ امپ LM358DR
Part Number
No Shutdown
Shutdown
2
Number of Channels
+70C
Maximum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
300mV/us
SR - Slew Rate
65dB to 80dB
CMRR - Common Mode Rejection Ratio
0C
Minimum Operating Temperature
700KHz
GBP - Gain Bandwidth Product
30mA
Output Current per Channel
3V
Supply Voltage - Min
3mV
Vos - Input Offset Voltage
150nA
Ib - Input Bias Current
32V
Supply Voltage - Max
350uA
Operating Supply Current
SOIC-8
Package-Case
