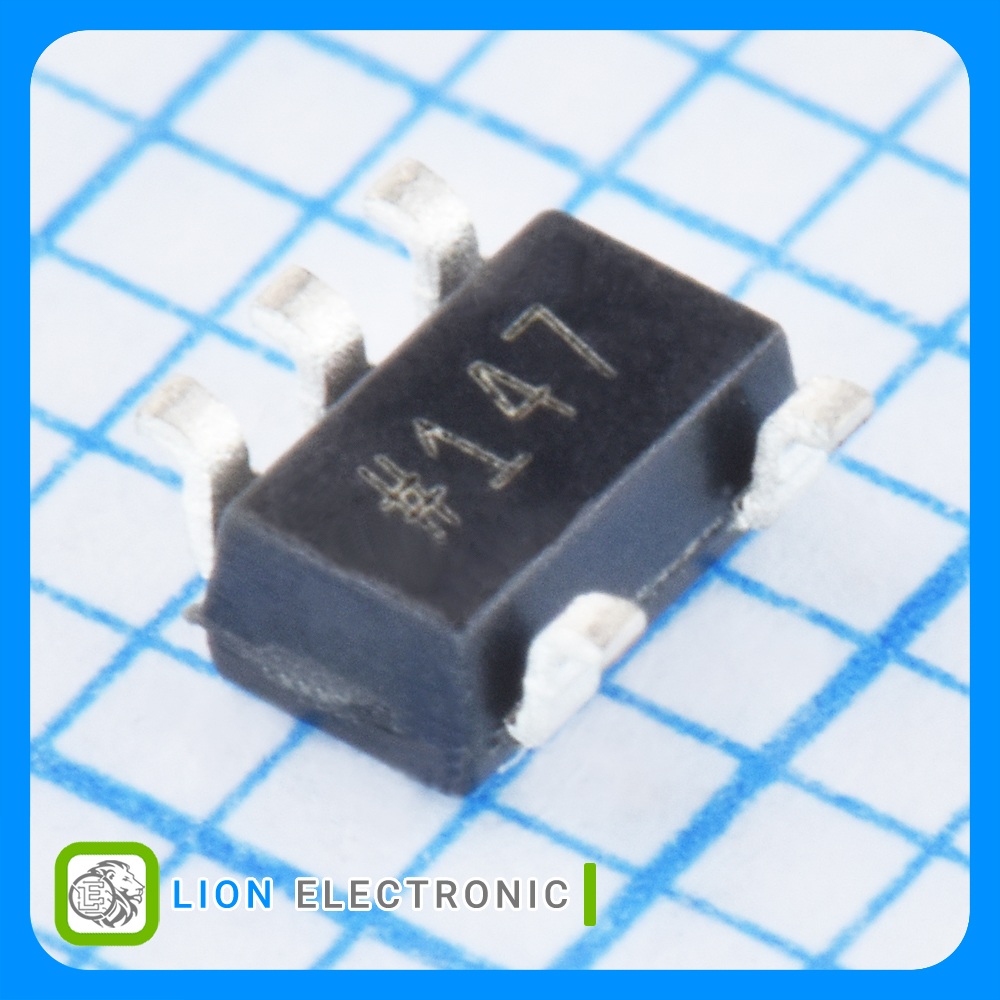

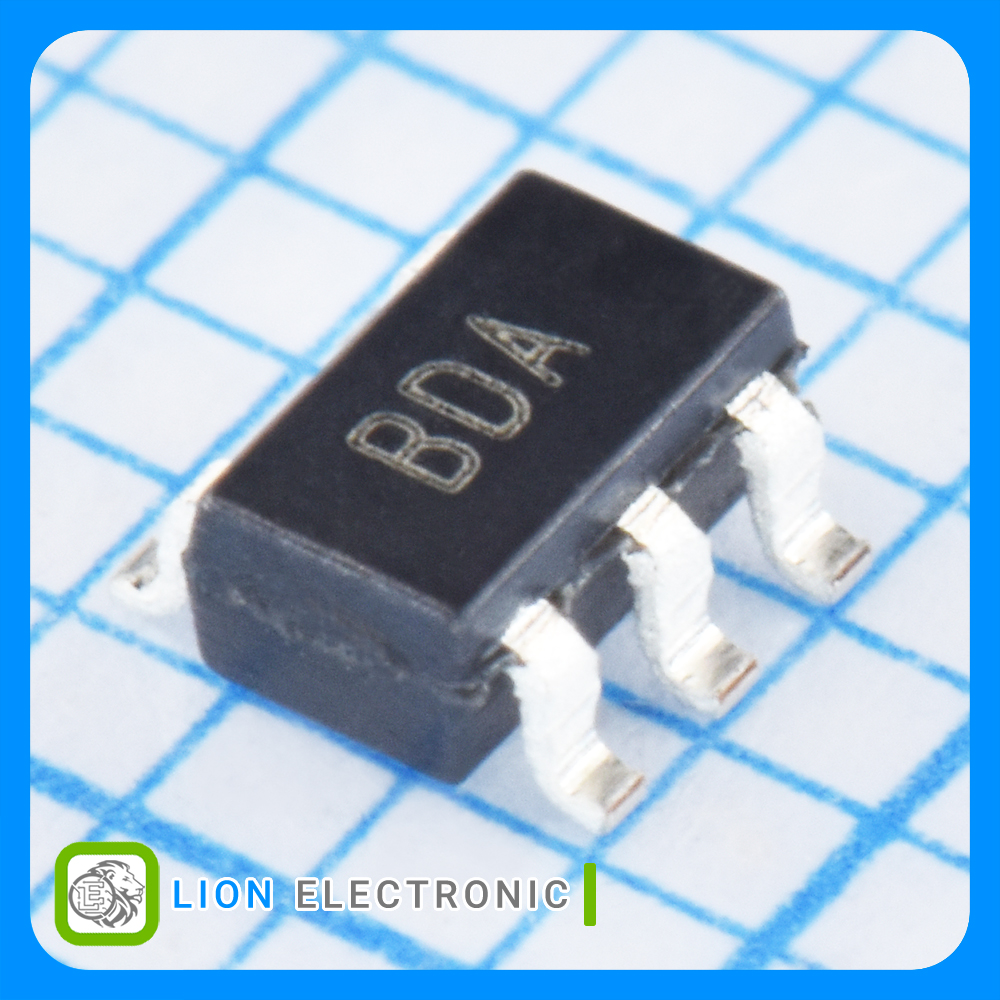

AD8515ARTZ
AD8515ARTZ
Part Number
452
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ 1 کاناله CMOS کممصرف با ورودی و خروجی ریل تو ریل، پهنای باند 5 مگاهرتز و پکیج SOT-23-5
Low-Power CMOS Rail-to-Rail Input/Output Operational Amplifier 1-Channel, 5MHz with SOT-23-5 Package
معرفی
آپامپ 1 کاناله CMOS کممصرف با ورودی و خروجی ریل تو ریل، پهنای باند 5 مگاهرتز و پکیج SOT-23-5
Low-Power CMOS Rail-to-Rail Input/Output Operational Amplifier 1-Channel, 5MHz with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 20mA
- SR - Slew Rate: 2.7V/us
- GBP - Gain Bandwidth Product: 5MHz
- CMRR - Common Mode Rejection Ratio: 50dB
- Ib - Input Bias Current: 30pA
- Vos - Input Offset Voltage: 1mV
- Supply Voltage - Max: 6V
- Supply Voltage - Min: 1.8V
- Operating Supply Current: 500uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ AD8515ARTZ
آپ امپ AD8515ARTZ
Part Number
50dB
CMRR - Common Mode Rejection Ratio
1
Number of Channels
No Shutdown
Shutdown
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
20mA
Output Current per Channel
30pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
1.8V
Supply Voltage - Min
6V
Supply Voltage - Max
2.7V/us
SR - Slew Rate
1mV
Vos - Input Offset Voltage
5MHz
GBP - Gain Bandwidth Product
500uA
Operating Supply Current
SOT-23-5
Package-Case
