WeEn/NXP
معرفی

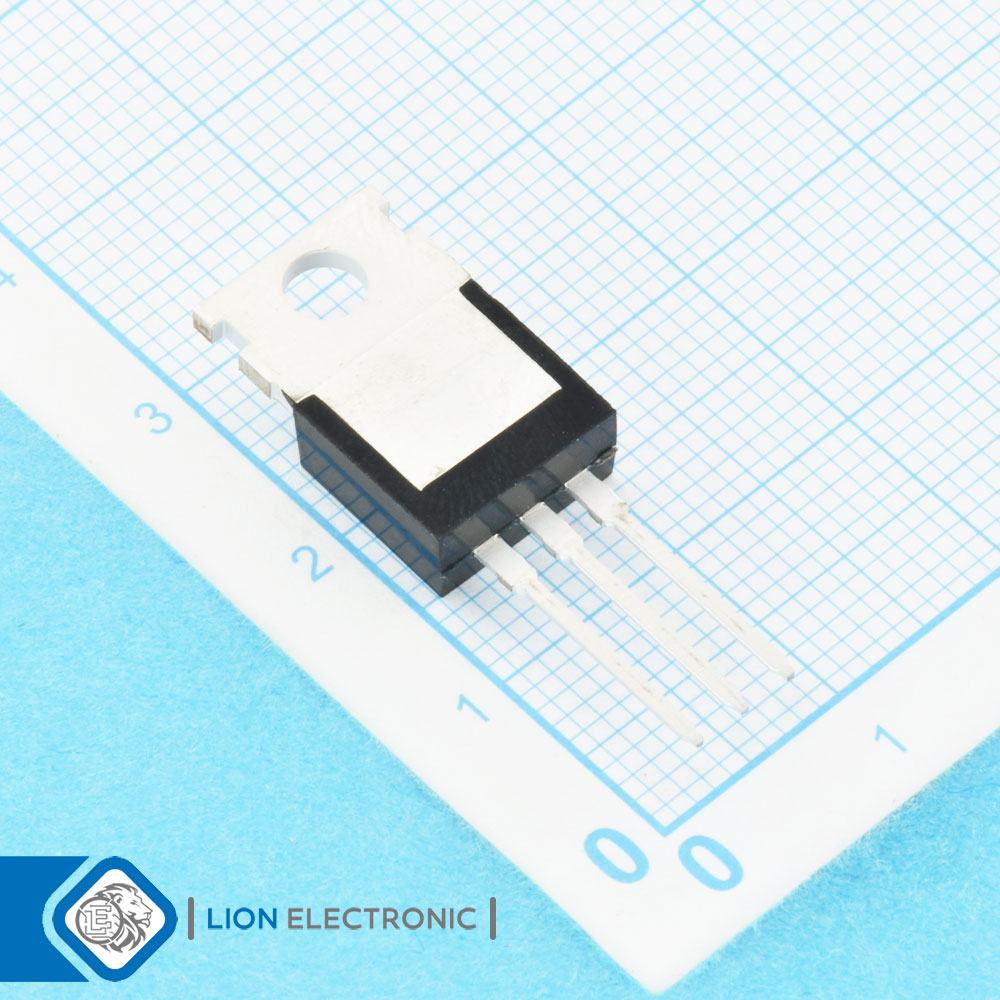

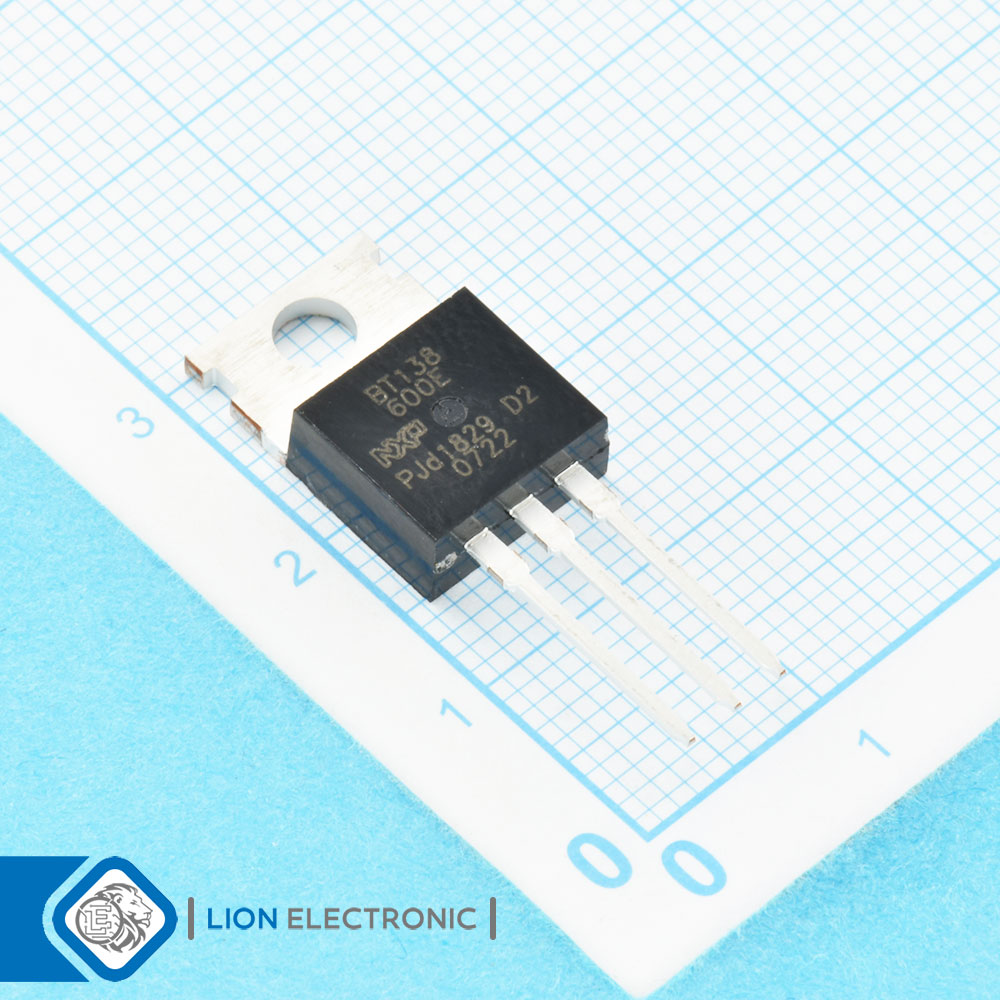

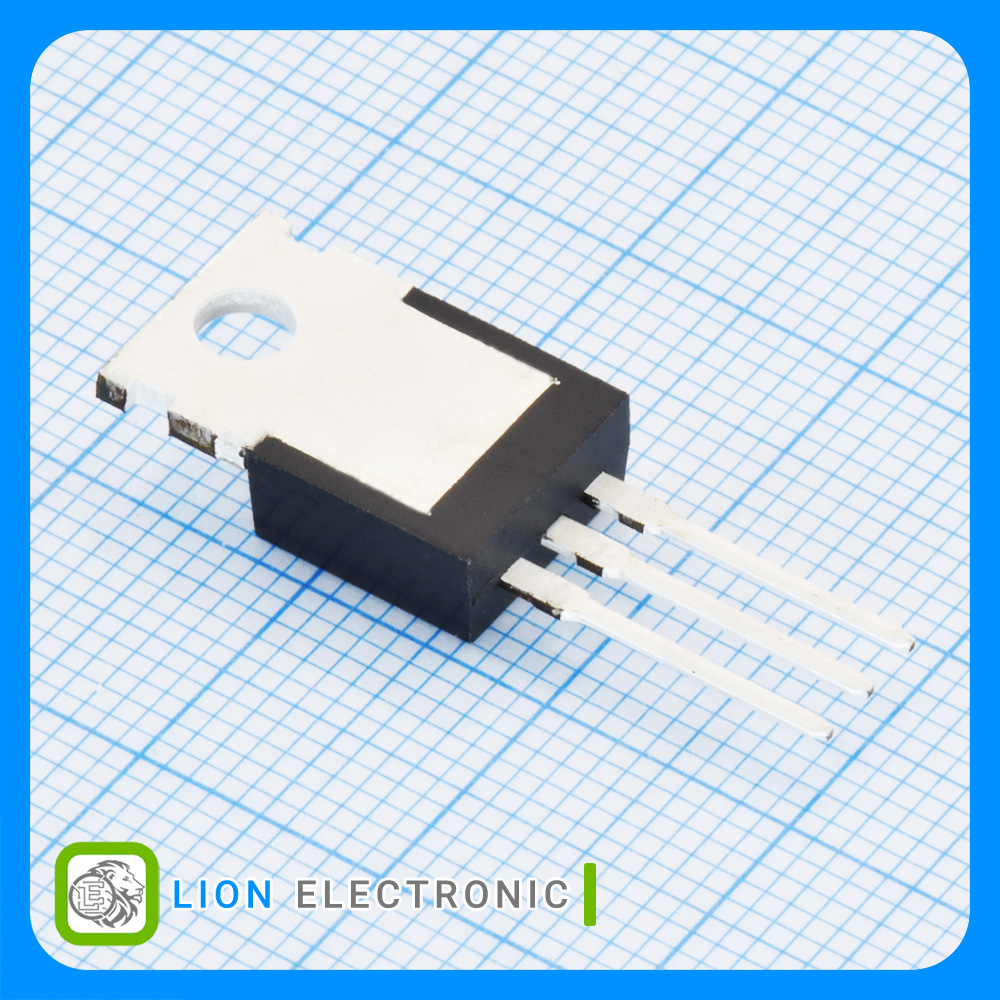

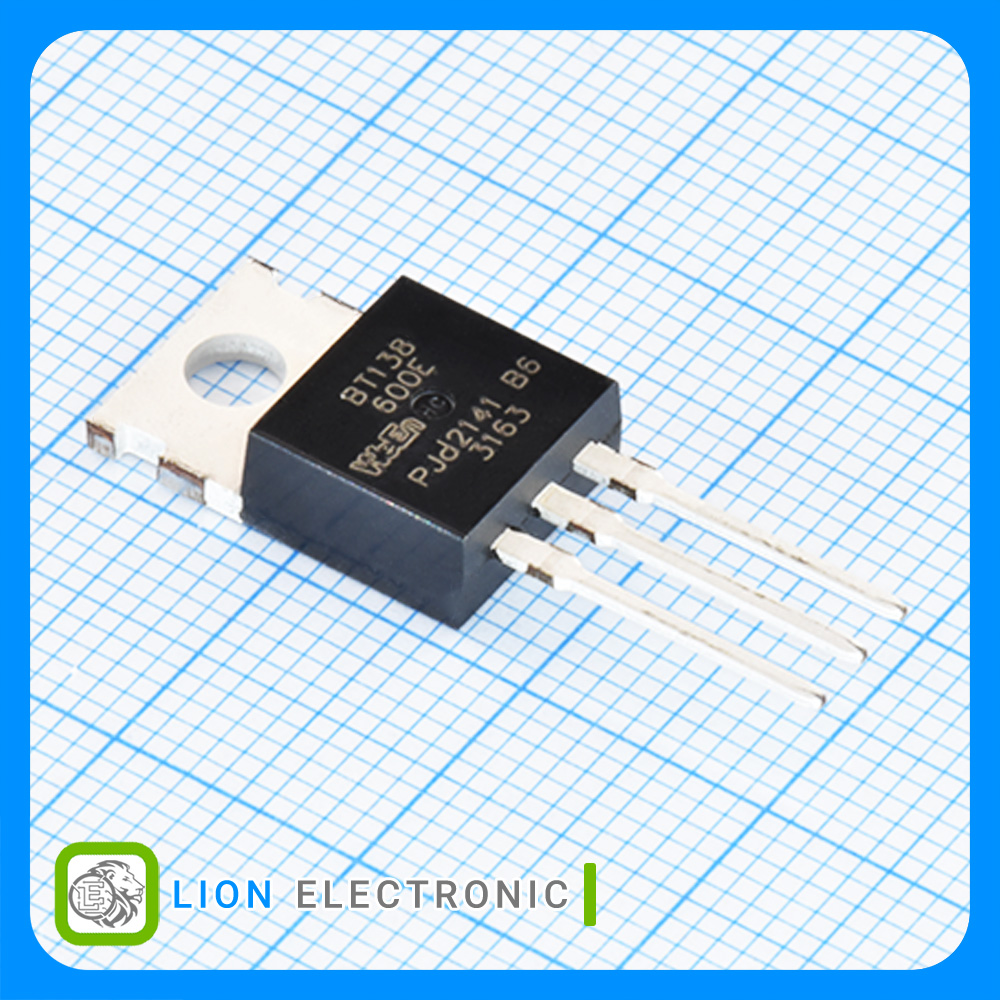

ترایاک 600 ولت 12 آمپر با پکیج TO-220-3
Triac 600V, 12A with TO-220-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 12A
- On-State Voltage: 1.65V
- Gate Trigger Voltage - Vgt: 1.5V
- Gate Trigger Current - Igt: 25mA
- Non Repetitive On-State Current: 105A
- Off-State Leakage Current @ VDRM IDRM: 100uA
- Holding Current Ih Max: 30mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات BT138-600E

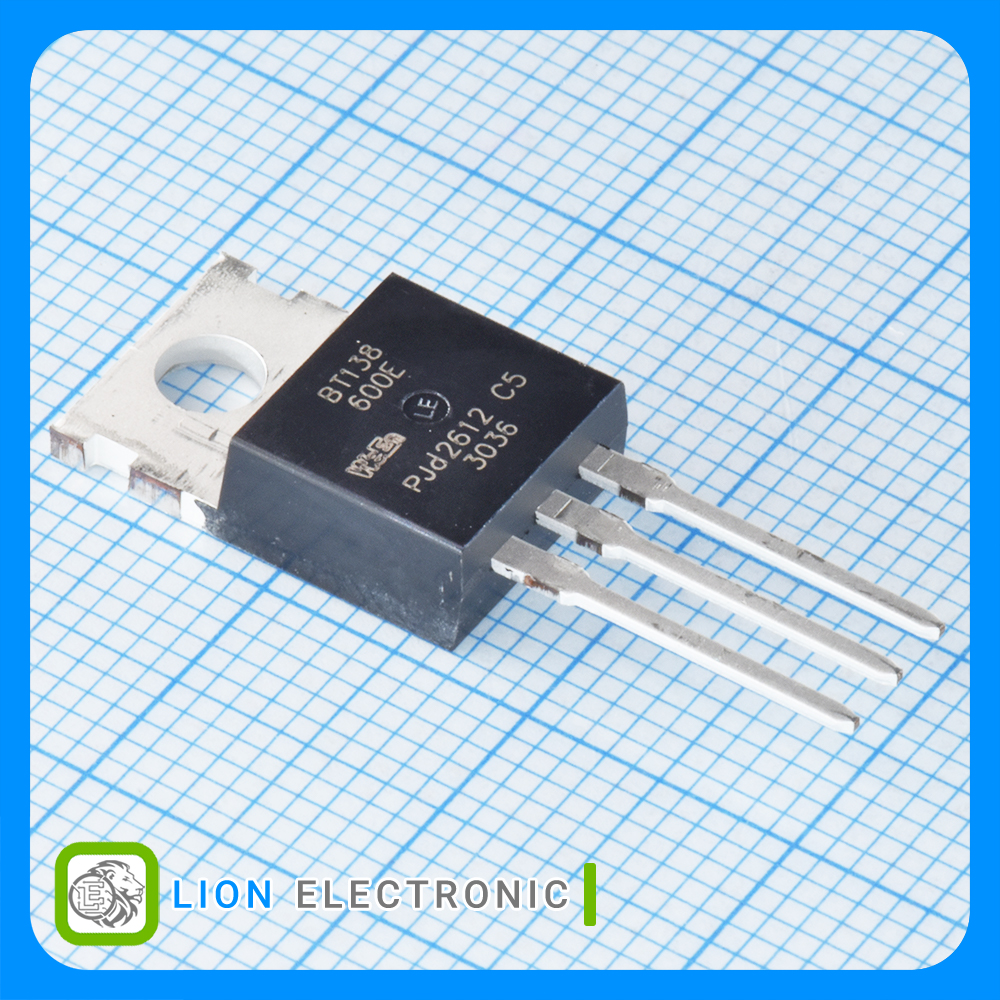

BT138-600E
Part Number
100uA
Off-State Leakage Current @ VDRM IDRM
12A
On-State RMS Current - It RMS
600V
Rated Repetitive Off-State Voltage VDRM
105A
Non Repetitive On-State Current
30mA
Holding Current Ih Max
-40C
Minimum Operating Temperature
25mA
Gate Trigger Current - Igt
1.5V
Gate Trigger Voltage - Vgt
1.65V
On-State Voltage
Tube
Packaging
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
TO-220
Package-Case
