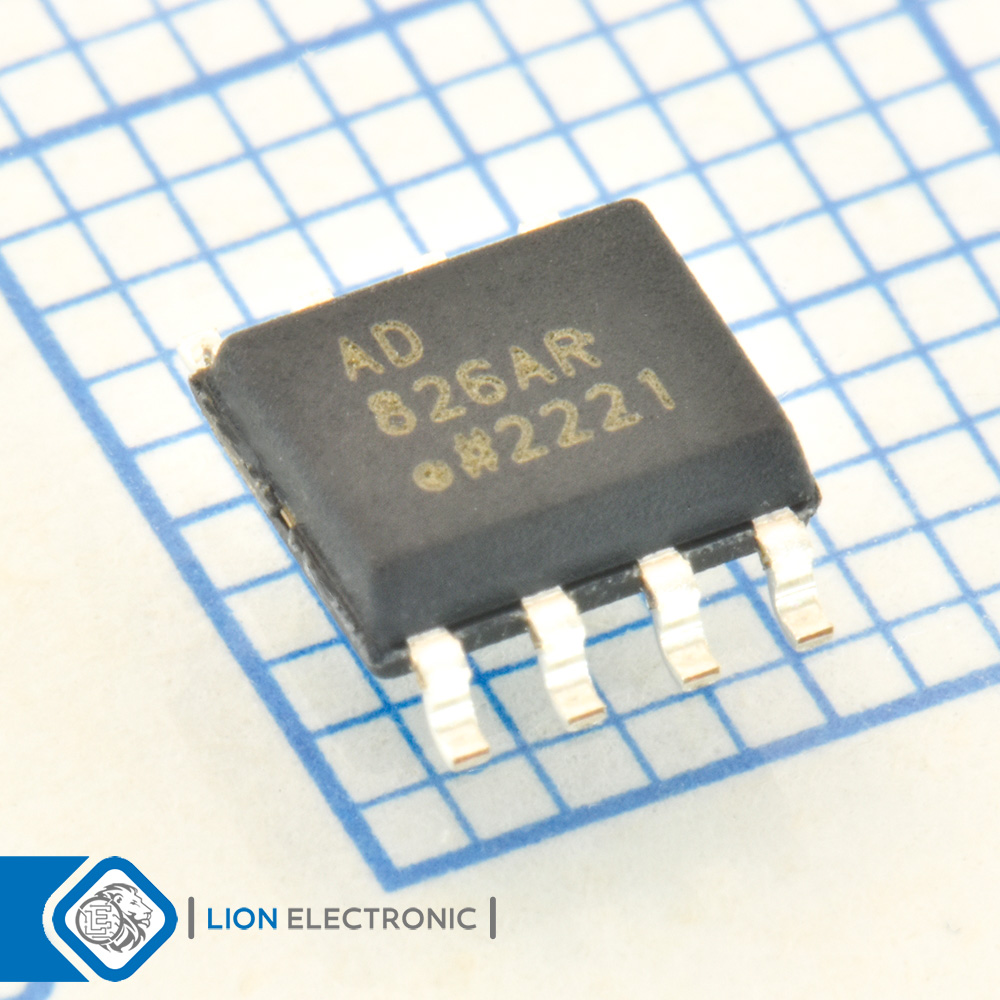

AD826ARZ
AD826ARZ
Part Number
461
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ دقیق 2 کاناله پر سرعت با پهنای باند 50 مگاهرتز و پکیج SOIC-8
High-Speed, Low-Power Dual Operational Amplifier, 50MHz with SOIC-8 Package
معرفی
آپامپ دقیق 2 کاناله پر سرعت با پهنای باند 50 مگاهرتز و پکیج SOIC-8
High-Speed, Low-Power Dual Operational Amplifier, 50MHz with SOIC-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 50mA
- SR - Slew Rate: 350V/us
- GBP - Gain Bandwidth Product: 50MHz
- CMRR - Common Mode Rejection Ratio: 120dB
- Ib - Input Bias Current: 6.6uA
- Vos - Input Offset Voltage: 500uV
- Supply Voltage - Max: 36V
- Supply Voltage - Min: 5V
- Operating Supply Current: 6.8mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات آپ امپ AD826ARZ
آپ امپ AD826ARZ
Part Number
No Shutdown
Shutdown
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
15nV/sqrt Hz
en - Input Voltage Noise Density
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
50mA
Output Current per Channel
500uV
Vos - Input Offset Voltage
120dB
CMRR - Common Mode Rejection Ratio
50MHz
GBP - Gain Bandwidth Product
350V/us
SR - Slew Rate
5V
Supply Voltage - Min
36V
Supply Voltage - Max
6.6uA
Ib - Input Bias Current
6.8mA
Operating Supply Current
SOIC-8
Package-Case
