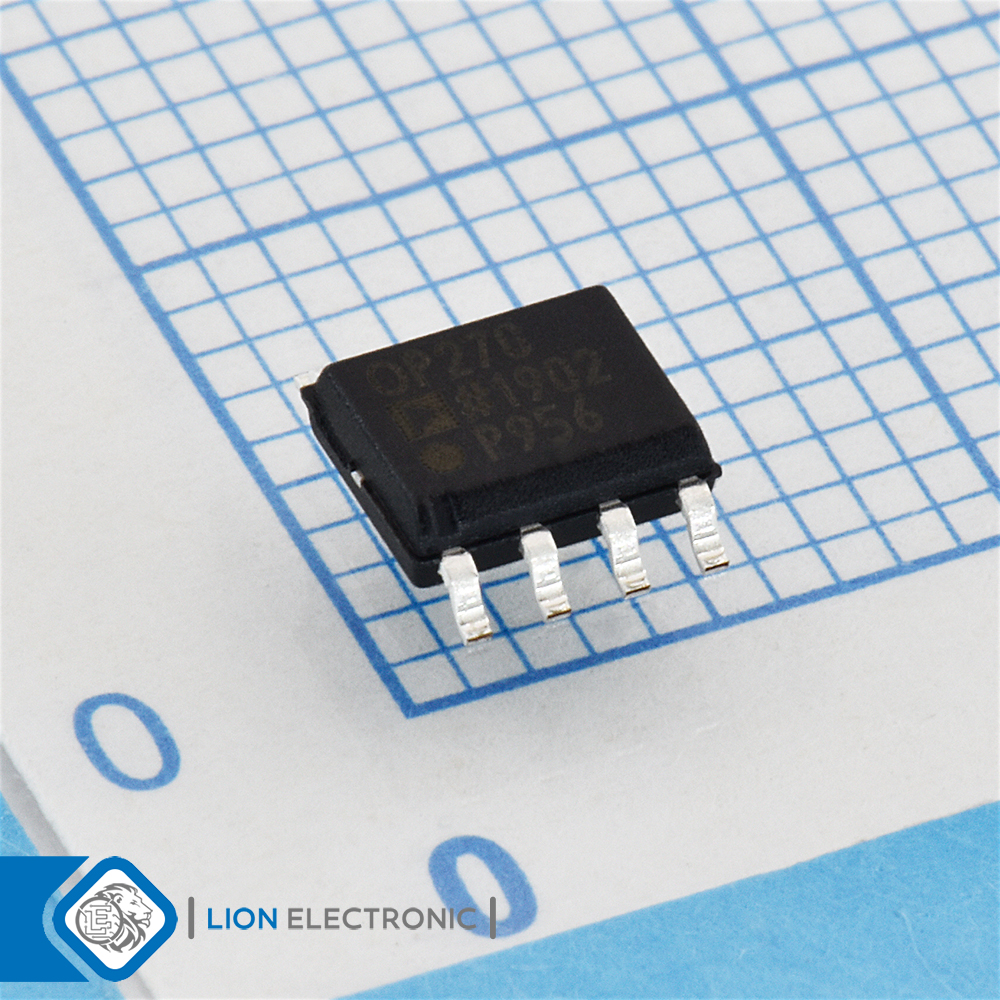

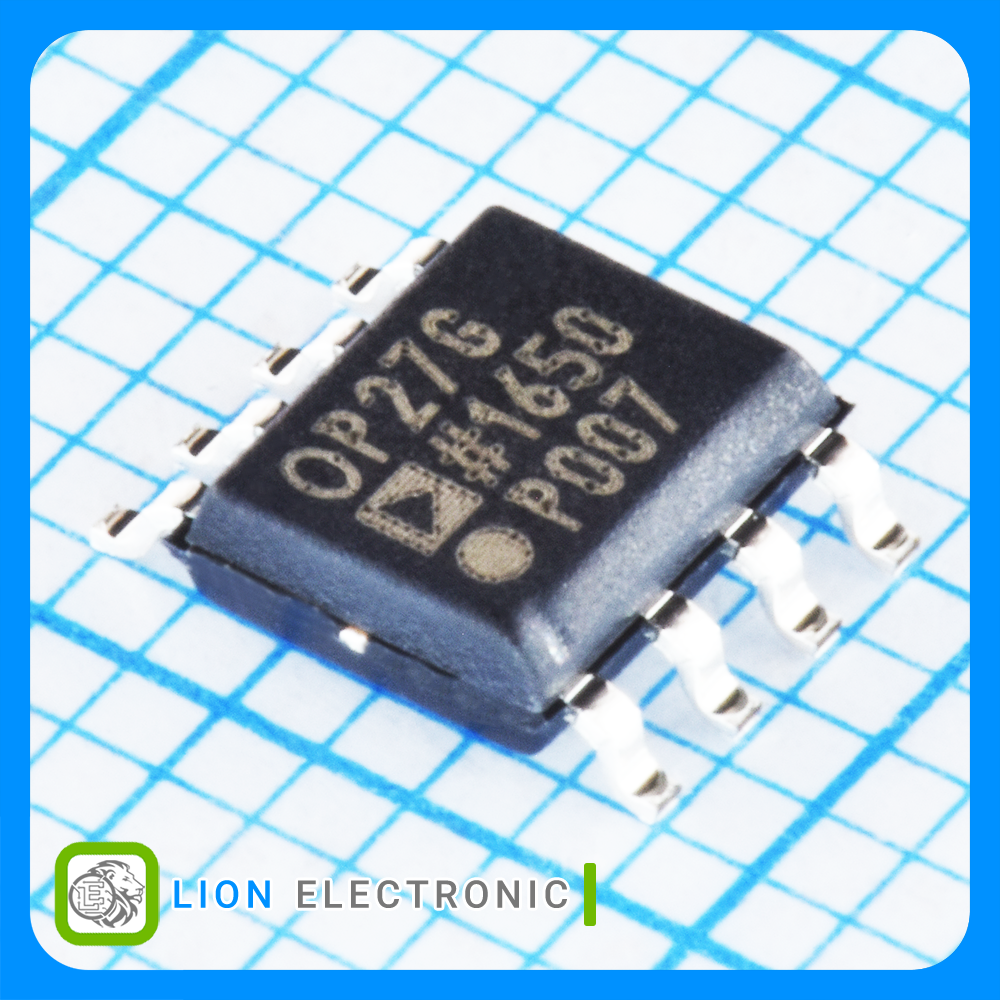

OP27GSZ
OP27GSZ
Part Number
467
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ دقیق 1 کاناله با نویز پایین، پهنای باند 8 مگاهرتز و پکیج SOIC-8
Low Noise, Precision Operational Amplifier 1-Channel, 8MHz with SOIC-8 Package
معرفی
آپامپ دقیق 1 کاناله با نویز پایین، پهنای باند 8 مگاهرتز و پکیج SOIC-8
Low Noise, Precision Operational Amplifier 1-Channel, 8MHz with SOIC-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 20mA
- SR - Slew Rate: 1.7V/us
- GBP - Gain Bandwidth Product: 8MHz
- CMRR - Common Mode Rejection Ratio: 126dB
- Ib - Input Bias Current: 15nA
- Vos - Input Offset Voltage: 100uV
- Supply Voltage - Max: 22V
- Supply Voltage - Min: -22V
- Operating Supply Current: 4.67mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات آپ امپ OP27GSZ
آپ امپ OP27GSZ
Part Number
No Shutdown
Shutdown
3.8nV/sqrt Hz
en - Input Voltage Noise Density
-22V
Supply Voltage - Min
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
20mA
Output Current per Channel
100uV
Vos - Input Offset Voltage
1.7V/us
SR - Slew Rate
15nA
Ib - Input Bias Current
8MHz
GBP - Gain Bandwidth Product
22V
Supply Voltage - Max
126dB
CMRR - Common Mode Rejection Ratio
4.67mA
Operating Supply Current
SOIC-8
Package-Case
