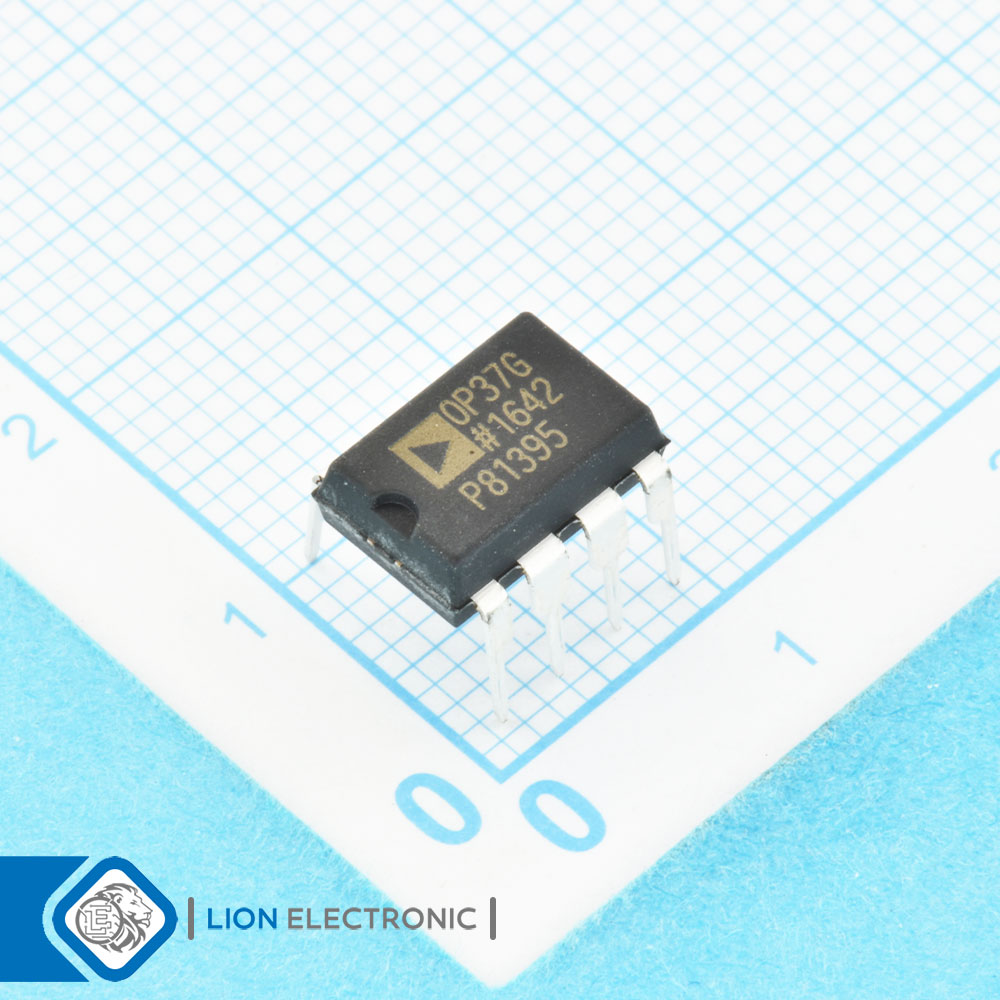

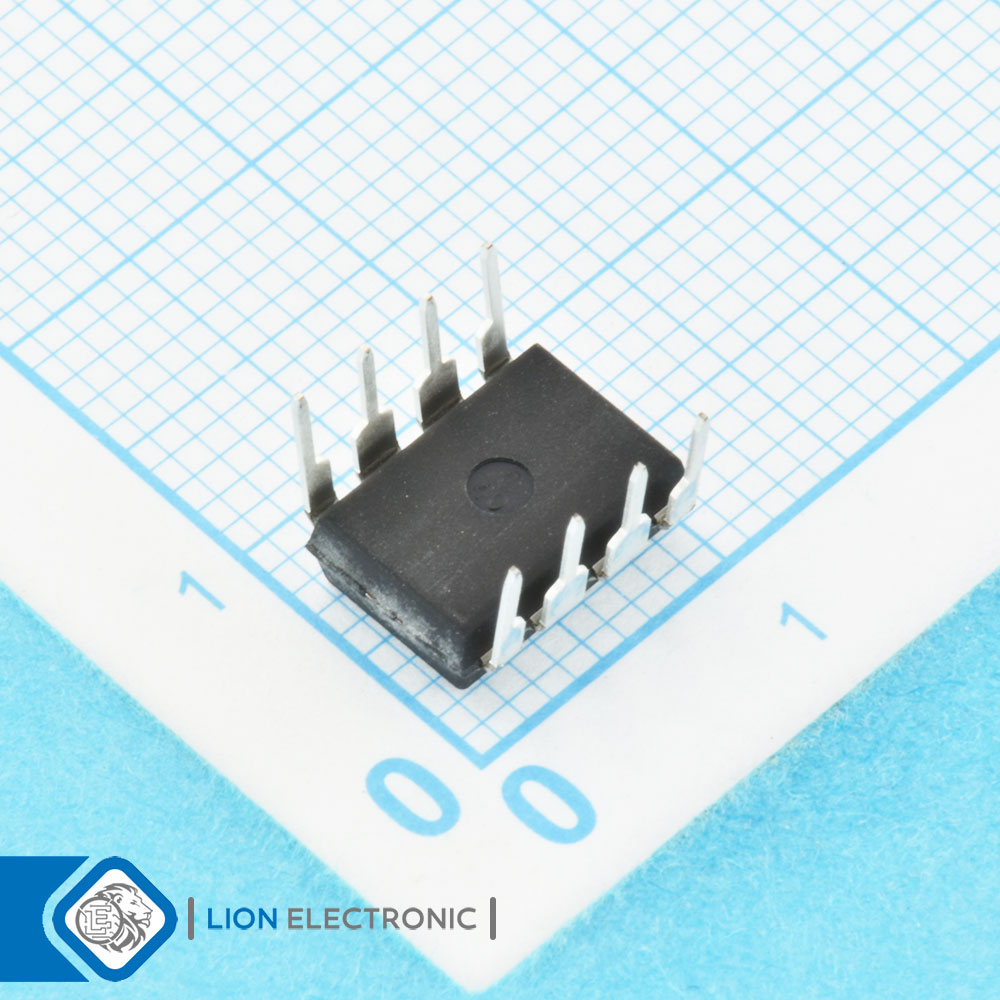

OP37GPZ
OP37GPZ
Part Number
468
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ 1 کاناله با پهنای باند 63 مگاهرتز و پکیج DIP-8
Operational Amplifier 1-Channel, 63MHz with DIP-8 Package
معرفی
آپامپ 1 کاناله با پهنای باند 63 مگاهرتز و پکیج DIP-8
Operational Amplifier 1-Channel, 63MHz with DIP-8 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 10mA
- SR - Slew Rate: 17V/us
- GBP - Gain Bandwidth Product: 63MHz
- CMRR - Common Mode Rejection Ratio: 120dB
- Ib - Input Bias Current: 80nA
- Vos - Input Offset Voltage: 30uV
- Supply Voltage - Max: 22V
- Supply Voltage - Min: 4V
- Operating Supply Current: 3.5mA
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات آپ امپ OP37GPZ

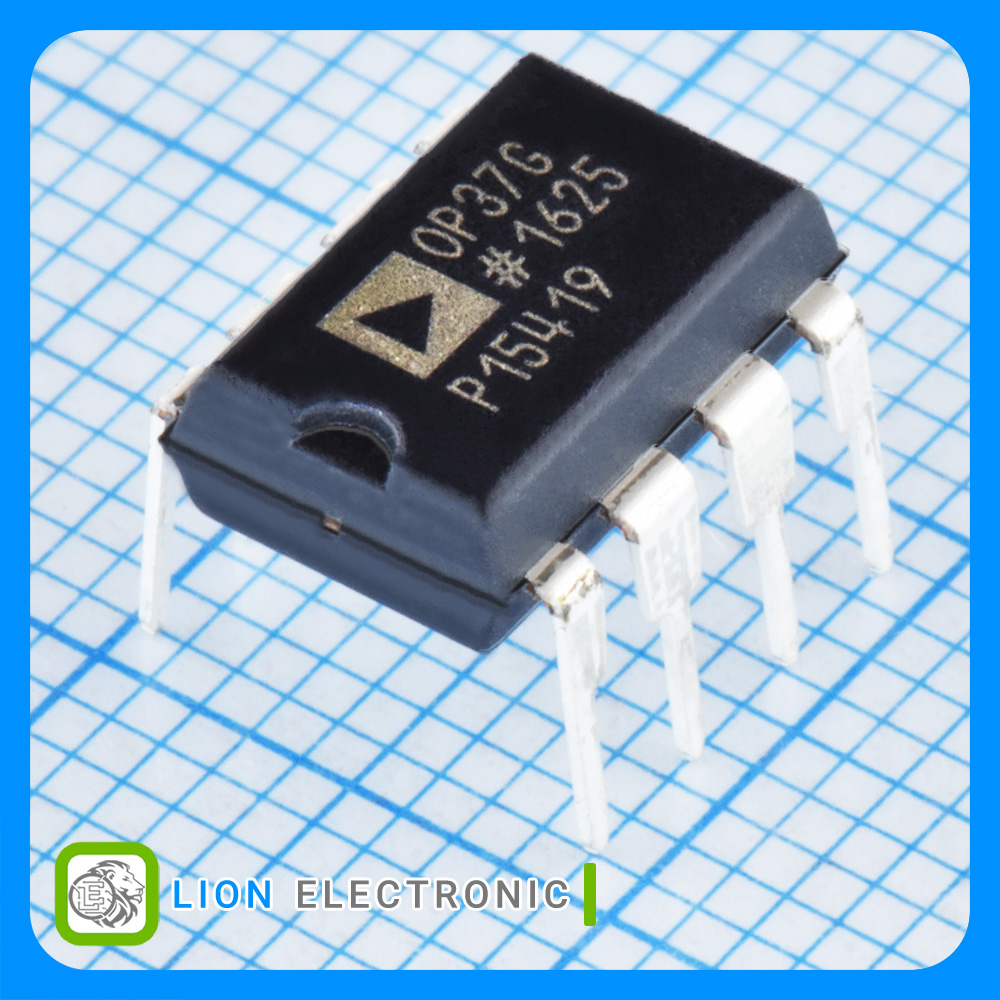

آپ امپ OP37GPZ
Part Number
3.8nV/sqrt Hz
en - Input Voltage Noise Density
1
Number of Channels
No Shutdown
Shutdown
-40C
Minimum Operating Temperature
Tube
Packaging
10mA
Output Current per Channel
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
30uV
Vos - Input Offset Voltage
17V/us
SR - Slew Rate
80nA
Ib - Input Bias Current
120dB
CMRR - Common Mode Rejection Ratio
4V
Supply Voltage - Min
22V
Supply Voltage - Max
63MHz
GBP - Gain Bandwidth Product
DIP-8
Package-Case
3.5mA
Operating Supply Current
